FU(H4SOw/oOBD)-6

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

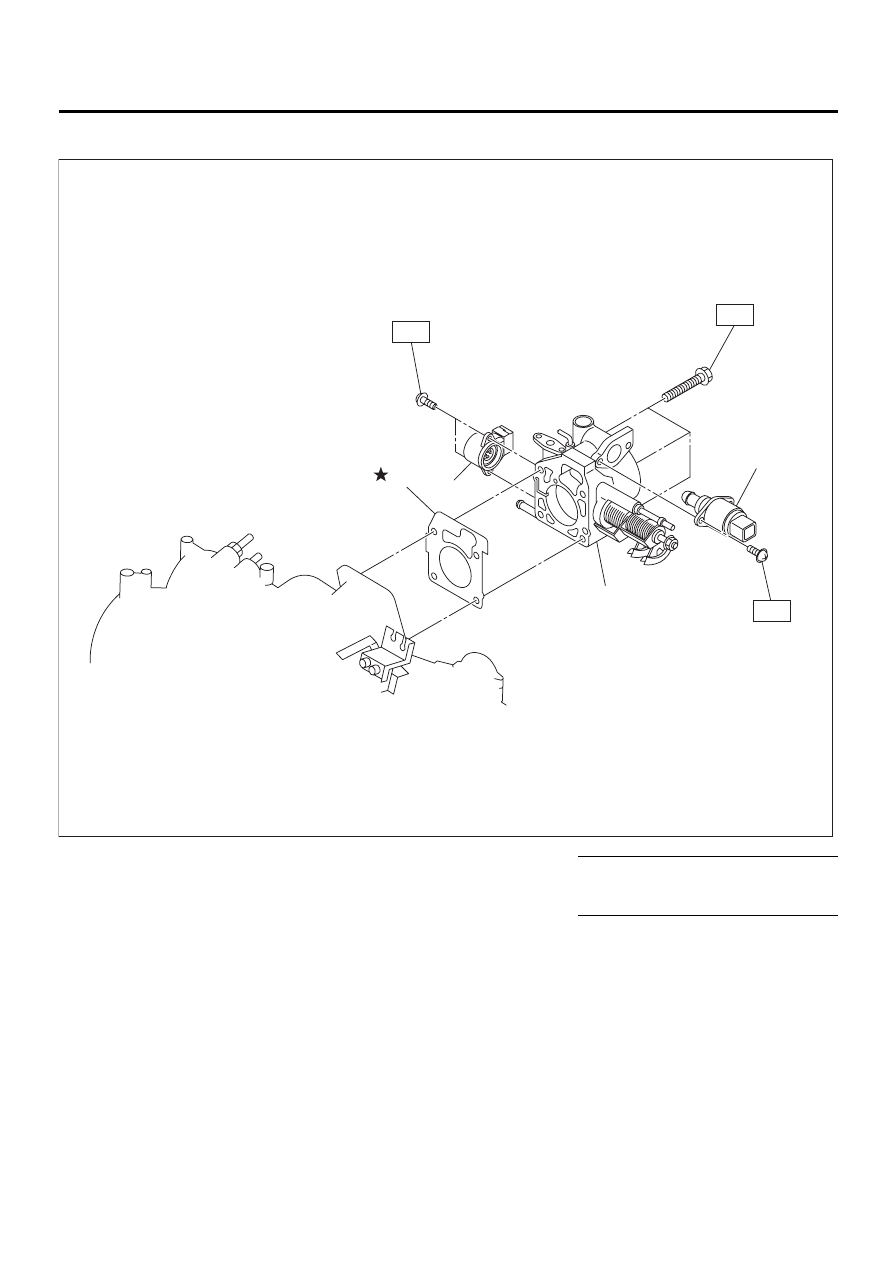

2. AIR INTAKE SYSTEM

(1) Gasket

(4) Throttle body

Tightening torque: N·m (kgf-m, ft-lb)

(2) Throttle position sensor

T1: 1.6 (0.16, 1.2)

(3) Idle air control solenoid valve

T2: 22 (2.2, 15.9)

FU-00712

( 1 )

( 2 )

( 4 )

( 3 )

T1

T2

T1

FU(H4SOw/oOBD)-7

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

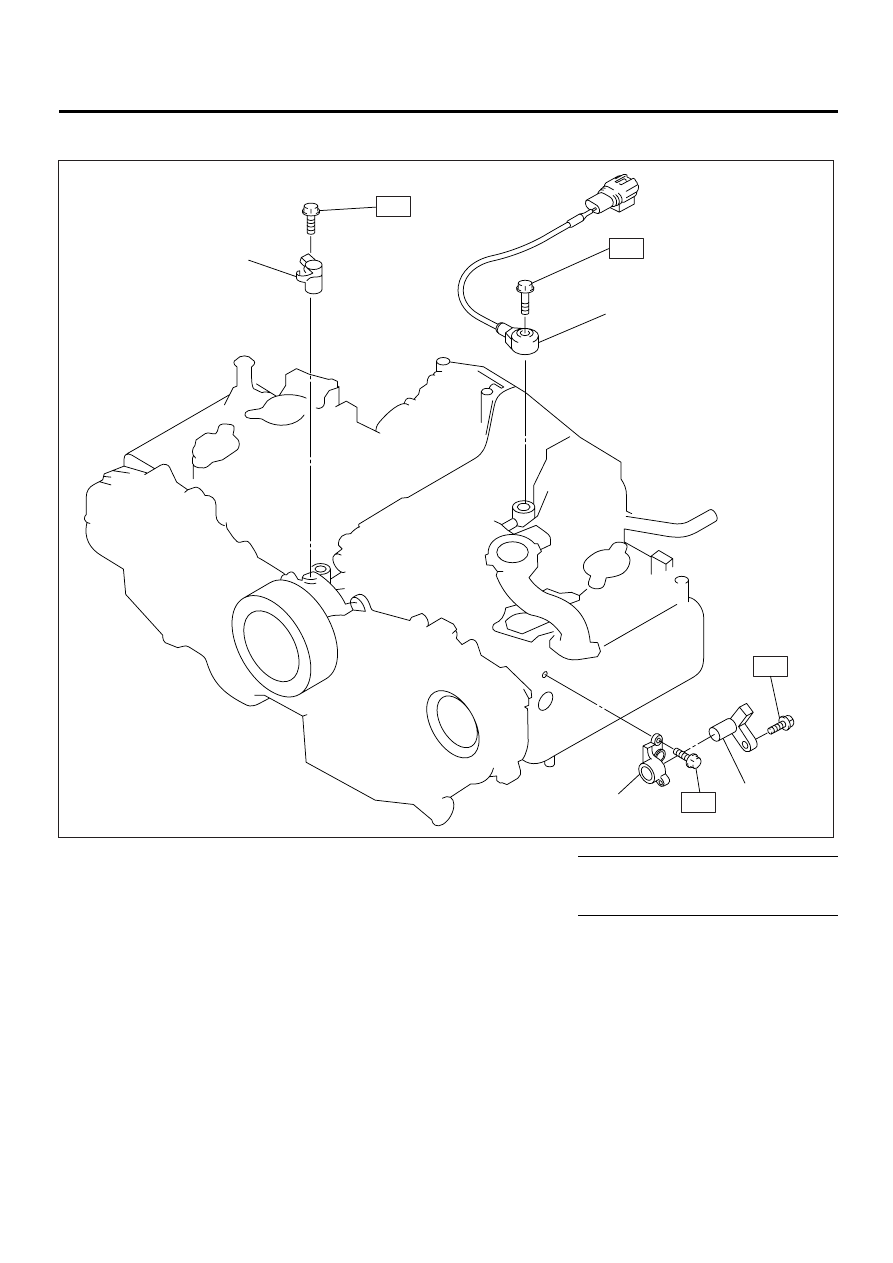

3. CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS

(1) Crank angle position sensor

(3) Camshaft position sensor

Tightening torque: N·m (kgf-m, ft-lb)

(2) Knock sensor

(4) Camshaft position sensor support

T1: 6.4 (0.65, 4.7)

T2: 24 (2.4, 17.4)

FU-00414

T1

(1)

(2)

T1

T1

(3)

(4)

T2

FU(H4SOw/oOBD)-8

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

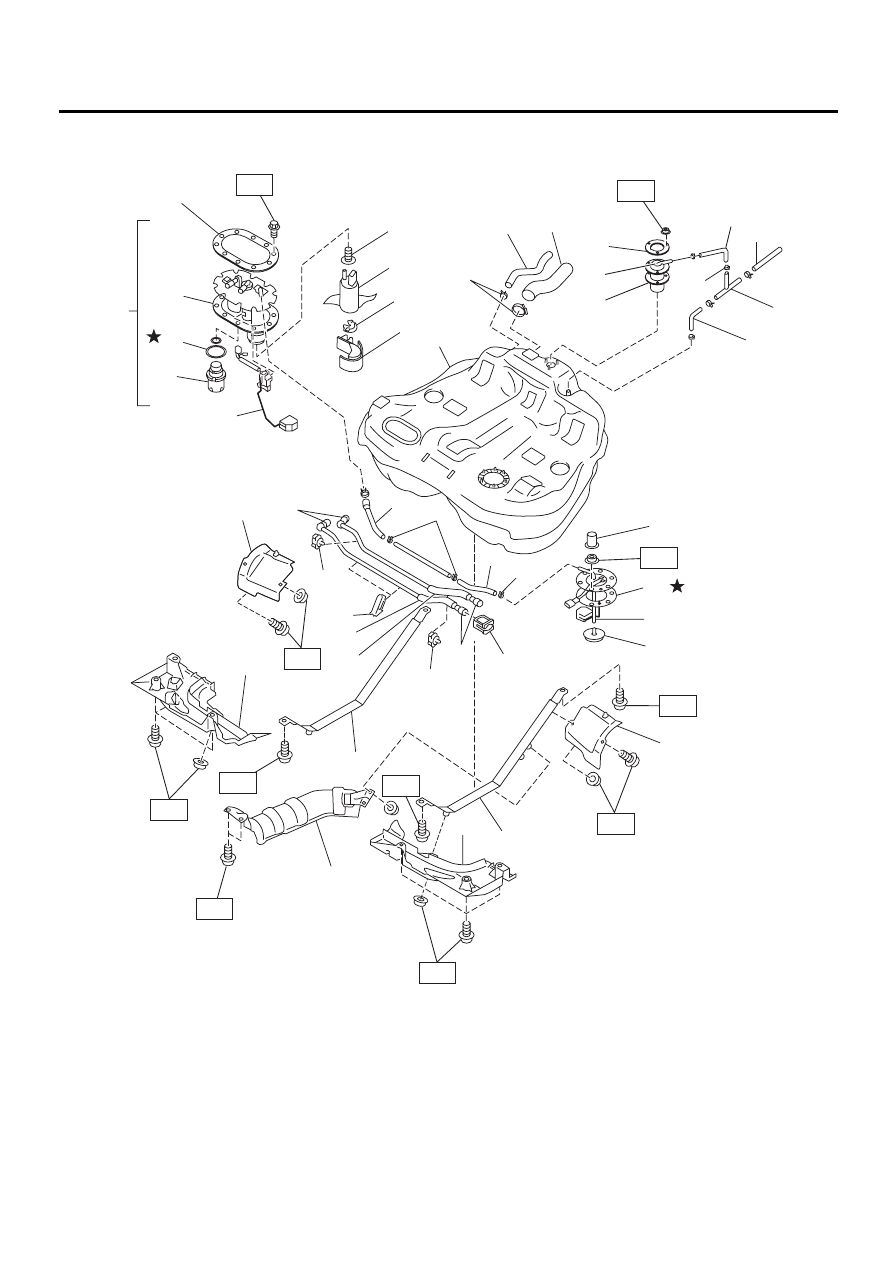

4. FUEL TANK

FU-00626

( 1 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(31)

(33)

(37)

(38)

(36)

(30)

(34)

(11)

(10)

(12)

(13)

(14)

(14)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(26)

(24)

(25)

(23)

(32)

(21)

(22)

(21)

(27)

(30)

(30)

(30)

(35)

(29)

(28)

T3

T3

T3

T3

T1

T1

T4

T2

T2

T2

T2

FU(H4SOw/oOBD)-9

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

(1) Heat sealed cover

(16) Joint pipe

(31) Gasket

(2) Fuel tank band

(17) Evaporation hose B

(32) Cap

(3) Protector LH (Front)

(18) Jet pump hose A

(33) Gasket

(4) Protector RH (Front)

(19) Fuel return tube

(34) Fuel cut valve plate

(5) Fuel tank

(20) Retainer

(35) Fuel delivery tube

(6) Fuel pump plate

(21) Quick connector

(36) Seal

(7) Fuel pump ASSY

(22) Jet pump hose B

(37) Fuel pump holder

(8) Fuel level sensor

(23) Fuel sub level sensor gasket

(38) Grommet

(9) Fuel filter

(24) Jet pump filter

(10) Fuel pump with filter

(25) Fuel sub level sensor

Tightening torque: N·m (kgf-m, ft-lb)

(11) Fuel cut valve gasket

(26) Protector LH (Rear)

T1: 4.4 (0.45, 3.3)

(12) Fuel cut valve

(27) Protector RH (Rear)

T2: 18 (1.8, 13.0)

(13) Evaporation hose A

(28) Fuel filler hose

T3: 33 (3.4, 25)

(14) Clip

(29) Air vent hose

T4: 5.9 (0.6, 4.3)

(15) Evaporation hose C

(30) Clamp
