SC(H4SO)-2
STARTING/CHARGING SYSTEMS
GENERAL DESCRIPTION
1. General Description
A: SPECIFICATIONS
*: 2.5 L
Item
Designation

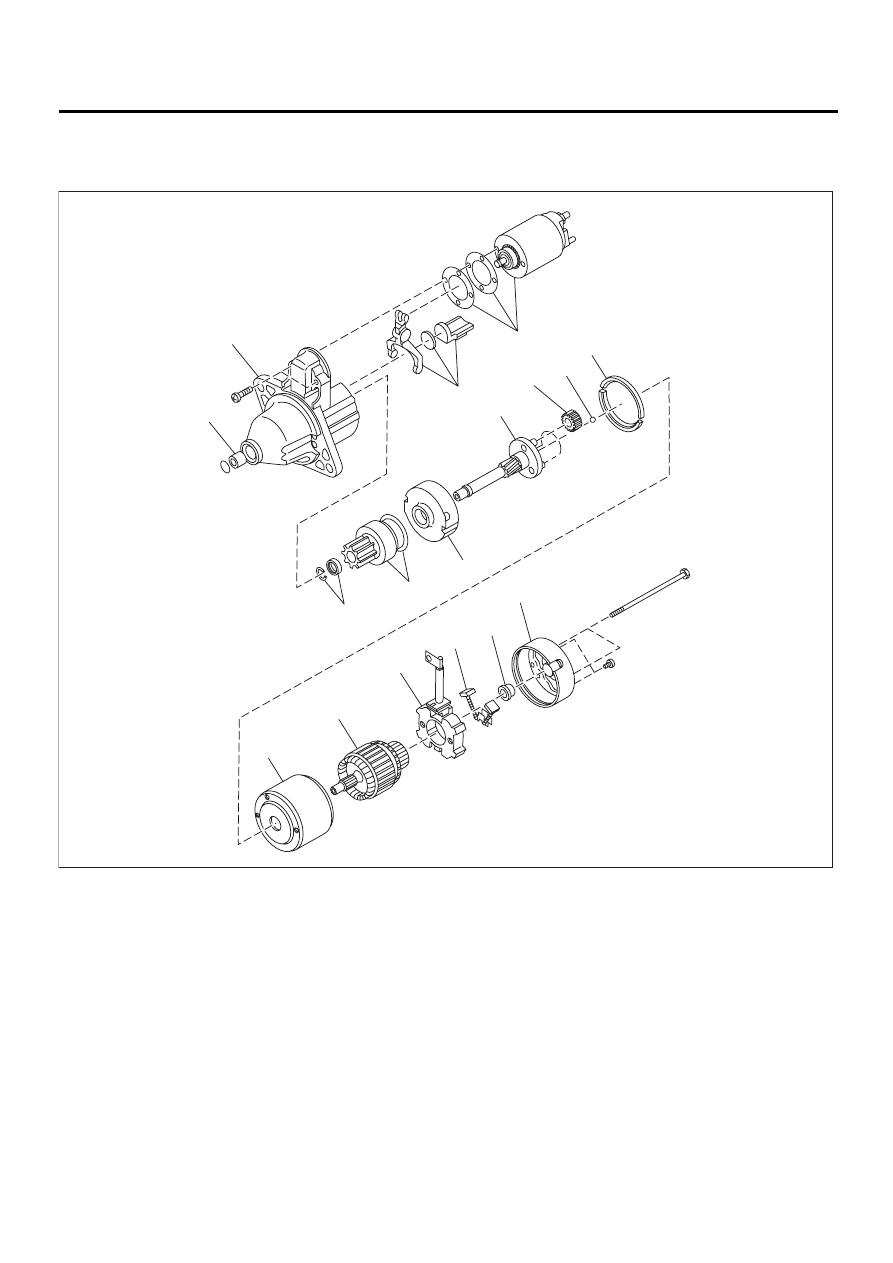

Starter
Type
Reduction type
Vehicle model
MT
AT
Model
M000T83981
M001T86481
Manufacturer
Mitsubishi Electric
Voltage and output
12 V — 1.0 kW
12 V — 1.4 kW
Direction of rotation
Counterclockwise (when observed from pinion)
Number of pinion teeth
8
9
No-load characteristics
Voltage
11 V
Current
90 A or less
Rotating speed
2,800 rpm or more
2,400 rpm or more
Load characteristics
Voltage
7.5 V
7.7 V
Current
300 A
400 A
Torque
8.6 N·m (0.88 kgf-m, 6.4 ft-lb)
16.0 N·m (1.63 kgf-m, 11.8 ft-lb)
Rotating speed
920 rpm or more
740 rpm or more
Lock characteristics
Voltage
4 V
3.5 V
Current
650 A or less
940 A or less
Torque
14.7 N·m (1.50 kgf-m, 10.8 ft-lb)
28.9 N·m (2.95 kgf-m, 21.3 ft-lb)
or more

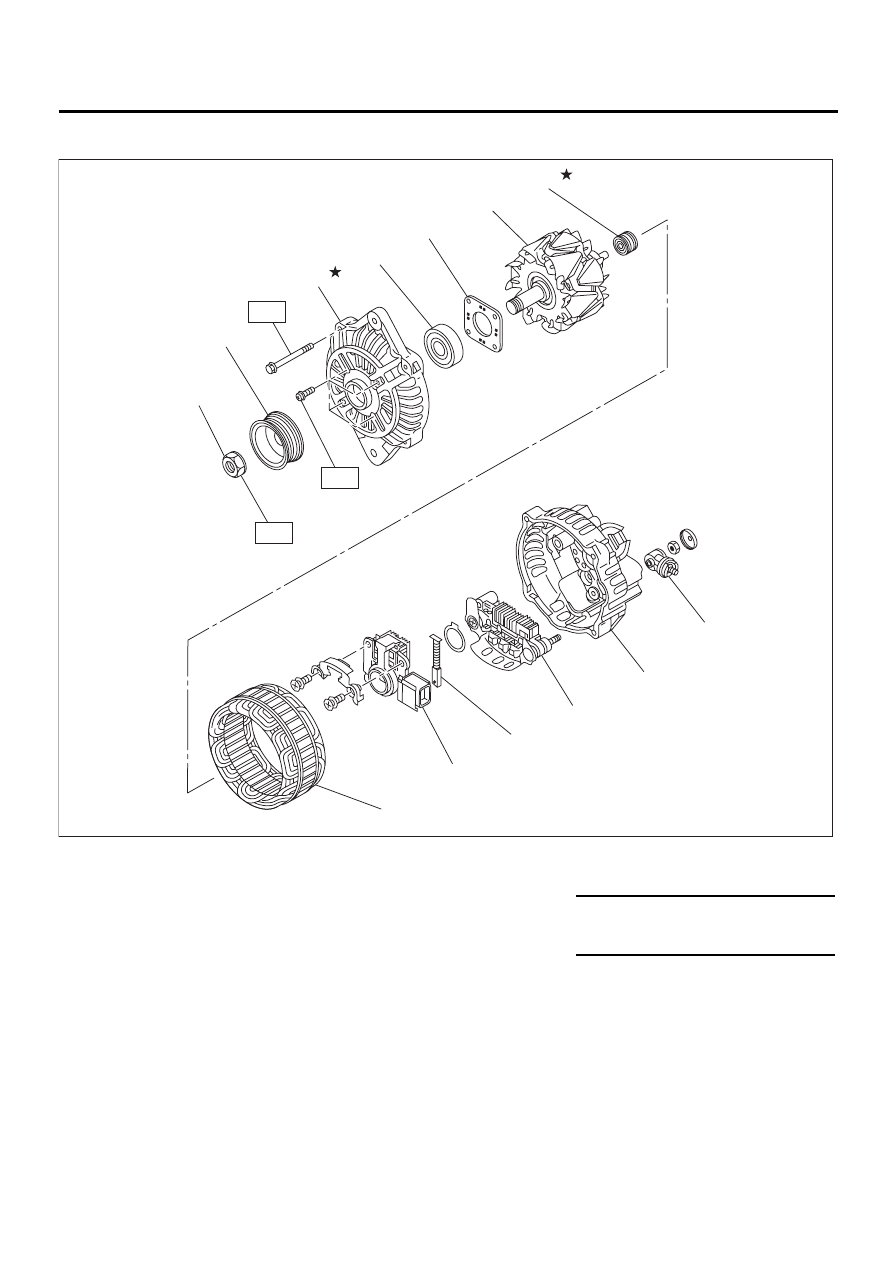

Generator
Type
Rotating-field three-phase type
Model
A002TB6991
Manufacturer
Mitubishi Electric
Voltage and output
12 V — 90 A
Polarity on ground side
Negative
Rotating direction
Clockwise (when observed from pulley side.)
Armature connection
3-phase Y-type
Output current
1,500 rpm — 36 A or more
2,500 rpm — 65 A or more
5,000 rpm — 86 A or more
Regulated voltage
14.1 — 14.8 V [20
°
C (68
°
F)]
Battery
Type and capacity
For Europe/Latin
America
MT: 12 V — 48 AH (55D23L)
AT: 12 V — 52 AH (65D23L)
AT: 12 V — 52 AH (75D23L)*
Others
12 V — 27 AH (34B19L)
