SP(H4SO)-10
SPEED CONTROL SYSTEMS
ACCELERATOR CONTROL CABLE
3. Accelerator Control Cable
A: REMOVAL
1) Remove the accelerator pedal. <Ref. to
SP(H4SO)-5, REMOVAL, Accelerator Pedal.>
2) Separate the accelerator cable and accelerator
pedal.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Apply grease to engine side accelerator cable
end.
Grease:
Part No. 004404002 (Slicolube G-30M)
NOTE:
• If the cable clamp is damaged, replace it with a
new one.
• Never fail to cover the outer cable end with boot.
• Be careful not to kink the accelerator cable.
• Do not apply grease to except specified part.
3) Adjustment after pedal installation. <Ref. to
SP(H4SO)-8, ADJUSTMENT, Accelerator Pedal.>
C: INSPECTION
1) Make sure the inner cable is not twisted or worn.
2) Make sure the outer cable is not cracked.

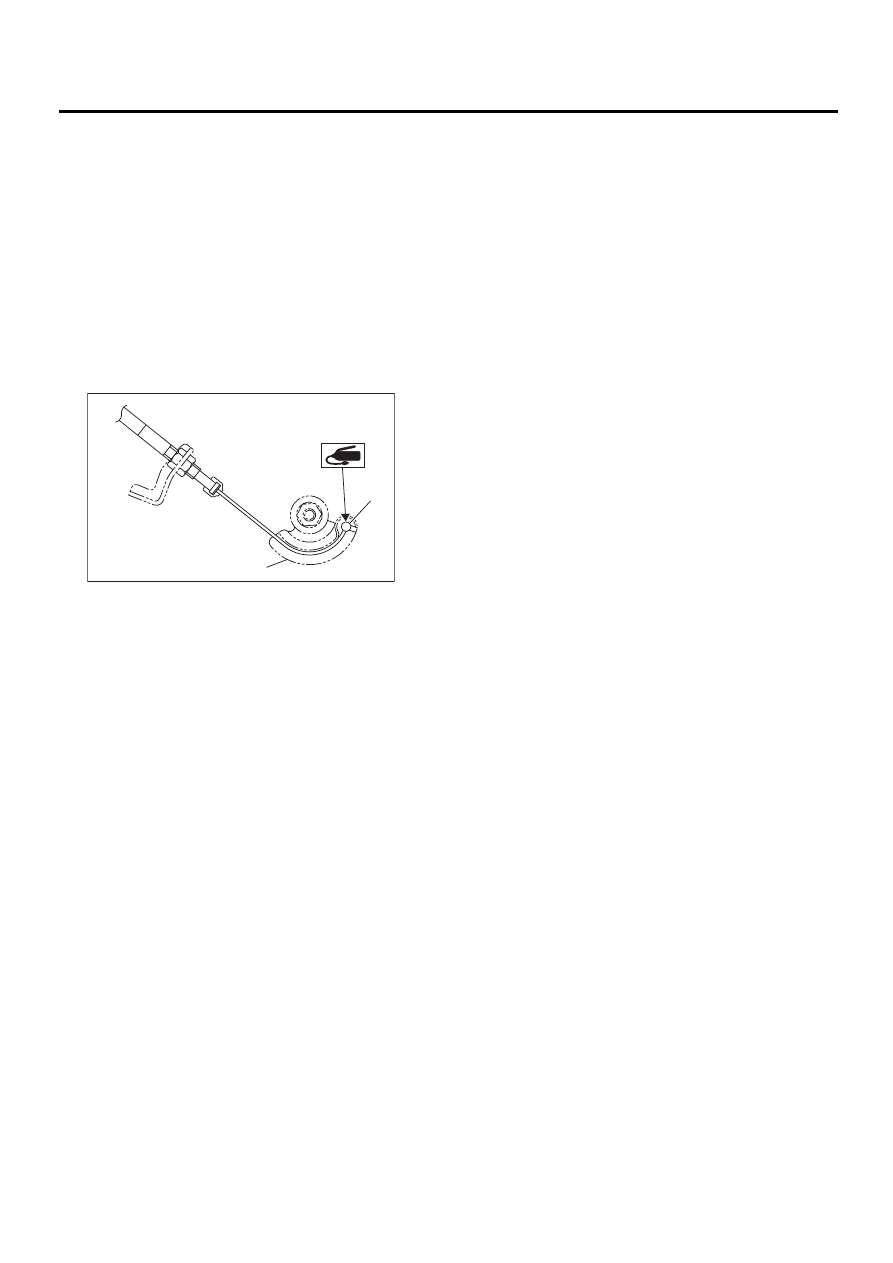

(A) Applying position of grease
(B) Throttle cam
SP-00042
( A )
( B )
