Subaru Legacy III (2000-2003 year). Manual - part 88

SP(H4SO)-6

SPEED CONTROL SYSTEMS

ACCELERATOR PEDAL

• RHD MODEL

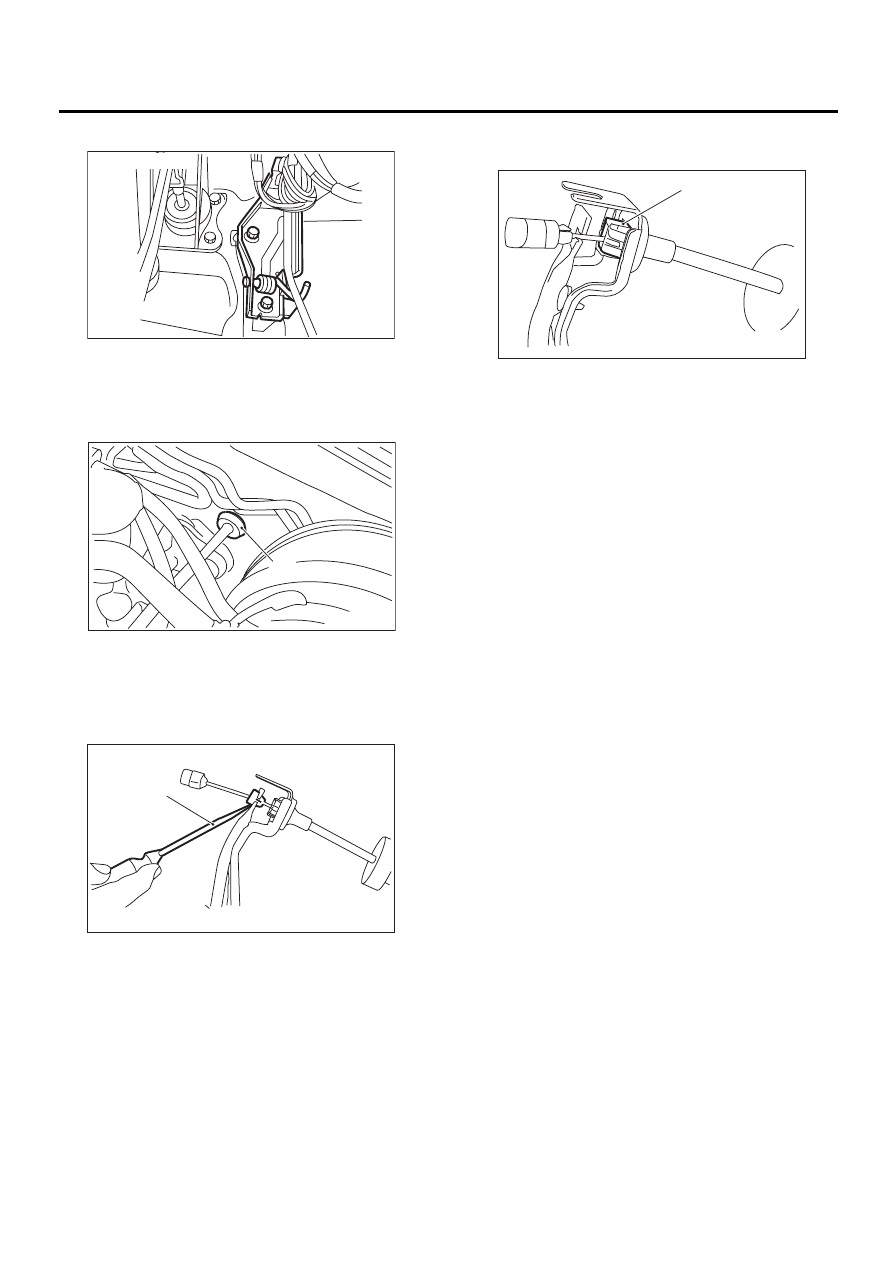

9) Remove the grommet from toe board.

NOTE:
From the inside compartment, push the grommet
(A) into hole.

10) Pull out the cable from toe board hole.
11) Disconnect the accelerator cable bushing from
accelerator pedal lever.

12) Disconnect the accelerator cable stopper from
bracket.

13) Separate the accelerator cable and bracket.

B: INSTALLATION

1) Install in the reverse order of removal.

NOTE:
• If the cable clamp is damaged, replace it with a
new one.
• Never fail to cover the outer cable end with boot.
• Be careful not to kink the accelerator cable.
• For tightening torque, refer to "COMPONENT".
<Ref. to SP(H4SO)-2, COMPONENT, General De-
scription.>
2) After installing the accelerator pedal, adjust the
pedal position. <Ref. to SP(H4SO)-8, ADJUST-
MENT, Accelerator Pedal.>

(A) Grommet

(A) Flat tip screwdriver

SP-00007

SP-00008

(A)

SP-00009

(A)

(A) Accelerator cable stopper

SP-00010

(A)

SP(H4SO)-7

SPEED CONTROL SYSTEMS

ACCELERATOR PEDAL

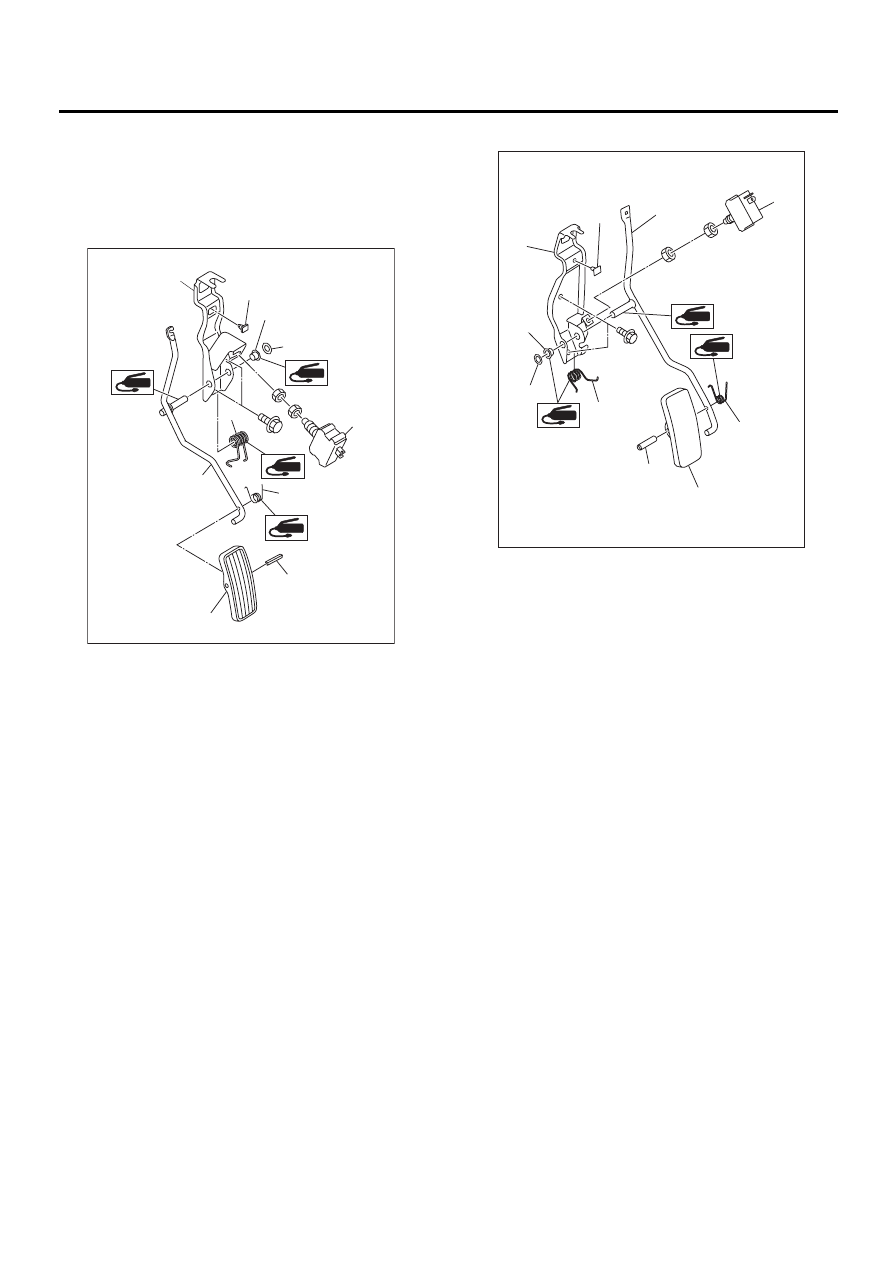

C: DISASSEMBLY

1) Remove the clip, and then remove the accelera-
tor pedal from bracket.
2) Pull out the spring pin, and then remove the ac-
celerator pedal from accelerator pedal lever.
• LHD MODEL

• RHD MODEL

D: ASSEMBLY

Assemble in the reverse order of disassembly.

NOTE:
Clean and apply grease to the portions indicated in
the figure.

Grease:

Part No. 003602010 (SUNLIGHT No. 2)

(A) Accelerator bracket

(B) Stopper

(C) Bushing

(D) Clip

(E) Accelerator spring

(F) Accelerator pedal spring

(G) Accelerator pedal lever

(H) Spring pin

(I) Accelerator pedal

(J) Kick-down switch (AT model)

SP-00024

( A )

( B )

( C )

( D )

( E )

( F )

( G )

( H )

( I )

( J )

(A) Accelerator bracket

(B) Stopper

(C) Bushing

(D) Clip

(E) Accelerator spring

(F) Accelerator pedal spring

(G) Accelerator pedal lever

(H) Spring pin

(I) Accelerator pedal

(J) Kick-down switch (AT model)

SP-00025

( A )

( B )

( C )

( D )

( E )

( F )

( G )

( J )

( I )

( H )

SP(H4SO)-8

SPEED CONTROL SYSTEMS

ACCELERATOR PEDAL

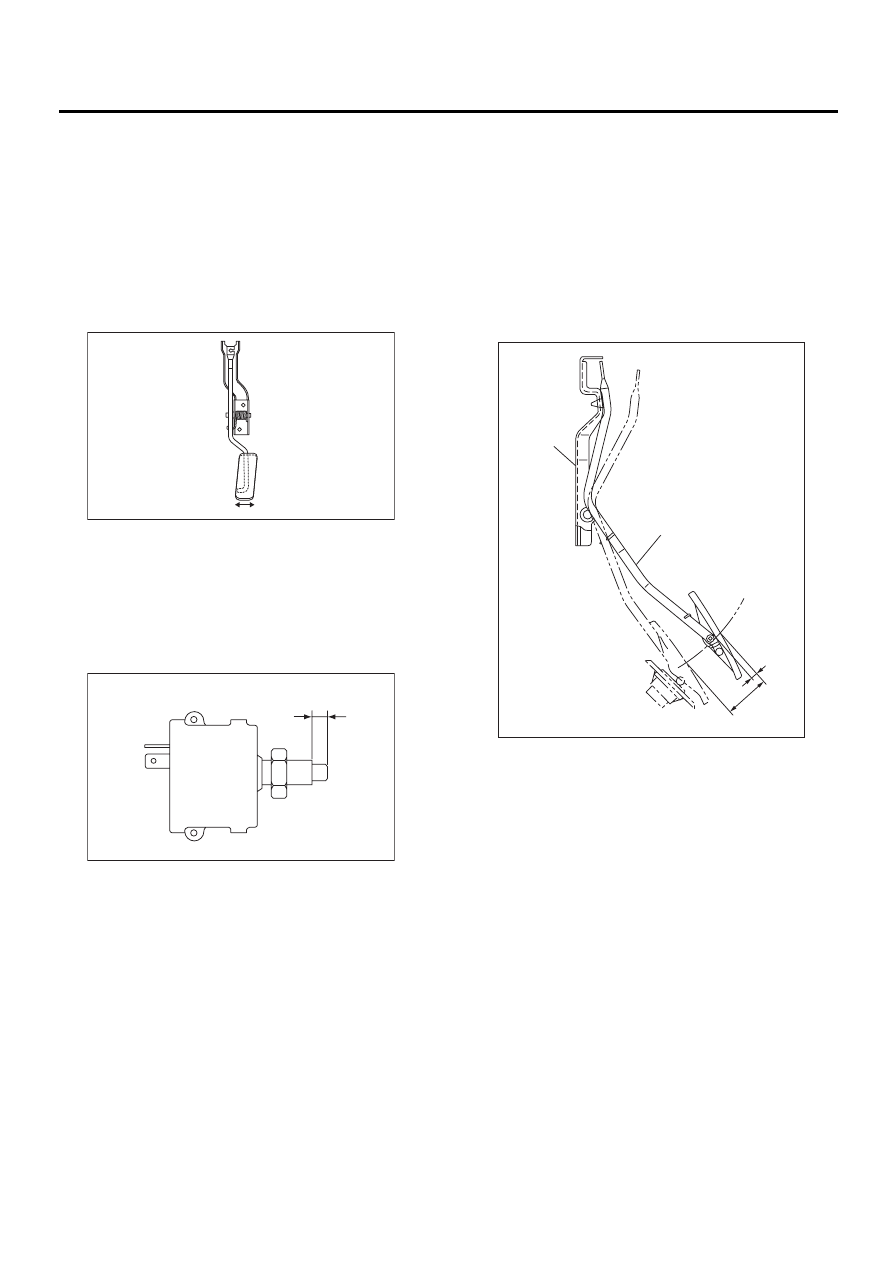

E: INSPECTION

1. ACCELERATOR PEDAL

1) Lightly move the pedal pad in lateral direction to
ensure that pedal deflection is in specified range.
2) If excessive deflection is noted, replace the
bushing and clip with new ones.

Deflection of accelerator pedal:

Service limit

±2.0 mm (0.079 in) or less

2. KICK-DOWN SWITCH

If the kick-down switch does not operate properly
(or if it does not stop at the specified position), re-
place with a new one.

Specified position: A

2.0 — 3.5 mm (0.079 — 0.098 in)

F: ADJUSTMENT

1) Check the pedal stroke and free play by operat-
ing accelerator pedal by hand.
2) If it is not within specified value, adjust it by turn-
ing the nut connecting the accelerator cable tothrot-
tle body.

Free play at pedal pad: L

0 — 4 mm (0 — 0.16 in)

Stroke at pedal pad: A

50 — 55 mm (1.97 — 2.17 in)

Accelerator cable lock nut tightening torque:

12 N·m (1.2 kgf-m, 9 ft-lb)

SP-00013

SP-00026

A

(A) Accelerator pedal

(B) Accelerator pedal bracket

SP-00027

A

L

( A )

( B )

SP(H4SO)-9

SPEED CONTROL SYSTEMS

ACCELERATOR PEDAL

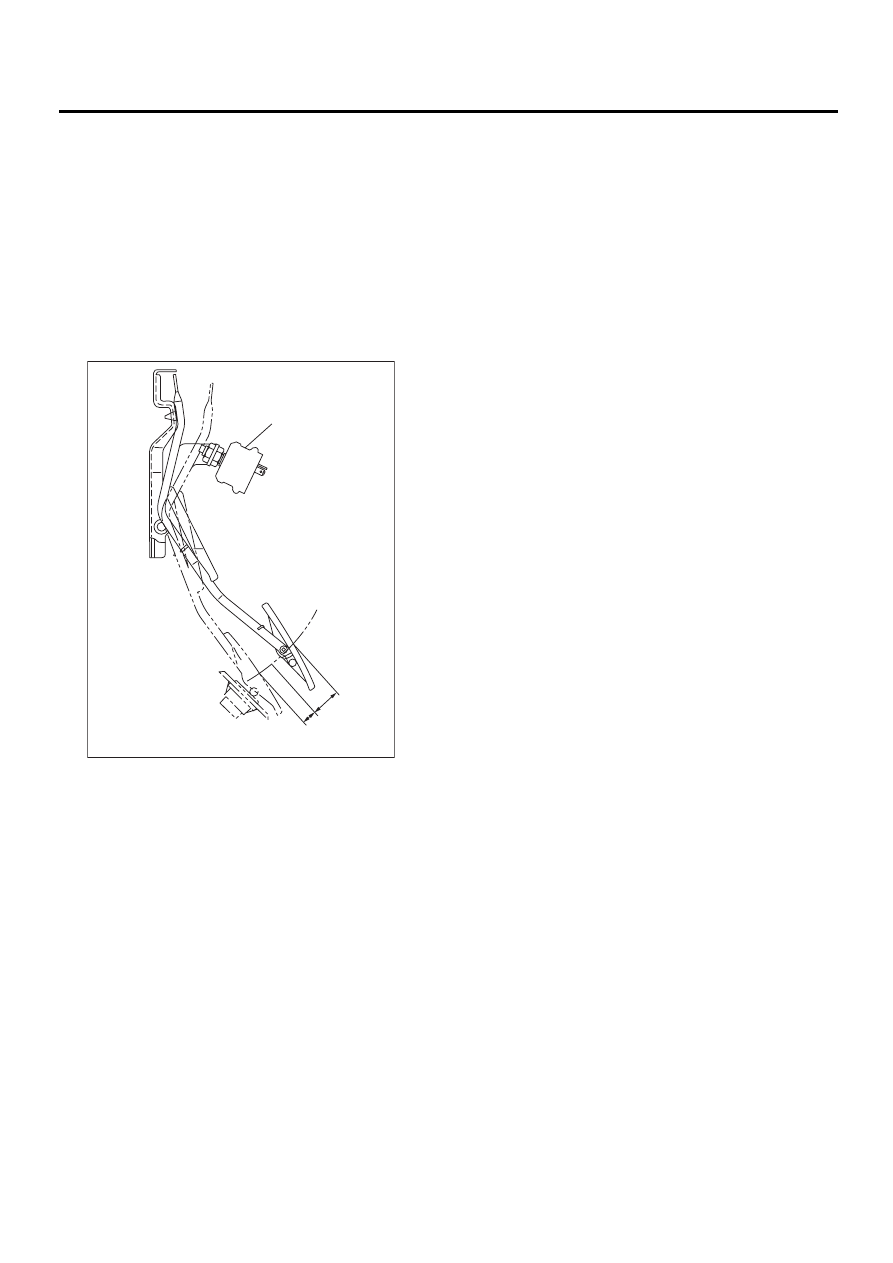

3) Check to ensure the kick-down switch operates
at the specified value in relation to the stroke of the
accelerator pedal.
If it is not within specified value, adjust it by adjust-
ing the position of kick-down switch.

NOTE:
Be careful not to rotate kick-down switch.

Kick-down switch stroke: L

47 — 49 mm (1.85 — 1.93 in)

Kick-down switch tightening torque:

12 N·m (1.2 kgf-m, 9 ft-lb)

(A) Kick-down switch

SP-00028

L

OFF

ON

( A )
