Subaru Legacy III (2000-2003 year). Manual - part 52

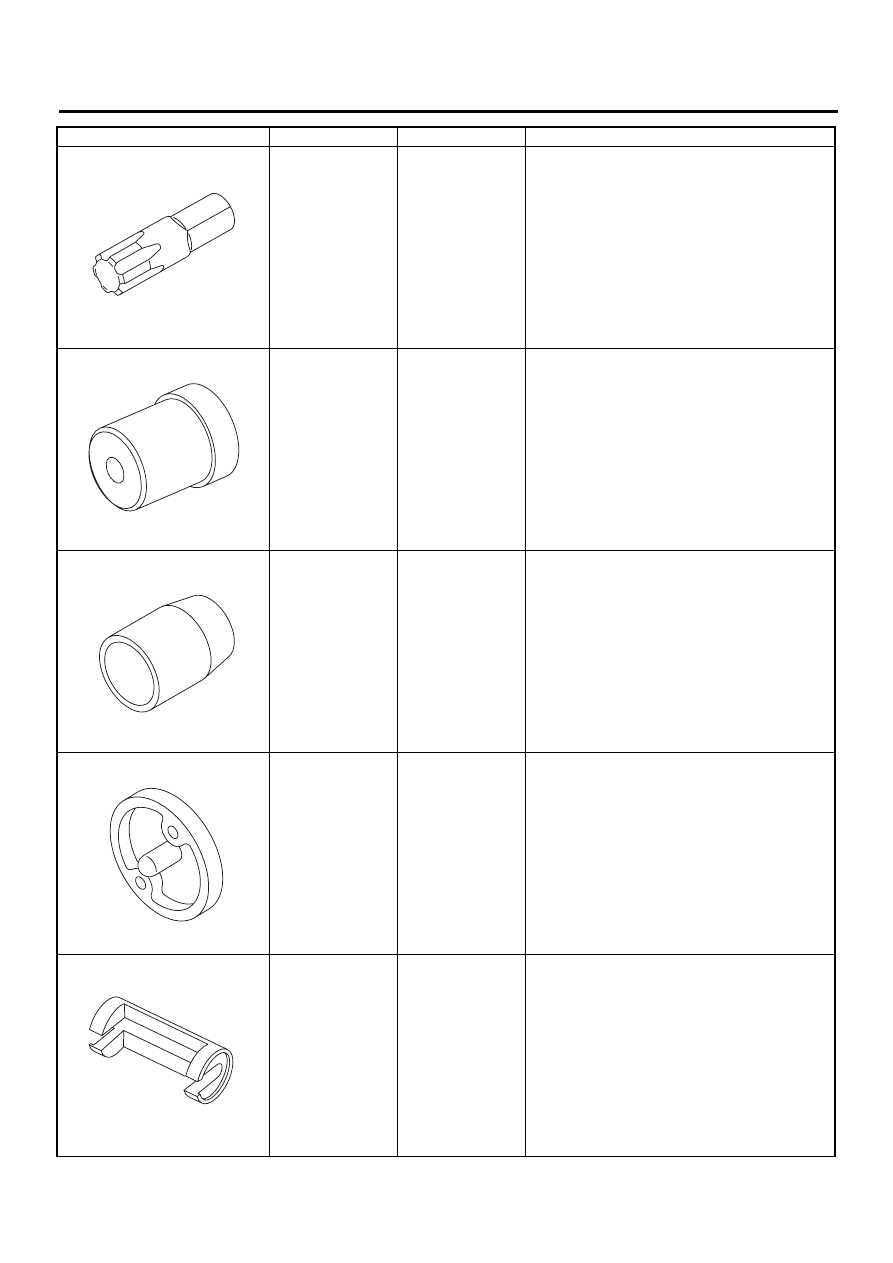

ME(H4SO)-20

MECHANICAL

GENERAL DESCRIPTION

499497000

TORX PLUS

Used for removing and installing camshaft cap.

499587100

OIL SEAL
INSTALLER

Used for installing oil pump oil seal.

499597000

OIL SEAL GUIDE

• Used for installing camshaft oil seal.
• Used with CAMSHAFT OIL SEAL INSTALLER
(499587500).

499597100

CRANKSHAFT
OIL SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL
INSTALLER (499587200).

499718000

VALVE SPRING
REMOVER

Used for removing and installing valve spring.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499497000

ST-499587100

ST-499597000

ST-499597100

ST-499718000

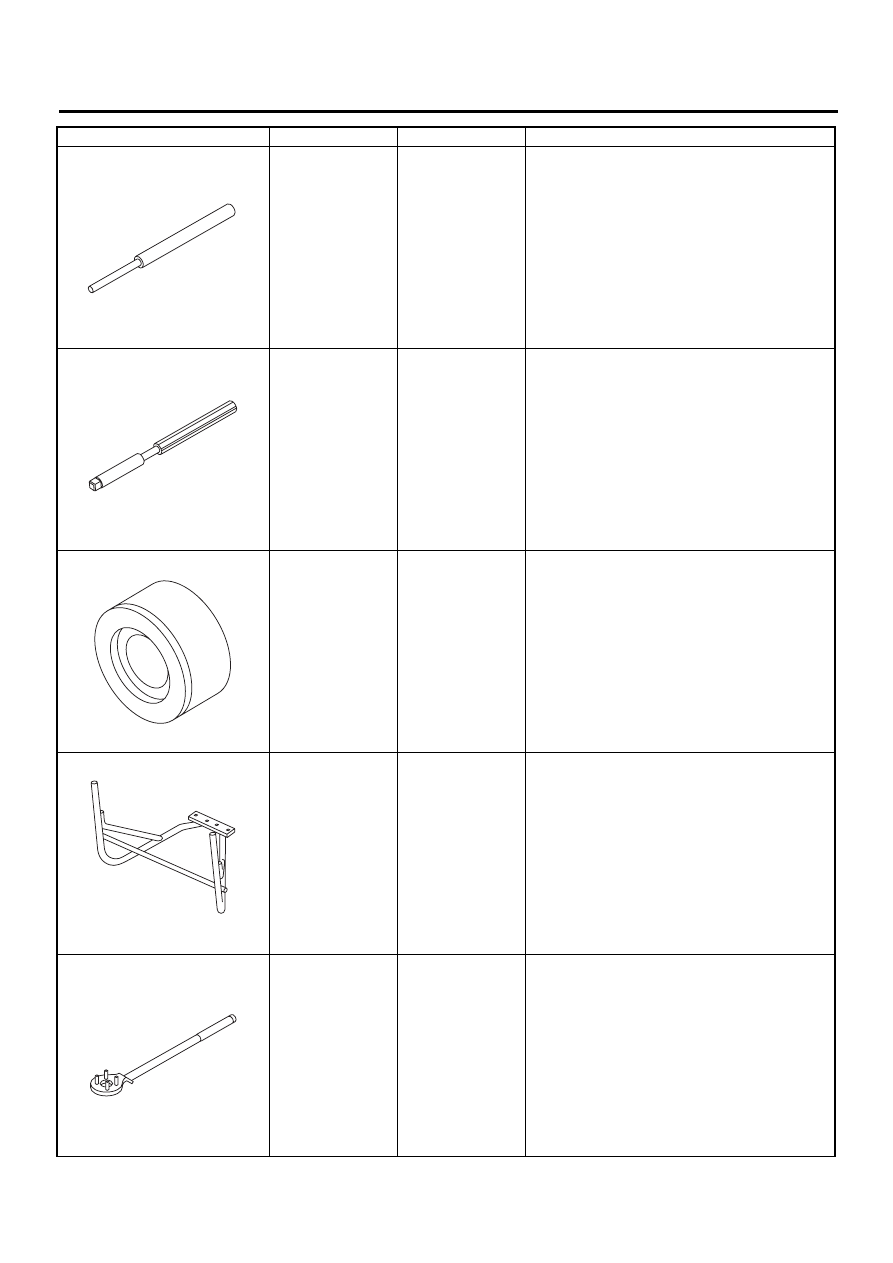

ME(H4SO)-21

MECHANICAL

GENERAL DESCRIPTION

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499767700

(Intake side)

499767800

(Exhaust side)

VALVE GUIDE
ADJUSTER

Used for installing valve guides.

499817100

ENGINE STAND

• Stand used for engine disassembly and assem-
bly.
• Used with ENGINE STAND ADAPTER RH
(498457000) & LH (498457100).

499977100

(2500 cc model)

CRANK PULLEY
WRENCH

Used for stopping rotation of crankshaft pulley
when loosening and tightening crankshaft pulley
bolts.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499767200

ST-499767400

ST-499767700

ST-499817100

ST-499977100

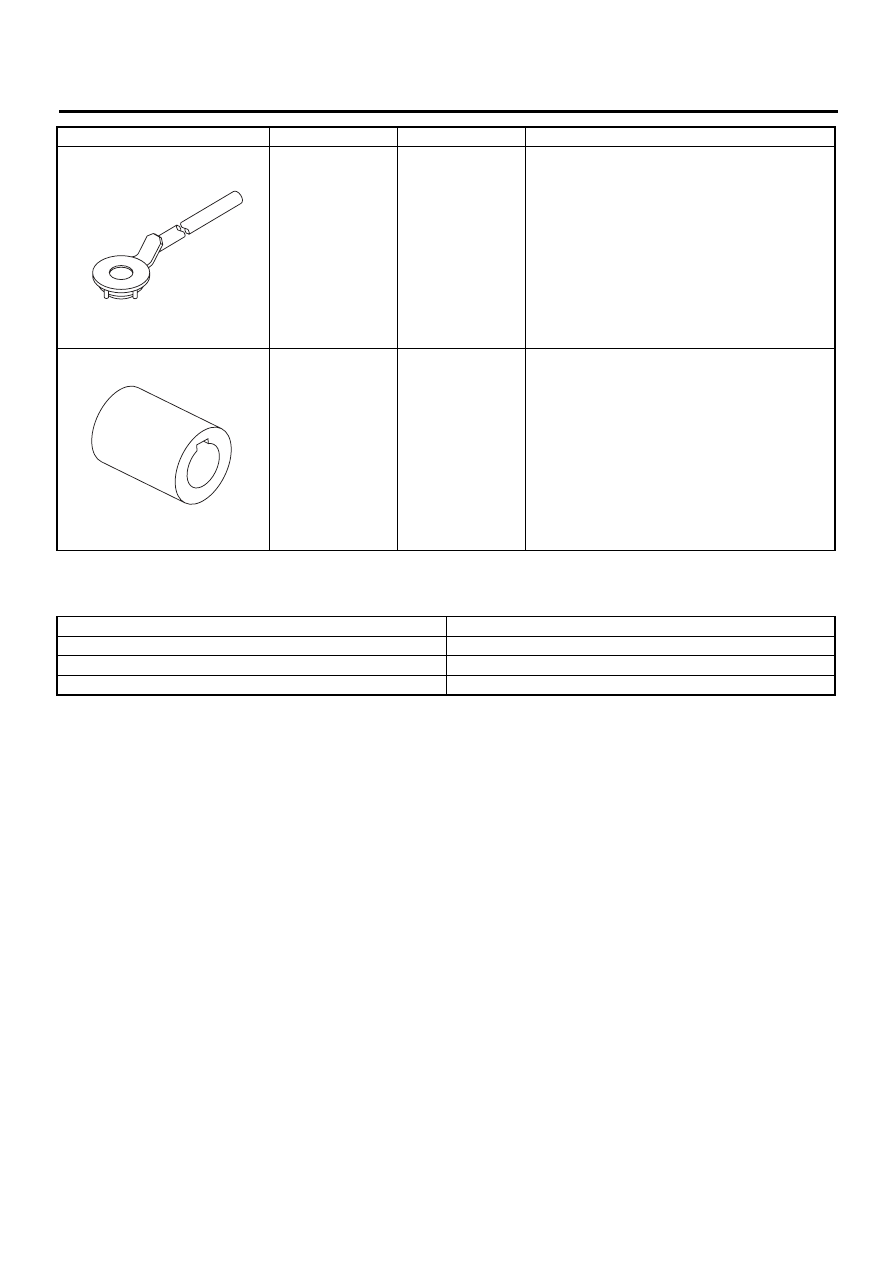

ME(H4SO)-22

MECHANICAL

GENERAL DESCRIPTION

2. GENERAL PURPOSE TOOLS

E: PROCEDURE

It is possible to conduct the following service proce-
dures with engine on the vehicle, however, the pro-
cedures described in this section are based on the
condition that the engine is removed from the vehi-
cle.
• V-belt
• Timing Belt
• Valve Rocker Assembly
• Camshaft
• Cylinder Head

499977400

(2000 cc model)

CRANK PULLEY
WRENCH

Used for stopping rotation of crankshaft pulley
when loosening and tightening crankshaft pulley
bolts.

499987500

CRANKSHAFT
SOCKET

Used for rotating crankshaft.

TOOL NAME

REMARKS

Compression gauge

Used for measuring compression.

Tachometer (Secondary pick-up type)

Used for measuring idle speed.

Timing Light

Used for measuring ignition timing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499977400

ST-499987500

ME(H4SO)-23

MECHANICAL

COMPRESSION

2. Compression

A: INSPECTION

CAUTION:
After warming-up, engine becomes very hot. Be
careful not to burn yourself during measure-
ment.
1) After warming-up the engine, turn the ignition
switch to OFF.
2) Make sure that the battery is fully charged.
3) Lower the fuel pressure.  <Ref. to FU(H4SO)-48,
RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
4) Remove all the spark plugs.  <Ref. to IG(H4SO)-
5, REMOVAL, Spark Plug.>
5) Fully open the throttle valve.
6) Check the starter motor for suitable performance
and  operation.

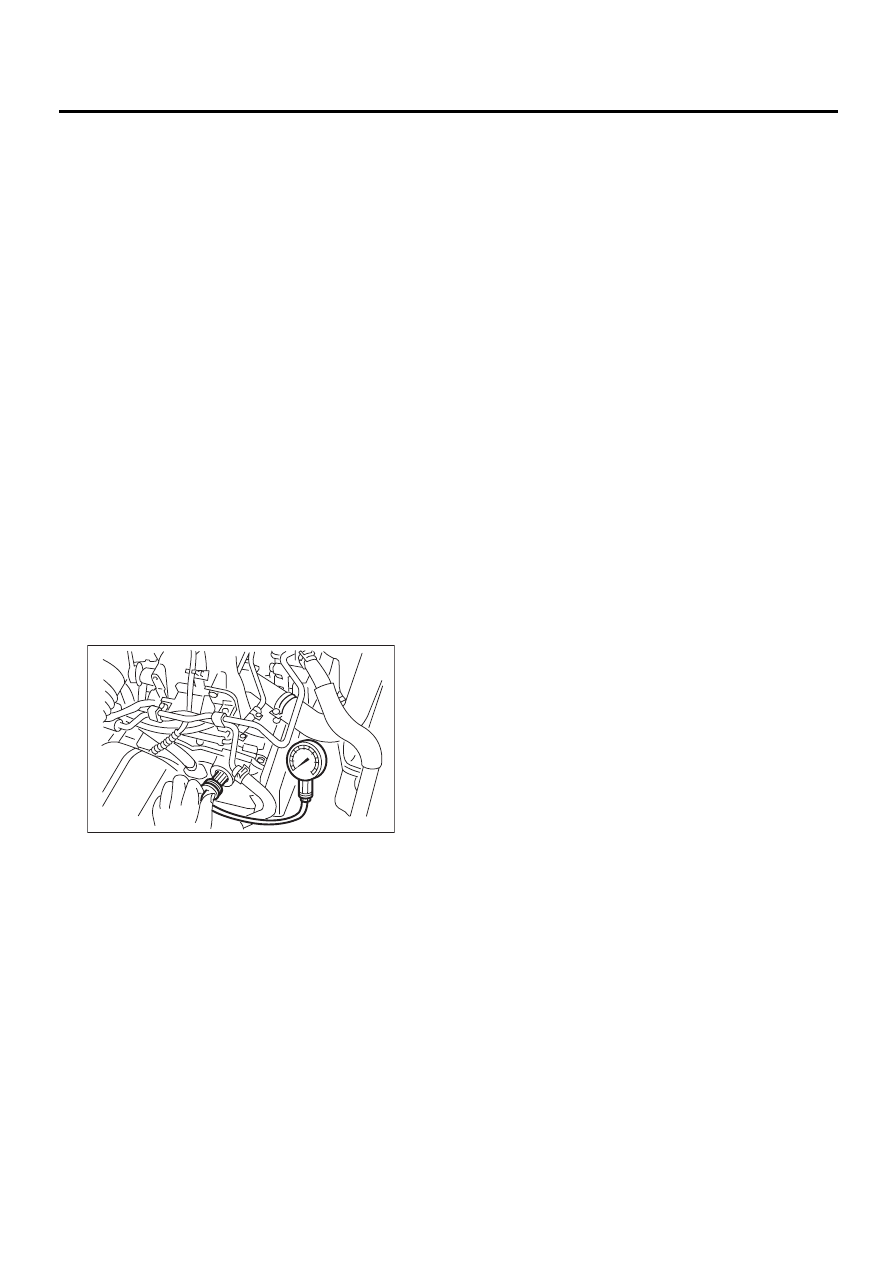

7) Hold the compression gauge tight against spark
plug hole.

NOTE:
When using a screw-in type compression gauge,
the screw (put into cylinder head spark plug hole)
should be less than 18 mm (0.71 in) long.
8) Crank the engine by means of starter motor, and
then read the maximum value on the gauge when
the pointer is steady.

9) Perform at least two measurements per cylinder,
and make sure that the values are correct.

Compression (350 rpm and fully open throttle):

Standard;

1,275 kPa (13.0 kg/cm

2

, 185 psi)

Limit;

1,079 kPa (11.0 kg/cm

2

, 156 psi)

Difference between cylinders;

49 kPa (0.5 kg/cm

2

, 7 psi), or less

ME-00192
