CC-5

Cruise Control Module

CRUISE CONTROL SYSTEM

3. Cruise Control Module

A: NOTE

The control of cruise control system is carried out in

engine control module (ECM).

B: REMOVAL

For removal procedures of the control module, re-

fer to Engine section.

• Except for STI model: <Ref. to FU(w/o STI)-57,

REMOVAL, Engine Control Module (ECM).>

• STI model: <Ref. to FU(STI)-59, REMOVAL, En-

gine Control Module (ECM).>

C: INSTALLATION

For install procedures of the control module, refer

to Engine section.

• Except for STI model: <Ref. to FU(w/o STI)-57,

INSTALLATION, Engine Control Module (ECM).>

• STI  model:  <Ref.  to  FU(STI)-59,  INSTALLA-

TION, Engine Control Module (ECM).>

CC-6

Cruise Control Command Switch

CRUISE CONTROL SYSTEM

4. Cruise Control Command

Switch

A: REMOVAL

WARNING:

Before  handling  the  airbag  module,  refer  to

“CAUTION”  of  “General  Description”  in  the

“AB” section. <Ref. to AB-5, CAUTION, General

Description.>

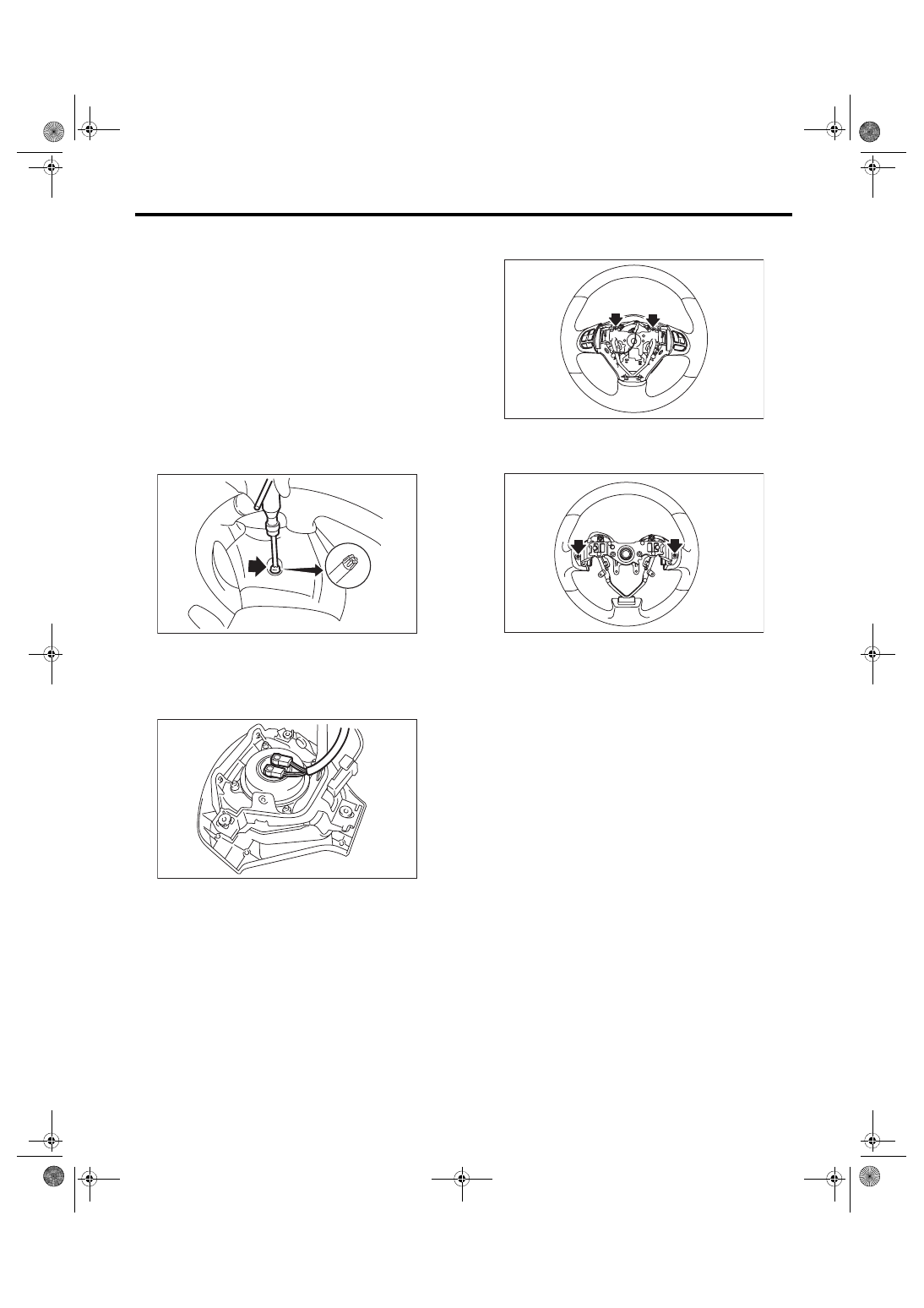

1) Set the front wheels in straight ahead position.

2) Turn the ignition switch to OFF.

3) Disconnect  the  ground  cable  from  battery  and

wait for at least 60 seconds before starting work.

4) Using  TORX

®

  bit  T30  (1),  loosen  two  TORX

®

bolts on the side of the steering wheel.

5) Disconnect the horn harness.

6) Disconnect the airbag module connector on the

back of airbag module, and then remove the airbag

module. <Ref. to AB-8, PROCEDURE, Airbag Con-

nector.>

7) Remove the steering wheel. <Ref. to PS-13, RE-

MOVAL, Steering Wheel.>

8) Remove the screws to remove the lower cover

from steering wheel.

9) Remove the screws on the backside of the steer-

ing  wheel to remove the cruise control command

switch.

B: INSTALLATION

CAUTION:

• Before  handling  the  airbag  module,  refer  to

“CAUTION”  of  “General  Description”  in  the

“AB” section. <Ref. to AB-5, CAUTION, General

Description.>

• Do not allow harness and connectors to in-

terfere or get tangled up with other parts.

Install each part in the reverse order of removal.
Tightening torque:

Airbag module: 10 N·m (1.02 kgf-m, 7.4 ft-lb)

CC-00018

(1)

AB-00622

CC-00650

CC-00516

CC-7

Cruise Control Command Switch

CRUISE CONTROL SYSTEM

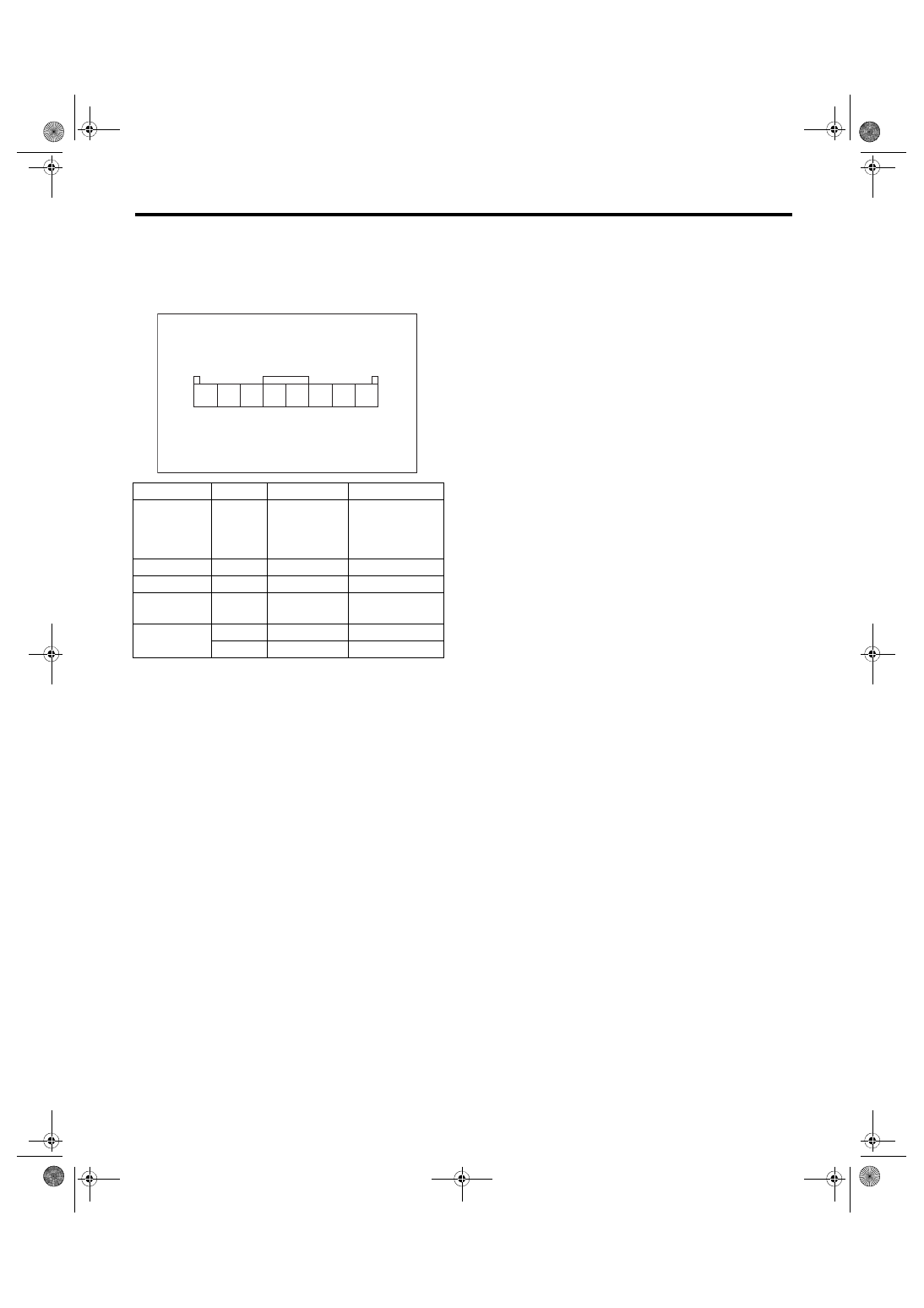

C: INSPECTION

1) Disconnect  the  cruise  control  command switch

connector.

2) Check  the  resistance  between  cruise  control

command switch terminals.

3) Replace  the  cruise  control  command  switch  if

the inspection result is not within the standard val-

ue.

Switch

Position

Terminal No.

Standard

CANCEL

SET/COAST

RESUME/

ACCEL

All OFF

7 and 6

Approx. 4 kΩ

CANCEL

ON

7 and 6

Less than 1 Ω

SET/COAST

ON

7 and 6

Approx. 250 Ω

RESUME/

ACCEL

ON

7 and 6

Approx. 1500 Ω

MAIN

(CRUISE)

OFF

8 and 6

1 MΩ or more

ON

8 and 6

Less than 1 Ω

CC-00487

2 3

1

4 5 6 7 8

CC-8

Combination Meter

CRUISE CONTROL SYSTEM

5. Combination Meter

A: NOTE

For the combination meter, refer to the “IDI” sec-

tion. <Ref. to IDI-16, Combination Meter.>
