GW-29
Rear Gate Glass
GLASS/WINDOWS/MIRRORS

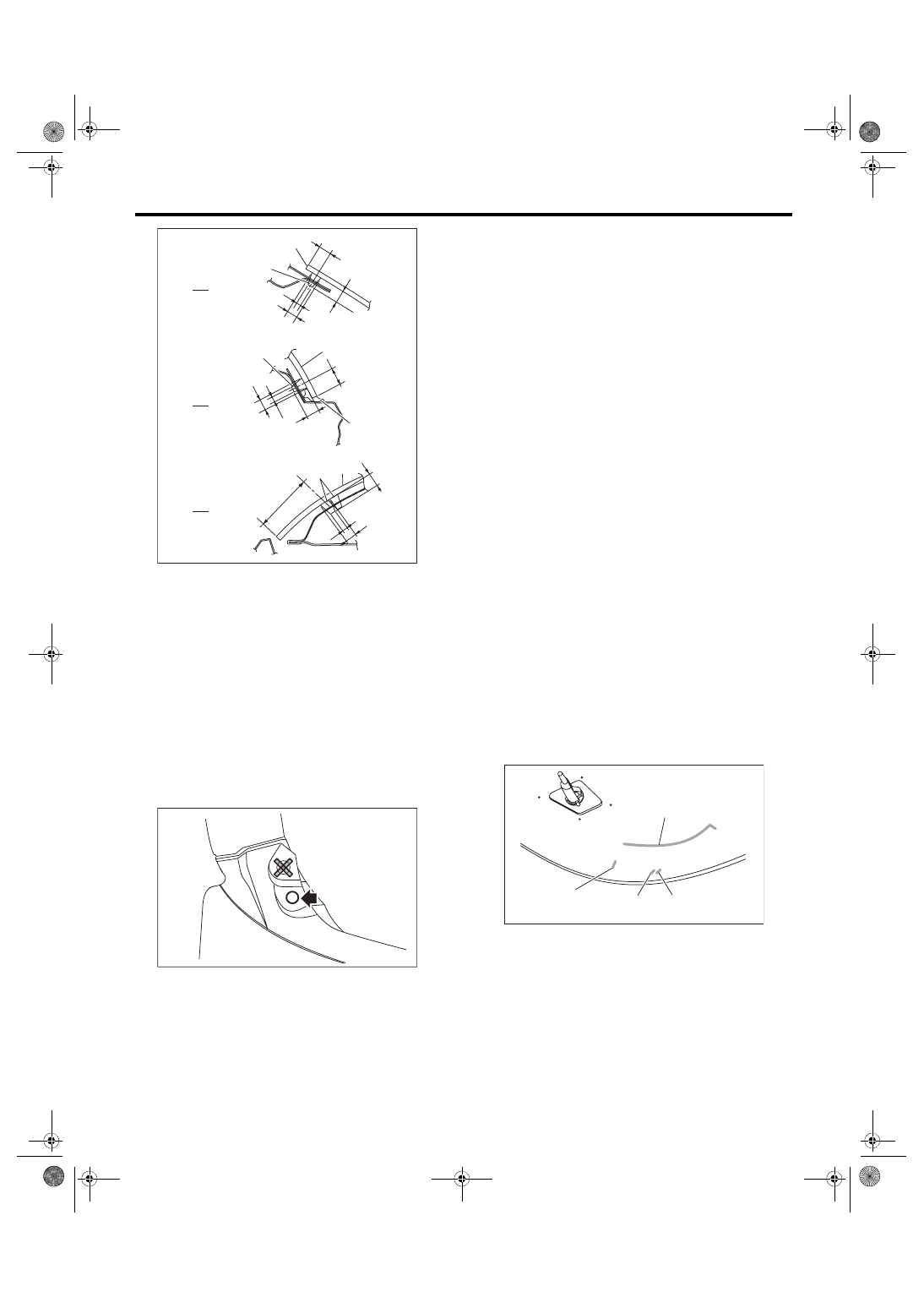

5) Insert the glass locating pin into the hole on rear
gate panel and push on the area around the locat-
ing pin to secure it.
NOTE:
Insert the locating pin into the lower hole of the rear
gate panel.
6) Push lightly all around the locating pin to seal it.
7) After completion of all work, allow the vehicle to
stand for about 24 hours.
NOTE:
• When door is opened/closed after glass is bond-
ed, always lower the door glass first, and then
open/close it carefully.
• Move the vehicle slowly.
• For minimum drying time and vehicle standing
time before driving after bonding, follow instruc-
tions or instruction manual from the adhesive man-
ufacturer.
8) Connect the rear defogger terminals.
9) Install the rear wiper motor. <Ref. to WW-21, IN-
STALLATION, Rear Wiper Motor.>
10) Install the roof spoiler. <Ref. to EI-41, INSTAL-
11) After curing of adhesive, pour the water on ex-
ternal surface of vehicle to check that there are no
water leaks.
NOTE:
When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.
C: REPLACEMENT
When replacing only the molding, perform work ac-
cording to the following procedures. (when reusing
the rear gate glass)
1) Remove the rear gate glass from the vehicle.
<Ref. to GW-28, REMOVAL, Rear Gate Glass.>
2) From the removed rear gate glass, completely
remove the adhesive and molding.

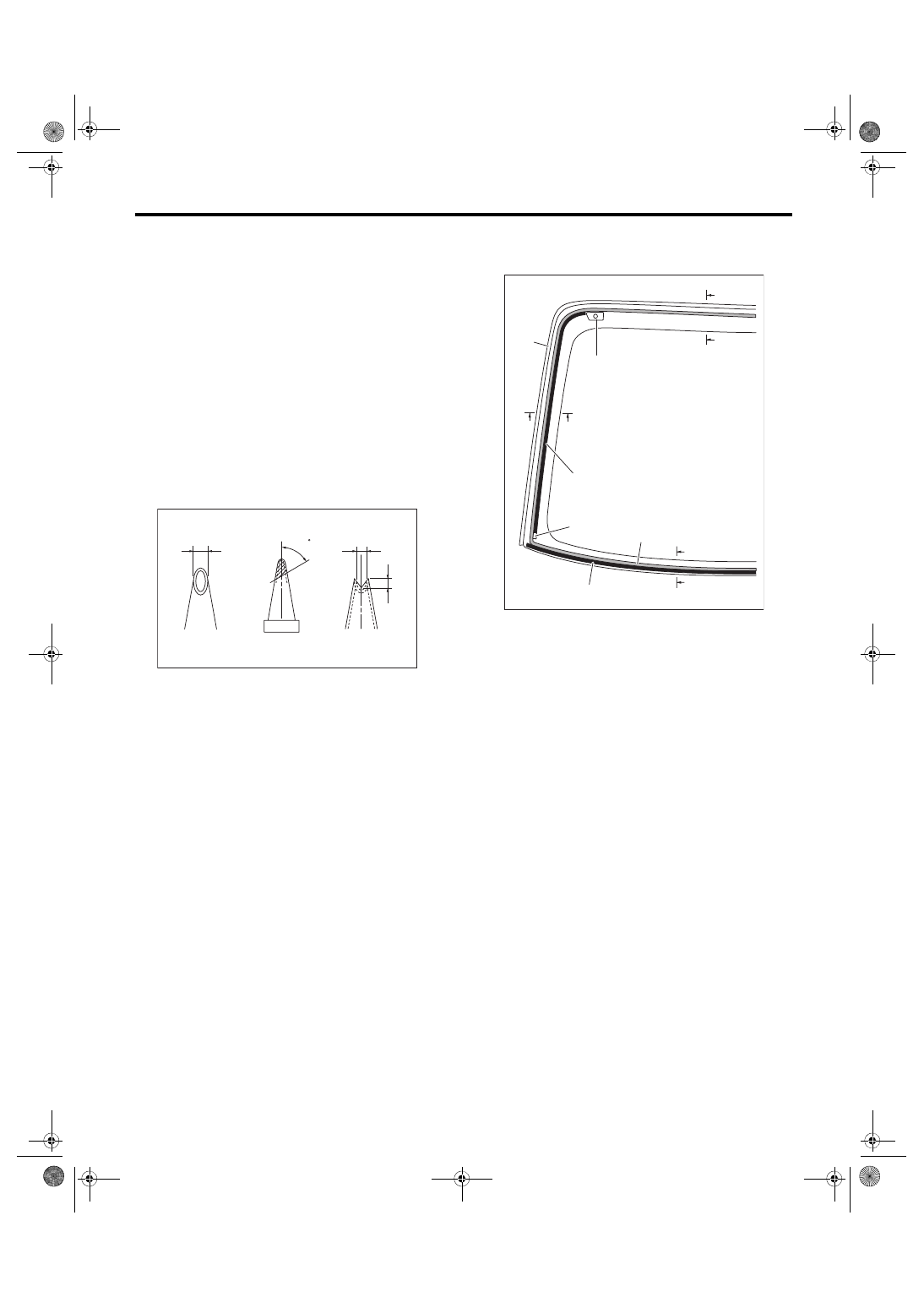

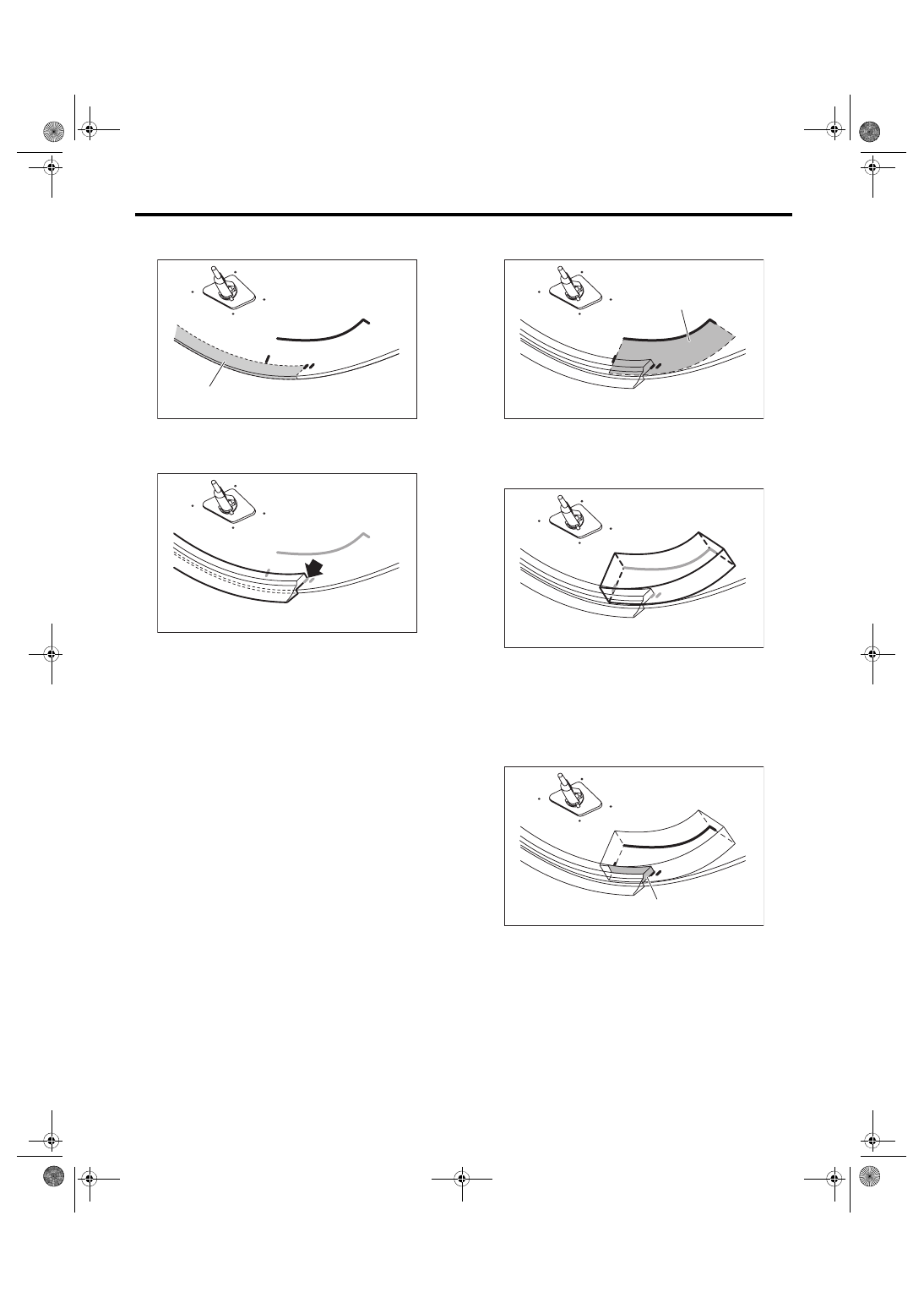

3) Check the silver print (1) (2) (3) (4) of the rear
gate glass on the passenger room side surface.

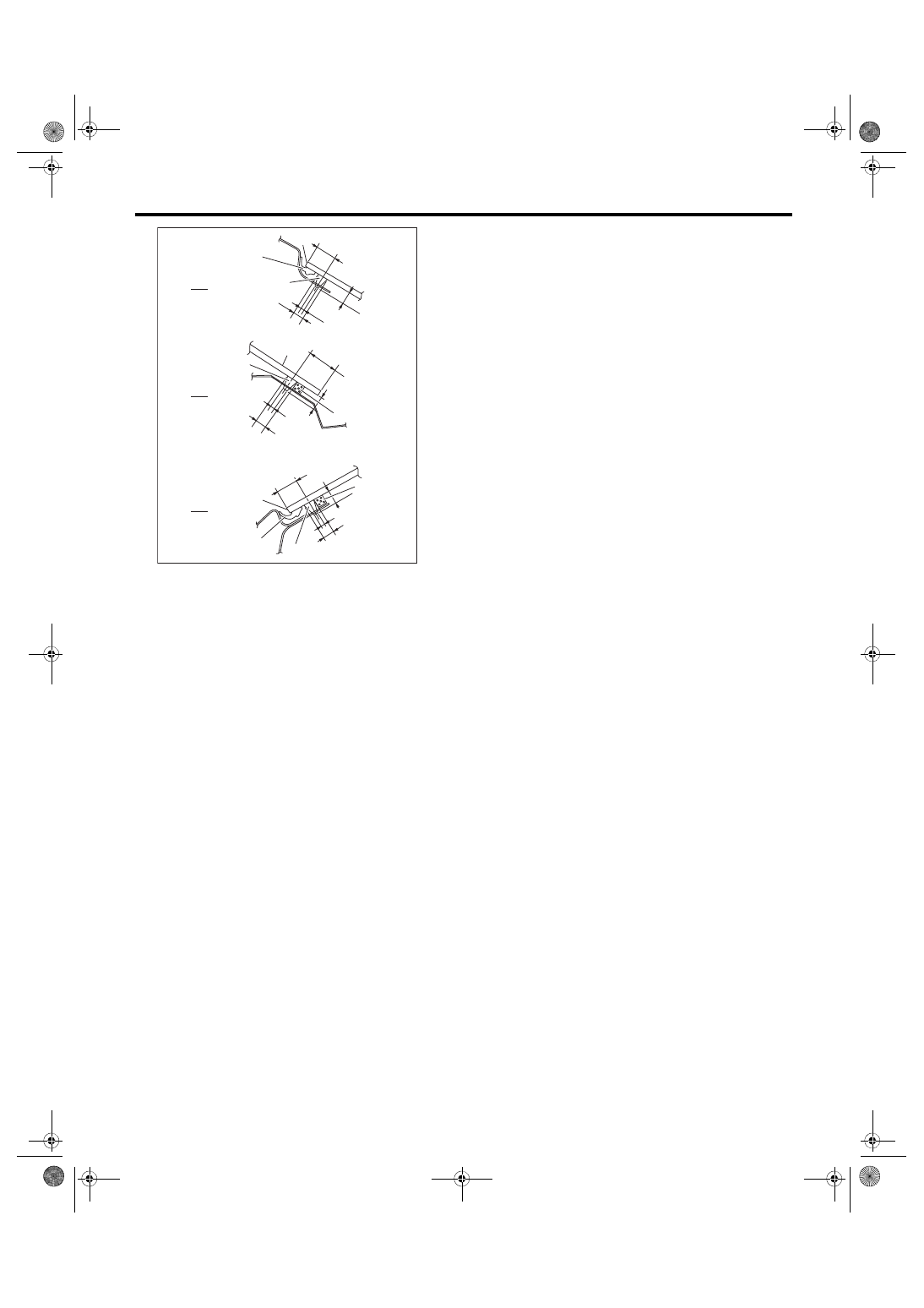

A Upper end
B Lower end
C Side end
(1) Glass
(2) Adhesive
(3) Molding
(1)
(2)
(2)
(1)
(1)
A
B
C
(2)
10 mm (0.39 in)
8 mm
(0.31 in)
4 mm (0.16 in)
10 mm (0.39 in)
8 mm
(0.31 in)
4 mm
(0.16 in)
10 mm
(0.39 in)
13 mm (0.51 in)
(3)
8 mm
(0.31 in)
4 mm (0.16 in)
10 mm
(0.39 in)
45 mm
(1.77 in)
GW-00733
GW-00765
GW-00707
(3)
(4)
(1)
(2)
