POWER ASSISTED SYSTEM (POWER STEERING)
3. INSPECTION OF CLEARANCE

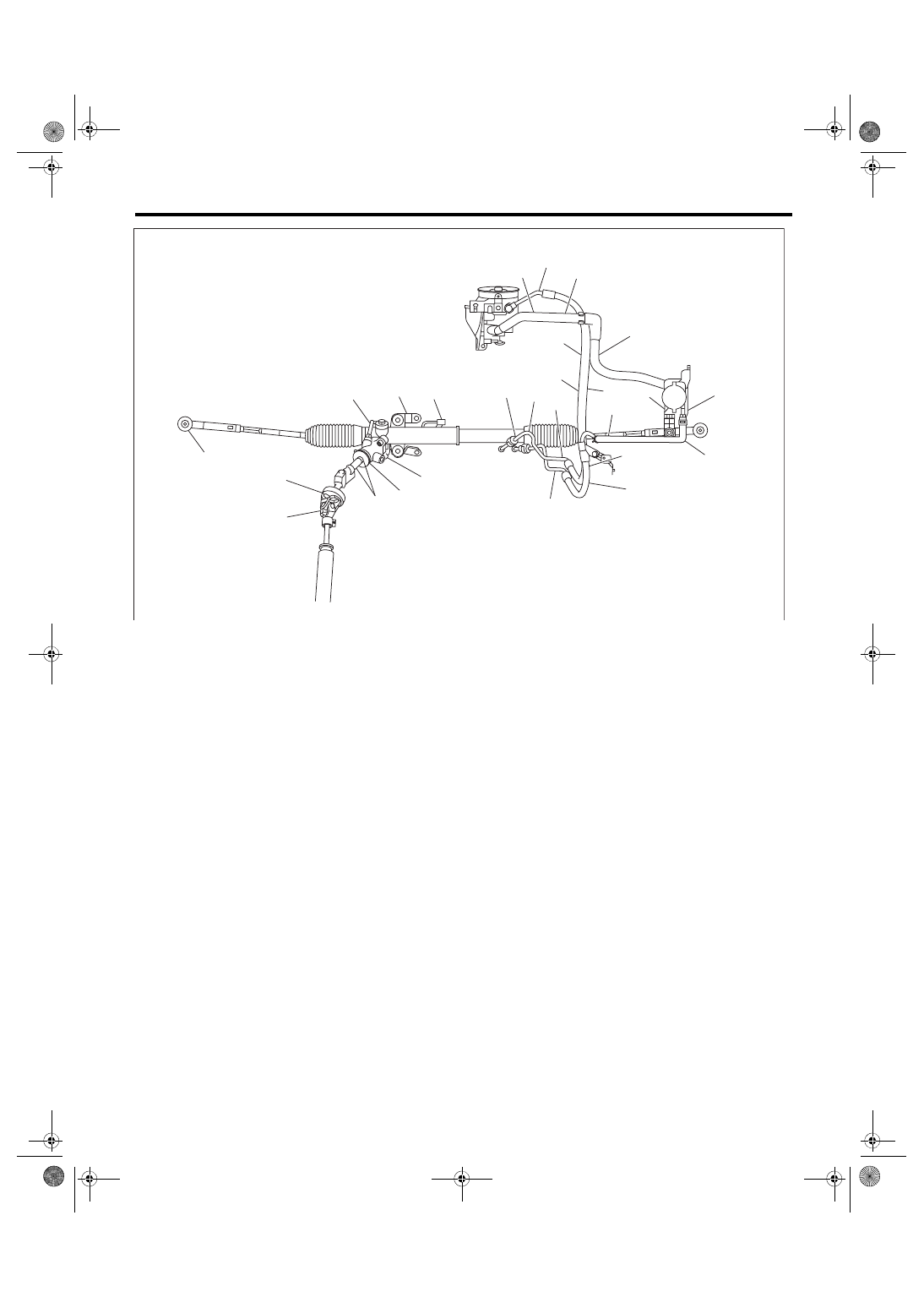

This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving with-
out interfering noise, or any other faults.
Location
Minimum allowance mm (in)
(1) Crossmember to hose ASSY
3 (0.12)
(2) Front exhaust pipe to hose ASSY
15 (0.59)
(3) Front frame side to hose ASSY
10 (0.39)
(4) Turbo cover to hose ASSY
10 (0.39)
(5) Master cylinder to return hose
10 (0.39)
(6) Master cylinder to hose clip
10 (0.39)
(7) VDC H/U to hose ASSY
5 (0.20)
(8) Air cleaner to hose ASSY
5 (0.20)
(9) Air boot to hose ASSY
10 (0.39)
(10) Air cleaner hose to hose ASSY
10 (0.39)
(11) Blow-by hose to hose ASSY
8 (0.31)
(12) Over flow hose to hose ASSY
8 (0.31)
(13) Brake pipe to return hose
10 (0.39)
(14) Front suspension bracket to return hose
5 (0.20)
(15) Front wheel apron to return hose
5 (0.20)
(16) VDC H/U bracket to suction hose
5 (0.20)
(17) Air cleaner case to suction hose
5 (0.20)
(18) Air intake duct to suction hose
10 (0.39)
(19) Air duct to suction hose
10 (0.39)
(20) Front wheel apron to reservoir tank
5 (0.20)
(21) VDC H/U to reserve tank
5 (0.20)
(22) Valve housing to DOJ (MT model)
12 (0.47)
(23) Valve housing to crossmember (hole)
1 (0.04)
(24) Cannon mount to crossmember
There must be no contact
(25) Pipe to crossmember
5 (0.20)
(26) Pipe to stabilizer
15 (0.59)
(27) Pipe to exhaust pipe
18 (0.71)
(28) Tie-rod end to brake dust cover
2.5 (0.10)
(29) Universal joint coupling to turbo cover
15 (0.59)
(30) Universal joint column side yoke to master cylinder (closest point of approach when the
universal joint turns by 360°)
5 (0.20)
(31) Universal joint coupling to ATF level gauge
10 (0.39)
