5MT-5

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

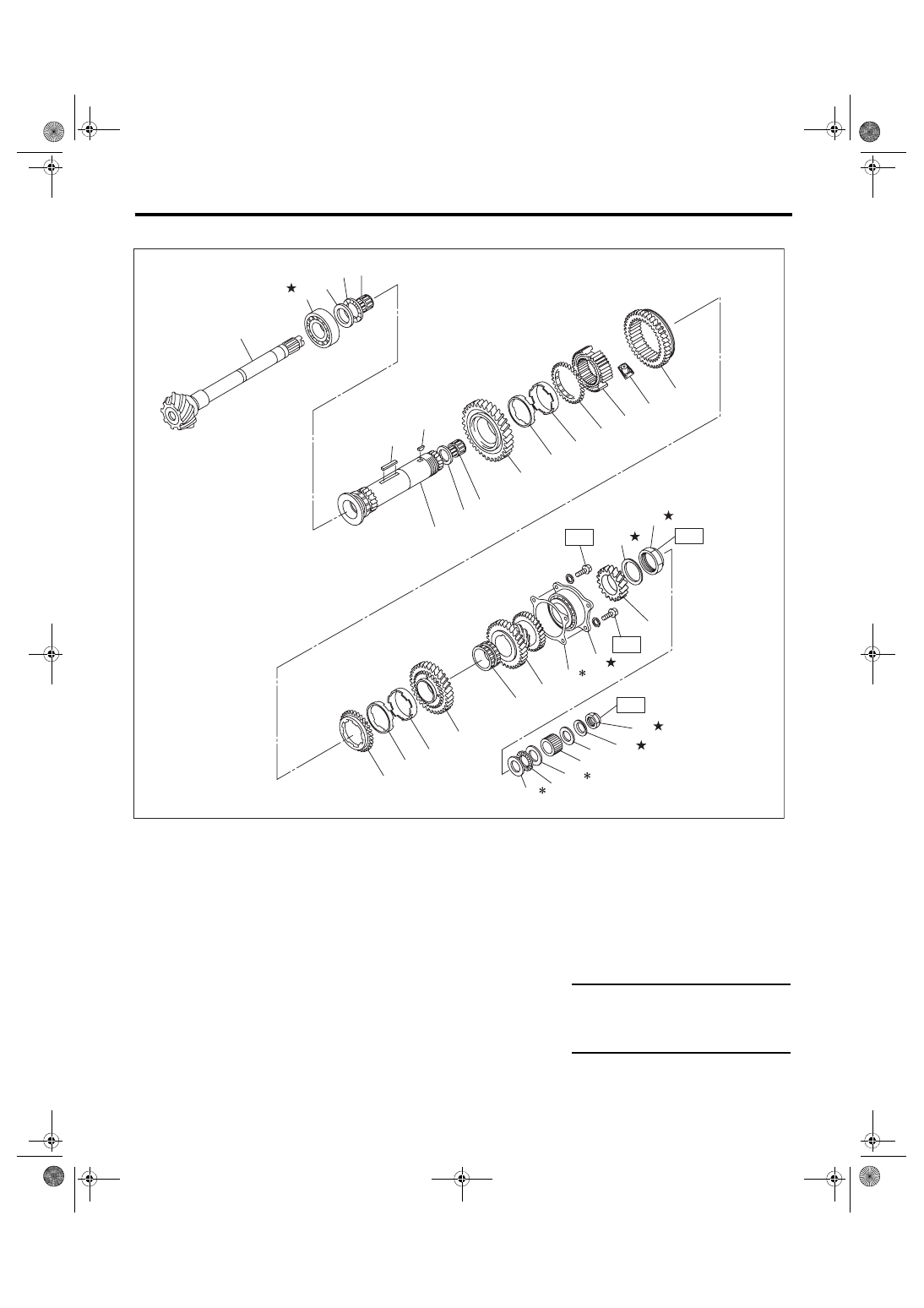

2. DRIVE PINION ASSEMBLY

(1)

Drive pinion shaft

(14) Outer baulk ring

(27) Lock washer

(2)

Roller bearing

(15) 1st-2nd synchronizer hub

(28) Lock nut

(3)

Washer

(16) Ball detent

(29) Adjusting washer

(4)

Thrust bearing

(17) Reverse driven gear

(30) Thrust bearing

(5)

Needle bearing

(18) Outer baulk ring

(31) Differential bevel gear sleeve

(6)

Driven shaft

(19) Synchro cone

(32) Washer

(7)

Key

(20) Inner baulk ring

(33) Lock washer

(8)

Woodruff key

(21) 2nd driven gear

(34) Lock nut

(9)

Drive pinion collar

(22) 2nd driven gear bushing





(10) Needle bearing

(23) 3rd-4th driven gear

Tightening torque: N·m (kgf-m, ft-lb)

(11) 1st driven gear

(24) Driven pinion shim

T1: 30 (3.1, 22.1)

(12) Inner baulk ring

(25) Double taper roller bearing

T2: 120 (12.2, 88.5)

(13) Synchro cone

(26) 5th driven gear

T3: 260 (26.5, 191.8)

MT-02938

(5)

(4)

(1)

(24)

(25)

(26)

(27)

(28)

(20)

(21)

(22)

(30)

(29)

(31)

(32) (33)

(23)

(19)

(17)

(18)

(6)

(3)

(2)

(10)

(9)

(8)

(7)

(11)

T1

T3

(34)

T2

(29)

T1

(13)

(12)

(15)

(14)

(16)

5MT-6

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

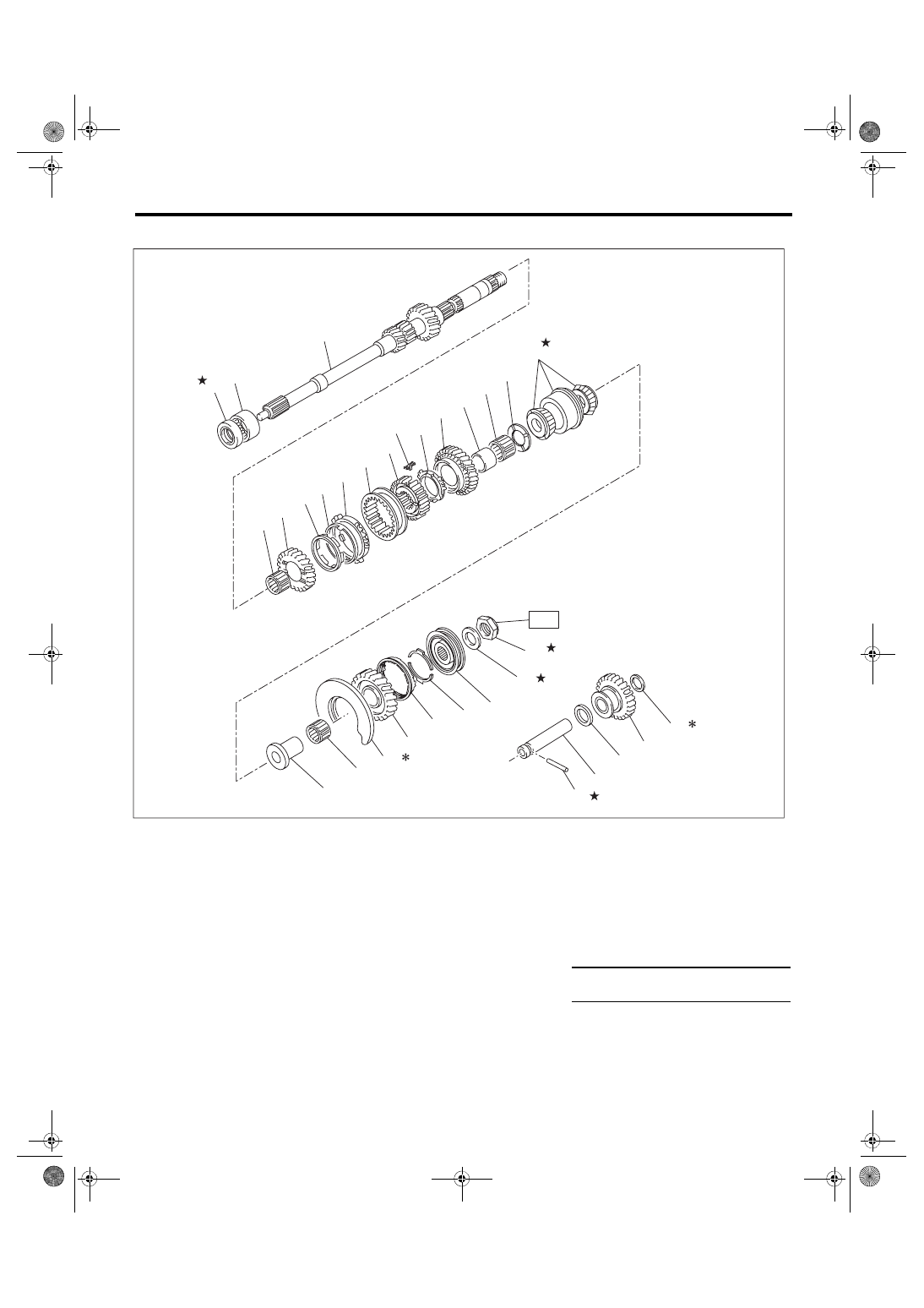

3. MAIN SHAFT FOR SINGLE-RANGE

(1)

Oil seal

(13) 4th drive gear

(25) Lock washer

(2)

Needle bearing

(14) 4th needle bearing race

(26) Lock nut

(3)

Transmission main shaft

(15) Needle bearing

(27) Straight pin

(4)

Needle bearing

(16) 4th gear thrust washer

(28) Reverse idler gear shaft

(5)

3rd drive gear

(17) Double taper roller bearing

(29) Washer

(6)

Inner baulk ring

(18) 5th needle bearing race

(30) Reverse idler gear

(7)

3rd synchro cone

(19) Needle bearing

(31) Adjusting washer

(8)

Outer baulk ring

(20) Main shaft rear plate





(9)

3rd-4th coupling sleeve

(21) 5th drive gear

Tightening torque: N·m (kgf-m, ft-lb)

(10) 3rd-4th synchronizer hub

(22) 5th baulk ring

T: 120 (12.2, 88.5)

(11) 3rd-4th shifting insert key

(23) Baulk lever



(12) 4th baulk ring

(24) 5th hub & sleeve No. 2





MT-02939

T

(19)

(20)

(21)

(22)

(23)

(24)

(25)

(26)

(28)

(27)

(30)

(31)

(3)

(10)

(4)

(5)

(2)

(1)

(9)

(11)

(13)

(12)

(14)

(15)

(16)

(18)

(29)

(17)

(8)

(7)

(6)

5MT-7

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

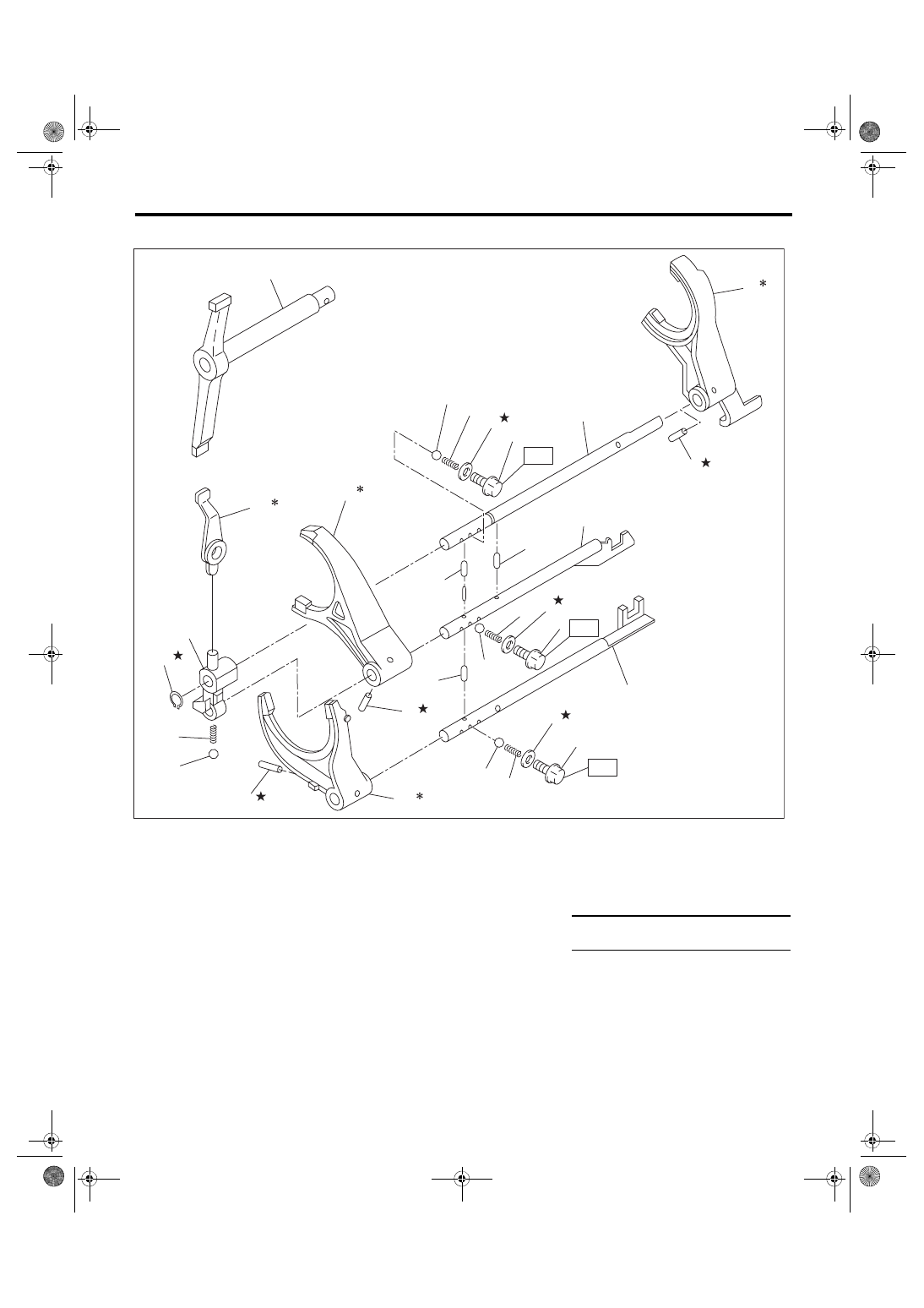

4. SHIFTER FORK AND SHIFTER ROD

(1)

Shifter arm

(8)

Ball

(15) Spring

(2)

5th shifter fork

(9)

3rd-4th fork rod

(16) Snap ring (outer)

(3)

Straight pin

(10) Interlock plunger

(17) Reverse fork rod arm

(4)

Reverse fork rod

(11) 1st-2nd fork rod

(18) Reverse shifter lever

(5)

Checking ball plug

(12) 3rd-4th shifter fork





(6)

Gasket

(13) 1st-2nd shifter fork

Tightening torque: N·m (kgf-m, ft-lb)

(7)

Checking ball spring

(14) Ball

T: 20 (2.0, 14.8)

MT-01985

T

T

T

(1)

(2)

(3)

(3)

(3)

(4)

(5)

(5)

(5)

(6)

(6)

(6)

(7)

(7)

(7)

(8)

(8)

(8)

(9)

(10)

(10)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

5MT-8

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

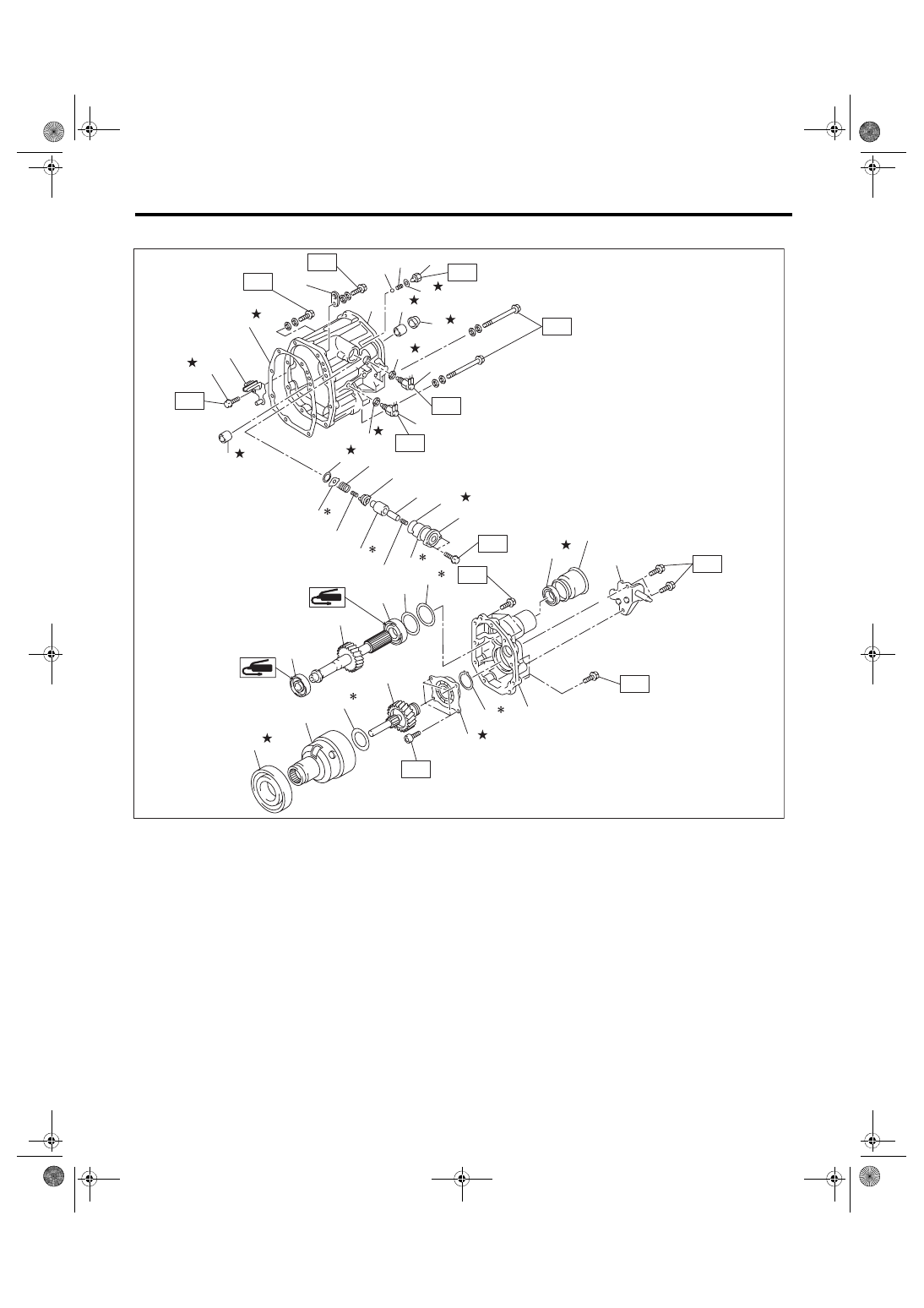

5. TRANSFER CASE AND EXTENSION

(41)

(2)

(7)

(6)

(21)

(8)

(5)

(4)

(40)

(3)

(1)

(38)

T3

T3

T2

T5

T5

T1

T1

(20)

(9)

(11)

(13)

(15)

(10)

(12)

(17)

(16)

(19)

(22)

(23)

(14)

(18)

T3

T6

T4

(34)

(36)

(35)

(33)

(31)

(27)

(30)

(29)

(28)

(37)

(32)

(24)

(25)

(26)

T3

T6

(39)

(39)

MT-03046
