EN(H4DOTC)(diag)-332
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step
Check
Yes
No
1
CHECK CURRENT DATA.
1) Start the engine.
2) Read the value of «TGV Position Sensor L»
using the Subaru Select Monitor.
NOTE:
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4DOTC)(diag)-40, Subaru Select Moni-
tor.>
Is the value of «TGV Position
Sensor L» less than 0.2 V?
Go to step
2.
Even if DTC is
detected, the cir-
cuit has returned to
a normal condition
at this time. Repro-
duce the failure,
and then perform
the diagnosis
again.
NOTE:
In this case, tem-
porary poor con-
tact of connector,
temporary open or
short circuit of har-
ness may be the
cause.
2

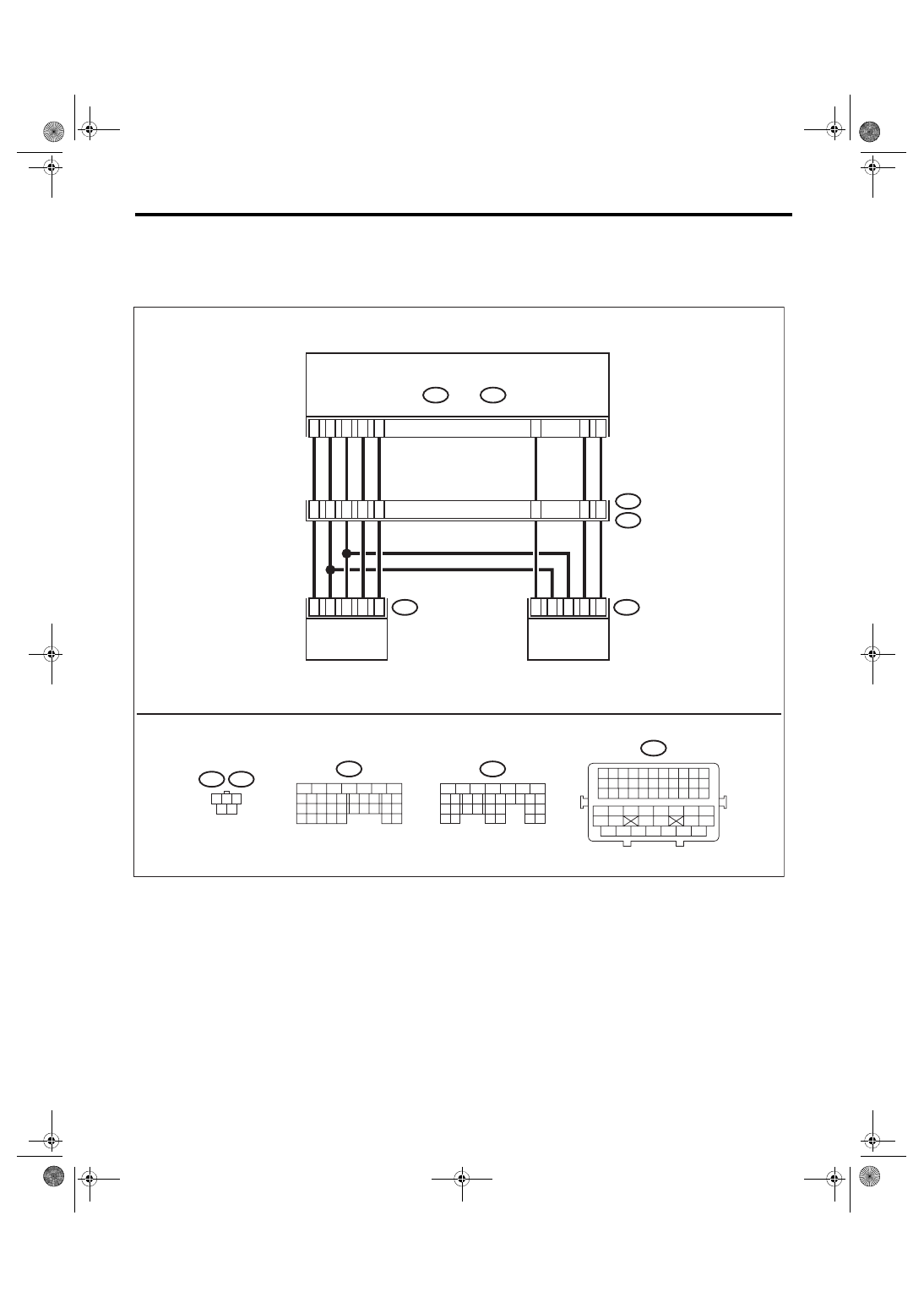

CHECK POWER SUPPLY OF TUMBLE GEN-
ERATOR VALVE ASSEMBLY LH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from tumble gen-
erator valve assembly LH.
3) Turn the ignition switch to ON.
4) Measure the voltage between tumble gen-
erator valve assembly LH connector and engine
ground.
Connector & terminal
(E51) No. 3 (+) — Engine ground (–):
Is the voltage 4.5 V or more?
Go to step
3.
Repair the harness
and connector.
NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
ECM
connector
and tumble gener-
ator valve assem-
bly LH connector
• Poor contact of
ECM connector
• Poor contact of
coupling connector
3
CHECK HARNESS BETWEEN ECM AND
TUMBLE GENERATOR VALVE ASSEMBLY
LH CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance of harness between
ECM connector and tumble generator valve
assembly LH connector.
Connector & terminal
(B137) No. 10 — (E51) No. 1:
Is the resistance less than 1 Ω? Go to step
4.
Repair the harness
and connector.
NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
ECM
connector
and tumble gener-
ator valve assem-
bly LH connector
• Poor contact of
coupling connector
4
CHECK HARNESS BETWEEN ECM AND
TUMBLE GENERATOR VALVE ASSEMBLY
LH CONNECTOR.
Measure the resistance between ECM connec-
tor and chassis ground.
Connector & terminal
(B137) No. 10 — Chassis ground:
Is the resistance 1 MΩ or
more?
Go to step
5.
Repair the short
circuit to ground in
harness between
ECM connector
and tumble gener-
ator valve assem-
bly LH connector.
