EN(H4DOTC)(diag)-164

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AI: DTC P013A O2 SENSOR SLOW RESPONSE - RICH TO LEAN (BANK 1 SEN-

SOR 2)

DTC DETECTING CONDITION:

• Detected when 2 consecutive driving cycles with fault occur.

• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-76, DTC P013A O2 SENSOR SLOW RESPONSE -

RICH TO LEAN (BANK 1 SENSOR 2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-63,

OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-49, PROCE-

DURE, Inspection Mode.>.

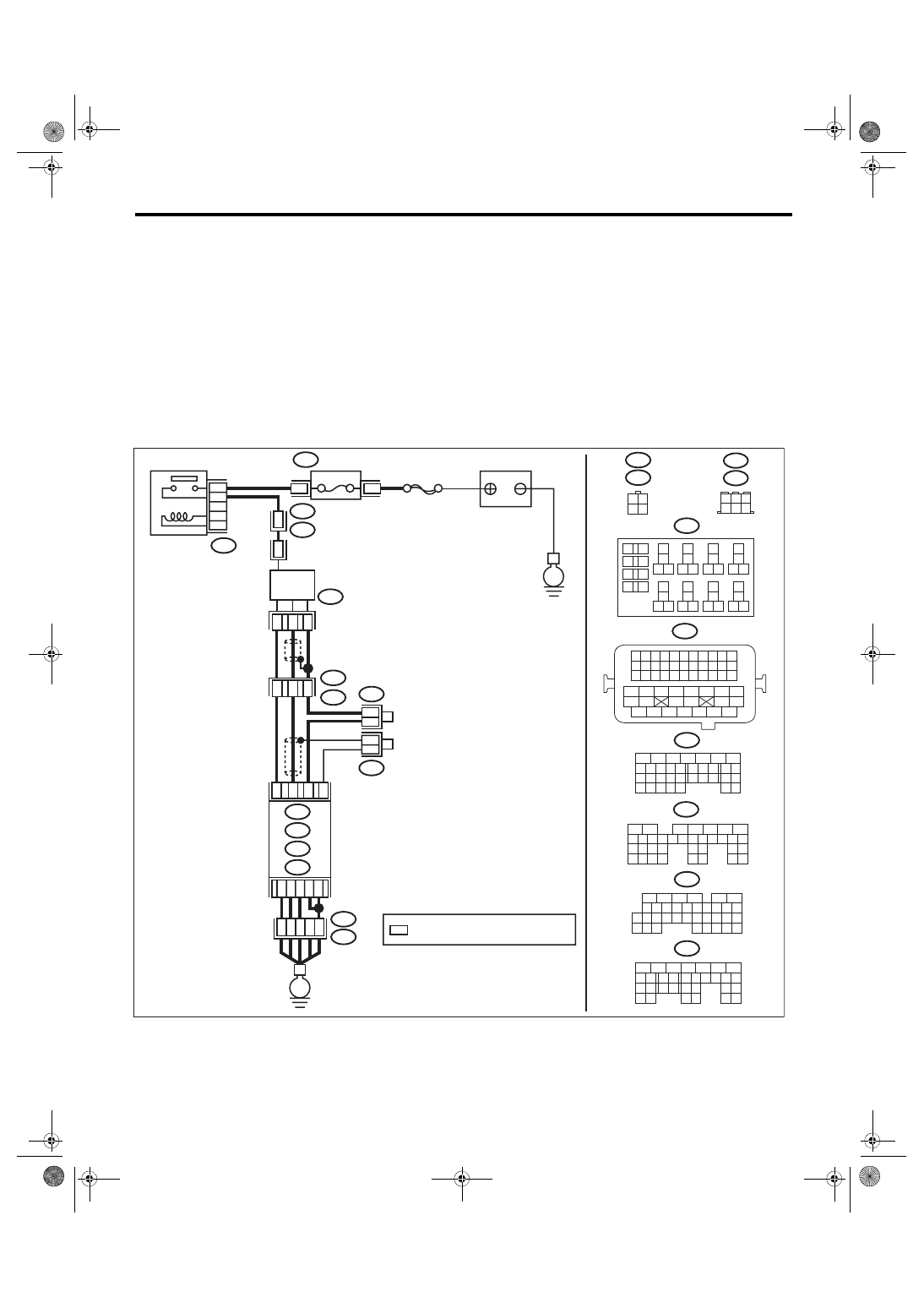

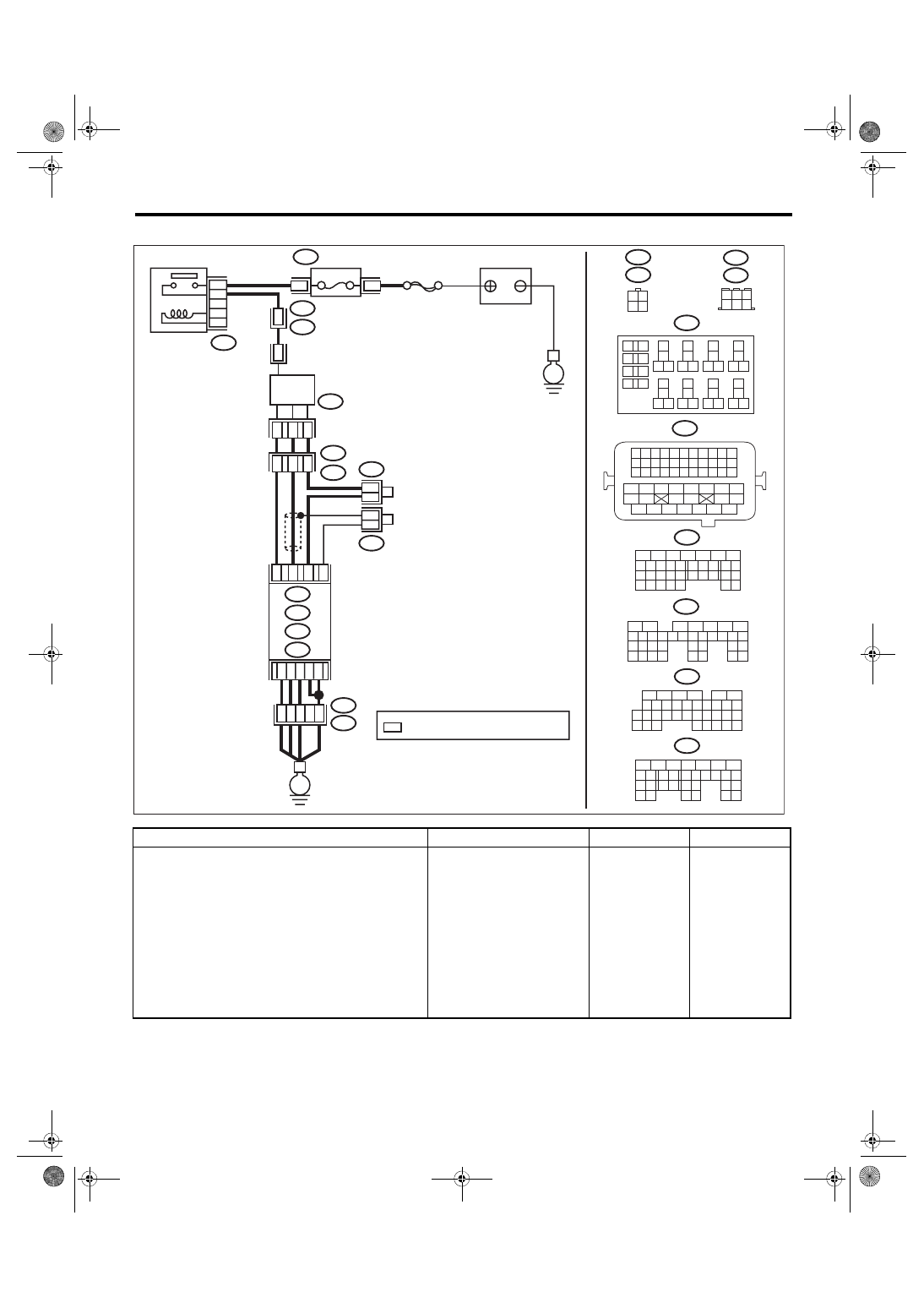

WIRING DIAGRAM:

• Models without SI-DRIVE <Ref. to WI-32, WITHOUT SI-DRIVE, WIRING DIAGRAM, Engine Electrical

System.>

ECM

6

4 5

3

2

1

*

2

1

B220

15A

9

10

11
12

B220

*

*

1 2
3 4

D1

36

A4

40

34

35

B21

E2

D3

A6

A3

B220

13
14

15 16

17

27

24

25
26

20

21
22

23

29
30

31

28

32 35

33
34

37
38

39

36

40

8

9

10

11 12

1

2

5

3

4

7

6

19

18

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

D: B137

C: B136

B: B135

A:

T6

B134

C9

B30

C20

B6

*

*

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44 45

47

46

49

48

51

50

53

52

54

4

1

3

4

1

3

B19

T5

22

T5

B19

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B135

B:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B136

C:

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

D: B137

B19

T6

B83

B138

B138

B83

EN-08722

E

E

SBF-5

BATTERY

: TERMINAL No. OPTIONAL ARRANGEMENT

REAR

OXYGEN SENSOR

A/F, OXYGEN SENSOR

RELAY

FUSE

(RELAY BLOCK)

EN(H4DOTC)(diag)-165

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

• Models with SI-DRIVE <Ref. to WI-48, WITH SI-DRIVE, WIRING DIAGRAM, Engine Electrical System.>

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
rear oxygen sensor.
3) Measure the resistance of harness between
ECM connector and rear oxygen sensor con-
nector.

Connector & terminal

(B136) No. 20 — (T6) No. 3:

Is the resistance less than 1 Ω? Go to step

2.

Repair the harness
and connector.
NOTE:

In this case, repair
the following item:
• Open  circuit  in
harness  between
ECM

connector

and  rear  oxygen
sensor connector
• Poor  contact  of
coupling connector

ECM

6

4 5

3

2

1

*

2

1

B220

15A

9

10

11
12

B220

*

*

1 2
3 4

D1

36

D3 A4

40

34

35

B21

E2

A6

A3

B220

13
14

15 16

17

27

24

25
26

20

21
22

23

29
30

31

28

32 35

33
34

37
38

39

36

40

8

9

10

11 12

1

2

5

3

4

7

6

19

18

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

D: B137

C: B136

B: B135

A:

T6

B134

C9

B30

C20

B6

*

*

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44 45

47

46

49

48

51

50

53

52

54

4

1

3

4

1

3

B19

T5

22

T5

B19

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B135

B:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B136

C:

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

D: B137

B19

T6

B83

B138

B138

B83

EN-08723

SBF-5

E

E

BATTERY

: TERMINAL No. OPTIONAL ARRANGEMENT

REAR

OXYGEN SENSOR

A/F, OXYGEN SENSOR

RELAY

FUSE

(RELAY BLOCK)

EN(H4DOTC)(diag)-166

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AJ:DTC P013B O2 SENSOR SLOW RESPONSE - LEAN TO RICH (BANK 1 SEN-

SOR 2)

NOTE:

For the diagnostic procedure, refer to DTC P013A. <Ref. to EN(H4DOTC)(diag)-164, DTC P013A O2 SEN-

SOR SLOW RESPONSE - RICH TO LEAN (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic

Trouble Code (DTC).>

AK:DTC P013E O2 SENSOR DELAYED RESPONSE - RICH TO LEAN (BANK 1

SENSOR 2)

NOTE:

For the diagnostic procedure, refer to DTC P013A. <Ref. to EN(H4DOTC)(diag)-164, DTC P013A O2 SEN-

SOR SLOW RESPONSE - RICH TO LEAN (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic

Trouble Code (DTC).>

AL:DTC P013F O2 SENSOR DELAYED RESPONSE - LEAN TO RICH (BANK 1

SENSOR 2)

NOTE:

For the diagnostic procedure, refer to DTC P013A. <Ref. to EN(H4DOTC)(diag)-164, DTC P013A O2 SEN-

SOR SLOW RESPONSE - RICH TO LEAN (BANK 1 SENSOR 2), Diagnostic Procedure with Diagnostic

Trouble Code (DTC).>

2

CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
Measure the resistance between rear oxygen
sensor connector and chassis ground.

Connector & terminal

(T6) No. 3 — Chassis ground:

Is the resistance 1 MΩ or
more?

Go to step

3.

Repair the short
circuit to ground in
harness between
ECM connector
and rear oxygen
sensor connector.

3

CHECK REAR OXYGEN SENSOR.
Measure the resistance between rear oxygen
sensor terminals.

Terminals

No. 3 — No. 4

Is the resistance less than 1 Ω? Replace the rear

oxygen sensor.
<Ref. to FU(STI)-
56, Rear Oxygen
Sensor.> <Ref. to
FU(w/o STI)-55,
Rear Oxygen Sen-
sor.>

Even if DTC is
detected, the cir-
cuit has returned to
a normal condition
at this time. Repro-
duce the failure,
and then perform
the diagnosis
again.
NOTE:

In  this  case,  tem-
porary  poor  con-
tact  of  connector,
temporary open or
short circuit of har-
ness  may  be  the
cause.

Step

Check

Yes

No

EN(H4DOTC)(diag)-167

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AM:DTC P0140 O2 SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK1

SENSOR2)

DTC DETECTING CONDITION:

• Detected when 2 consecutive driving cycles with fault occur.

• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-84, DTC P0140 O2 SENSOR CIRCUIT NO ACTIVITY

DETECTED (BANK1 SENSOR2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-63,

OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-49, PROCE-

DURE, Inspection Mode.>.

WIRING DIAGRAM:

• Models without SI-DRIVE <Ref. to WI-32, WITHOUT SI-DRIVE, WIRING DIAGRAM, Engine Electrical

System.>

ECM

6

4 5

3

2

1

*

2

1

B220

15A

9

10

11
12

B220

*

*

1 2
3 4

D1

36

A4

40

34

35

B21

E2

D3

A6

A3

B220

13
14

15 16

17

27

24

25
26

20

21
22

23

29
30

31

28

32 35

33
34

37
38

39

36

40

8

9

10

11 12

1

2

5

3

4

7

6

19

18

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

D: B137

C: B136

B: B135

A:

T6

B134

C9

B30

C20

B6

*

*

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44 45

47

46

49

48

51

50

53

52

54

4

1

3

4

1

3

B19

T5

22

T5

B19

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B135

B:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B136

C:

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

D: B137

B19

T6

B83

B138

B138

B83

EN-08722

E

E

SBF-5

BATTERY

: TERMINAL No. OPTIONAL ARRANGEMENT

REAR

OXYGEN SENSOR

A/F, OXYGEN SENSOR

RELAY

FUSE

(RELAY BLOCK)
