ME(w/o STI)-89

Cylinder Block

MECHANICAL

33) Install  the  oil  filter.  <Ref.  to  LU(STI)-31,  IN-

STALLATION, Engine Oil Filter.>

34) Install the cylinder head. <Ref. to ME(w/o STI)-

68, INSTALLATION, Cylinder Head.>

35) Install the camshaft. <Ref. to ME(w/o STI)-61,

INSTALLATION, Camshaft.>

36) Install the generator and A/C compressor with

their brackets.
Tightening torque:

36 N·m (3.7 kgf-m, 26.6 ft-lb)

37) Install  the  crank  sprocket.  <Ref.  to  ME(w/o

STI)-58, INSTALLATION, Crank Sprocket.>

38) Install the cam sprocket. <Ref. to ME(w/o STI)-

57, INSTALLATION, Cam Sprocket.>

39) Install the timing belt. <Ref. to ME(w/o STI)-50,

INSTALLATION, Timing Belt.>

40) Adjust  the  valve  clearance.  <Ref.  to  ME(w/o

STI)-28, ADJUSTMENT, Valve Clearance.>

41) Install the rocker cover.

(1) Install the rocker cover gasket to the rocker

cover. (outer section and ignition coil section)

NOTE:

Use a new rocker cover gasket.

(2) Apply liquid gasket to the specified point of

the cylinder head.

NOTE:

Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100)

or equivalent

(3) Install the rocker cover onto cylinder heads.

Ensure the gasket is properly positioned during

installation.

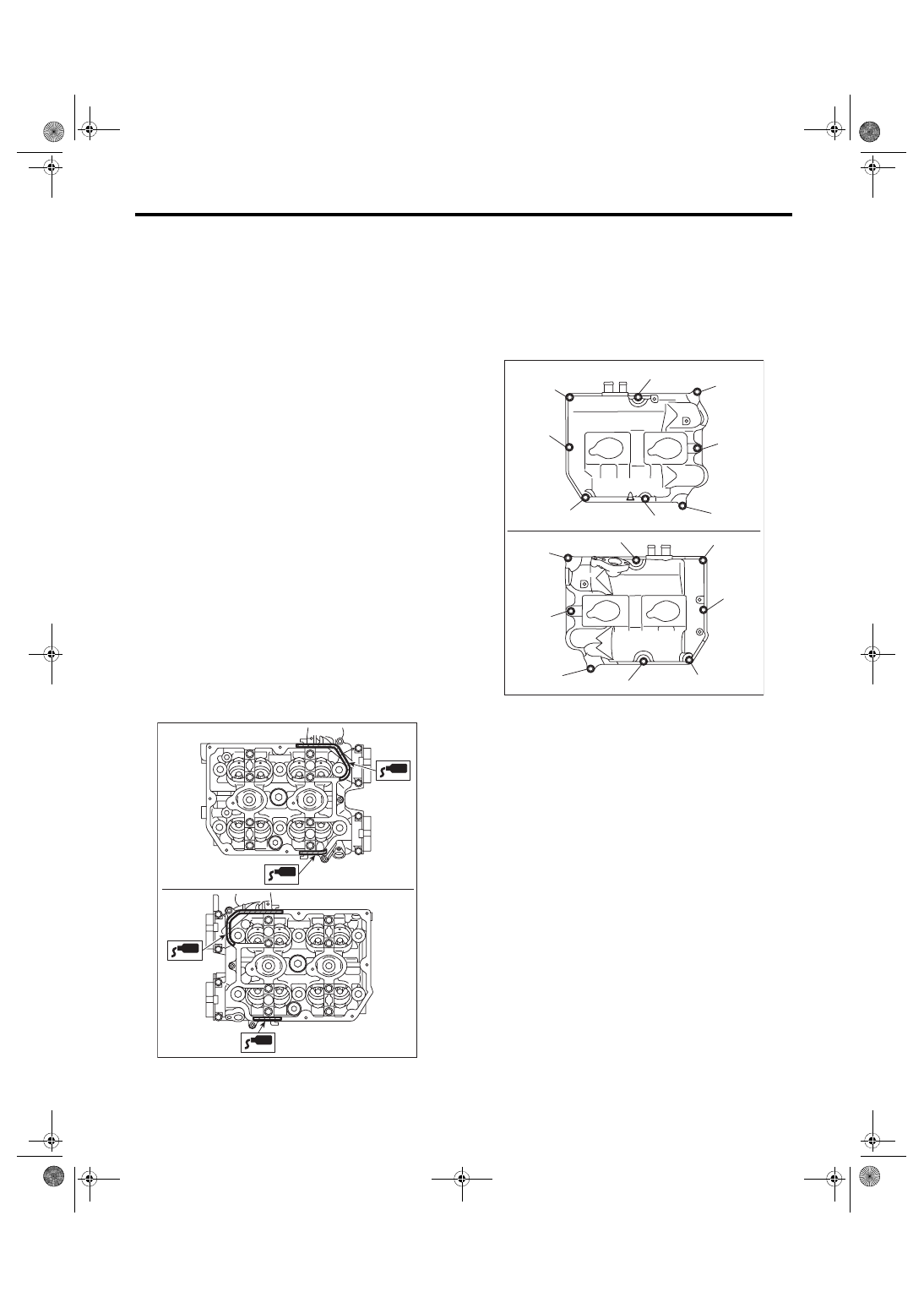

(4) Temporarily tighten the rocker cover bolts in

alphabetical order shown in the figure, and then

tighten to specified torque in alphabetical order.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

ME-05981

ME-05982

(E)

(F)

(H)

(G)

(D),(L)

(A),(I)

(C),(K)

(B),(J)

(B),(J)

(H)

(F)

(C),(K)

(E)

(A),(I)

(D),(L)

(G)

ME(w/o STI)-90

Cylinder Block

MECHANICAL

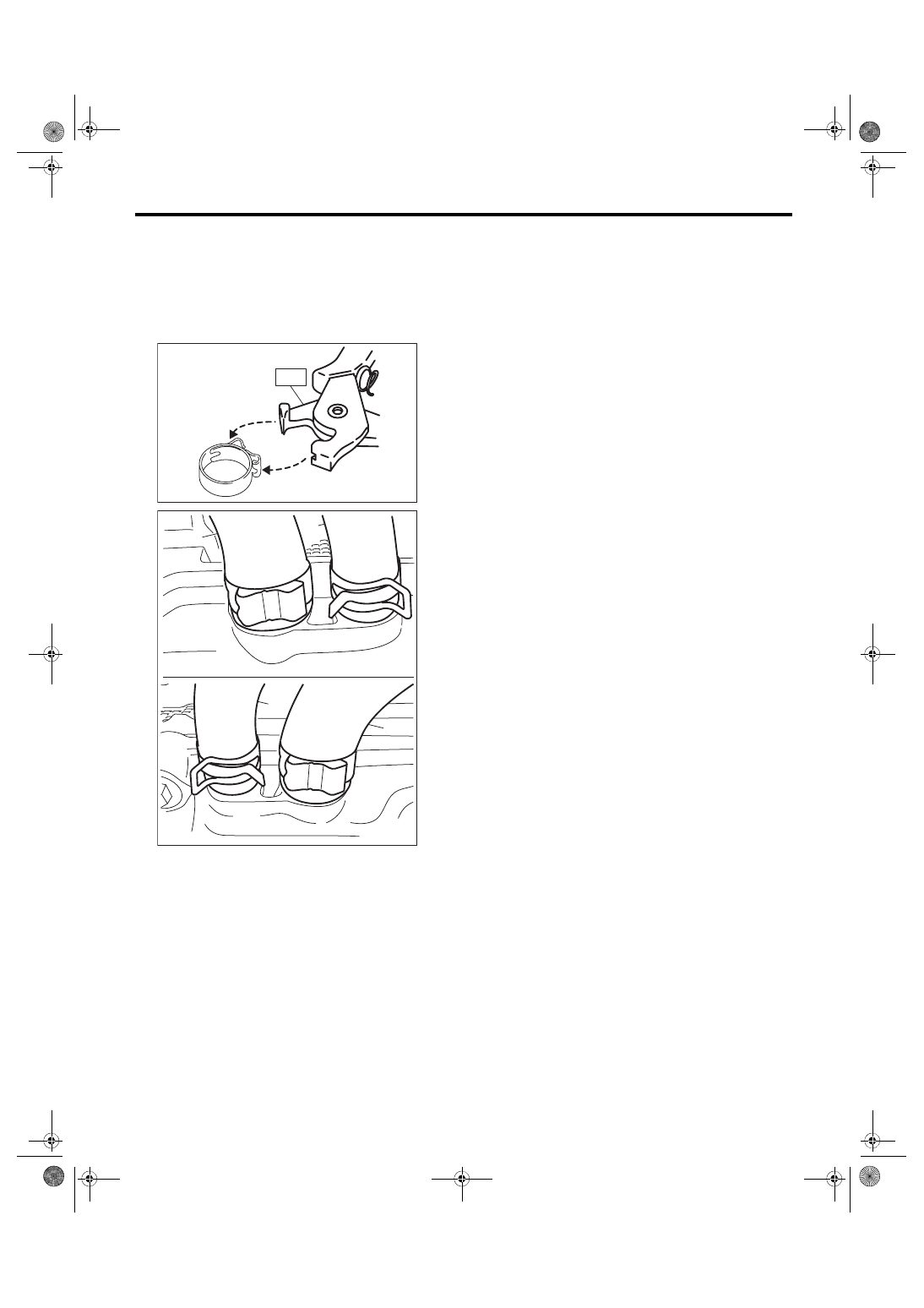

42) Connect the PCV hose (A) and PCV hose as-

sembly (B) to the rocker cover.
NOTE:

Use a new clamp for the PCV hose (A), fit the cut

out in the ST with the protrusion on the clamp as

shown in the figure, and lock the clamp.

ST 18353AA000 CLAMP PLIERS

43) Install  the  timing  belt  cover.  <Ref.  to  ME(w/o

STI)-47, INSTALLATION, Timing Belt Cover.>

44) Install the crank pulley. <Ref. to ME(w/o STI)-

45, INSTALLATION, Crank Pulley.>

45) Install  the  intake  manifold.  <Ref.  to  FU(w/o

STI)-22, INSTALLATION, Intake Manifold.>

46) Install the rear side belt. <Ref. to ME(w/o STI)-

39, REAR SIDE BELT, INSTALLATION, V-belt.>

47) Install the engine to the vehicle. <Ref. to ME(w/

o STI)-33, INSTALLATION, Engine Assembly.>

ME-04374

ST

ME-05768

(A)

(B)

(A)

(B)

ME(w/o STI)-91

Cylinder Block

MECHANICAL

C: DISASSEMBLY

1) Remove the connecting rod cap.

2) Remove the connecting rod bearing.
NOTE:

Keep the removed connecting rods, connecting rod

caps and bearings in order so that they are kept in

their original combinations/groups, and not mixed

together.

3) Remove  the  piston  rings  using  piston  ring  ex-

pander.

4) Remove the oil ring by hand.
NOTE:

Arrange the removed piston rings in proper order,

to prevent confusion.

5) Remove the snap ring.

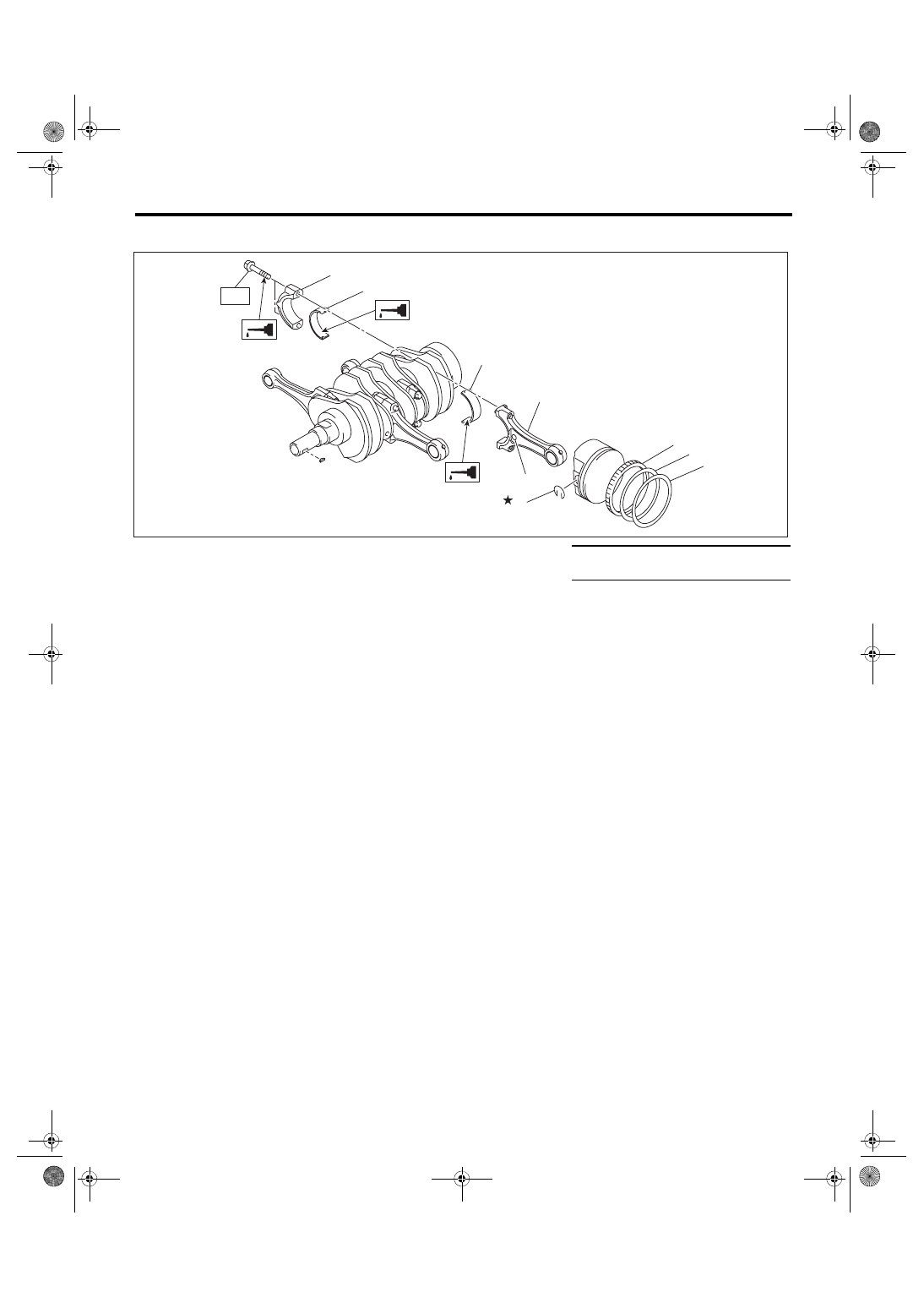

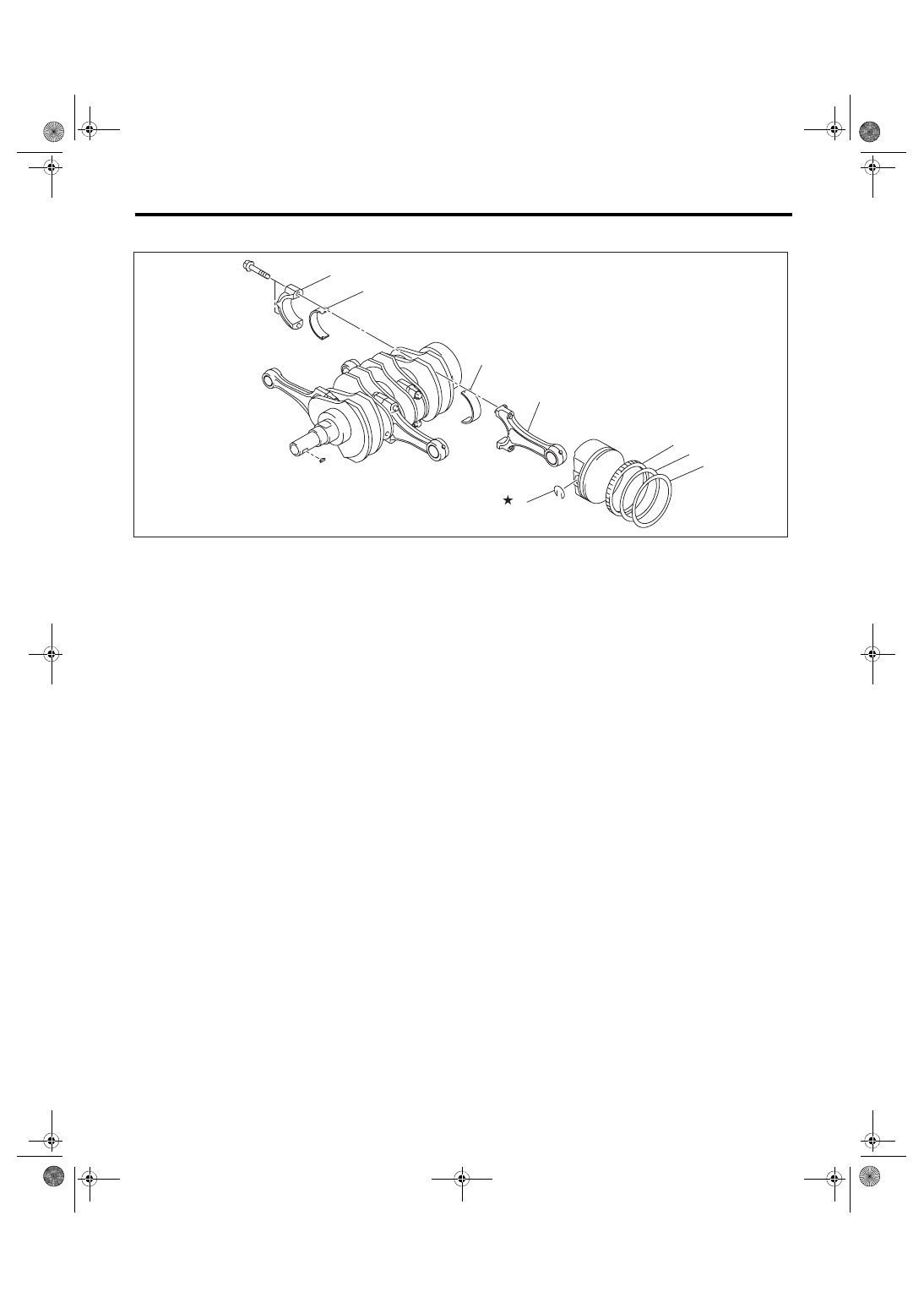

(1)

Top ring

(4)

Snap ring

(6)

Connecting rod bearing

(2)

Second ring

(5)

Connecting rod

(7)

Connecting rod cap

(3)

Oil ring









ME-04831

(6)

(6)

(4)

(3)

(2)

(1)

(7)

(5)

ME(w/o STI)-92

Cylinder Block

MECHANICAL

D: ASSEMBLY

1) Apply engine oil to the surface of the connecting

rod bearings, and install the connecting rod bear-

ings on connecting rods and connecting rod caps.

2) Position each connecting rod with the side with a

side mark facing forward, and install it.

3) Attach the connecting rod cap and tighten it with

connecting rod bolt. Make sure the arrow on con-

necting rod cap faces the front during installation.
NOTE:

• Each  connecting  rod  has  its  own  mating  cap.

Make  sure  that  they  are  assembled  correctly  by

checking their matching number.

• When tightening the connecting rod bolts, apply

oil on the threads.
Tightening torque:

52 N·m (5.3 kgf-m, 38.4 ft-lb)

4) Install the oil ring upper rail, expander and lower

rail by hand.

5) Install the second ring and top ring using piston

ring expander.
NOTE:

Assemble so that the piston ring mark “R” faces the

top side of the piston.

E: INSPECTION

1. CYLINDER BLOCK

1) Check  for  cracks  or  damage.  Use  liquid  pene-

trant tester on the important sections to check for

fissures. Check that there are no marks of gas leak-

ing or water leaking on gasket installing surface.

2) Check the oil passages for clogging.

3) Inspect  the  cylinder  head  surface  that  mates

with cylinder block for warping by using a straight

edge, and correct by grinding if necessary.
Warping limit:

0.025 mm (0.00098 in)

Grinding limit:

0.1 mm (0.004 in)

Standard height of cylinder block:

201.0 mm (7.91 in)

(1)

Top ring

(5)

Side mark

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Second ring

(6)

Connecting rod

T: 52 (5.3, 38.4)

(3)

Oil ring

(7)

Connecting rod bearing





(4)

Snap ring

(8)

Connecting rod cap





ME-04832

(7)

(7)

(4)

(3)

(2)

(1)

(8)

(6)

(5)

T
