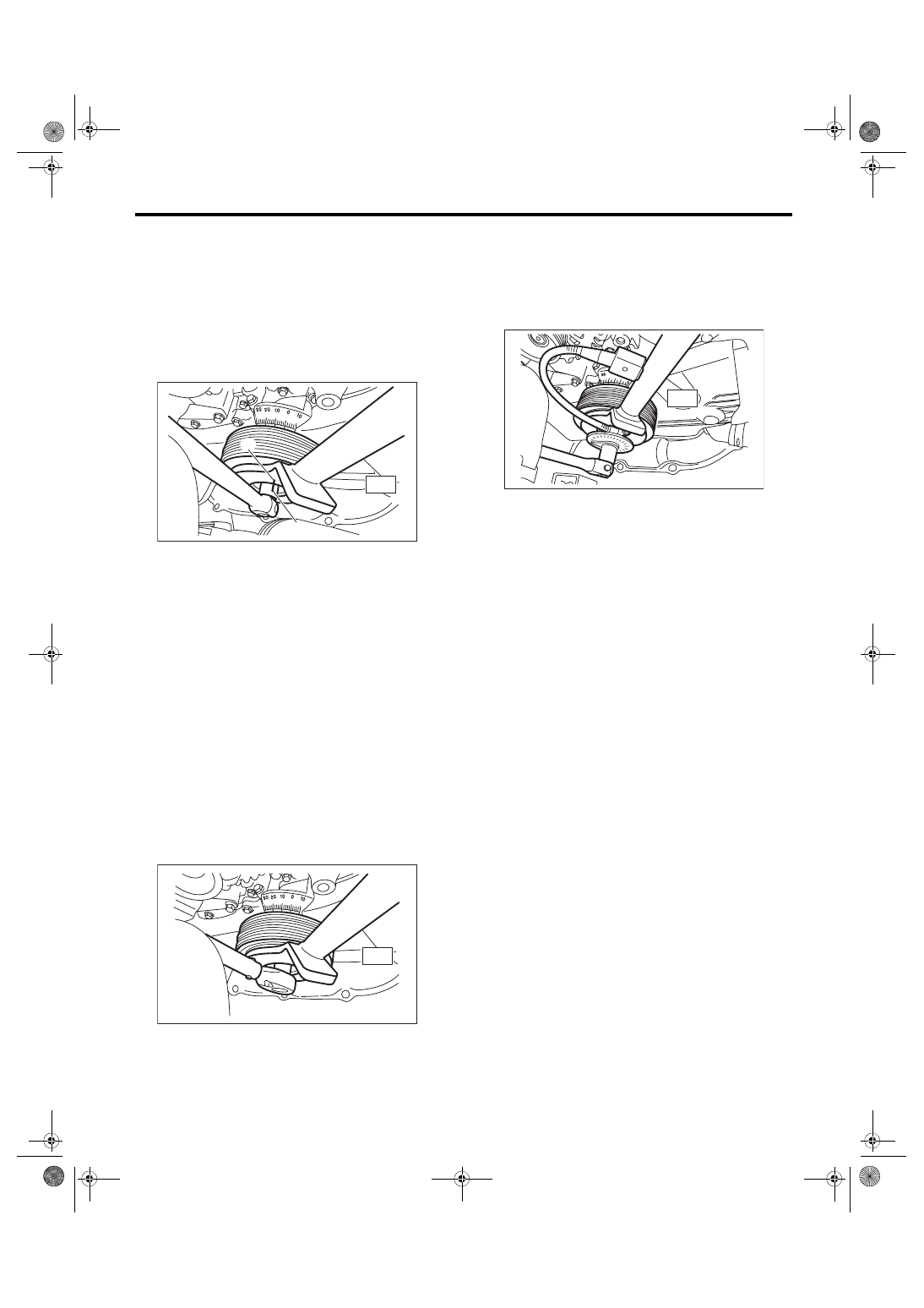

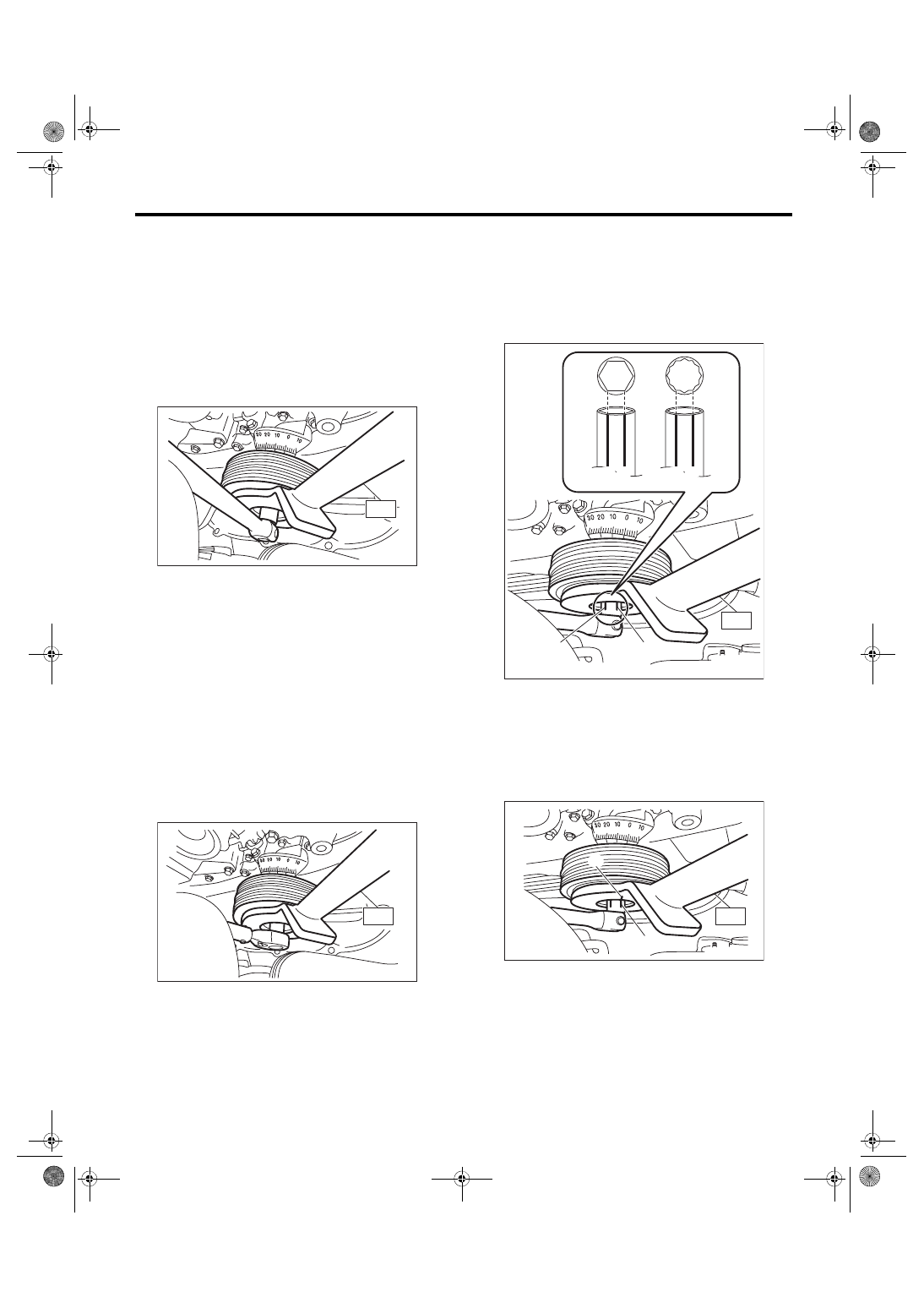

ME(w/o STI)-45 Crank Pulley MECHANICAL 13.Crank Pulley A: REMOVAL NOTE: When replacing a single part, perform the work with the engine assembly installed to body. 1) Remove the V-belts. <Ref. to ME(w/o STI)-38, 2) Use the ST to lock the crank pulley, and remove the crank pulley bolt. ST 499977100 CRANK PULLEY WRENCH 3) Remove the crank pulley. B: INSTALLATION 1. METHOD WITHOUT ANGLE GAUGE 1) Clean the crankshaft thread using compressed air. 2) Install the crank pulley. 3) Apply engine oil to the crank pulley bolt seat and thread. 4) Tighten the crank pulley bolts. (1) Use the ST to lock the crank pulley, and temporarily tighten the crank pulley bolt. ST 499977100 CRANK PULLEY WRENCH Tightening torque: 47 N·m (4.8 kgf-m, 34.7 ft-lb) (2) Draw reference lines (A) and (B) using a marker to set the socket to the crank pulley bolt as shown in the figure. NOTE: Set the socket onto the crank pulley bolt so that ref- erence lines (A) and (B) is visible. ST 499977100 CRANK PULLEY WRENCH (3) Draw end line (C) on ST using a marker at the same position as reference line (B) drawn on the socket in step (2). ST 499977100 CRANK PULLEY WRENCH ME-04141 ST ST ME-04142 (a) When using 6-point socket ME-04955 (B) ST (A) (a) (B) (A) (b) (B) (A) ME-04144 (B) ST (C) |
