Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 118





SC(STI)-28

Battery

STARTING/CHARGING SYSTEMS

2) Measuring the specific gravity of the electrolyte

in the battery will disclose the state of charge of the

battery. The relation between specific gravity and

state of charge is as shown in the figure.

D: MEASUREMENT

WARNING:

Do not bring an open flame close to the battery

when working.
CAUTION:

• Prior to charging, corroded terminals should

be cleaned with a brush and common caustic

soda solution.

• Be careful since battery electrolyte overflows

while charging the battery.

• Observe instructions when handling the bat-

tery charger.

• Before  charging  the  battery  on  the  vehicle,

disconnect the battery ground terminal to pre-

vent damage of generator diodes or other elec-

trical units.

1. JUDGMENT OF BATTERY IN CHARGED

CONDITION

1) Specific  gravity  of  electrolyte  should  be  held

within the specific range of 1.250 — 1.290 for one

hour or more.

2) Voltage per battery cell should be held at a spe-

cific value in a range of 2.5 — 2.8 V for one hour or

more.

2. CHECK CONDITION OF CHARGE WITH

HYDROMETER

3. NORMAL CHARGING

Charge the battery at the current value specified by

manufacturer or at approximately 1/10 of battery’s

ampere-hour rating.

4. QUICK CHARGING

CAUTION:

• Observe  the  items  in  “3.  NORMAL  CHARG-

ING”.

• Never  use  10  A  or  more  when  charging  the

battery because it will shorten the battery life.

Quick  charging  is  a  method  that  the  battery  is

charged in a short period of time with a relatively

large current by using a quick charger.

Since a large current flow raises electrolyte temper-

ature, the battery is subject to damage if the large

current is used for prolonged time. For this reason,

quick charging must be carried out within a current

range that will not raise the electrolyte temperature

to 40°C (104°F) or more.

Also  the  quick  charging  is  a  temporary  mean  to

bring battery voltage up to some level, and battery

should be charged slowly with low current as a rule.

Hydrometer

indicator

State of

charge

Corrective action

Green dot

65% or more

Load test

Dark dot

65% or less

Charge battery

Clear dot

Low electrolyte

Replace the battery.*

(If cranking is difficult)

* Check electrical system before replacement.

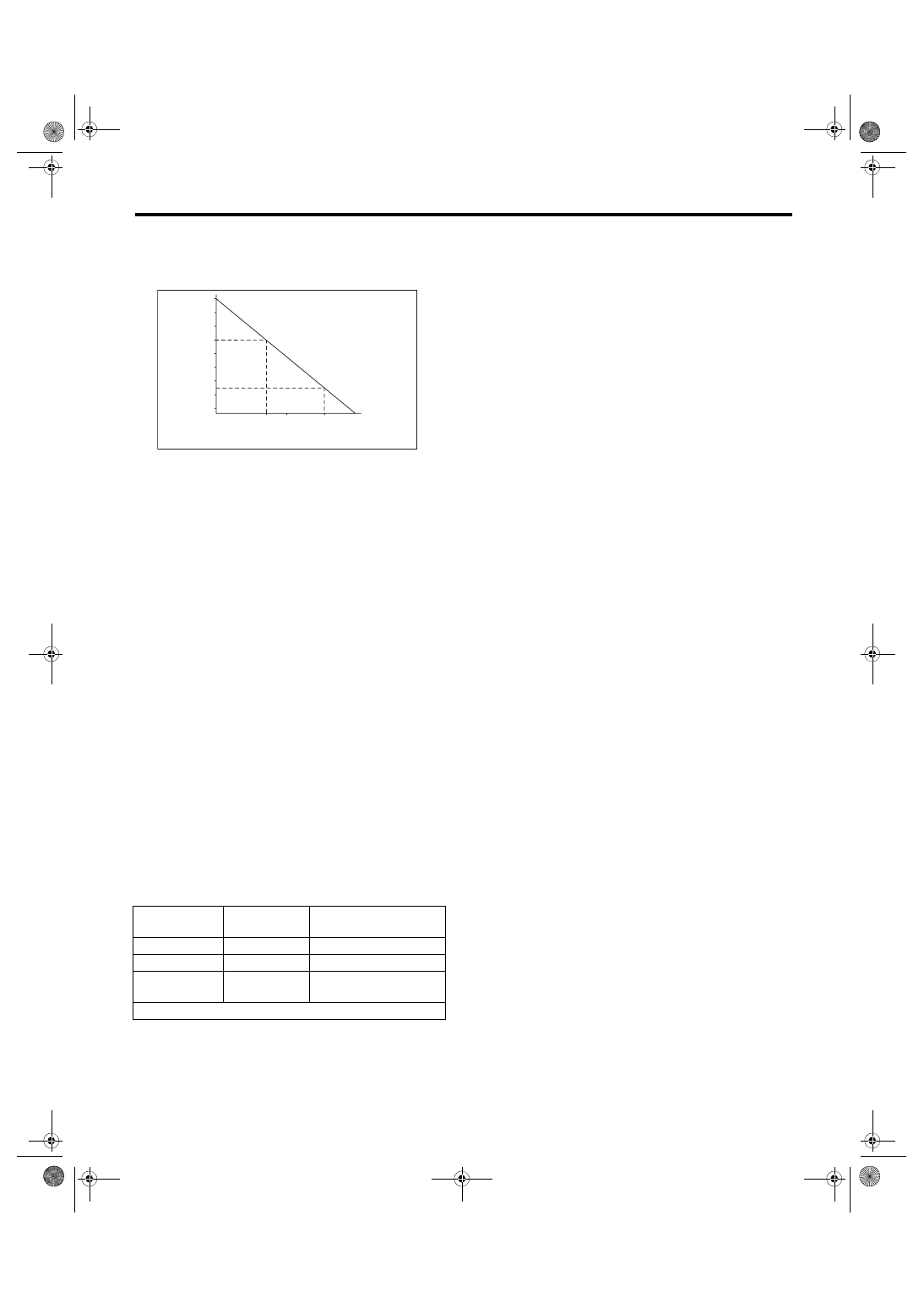

1.28

Specific gravity [20˚C (68˚F)]

Specific gravity and state of charge

Complete charge

Charging condition

1.26

1.24

1.22

1.20
1.18

1.16

1.14

1.12

100%

75% 50%

22%

0%

(%)

SC-00094

2014 IMPREZA WRX STI SERVICE MANUAL

QUICK REFERENCE INDEX

FUJI HEAVY INDUSTRIES LTD.

G1180BE3

ENGINE 2 SECTION

This service manual has been prepared
to  provide  SUBARU  service  personnel
with the necessary information and data
for  the  correct  maintenance  and  repair
of SUBARU vehicles.
This  manual  includes  the  procedures
for  maintenance,  disassembling,  reas-
sembling, inspection and adjustment of
components  and  diagnostics  for  guid-
ance of experienced mechanics.
Please  peruse  and  utilize  this  manual
fully to ensure complete repair work for
satisfying  our  customers  by  keeping
their  vehicle  in  optimum  condition.
When  replacement  of  parts  during
repair  work  is  needed,  be  sure  to  use
SUBARU genuine parts.

All  information,  illustration  and  specifi-
cations  contained  in  this  manual  are
based on the latest product information
available  at  the  time  of  publication
approval.

FUEL INJECTION (FUEL SYSTEMS)

FU(w/o STI)

EMISSION CONTROL
(AUX. EMISSION CONTROL DEVICES)

EC(w/o STI)

INTAKE (INDUCTION)

IN(w/o STI)

MECHANICAL

ME(w/o STI)

EXHAUST

EX(w/o STI)

COOLING

CO(w/o STI)

LUBRICATION

LU(w/o STI)

SPEED CONTROL SYSTEMS

SP(w/o STI)

IGNITION

IG(w/o STI)

STARTING/CHARGING SYSTEMS

SC(w/o STI)

FUEL INJECTION (FUEL SYSTEMS)

FU(w/o STI)

Page

1.

General Description  ...................................................................................2

2.

Throttle Body ............................................................................................15

3.

Intake Manifold .........................................................................................18

4.

Engine Coolant Temperature Sensor .......................................................34

5.

Crankshaft Position Sensor ......................................................................35

6.

Camshaft Position Sensor ........................................................................37

7.

Knock Sensor ...........................................................................................39

8.

Throttle Position Sensor ...........................................................................41

9.

Mass Air Flow and Intake Air Temperature Sensor  .................................42

10.

Manifold Absolute Pressure Sensor .........................................................43

11.

Fuel Injector  .............................................................................................45

12.

Tumble Generator Valve Assembly  .........................................................48

13.

Tumble Generator Valve Actuator ............................................................49

14.

Oil Flow Control Solenoid Valve ...............................................................50

15.

Wastegate Control Solenoid Valve  ..........................................................51

16.

Front Oxygen (A/F) Sensor  ......................................................................53

17.

Rear Oxygen Sensor ................................................................................55

18.

Engine Control Module (ECM)  .................................................................57

19.

Main Relay  ...............................................................................................58

20.

Fuel Pump Relay ......................................................................................60

21.

Electronic Throttle Control Relay  .............................................................62

22.

Fuel Pump Control Unit ............................................................................64

23.

Fuel  ..........................................................................................................65

24.

Fuel Tank  .................................................................................................68

25.

Fuel Filler Pipe  .........................................................................................75

26.

Fuel Pump ................................................................................................78

27.

Fuel Level Sensor  ....................................................................................80

28.

Fuel Sub Level Sensor .............................................................................81

29.

Fuel Filter  .................................................................................................83

30.

Fuel Damper  ............................................................................................87

31.

Purge Damper ..........................................................................................88

32.

Fuel Delivery, Return and Evaporation Lines ...........................................89

33.

Fuel System Trouble in General  ..............................................................94

FU(w/o STI)-2

General Description

FUEL INJECTION (FUEL SYSTEMS)

1. General Description

A: SPECIFICATION

Fuel tank

Capacity

64 L (16.9 US gal, 14.1 Imp gal)

Location

Under rear seat

Fuel pump

Type

Impeller

Shutoff discharge pressure

550 — 850 kPa (5.61 — 8.67 kgf/cm

2

, 79.8 — 123.3 psi)

Discharge rate

155 L (40.9 US gal, 34.1 Imp gal)/h or more

[12 V at 300 kPa (3.06 kgf/cm

2

, 43.5 psi)]

Fuel filter

In-tank type
