Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 37

FU(STI)-60

Main Relay

FUEL INJECTION (FUEL SYSTEMS)

20.Main Relay

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the main relay from the relay block on

the back side of the glove box.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Check that the main relay has no deformation,

cracks or other damages.

2) Measure the resistance between main relay ter-

minals.

IN-00203

FU-03418

Terminal No.

Standard

1 and 2

1 MΩ or more

3 and 4

130.4 — 230.8 Ω

(when 20°C (68°F))

1
2

3 4

(1)

(2)

(1)

(4)

(2)

(3)

(3)

(4)

IN-02836

FU(STI)-61

Main Relay

FUEL INJECTION (FUEL SYSTEMS)

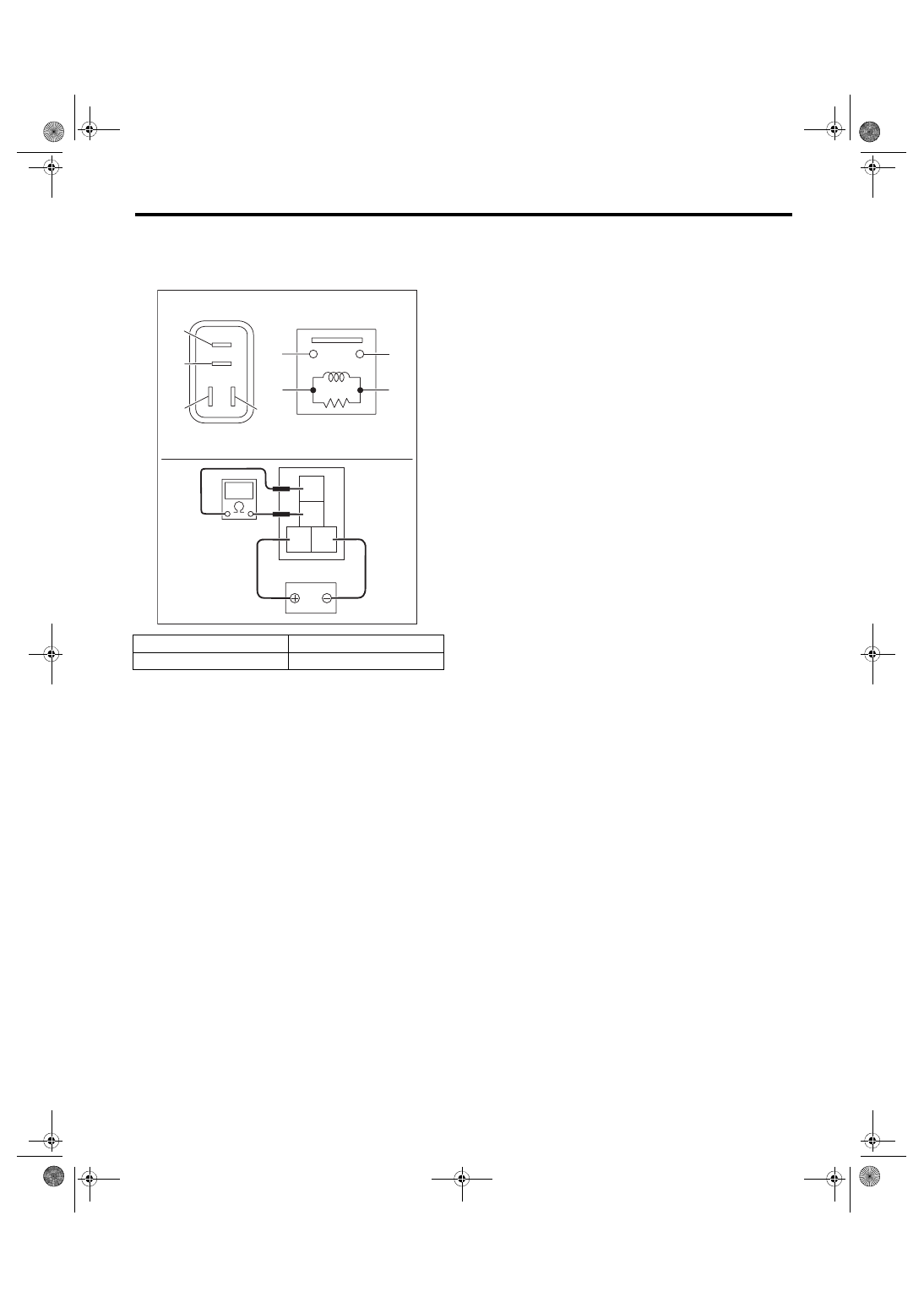

3) Connect battery positive terminal to terminal No.

3 and battery ground terminal to terminal No. 4, and

measure the resistance between the main relay ter-

minals.

Terminal No.

Standard

1 and 2

Less than 1 Ω

FU-04077

1
2

3 4

(1)

(2)

(1)

(4)

(2)

(3)

(3)

(4)

FU(STI)-62

Fuel Pump Relay

FUEL INJECTION (FUEL SYSTEMS)

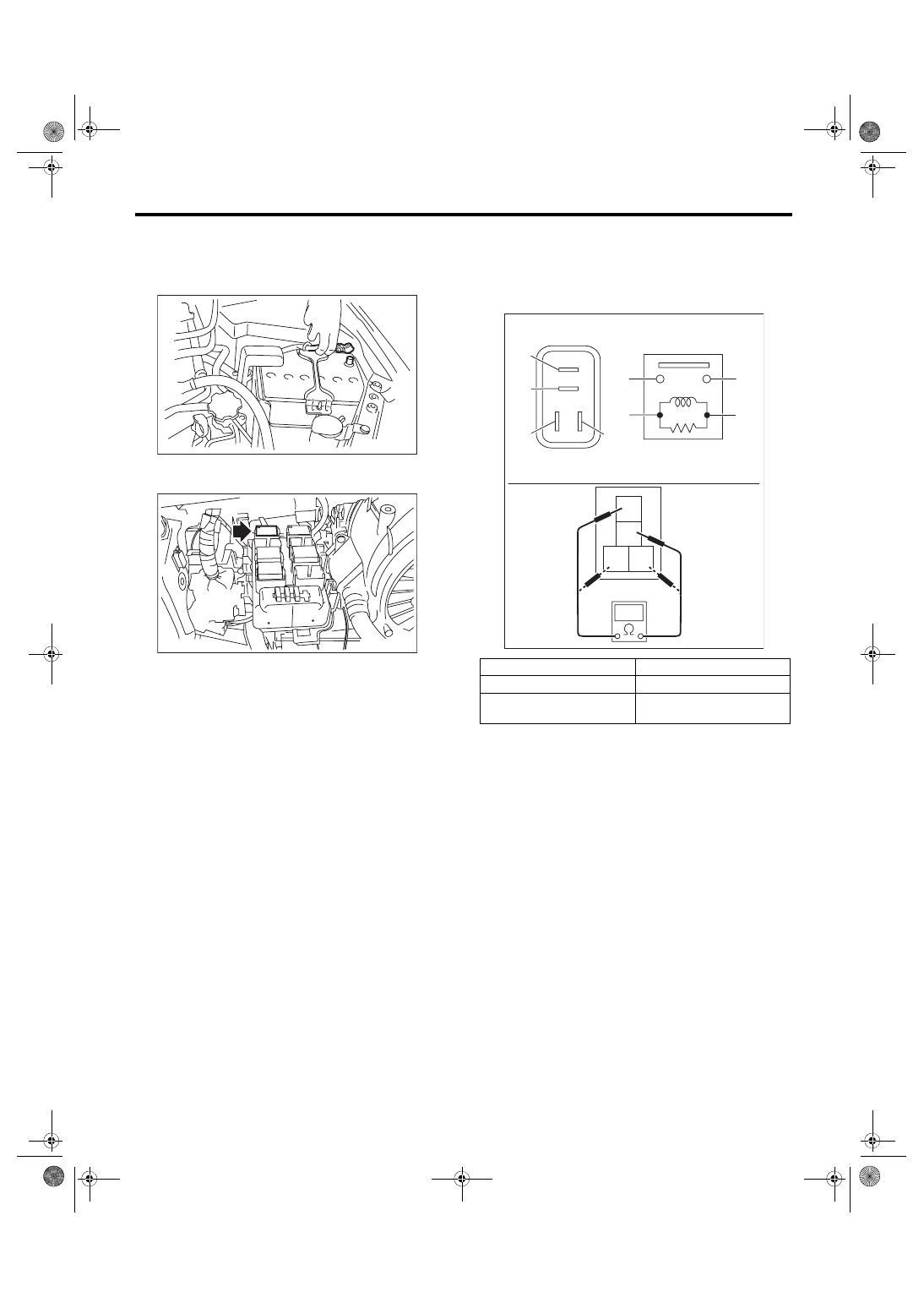

21.Fuel Pump Relay

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the fuel pump relay from the relay block

on the back side of the glove box.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Check that the fuel pump relay has no deforma-

tion, cracks or other damages.

2) Measure the resistance between fuel pump relay

terminals.

IN-00203

FU-03419

Terminal No.

Standard

1 and 2

1 MΩ or more

3 and 4

93.8 — 136.4 Ω

(when 20°C (68°F))

1
2

3 4

(1)

(2)

(1)

(4)

(2)

(3)

(3)

(4)

IN-02836

FU(STI)-63

Fuel Pump Relay

FUEL INJECTION (FUEL SYSTEMS)

3) Connect battery positive terminal to terminal No.

3 and battery ground terminal to terminal No. 4, and

measure the resistance between the fuel pump re-

lay terminals.

Terminal No.

Standard

1 and 2

Less than 1 Ω

FU-04077

1
2

3 4

(1)

(2)

(1)

(4)

(2)

(3)

(3)

(4)
