Rear Oxygen Sensor

FUEL INJECTION (FUEL SYSTEMS)

17.Rear Oxygen Sensor

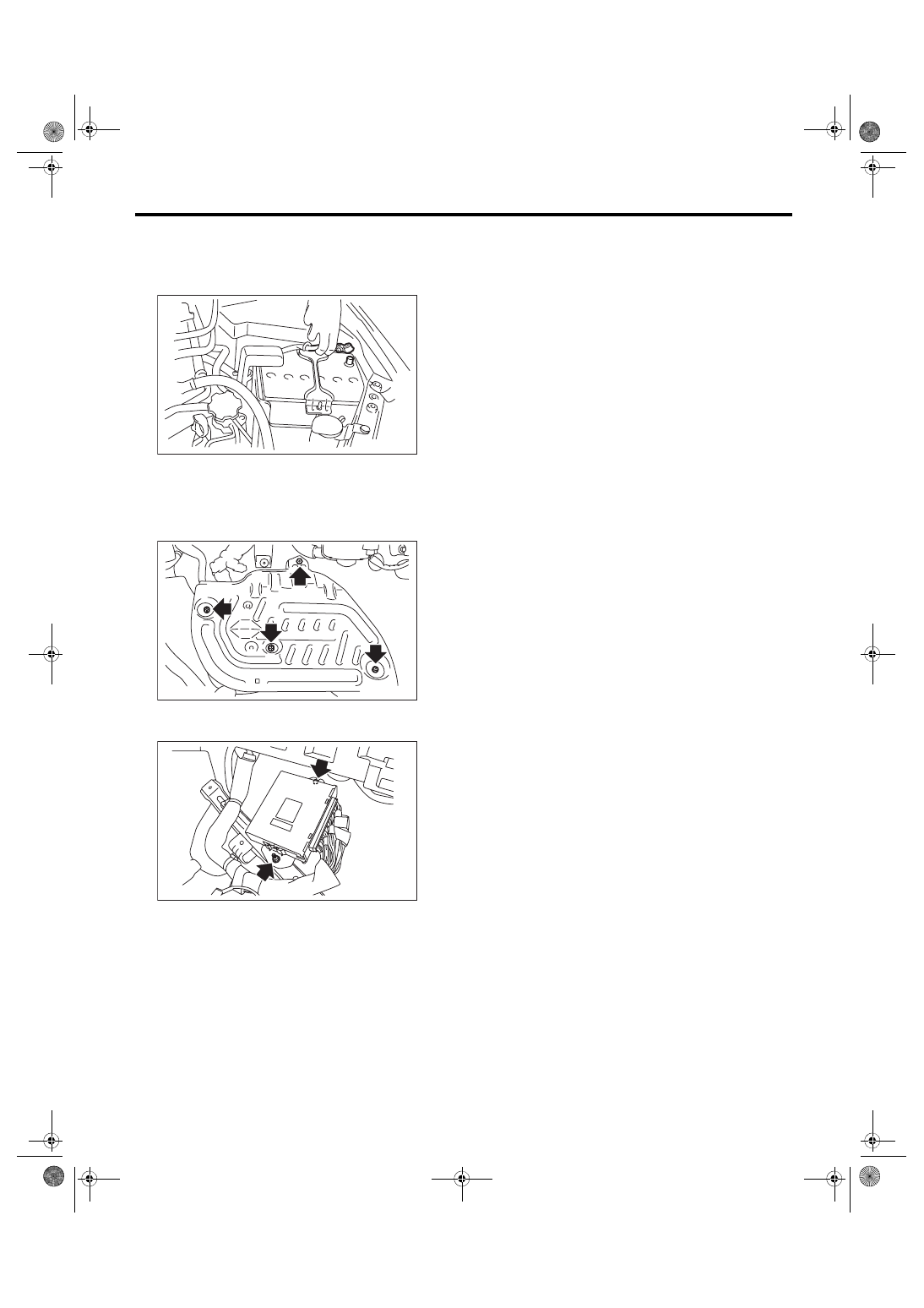

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Lift up the vehicle.

3) Remove the transmission under cover.

4) Disconnect the connector from the rear oxygen

sensor, and remove the clip (A) holding the rear ox-

ygen sensor harness.

5) Apply spray-type lubricant to the threaded por-

tion  of  rear  oxygen  sensor,  and  leave  it  for  one

minute or more.

6) Remove the rear oxygen sensor.
CAUTION:

When  removing  the  rear  oxygen  sensor,  wait

until exhaust pipe cools, otherwise it will dam-

age the exhaust pipe.

B: INSTALLATION

CAUTION:

If lubricant is spilt onto the exhaust pipe, wipe it

off completely with cloth to avoid emission of

smoke or causing a fire.

1) Before installing rear oxygen sensor, apply the

anti-seize compound only to the threaded portion of

rear oxygen sensor to make the next removal eas-

ier.
CAUTION:

Never apply anti-seize compound to the protec-

tor of rear oxygen sensor.
Anti-seize compound:

NEVER-SEEZ NSN, JET LUBE SS-30 or

equivalent

2) Install the rear oxygen sensor.
Tightening torque:

21 N·m (2.1 kgf-m, 15.5 ft-lb)

3) Connect the connector to the rear oxygen sen-

sor, and hold the rear oxygen sensor harness with

the clip (A).

4) Install the transmission under cover.
Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

5) Lower the vehicle.

IN-00203

FU-04602

(A)

FU-05785

FU-05785

FU-04602

(A)

FU(STI)-57

Rear Oxygen Sensor

FUEL INJECTION (FUEL SYSTEMS)

6) Connect the battery ground terminal.

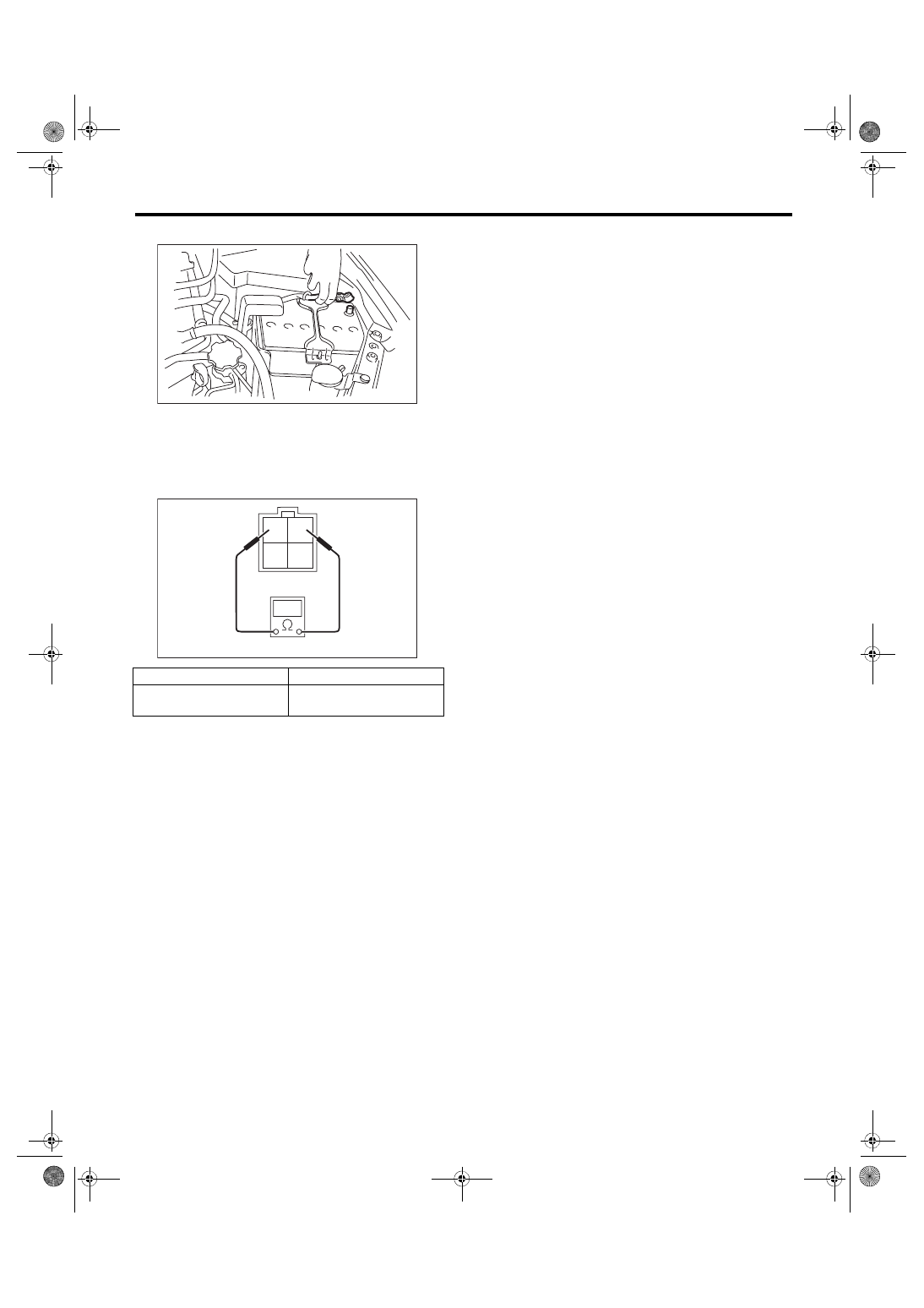

C: INSPECTION

1) Check that the rear oxygen sensor has no defor-

mation, cracks or other damages.

2) Measure  the  resistance  between  rear  oxygen

sensor terminals.

Terminal No.

Standard

1 and 2

5.6

+0.8



–0.6

 Ω

(when 20°C (68°F))

IN-00203

2 1
4 3

FU-04073

FU(STI)-58

SI-DRIVE (SUBARU Intelligent Drive) Selector

FUEL INJECTION (FUEL SYSTEMS)

18.SI-DRIVE (SUBARU Intelli-

gent Drive) Selector

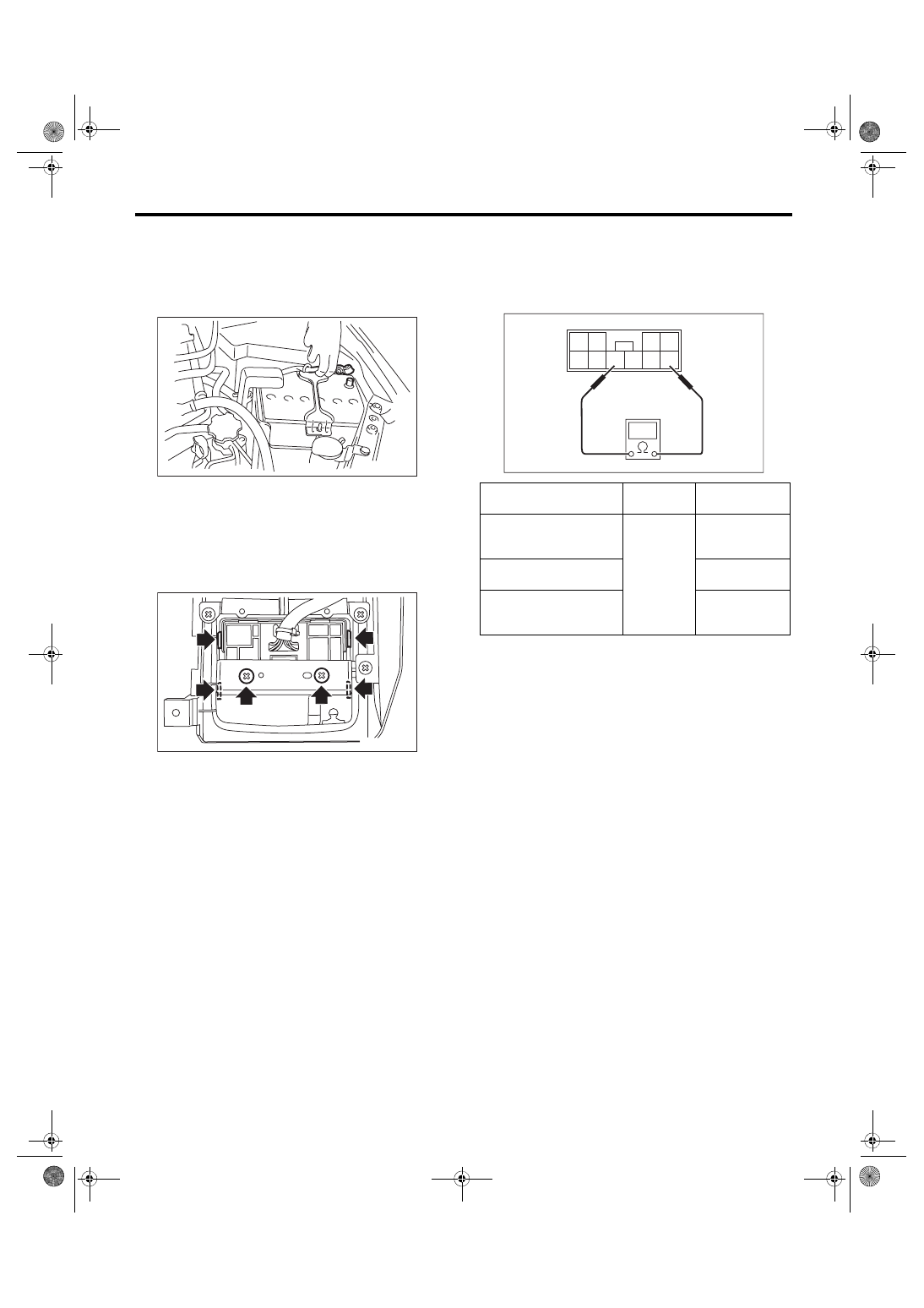

A: REMOVAL

1) Disconnect the ground cable from the battery.

2) Remove  the  console  box.  <Ref.  to  EI-51,  RE-

MOVAL, Console Box.>

3) Remove  the  multi-selector  switch  connector

from the console box.

4) Remove the screws and tabs holding the multi-

selector switch to the console box and the multi-se-

lector switch.

B: INSTALLATION

Install in the reverse order of removal.
Tightening torque:

1.5 N·m (0.2 kgf-m, 1.1 ft-lb)

C: INSPECTION

1) Check that the multi select switch does not have

deformation, cracks, or damage.

2) Check the resistance between the terminals at

the SI-DRIVE selector.

IN-00203

FU-03626

Switch position

Terminal

No.

Standard

Sport (When turning the
SI-DRIVE selector to the
left)

5 and 8

Less than 1 Ω

Intelligent (When press-
ing the SI-DRIVE selector)

1±0.05 kΩ

Sport Sharp (When turn-
ing the SI-DRIVE selector
to the right)

3.67±0.1835 kΩ

4

5

3

2 1

9 8 7 6

10

FU-05693

FU(STI)-59

Engine Control Module (ECM)

FUEL INJECTION (FUEL SYSTEMS)

19.Engine Control Module (ECM)

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove  the  lower  inner  trim  of  passenger’s

side.  <Ref.  to  EI-57,  REMOVAL,  Lower  Inner

Trim.>

3) Turn over the floor mat of passenger’s seat.

4) Remove the protect cover.

5) Remove the nuts and bolts which hold the ECM

to the bracket.

6) Disconnect  the  ECM  connectors,  and  take  out

the ECM.

B: INSTALLATION

Install in the reverse order of removal.
CAUTION:

• When the ECM of model with immobilizer has

been replaced, be sure to perform the registra-

tion of immobilizer system. (Refer to “PC appli-

cation help for Subaru Select Monitor”.)

• When replacing the ECM or bracket, replace

both parts with new parts.

• After installing the bracket to the ECM, do not

separate the bracket.

• If the bracket has been installed to the ECM in

the  wrong  direction,  replace  both  parts  with

new parts.
NOTE:

When replacing the ECM, be careful not to use the

wrong spec. ECM to avoid any damage on the fuel

injection system.
Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

C: INSPECTION

Check that the ECM has no deformation, cracks or

other damages.
