SR-3

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

General Description

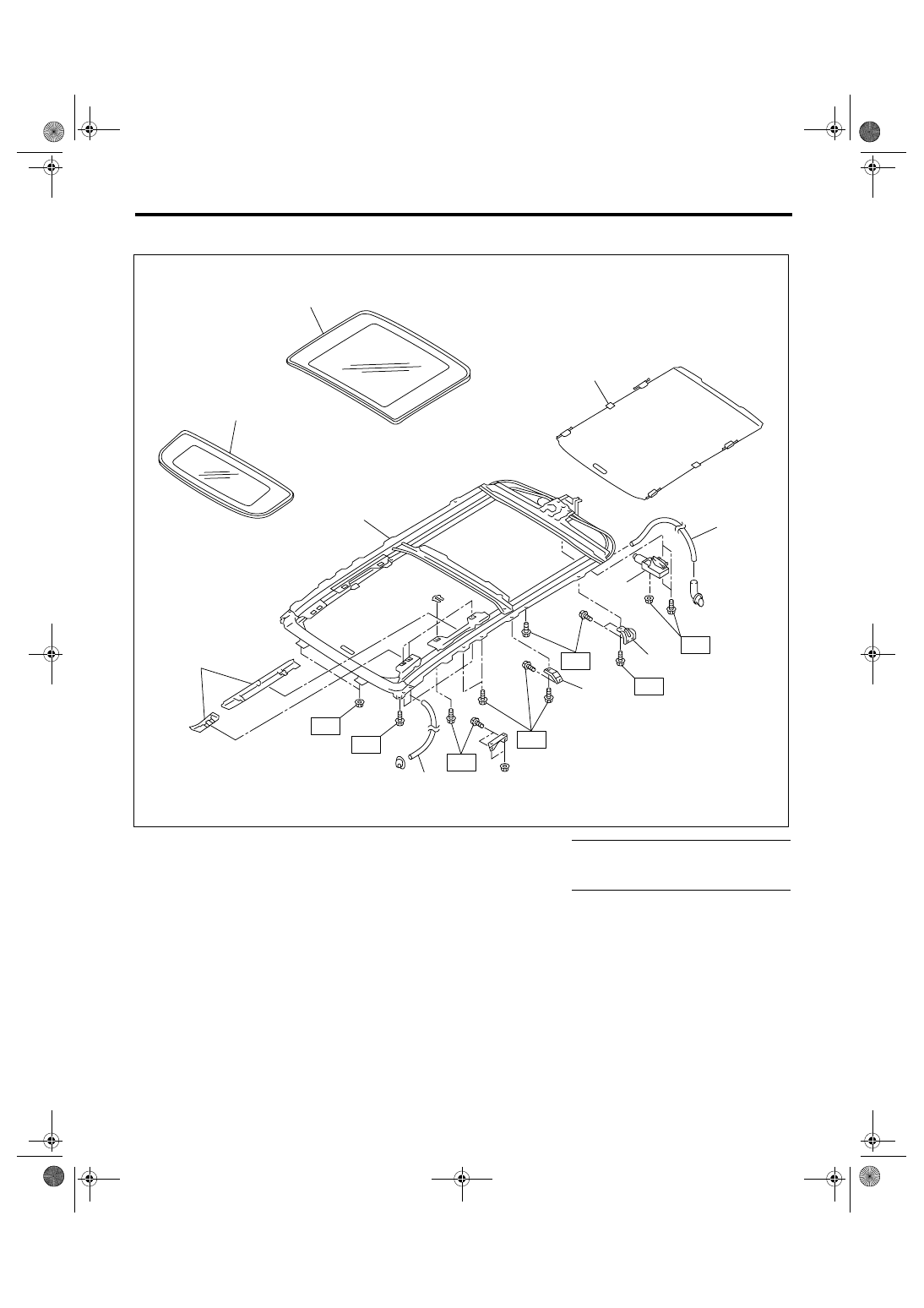

2. WAGON MODEL

(1)

Glass lid (Front)

(5)

Drain tube

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Glass lid (Rear)

(6)

Cover (Front and rear)

T1: 7.5 (0.76, 5.3)

(3)

Sunshade

(7)

Frame bracket

T2: 4.5 (0.46, 3.3)

(4)

Frame ASSY

(8)

Motor ASSY

SR-00102

T1

T1

(3)

(5)

(8)

(7)

(5)

(1)

(6)

(4)

(7)

T2

T1

T1

T1

T1

(2)

SR-4

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

General Description

B: CAUTION

• Before disassembling or reassembling parts, al-
ways disconnect the battery ground cable. When
replacing the audio, control unit, and other parts
provided with memory functions, record the memo-
ry contents before disconnecting the battery
ground cable in order to prevent memory deletion.
• Reassemble the parts in the reverse order of dis-
assembly unless otherwise indicated.
• Adjust parts to the given specifications.
• Connect the connectors securely for reassem-
bly.
• After reassembly, make sure functional parts op-
erate smoothly.

C: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and
voltage.

TORX

®

 T20

Used for removing and installing sun-
roof motor, glass lid (Sedan model)
and sunshade.

SR-5

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Sunroof Control System

2. Sunroof Control System

A: WIRING DIAGRAM

1. SUNROOF

<Ref. to WI-317, WIRING DIAGRAM, Sunroof Control System.>

B: INSPECTION

• Failure turn of glass lid while driving rough road.
Glass lid has auto-reverse function. When applied above specified force to the glass lid, the lid turns back
and stops. When operating the glass lid (open or close) while driving the rough road, the lid judges vibration
as a force and may causes failure turns. When the failure turn is occurred, the initialize operation is required
with following procedure.

1. INITIALIZE OPERATION (SEDAN MODEL)

1) Tilt up the glass lid.
2) Release the switch once, and press the tilt up switch again for 15 seconds.
3) When the glass lid is raised a little and returned to tilt up position, release the switch for the moment. (Ini-
tialization of position detecting function)
4) Keep pressing the tilt up switch within 5 seconds from releasing the switch, glass lid tilts down

→ slides

open

→ slides close operation automatically. (Time gap of more than 5 seconds will result in cancellation of

position detecting function.)
5) Initialize operation is completed.

2. INITIALIZE OPERATION (WAGON MODEL)

1) Apply the force to glass lid in the direction of glass lid open while glass lid (rear) is closing, and then re-
verse the lid five times in a row.
However, in the following situation, the initialize operation is canceled.
• When the lid is fully closed once during auto-reverse operation five times in a row.
• When the interval of auto-reverse operation is more than 30 seconds once.
2) When the operation of glass lid shift to brink operation*, fully close the lid on switch operation.
3) Initialize operation is completed.
*Brink operation: Although keep pressing the switch, glass lid operates only at a moment when the switch is
pressed.

Symptom

Inspection order

Water leakage

(1) Check roof panel and glass lid for improper or poor sealing.
(2) Check drain tube for clogging.
(3) Check sunroof frame seal and body for improper fit.

Booming noise, wind noise and other noise

(1) Check glass lid and roof panel for improper clearance.
(2) Check sunshade and roof trim for improper clearance.

Motor noise

(1) Check installing part of motor for looseness.
(2) Check gears and bearings for wear.
(3) Check cable for wear.
(4) Check cable pipe for deformities.

Failure of sunroof
(Motor operates properly.)

(1) Check guide rail for foreign particles.
(2) Check guide rail for improper installation.
(3) Check parts for mutual interference.
(4) Check cable slider for improper clinching.
(5) Check cable for improper installation.

Motor does not rotate or rotate improperly.

(1) Check fuse for blown out.
(2) Check switch for improper function.
(3) Check motor for incorrect terminal voltage.
(4) Check relay for improper operation.
(5) Check poor grounding system.
(6) Check harness for open or short and terminals for poor connections.

Failure turn of glass lid

Check guide rail for foreign particles.

SR-6

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Glass Lid

3. Glass Lid

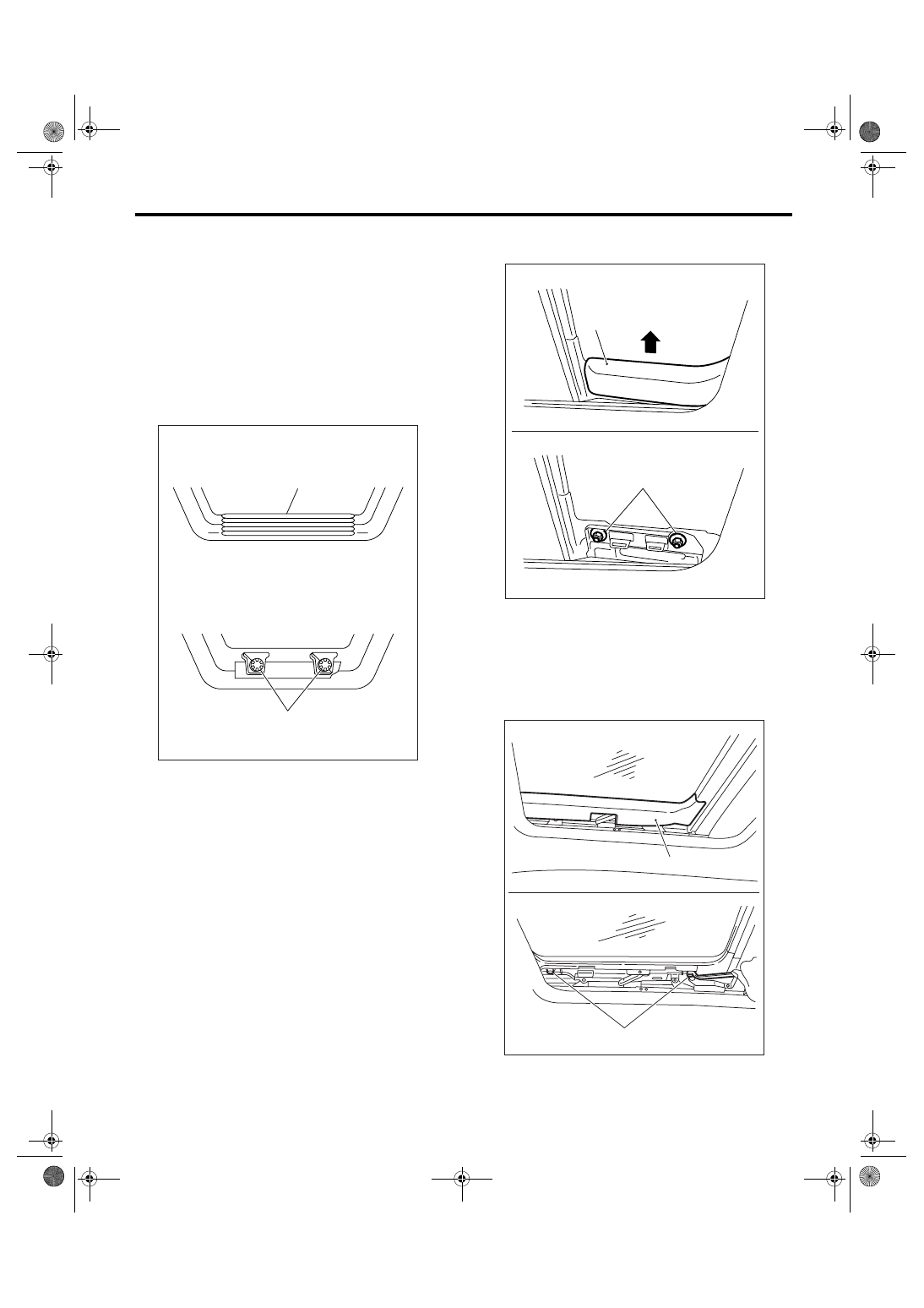

A: REMOVAL

1. SEDAN MODEL

1) Completely close the glass lid, and then open
the sunshade.
2) Remove the cover (A), and then remove the
TORX

®

 bolts (B).

CAUTION:
TORX

®

 bolts are applied with thread locker. If

they are removed, replace with new ones.

3) Remove the glass lid carefully.

2. WAGON MODEL (FRONT)

1) Open the sunshade.

2) Pull out the cover (A) toward arrow mark, and
then remove the nut (B).

3) Remove the glass lid (front) carefully.

3. WAGON MODEL (REAR)

1) Tilt up the glass lid (front), and then open the
sunshade.
2) Remove the cover (A), and then remove the nut
(B).

3) Remove the glass lid carefully.

(A)

(B)

SR-00091

SR-00104

(B)

(A)

SR-00103

(A)

(B)
