SL-43

SECURITY AND LOCKS

Keyless Entry Control Unit

19.Keyless Entry Control Unit

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the glove box. <Ref. to EI-51, REMOV-
AL, Glove Box.>

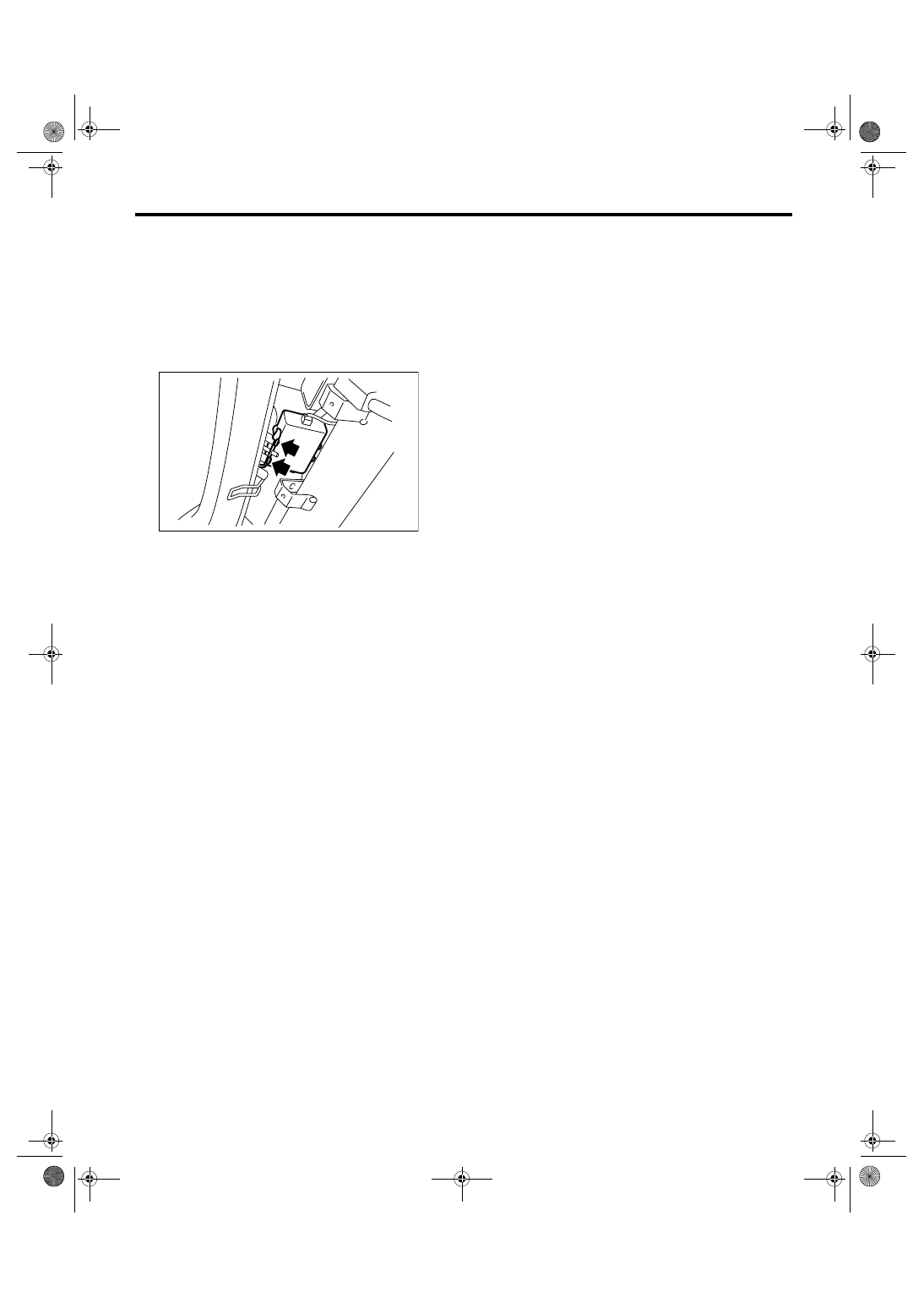

3) Remove the screw, then remove the keyless en-
try control module while disconnecting the connec-
tor.

B: INSTALLATION

Install in the reverse order of removal.

SL-00293

SL-44

SECURITY AND LOCKS

Body Integrated Module

20.Body Integrated Module

A: REMOVAL

NOTE:
If removing the body integrated module, check the
following items.
• If removing the body integrated module, check
the current setting and note it. <Ref. to LAN(diag)-
17, CONFIRMATION OF CURRENT SETTING,
OPERATION, Subaru Select Monitor.>
• When removing the body integrated module, re-
configure the select unlock as necessary. <Ref. to
SL-14, CUSTOMIZE SETTING OF SELECT UN-
LOCK, ELECTRICAL SPECIFICATION, Keyless
Entry System.>
If replacing the body integrated module, check the
following items.
• For model with immobilizer, prepare new immo-
bilizer key and security ID plate.
1) Disconnect the ground cable from battery.
2) Remove the instrument panel lower panel on
driver’s side. <Ref. to EI-56, REMOVAL, Instru-
ment Panel Assembly.>
3) Disconnect the connector of body integrated
module.

CAUTION:
Be careful to keep water and other foreign ma-
terials away from body integrated module.

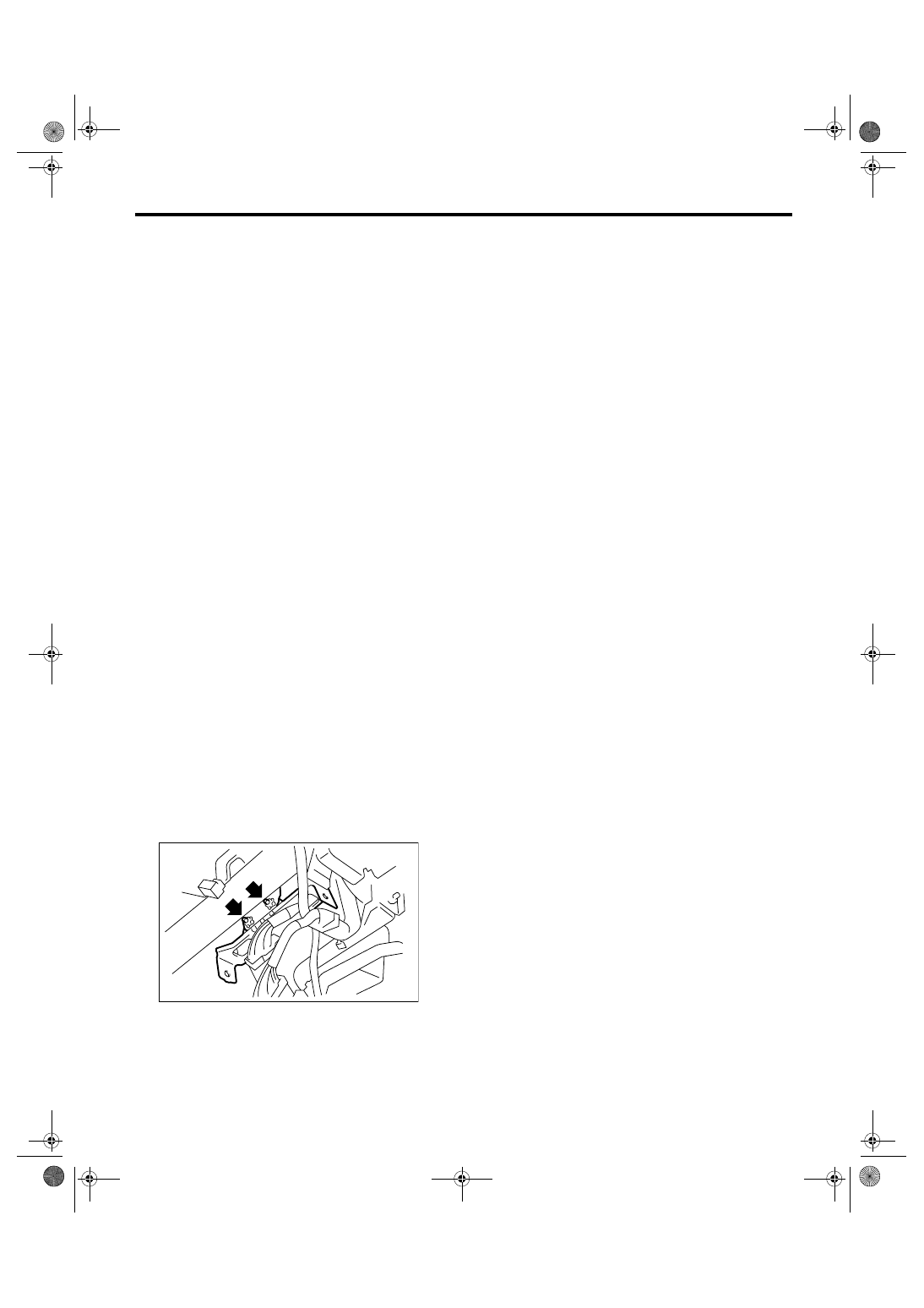

4) Remove the body integrated module from the
body integrated module mounting bracket using flat
tip screwdriver.

CAUTION:
Be careful not to damage the unit when remov-
ing it forcibly from the bracket.
5) Remove the clutch pedal stopper arm. (MT mod-
el) <Ref. to CL-36, REMOVAL, Clutch Pedal.>
6) Remove two body integrated module bracket
mounting bolts, and remove the bracket.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
• Make sure it comforms to the current setting con-
dition after installation. <Ref. to LAN(diag)-17,
CONFIRMATION OF CURRENT SETTING, OP-
ERATION, Subaru Select Monitor.>
• Make a registration of immobilizer for the model
with immobilizer. For detailed operation procedure,
refer to “IMMOBILIZER TEACHING OPERATION
MANUAL”.

SL-00295

SL-45

SECURITY AND LOCKS

Keyless Transmitter

21.Keyless Transmitter

A: DISASSEMBLY

NOTE:
To prevent static electricity damage to the keyless
transmitter printed circuit board, touch the steel
area of building with hand to discharge static elec-
tricity carried on body or clothes before disassem-
bling the keyless transmitter.

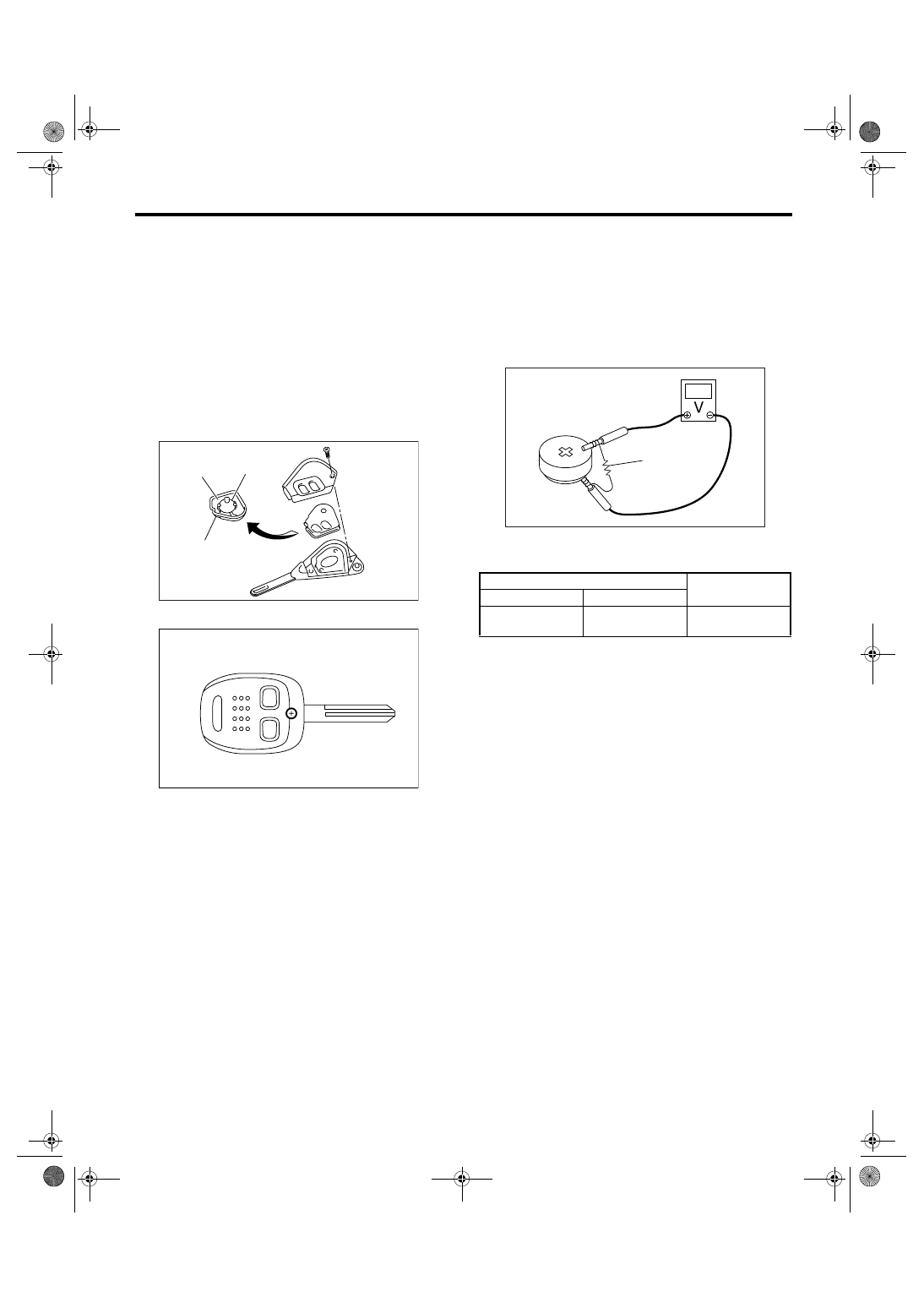

1) Remove the screw from keyless transmitter, and
remove the keyless transmitter battery (1).
2) Remove the printed board (3) from rubber (2).
• Except for EK model

• EK model

B: ASSEMBLY

Install in the reverse order of disassembly.

C: INSPECTION

1. KEYLESS TRANSMITTER BATTERY

Measure the voltage between the keyless transmit-
ter battery (+) terminal and (

−) terminal.

NOTE:
Battery discharge occurs during the measurement.
Complete the measurement within 5 seconds.

If NG, replace the battery. (Use CR1620 or equiva-
lent.)

D: REPLACEMENT

1. REGISTRATION OF KEYLESS TRANS-
MITTER

NOTE:
• A maximum of four keyless transmitter can be
registered for each individual vehicle.
• When replacing or adding the keyless transmit-
ter, new registration of keyless transmitter is neces-
sary.
• When replacing the keyless transmitter, registra-
tion to immobilizer system is also necessary.
1) Remove the keyless transmitter from the ignition
switch.
2) Remove the lower trim cover at driver’s side,
then connect the registration connectors. (1 pole
white connector)

SL-00427

(1)

(3)

(2)

SL-00065

(A) Resistance 47

Ω

Tester connection

Standard

(+)

(

−)

Battery

Positive terminal

Battery

Ground terminal

2.5 — 3.0 V

SL-00066

(A)

SL-46

SECURITY AND LOCKS

Keyless Transmitter

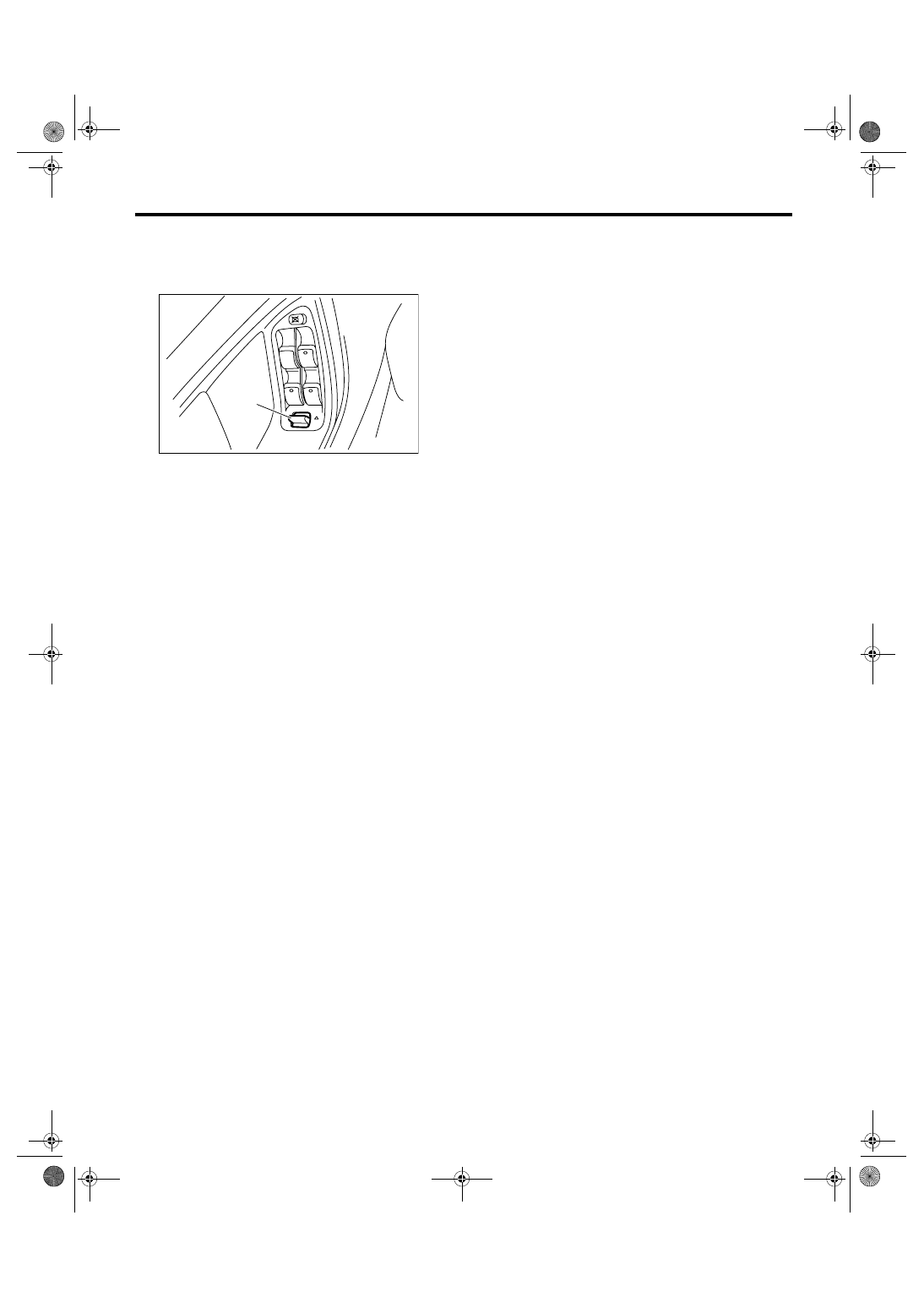

3) Press the door lock switch (1) located under the
power window main switch to UNLOCK. (Make
sure the room light blinks and buzzer sounds, and
then system is in registration mode.)

4) While pressing the door lock switch to UNLOCK,
press twice the button of keyless transmitter to be
registered.
5) When the registration is completed normally, the
door lock actuator will lock

→ unlock. If the lock →

unlock operation is not carried out, repeat the pro-
cedure 4).

NOTE:
• When pressing the keyless transmitter button,
slowly press for first and second (press longer for
second) to check operation of door lock actuator.
• Do not press the button of keyless transmitter
more than twice.
• Do not batter the button of keyless transmitter.
6) Repeat the steps 4) if there is an additional key-
less transmitter to be registered.
7) Pull out the registration connector, and install the
lower trim cover at driver’s side.

NOTE:
• The transmitter can be registered only when the
door lock switch is remain pushed to UNLOCK.
• Continuing to press the door lock switch to UN-
LOCK again allows to be registered although the
door lock switch is released for once.
• When adding the keyless transmitter, re-registra-
tion of keyless transmitter which was already regis-
tered is necessary.

2. CLEAR OF KEYLESS TRANSMITTER

1) Remove the keyless transmitter from ignition
switch.
2) Remove the lower trim cover at driver’s side,
then connect the registration connectors. (1 pole
white connector)
3) Press the door lock switch located under the
power window main switch to LOCK. (Make sure
the room light blinks and buzzer sounds, and sys-
tem becomes in clear mode.)
4) While pressing door lock switch to LOCK, insert
and remove the key on ignition switch 10 times
within 10 seconds.
5) When the clearing is completed normally, the
door lock actuator will lock

→ unlock. If the lock →

unlock operation is not carried out, repeat the pro-
cedure 4).
6) Pull out the registration connector, and install the
lower trim cover at driver’s side.

NOTE:
• The transmitter can be cleared only when the
door lock switch is remain pushed to LOCK.
• Continuing to press the door lock switch to LOCK
again allows to be cleared although the door lock
switch is released for once.
• If changing from registration mode to clear mode,
you cannot go to clear mode unless completing the
registration mode. The reverse case is same as
this.

SL-00296

(1)

LOCK

AUTO
