SL-39

SECURITY AND LOCKS

Remote Openers

16.Remote Openers

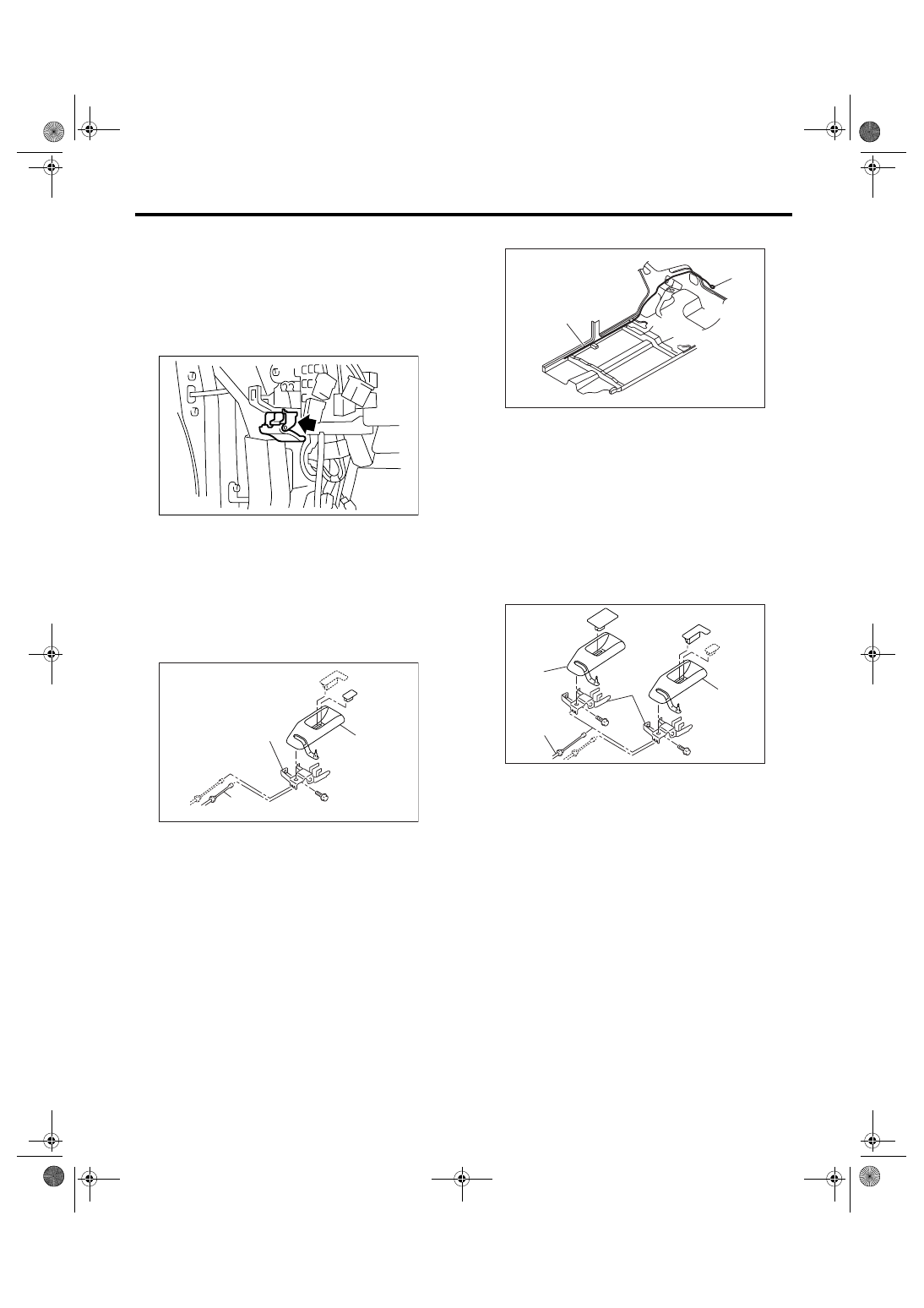

A: REMOVAL

1. FRONT HOOD OPENER

1) Remove the cable from hood lock.
2) Remove the bolt, and then detach the opener le-
ver.

2. TRUNK LID OPENER

1) Remove the rear seat. <Ref. to SE-14, REMOV-
AL, Rear Seat.>
2) Remove the center pillar lower trim, side sill cov-
er, rear pillar lower trim and floor mat on the driver’s
side. Remove the clip holding cable.
3) Remove the bolt, and then detach the opener
pull handle.

4) Remove the cable from opener pull handle.
5) Remove the trunk lid lock assembly from trunk
lid.

6) Remove the cable from trunk lid lock assembly.

3. FUEL FLAP OPENER

1) Remove the rear seat. <Ref. to SE-14, REMOV-
AL, Rear Seat.>
2) Remove the center pillar lower trim, side sill cov-
er, rear pillar lower trim and floor mat on the driver’s
side. Remove the clip holding cable.
3) Remove the bolt, and then detach the opener
pull handle.

4) Remove the cable from opener pull handle.
5) Remove the rear quarter trim RH. <Ref. to EI-63,
REMOVAL, Rear Quarter Trim.>

(1) Cover

(2) Pull handle ASSY

(3) Cable

SL-00291

SL-00302

(2)

(1)

(3)

(1) Trunk lid lock ASSY

(2) Cable

(A) Sedan model

(B) Wagon model

(1) Cover

(2) Pull handle ASSY

(3) Cable

SL-00248

(1)

(2)

SL-00312

(2)

(1)

(1)

(A)

(3)

(B)

SL-40

SECURITY AND LOCKS

Remote Openers

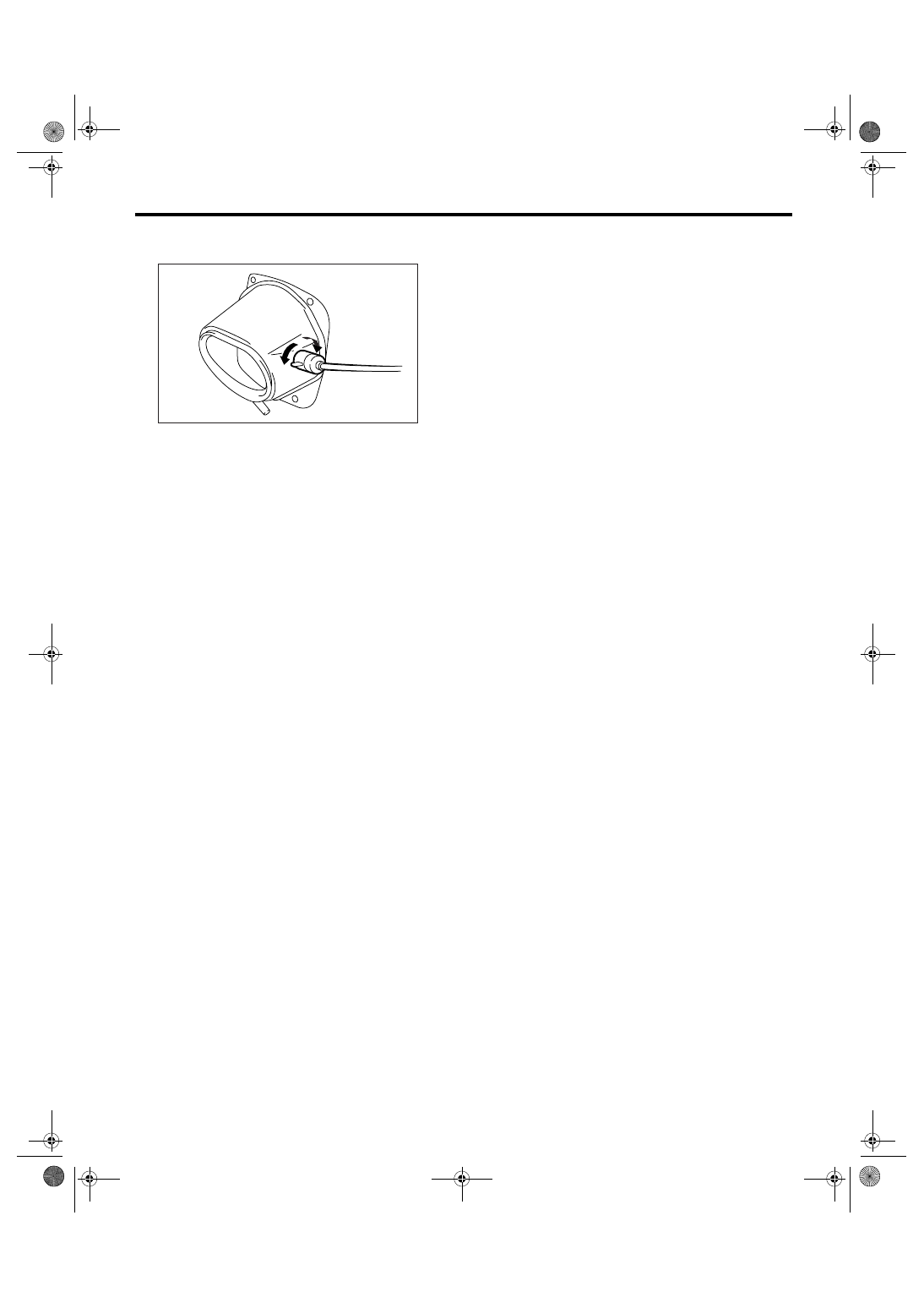

6) Rotate the fuel lock inside of the quarter panel to
90

° and remove. (Either right or left turn)

B: INSTALLATION

1. FRONT HOOD OPENER

Install in the reverse order of removal.

2. TRUNK LID OPENER

Install in the reverse order of removal.

3. FUEL FLAP OPENER

Install in the reverse order of removal.

C: INSPECTION

Make sure the front hood, trunk lid and fuel filler flap
lid smooth operation.

SL-00265

SL-41

SECURITY AND LOCKS

Ignition Key Lock

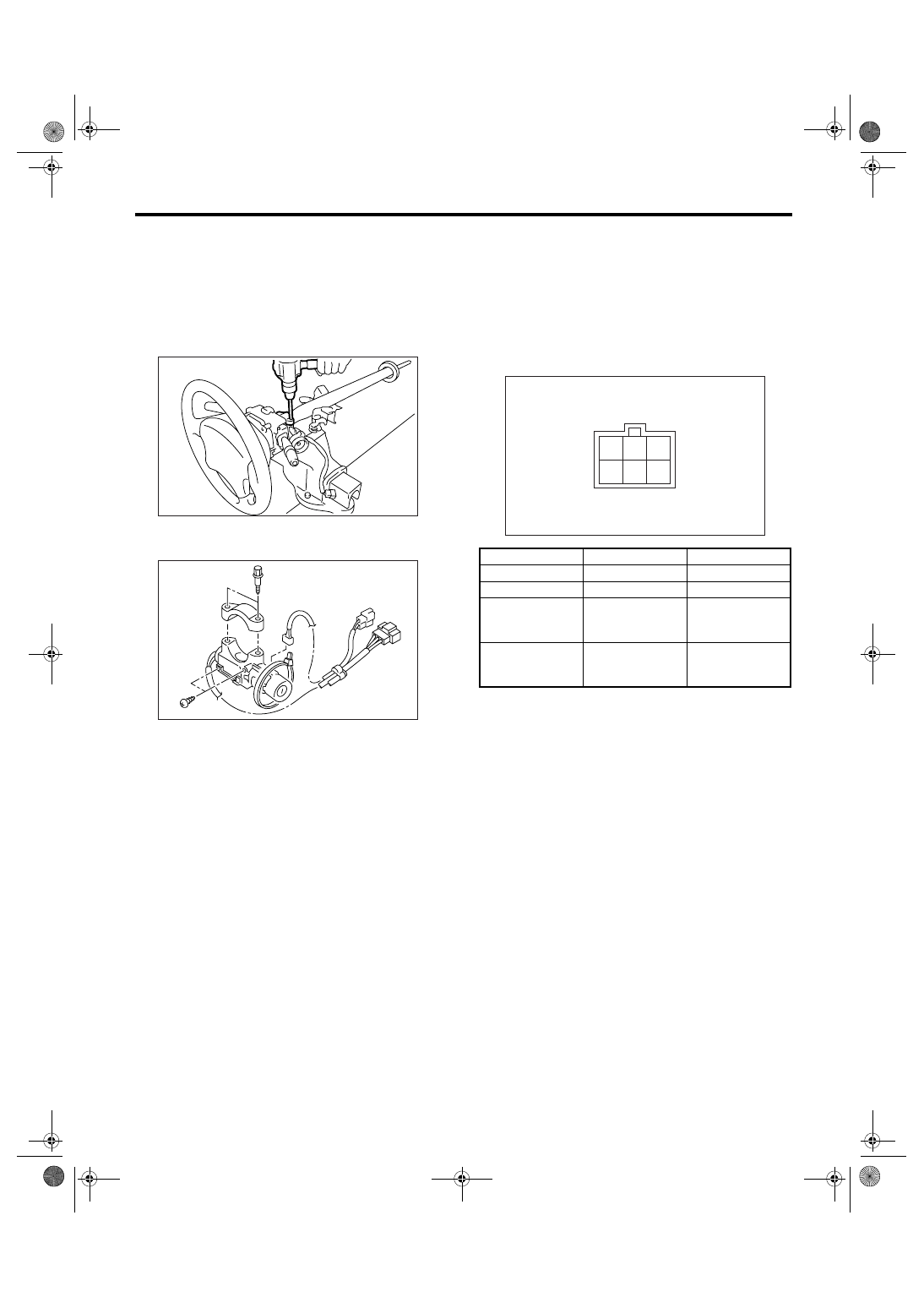

17.Ignition Key Lock

A: REPLACEMENT

1) Disconnect the ground cable from battery.
2) Remove the steering column. <Ref. to PS-24,
REMOVAL, Tilt Steering Column.>
3) Secure the steering column in a vise. Remove
the bolt with a drill.

4) Remove the ignition key lock.
5) Using a new bolt, tighten the bolts all the way.

B: INSPECTION

1) Remove the instrument panel lower panel.
2) Remove the lower column cover.
3) Unfasten the fixing clip which secures harness,
and then disconnect the connector of the ignition
switch from body harness.
4) Turn the ignition key plate to each position and
check the continuity between terminals of ignition
connector.

If NG, replace the ignition switch.

SL-00024

SL-00025

Switch position

Terminal No.

Standard

LOCK

—

—

ACC

No. 3 and No. 4

Less than 1

Ω

ON

No. 3 and No. 1

and No. 4

No. 3 and No. 6

Less than 1

Ω

ST

No. 3 and No. 1
No. 3 and No. 2

and No. 6

Less than 1

Ω

SL-00266

1

3

4

5

6

2

SL-42

SECURITY AND LOCKS

Key Lock Cylinders

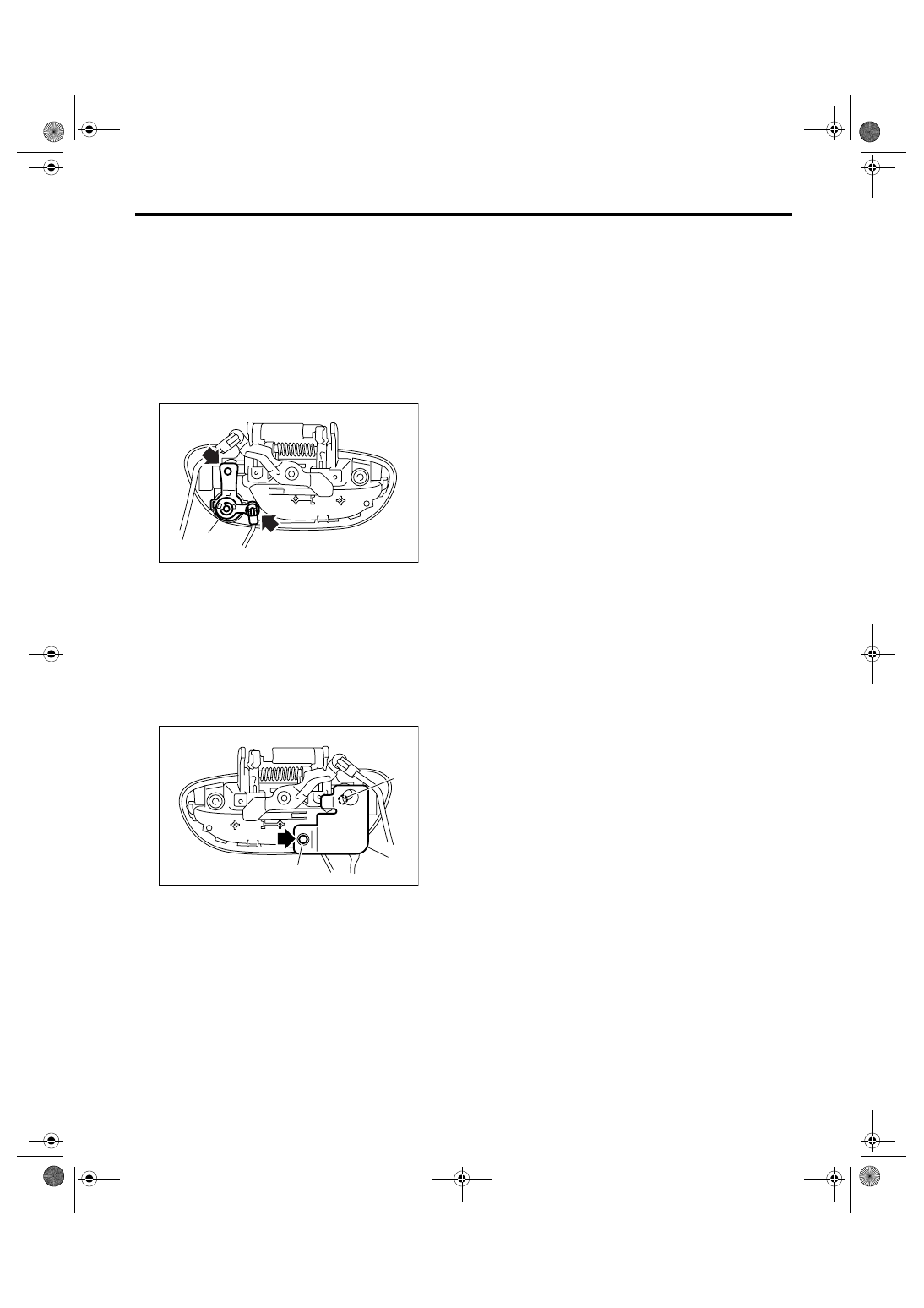

18.Key Lock Cylinders

A: REPLACEMENT

1. MODEL WITHOUT DOUBLE LOCK

1) Raise the front door glass to the top position.
2) Remove the door trim. <Ref. to EI-48, REMOV-
AL, Door Trim.>
3) Remove the sealing cover.
4) Remove the rod clamp. Remove the bolt. Re-
place the key cylinder (1).

2. MODEL WITH DOUBLE LOCK

1) Raise the front door glass to the top position.
2) Remove the door trim. <Ref. to EI-48, REMOV-
AL, Door Trim.>
3) Remove the sealing cover.
4) Remove the bolt (2), and remove the key cylin-
der cover B (1).
5) Remove the rod clamp. Remove the bolt (3). Re-
place the key cylinder.

SL-00292

(1)

SL-00303

(1)

(3)

(2)
