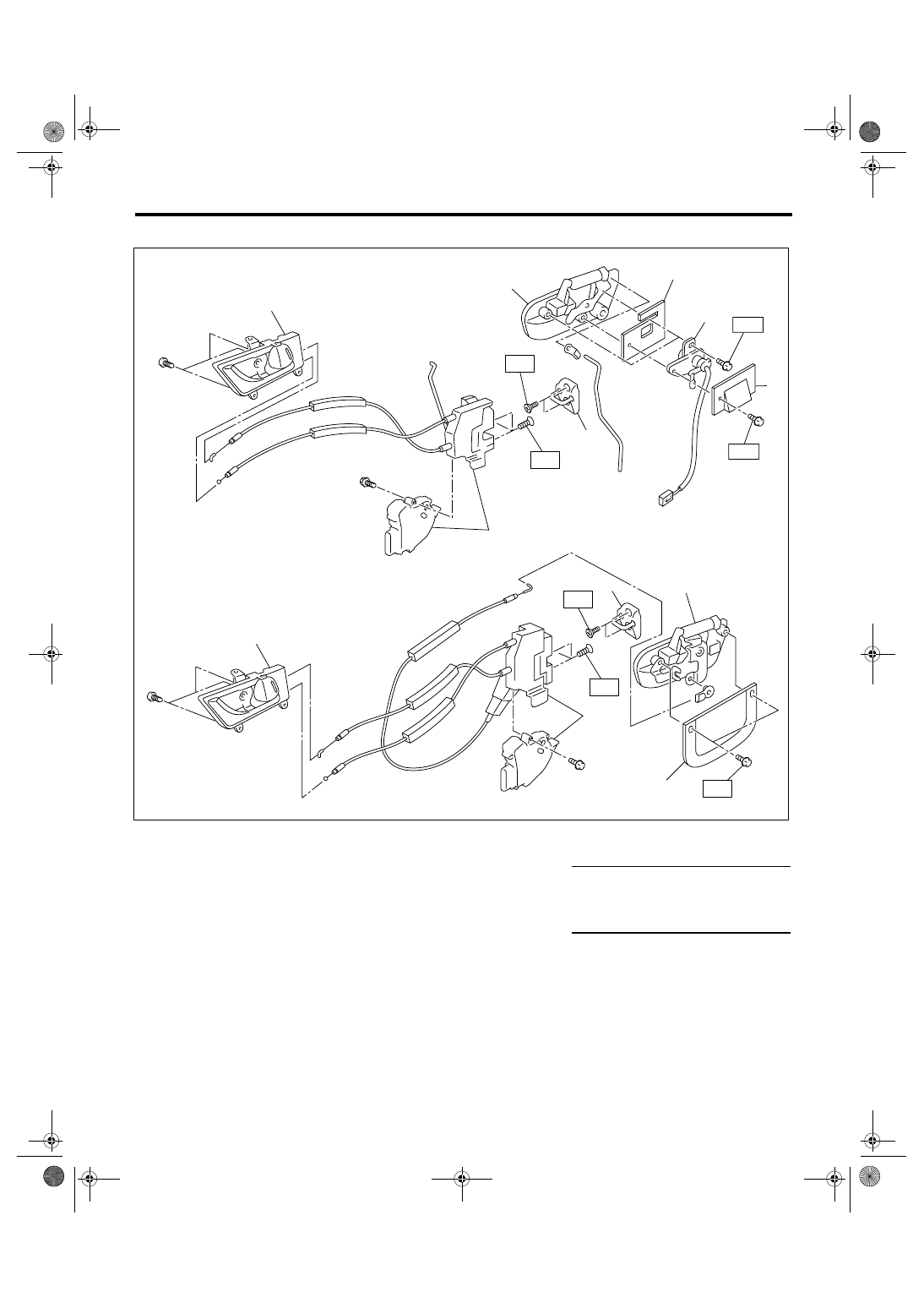

SL-3

SECURITY AND LOCKS

General Description

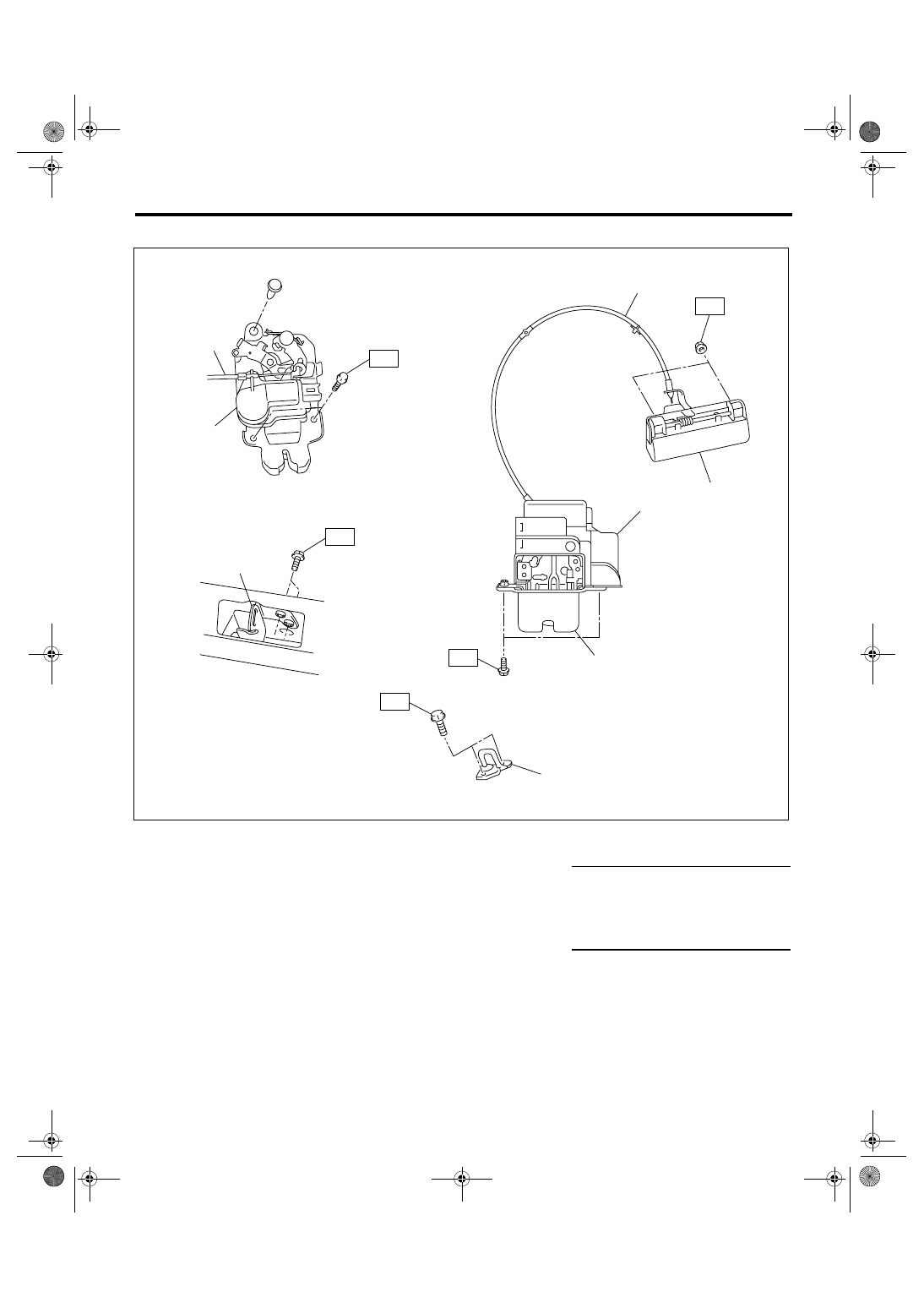

• Model with double lock

(A)

Front

(B)

Rear

(1)

Inner remote ASSY

(6)

Rear door latch & door lock actua-
tor ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Front door latch & door lock actua-
tor ASSY

T1: 6.5 (0.66, 4.8)

(7)

Outer handle bracket

T2: 7.5 (0.76, 5.5)

(3)

Door outer handle

(8)

Key cylinder cover A

T3: 18 (1.8, 13.3)

(4)

Key cylinder (switch)

(9)

Key cylinder cover B

(5)

Striker

(3)

(A)

(B)

(1)

T3

T1

(5)

(6)

(7)

T3

T1

(5)

(2)

(3)

(1)

(8)

(4)

(9)

T2

SL-00272

T2

T2

SL-4

SECURITY AND LOCKS

General Description

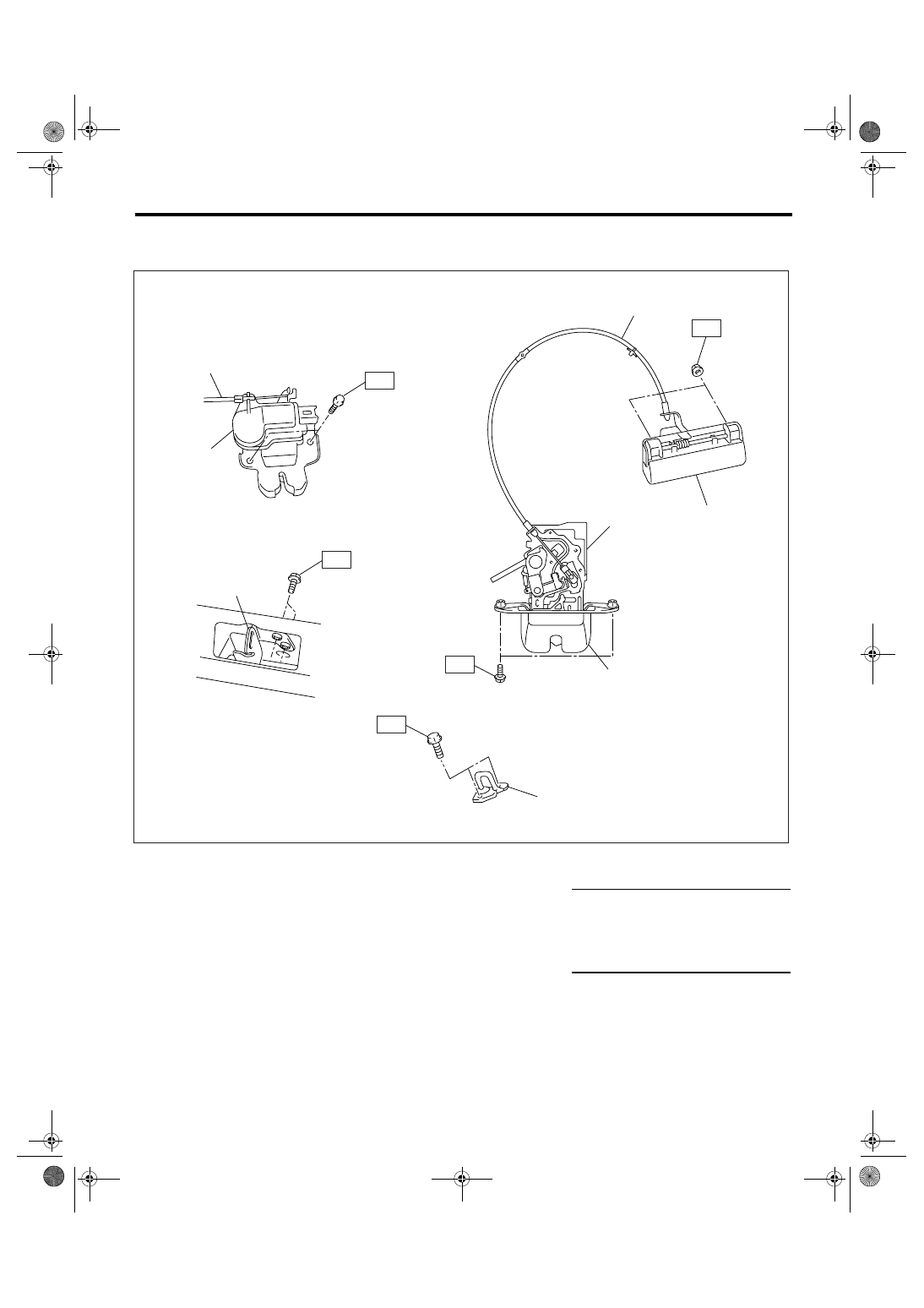

2. TRUNK LID AND REAR GATE LOCK

• Model without double lock

(A)

Trunk

(B)

Rear  gate

(1)

Cable

(6)

Rear gate latch

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Striker

T1: 7.5 (0.76, 5.5)

(3)

Trunk lid lock ASSY

T2: 25 (2.5, 18.4)

(4)

Rear gate outer handle

T3: 7.35 (0.75, 5.39)

(5)

Rear gate actuator

T4: 18 (1.8, 13.3)

SL-00309

(2)

T2

T4

T3

(1)

(A)

(B)

(3)

(1)

(5)

(4)

(6)

(2)

T3

T1

SL-5

SECURITY AND LOCKS

General Description

• Model with double lock

(A)

Trunk

(B)

Rear  gate

(1)

Cable

(6)

Rear gate latch ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Striker

T1: 7.5 (0.76, 5.5)

(3)

Trunk lid lock ASSY

T2: 25 (2.5, 18.4)

(4)

Rear gate outer handle

T3: 7.35 (0.75, 5.39)

(5)

Rear gate actuator

T4: 18 (1.8, 13.3)

SL-00273

(2)

T2

T4

T3

(1)

(A)

(B)

(3)

(1)

(5)

(4)

(6)

(2)

T3

T1

SL-6

SECURITY AND LOCKS

General Description

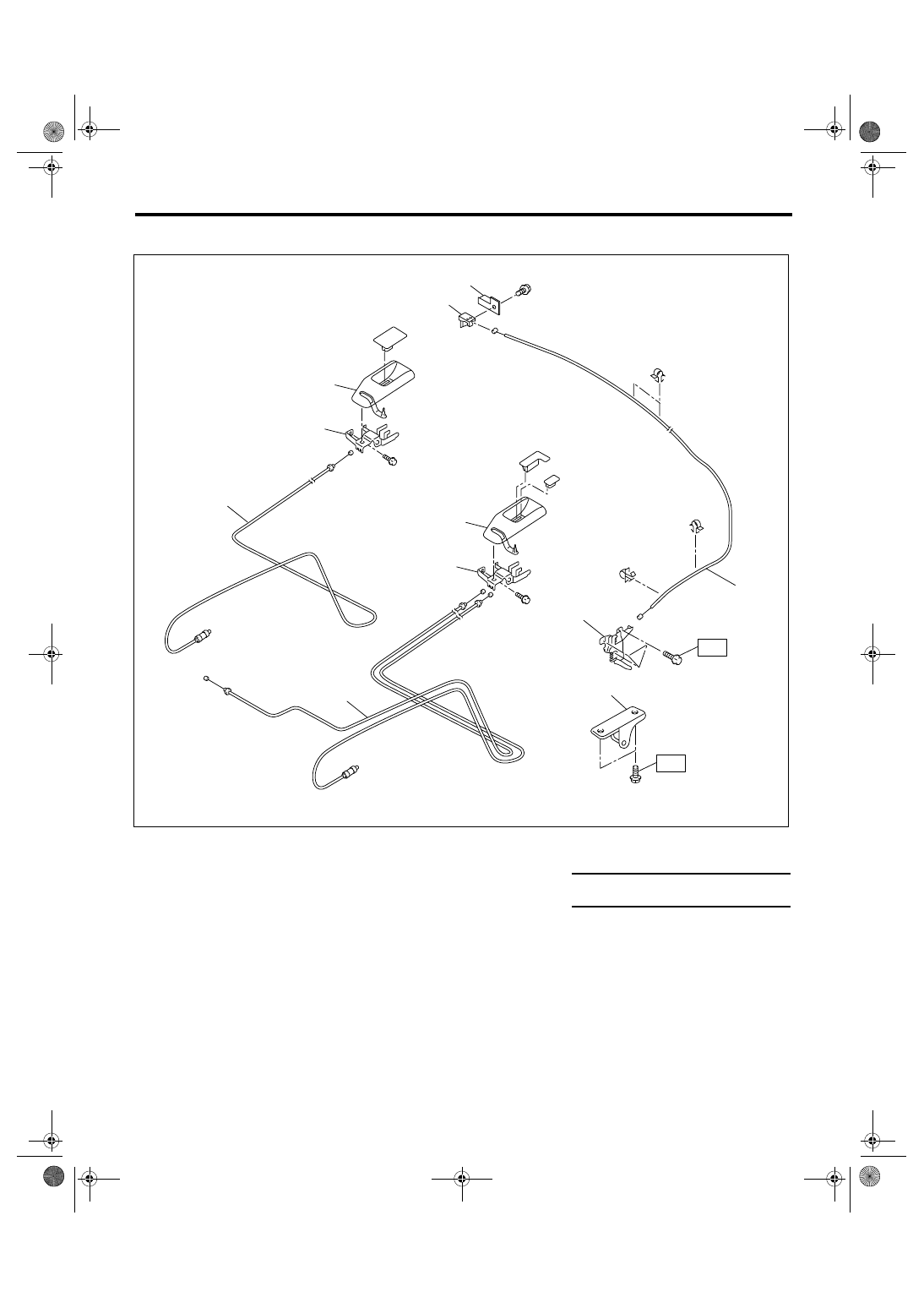

3. FRONT HOOD LOCK AND REMOTE OPENERS

(A)

Sedan model

(B)

Wagon model

(C)

Hood

(1)

Front hood lock ASSY

(5)

Cover

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Lever ASSY

(6)

Pull handle ASSY

T: 33 (3.36, 24.2)

(3)

Lever ASSY bracket

(7)

Striker

(4)

Cable

SL-00275

(2)

(5)

(6)

(B)

(C)

(A)

(4)

(4)

(1)

(3)

(5)

(6)

(4)

T

(7)

T
