SE-19

SEATS

Seat Heater System

4. Seat Heater System

A: REMOVAL

1. SEAT HEATER UNIT

1) Remove the front seats. <Ref. to SE-7, REMOV-
AL, Front Seat.>
2) Remove the backrest cover of front seat and
seat cushion cover. <Ref. to SE-7, DISASSEM-
BLY, Front Seat.>

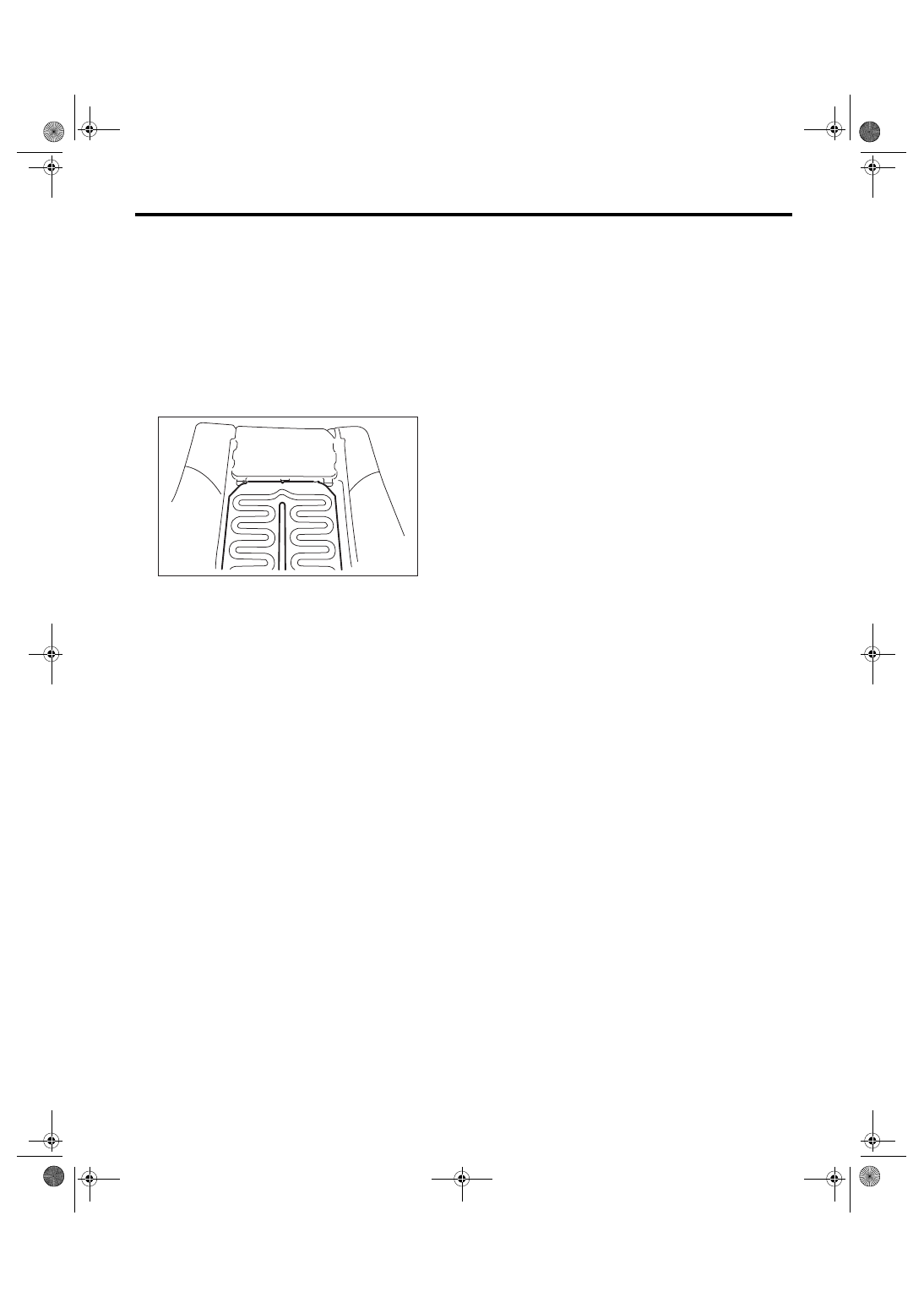

3) Remove the hog rings, and then remove the seat
heater unit.

2. SEAT HEATER SWITCH

1) Remove the console box. <Ref. to EI-53, RE-
MOVAL, Console Box.>
2) Remove the seat heater switch from console
box.

B: INSTALLATION

1. SEAT HEATER UNIT

Install in the reverse order of removal.

2. SEAT HEATER SWITCH

Install in the reverse order of removal.

SE-00082

SE-20

SEATS

Seat Heater System

SECURITY AND LOCKS

SL

Page

1.

General Description ....................................................................................2

2.

Door Lock Control System ........................................................................10

3.

Keyless Entry System ...............................................................................14

4.

Front Inner Remote ...................................................................................26

5.

Front Outer Handle ...................................................................................27

6.

Front Door Latch and Door Lock Actuator Assembly................................28

7.

Front Door Lock Actuator ..........................................................................29

8.

Rear Inner Remote....................................................................................30

9.

Rear Outer Handle ....................................................................................31

10.

Rear Door Latch and Door Lock Actuator Assembly ................................32

11.

Rear Door Lock Actuator...........................................................................33

12.

Rear Gate Outer Handle ...........................................................................34

13.

Rear Gate Latch Assembly .......................................................................35

14.

Trunk Lid Lock Assembly ..........................................................................37

15.

Front Hood Lock Assembly .......................................................................38

16.

Remote Openers.......................................................................................39

17.

Ignition Key Lock.......................................................................................41

18.

Key Lock Cylinders ...................................................................................42

19.

Keyless Entry Control Unit ........................................................................43

20.

Body Integrated Module ............................................................................44

21.

Keyless Transmitter ..................................................................................45

22.

Immobilizer Control Module ......................................................................47

23.

Immobilizer Antenna .................................................................................48

SL-2

SECURITY AND LOCKS

General Description

1. General Description

A: COMPONENT

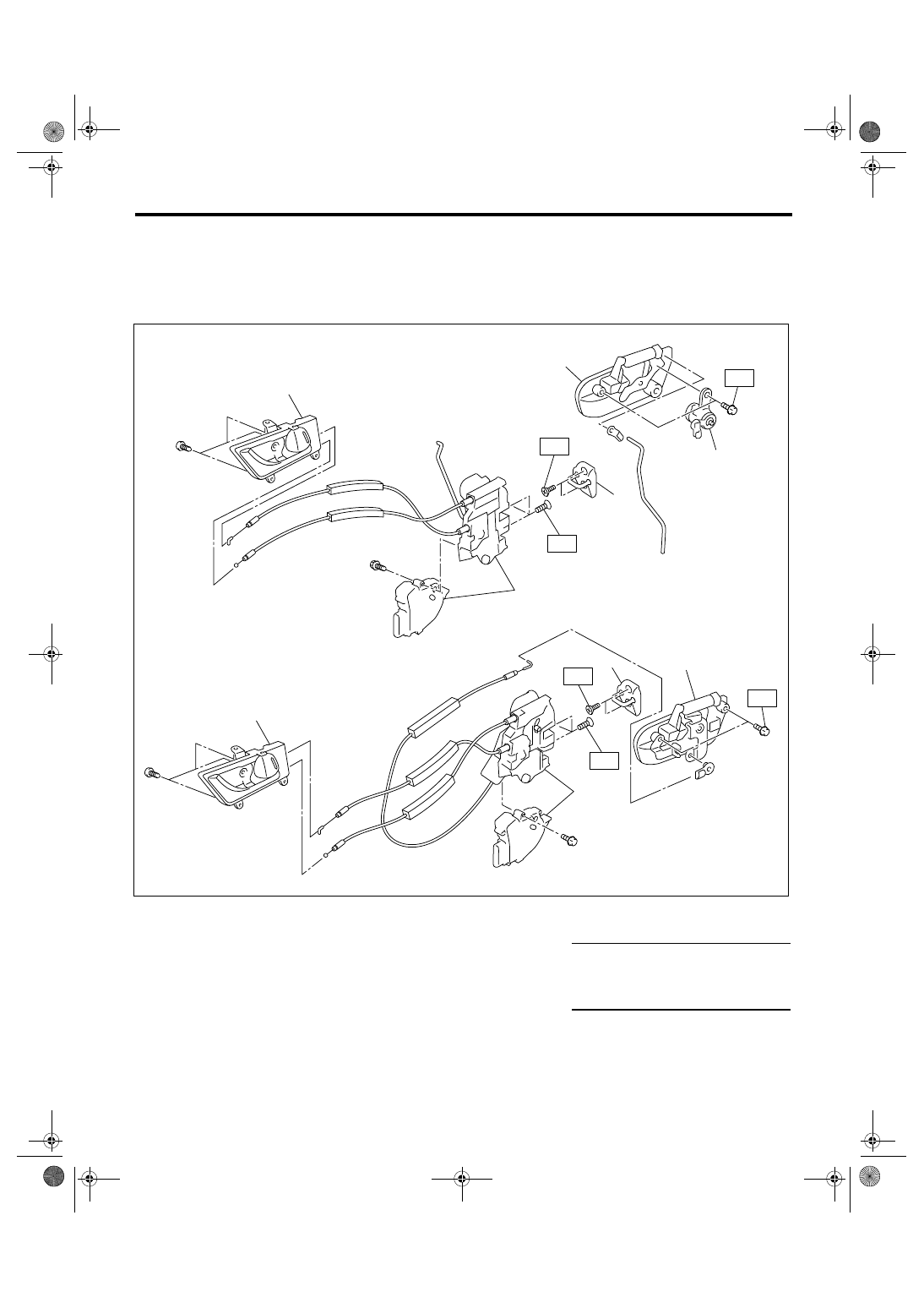

1. DOOR LOCK ASSEMBLY

• Model without double lock

(A)

Front

(B)

Rear

(1)

Inner remote ASSY

(4)

Key cylinder

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Front door latch & door lock actua-
tor ASSY

(5)

Striker

T1: 6.5 (0.66, 4.8)

(6)

Rear door latch & door lock actua-
tor ASSY

T2: 7.5 (0.76, 5.5)

(3)

Door outer handle

T3: 18 (1.8, 13.3)

SL-00271

T2

T3

T1

(5)

(2)

(3)

(4)

T2

(3)

(1)

(A)

(B)

(1)

T3

T1

(5)

(6)
