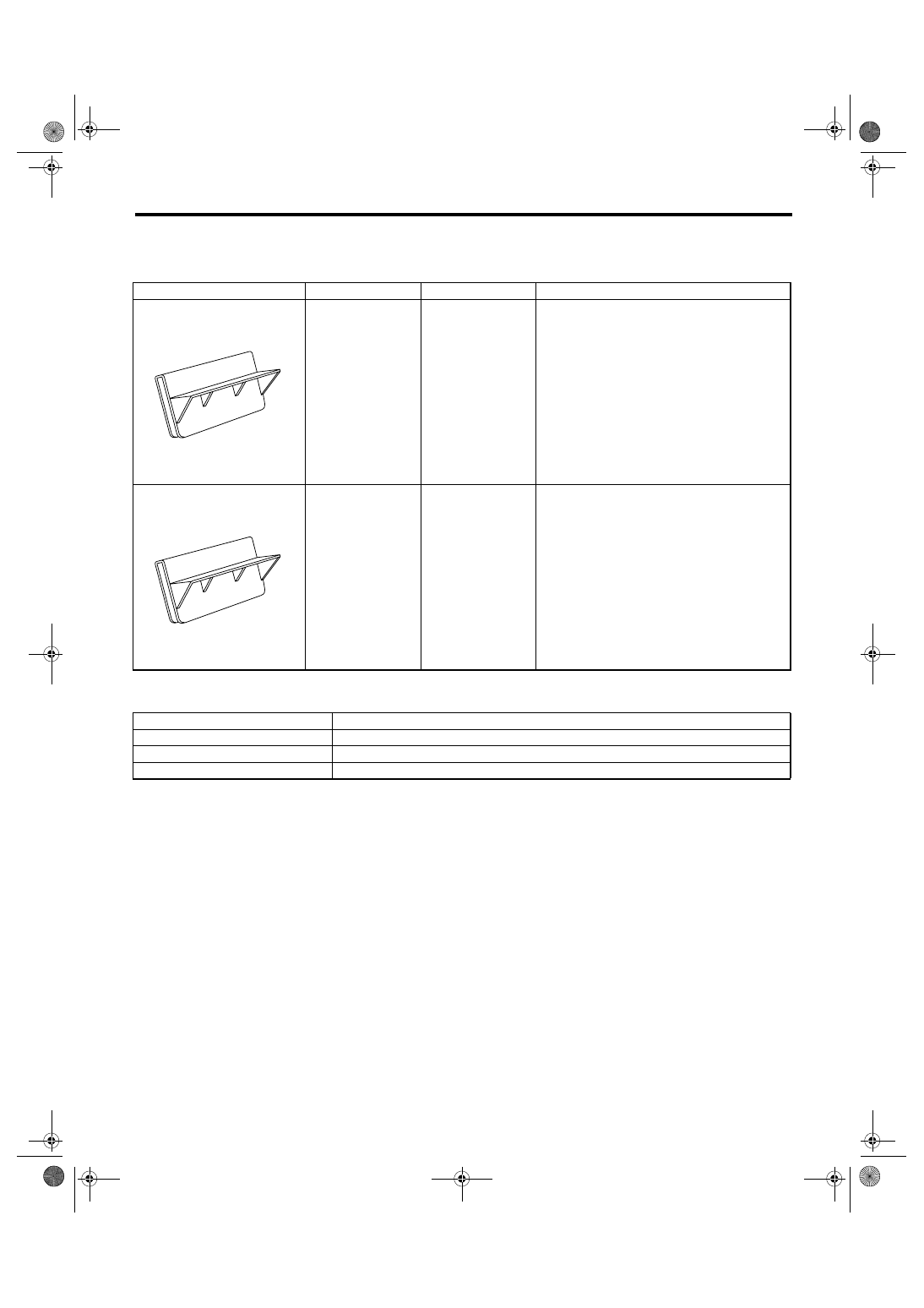

GW-7

GLASS/WINDOWS/MIRRORS

General Description

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

61299AE000

SPACER

Used for adjusting the upper end position of front
door glass. (Glass thickness: 5 mm (0.197 in))

61299AE010

SPACER

Used for adjusting the upper end position of rear
door glass. (Glass thickness: 4 mm (0.157 in))

TOOL NAME

REMARKS

Circuit tester

Used for checking voltage and continuity.

Piano wire

Used for removing window glass.

Windshield glass knife

Used for removing window glass.

ST61299AE000

ST61299AE010

GW-8

GLASS/WINDOWS/MIRRORS

Power Window System

2. Power Window System

A: WIRING DIAGRAM

<Ref. to WI-295, Power Window System.>

B: INSPECTION

Symptom

Repair order

None of the power window operate.

(1) Fuse (SBF-5)
(2) Power window circuit breaker
(3) Power window relay
(4) Wiring harness
(5) Body integrated module

One window does not operate.

(1) Power window main switch
(2) Power window sub switch
(3) Power window motor
(4) Wiring harness

“Window Lock” does not operate.

Power window main switch

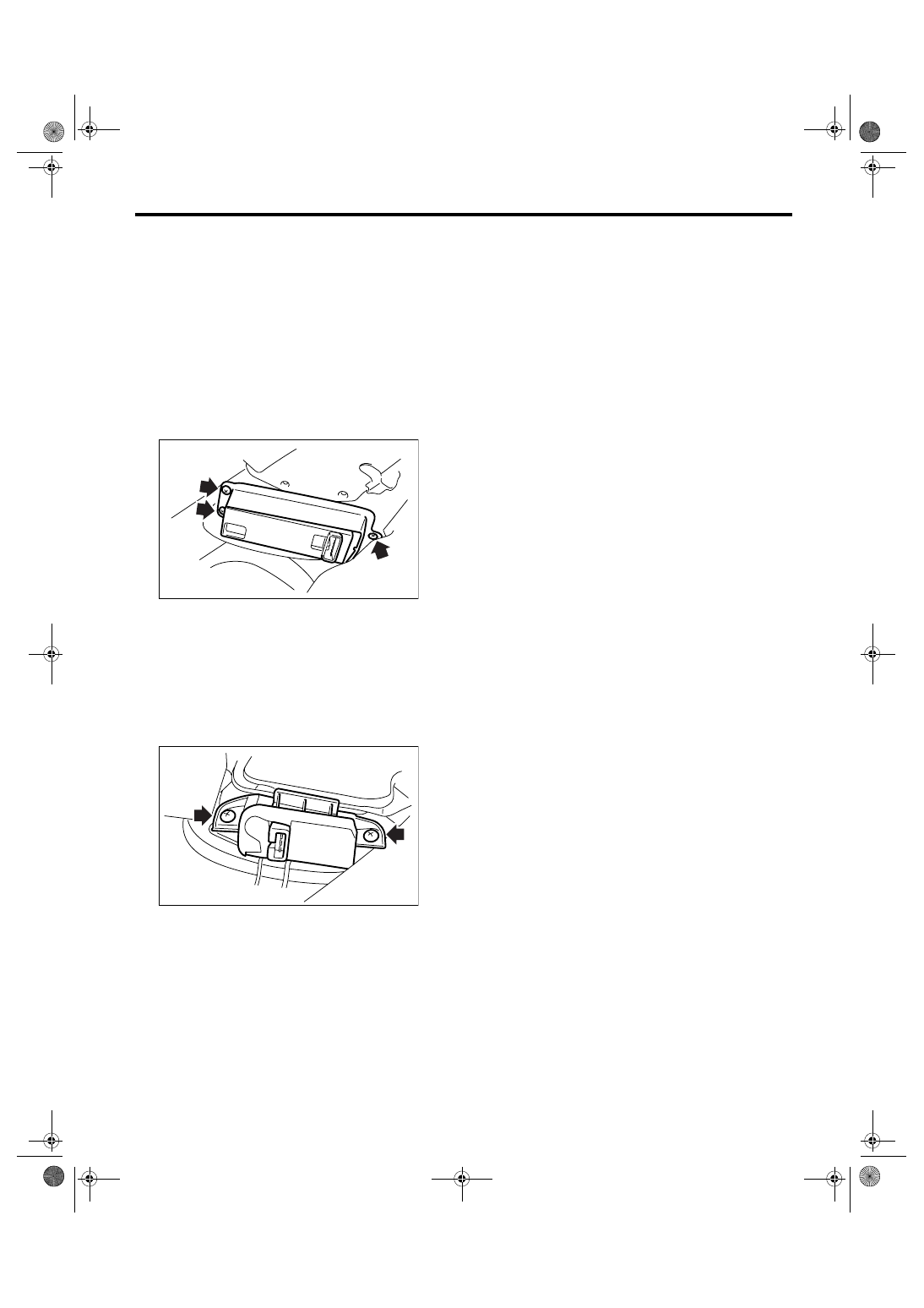

GW-9

GLASS/WINDOWS/MIRRORS

Power Window Control Switch

3. Power Window Control

Switch

A: REMOVAL

1. MAIN SWITCH

1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Disconnect the harness connector.
4) Remove the screws from the reverse side of
front door trim, and remove the power window main
switch.

2. SUB SWITCH

1) Disconnect the ground cable from battery.
2) Remove the door trim. <Ref. to EI-48, REMOV-
AL, Door Trim.>
3) Disconnect the connector.
4) Remove the screws from the reverse side of
door trim, and remove the power window sub
switch.

B: INSTALLATION

1. MAIN SWITCH

Install in the reverse order of removal.

2. SUB SWITCH

Install in the reverse order of removal.

GW-00387

GW-00388

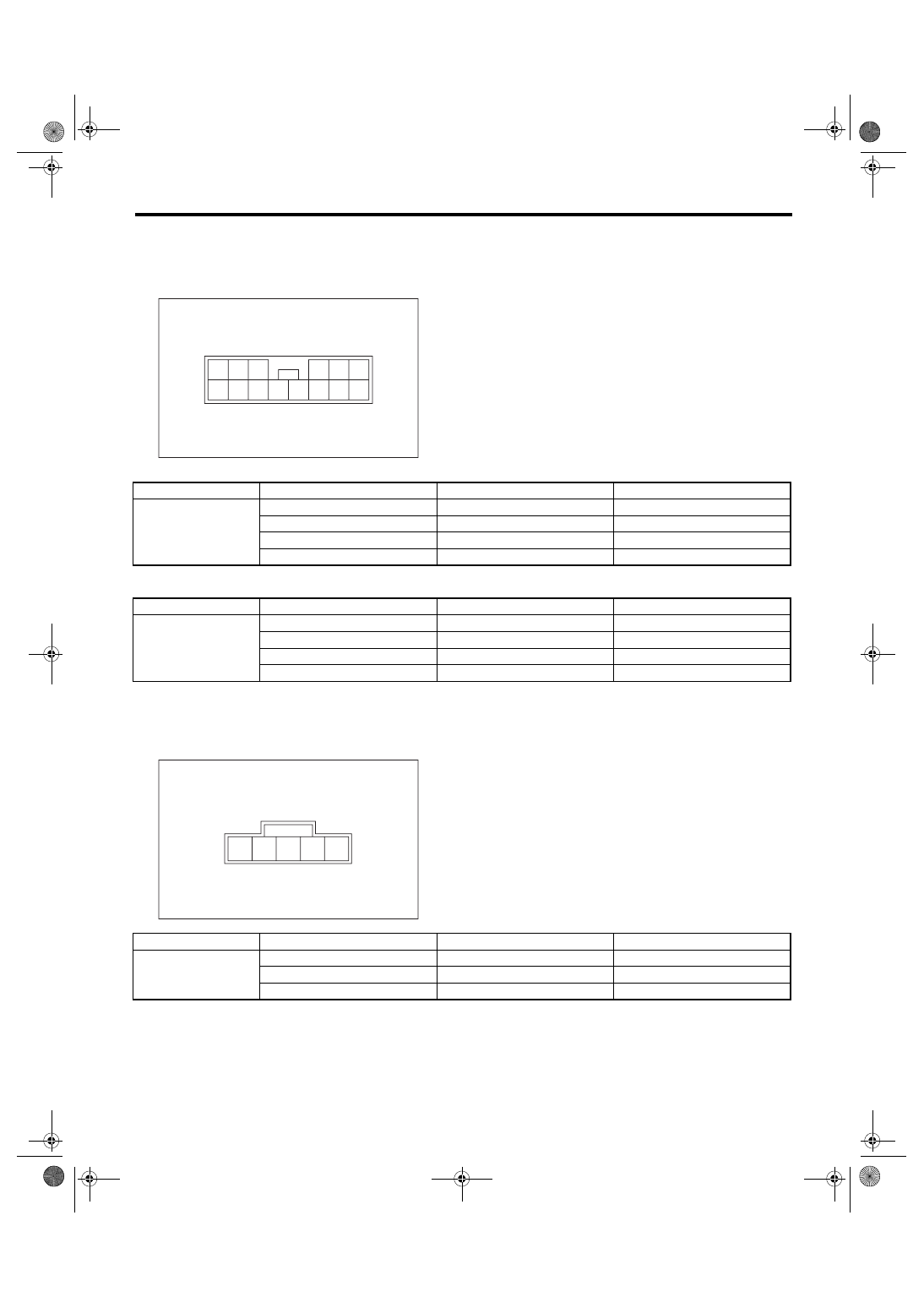

GW-10

GLASS/WINDOWS/MIRRORS

Power Window Control Switch

C: INSPECTION

1. MAIN SWITCH

Measure the resistance of switch.

• LHD model

• RHD model

Replace the main switch if faulty.

2. SUB SWITCH

Measure the resistance of switch.

Replace the sub switch if faulty.

GW-00406

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Switch position

Terminal No.

Standard

Driver’s seat

AUTO UP

10 and 2, 7 and 1

Less than 1

Ω

UP

10 and 2, 7 and 1

Less than 1

Ω

DOWN

10 and 1, 7 and 2

Less than 1

Ω

AUTO DOWN

10 and 1, 7 and 2

Less than 1

Ω

Switch position

Terminal No.

Standard

Driver’s seat

AUTO UP

11 and 1, 14 and 2

Less than 1

Ω

UP

11 and 1, 14 and 2

Less than 1

Ω

DOWN

11 and 2, 14 and 1

Less than 1

Ω

AUTO DOWN

11 and 2, 14 and 1

Less than 1

Ω

GW-00407

1

2

3

4

5

Switch position

Terminal No.

Standard

Passenger’s seat and

rear seat

UP

2 and 3, 4 and 5

Less than 1

Ω

OFF

1 and 2, 4 and 5

Less than 1

Ω

DOWN

1 and 2, 3 and 4

Less than 1

Ω
