GW-3

GLASS/WINDOWS/MIRRORS

General Description

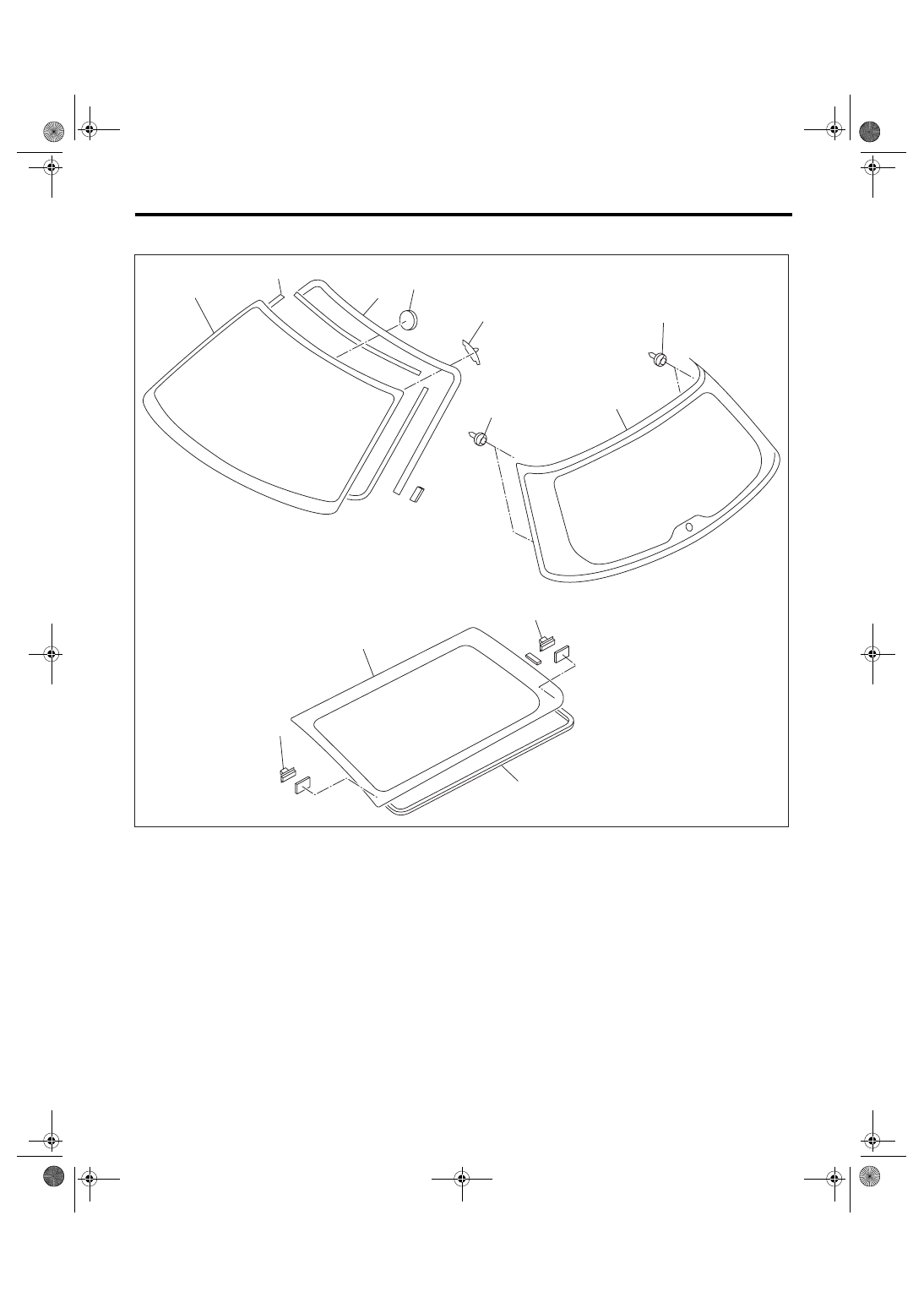

2. FIXED GLASS (WAGON MODEL)

(1)

Windshield glass

(4)

Rearview mirror mount

(7)

Rear quarter glass

(2)

Dam rubber

(5)

Locating pin

(8)

Locating pin

(3)

Molding

(6)

Fastener

(9)

Glass

GW-00435

(1)

(2)

(2)

(3)

(4)

(5)

(6)

(6)

(7)

(8)

(8)

(9)

GW-4

GLASS/WINDOWS/MIRRORS

General Description

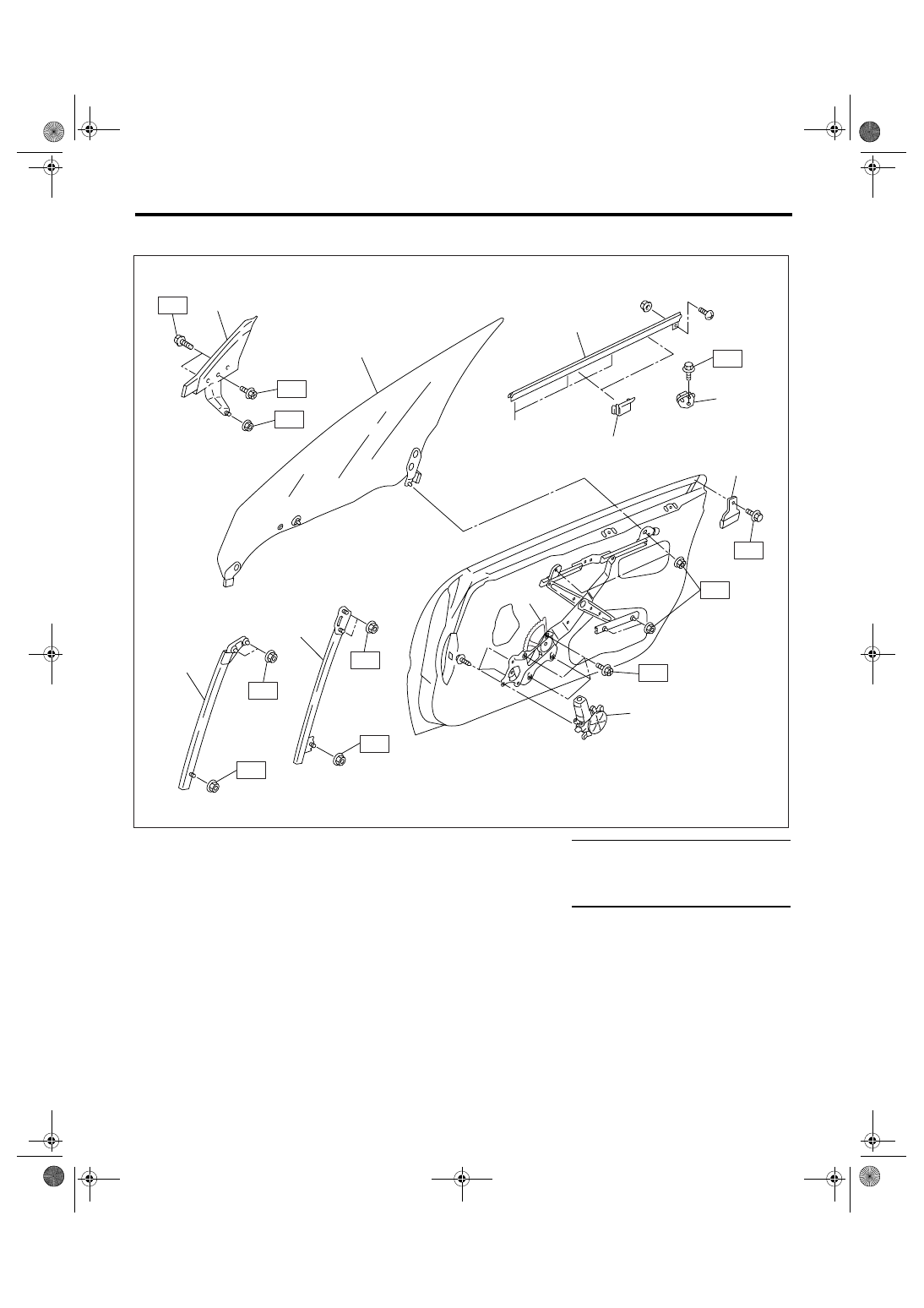

3. FRONT DOOR GLASS

(1)

Glass

(6)

Stabilizer (Inner)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Door sash (Front)

(7)

Regulator ASSY

T1: 7.4 (0.75, 5.5)

(3)

Door sash (Rear)

(8)

Motor ASSY

T2: 13.7 (1.4, 10.1)

(4)

Weather strip

(9)

Mirror gusset

T3: 5.9 (0.60, 4.4)

(5)

Stabilizer (Outer)

(10)

Guide ASSY

GW-00256

T2

T1

T1

T3

T3

(8)

(7)

(3)

(2)

(1)

(9)

T2

T2

T2

T1

(6)

(5)

(4)

T3

T1

(10)

GW-5

GLASS/WINDOWS/MIRRORS

General Description

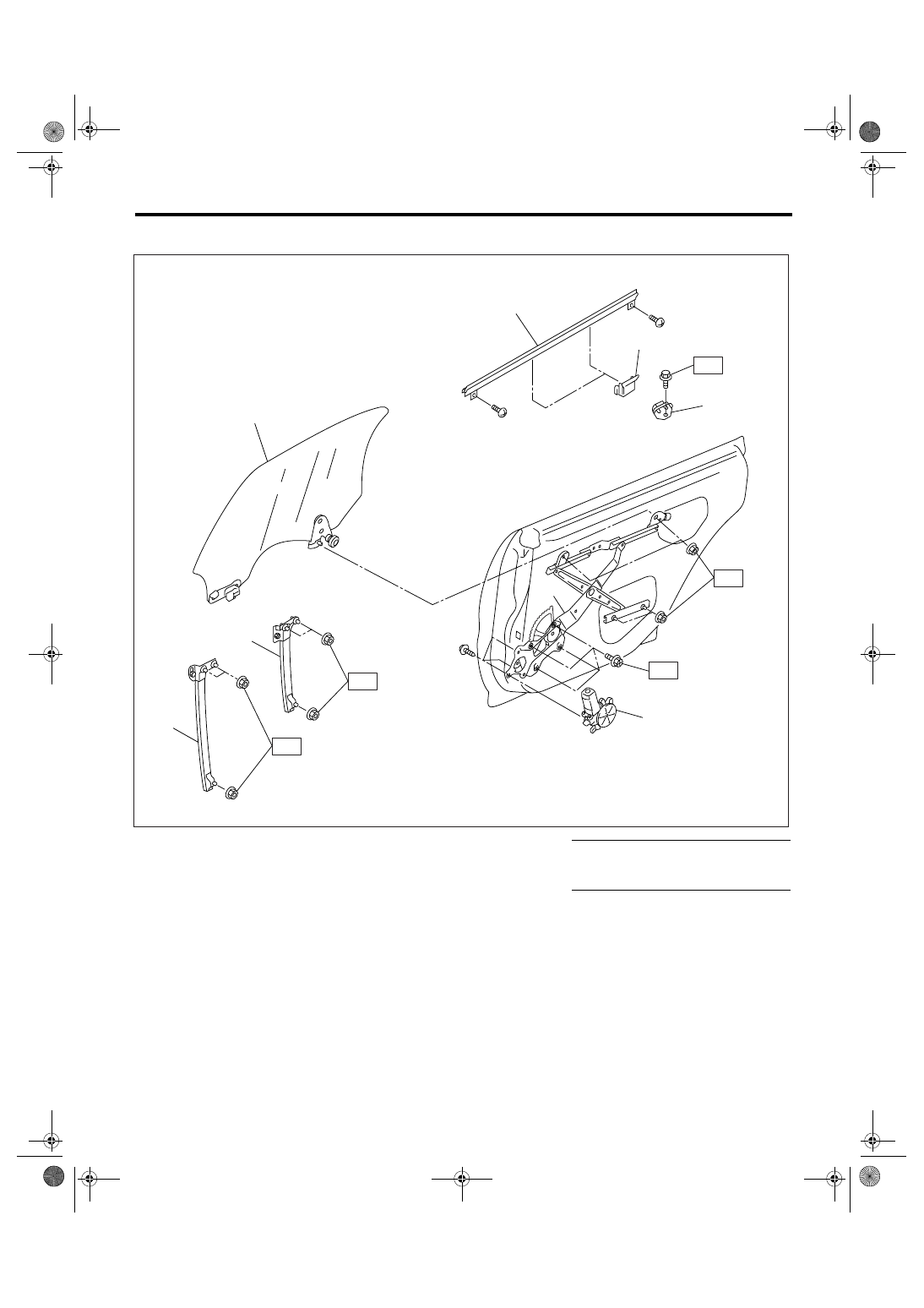

4. REAR DOOR GLASS

(1)

Glass

(5)

Stabilizer (Outer)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Door sash (Front)

(6)

Stabilizer (Inner)

T1: 7.4 (0.75, 5.5)

(3)

Door sash (Rear)

(7)

Regulator ASSY

T2: 13.7 (1.4, 10.1)

(4)

Weather strip

(8)

Motor ASSY

GW-00257

T1

T1

(8)

(7)

(1)

(2)

(3)

T2

T1

(6)

(5)

(4)

T2

GW-6

GLASS/WINDOWS/MIRRORS

General Description

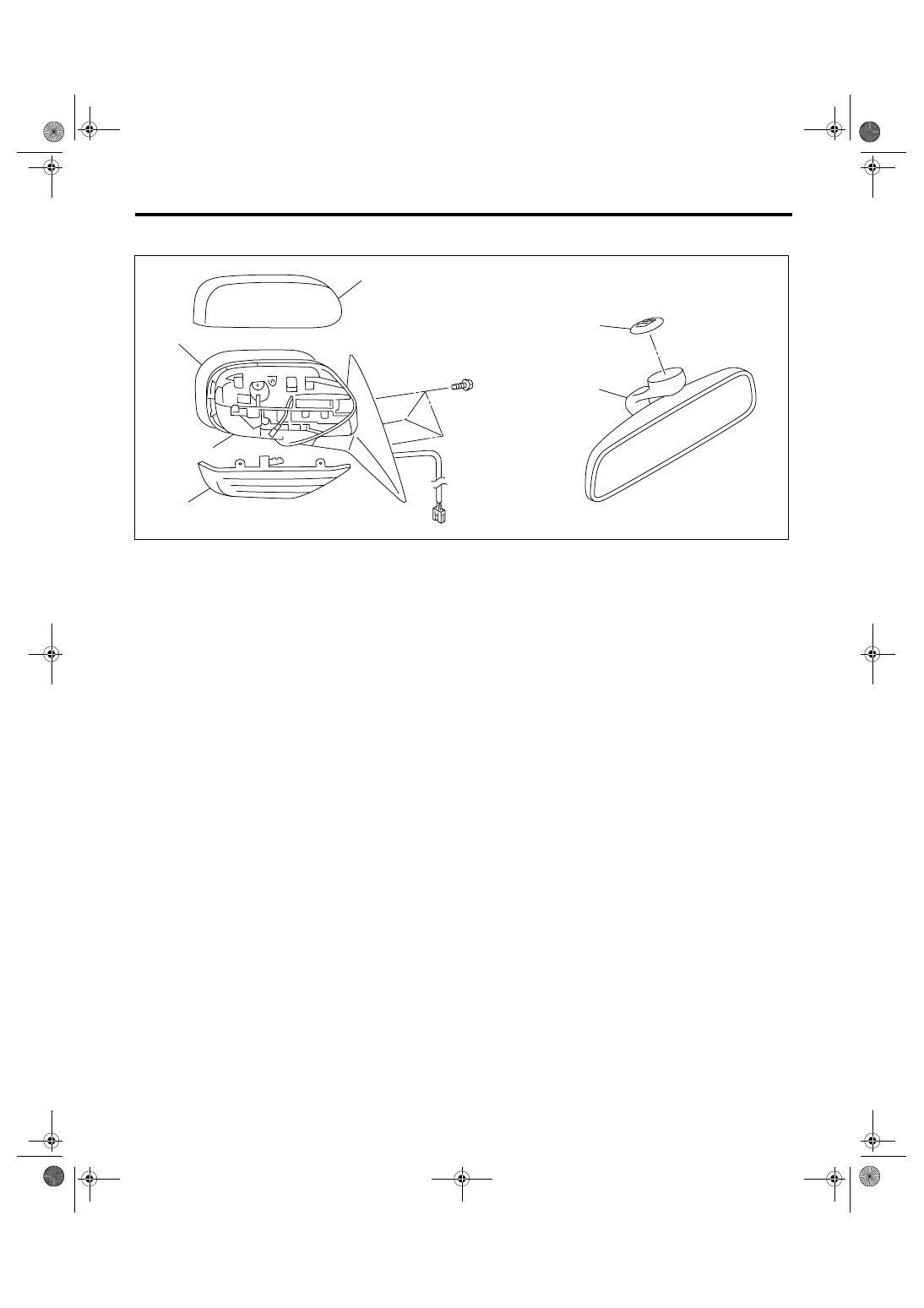

5. MIRROR

B: CAUTION

• When connectors are disconnected, always conduct an operational check after reconnection.
• Avoid impact and damage to the glass.

(1)

Outer mirror

(3)

Scalp cap

(5)

Rearview mirror

(2)

Mirror

(4)

Side turn signal light

(6)

Mount

GW-00447

(2)

(3)

(6)

(5)

(4)

(1)
