SB-5

SEAT BELT SYSTEM

General Description

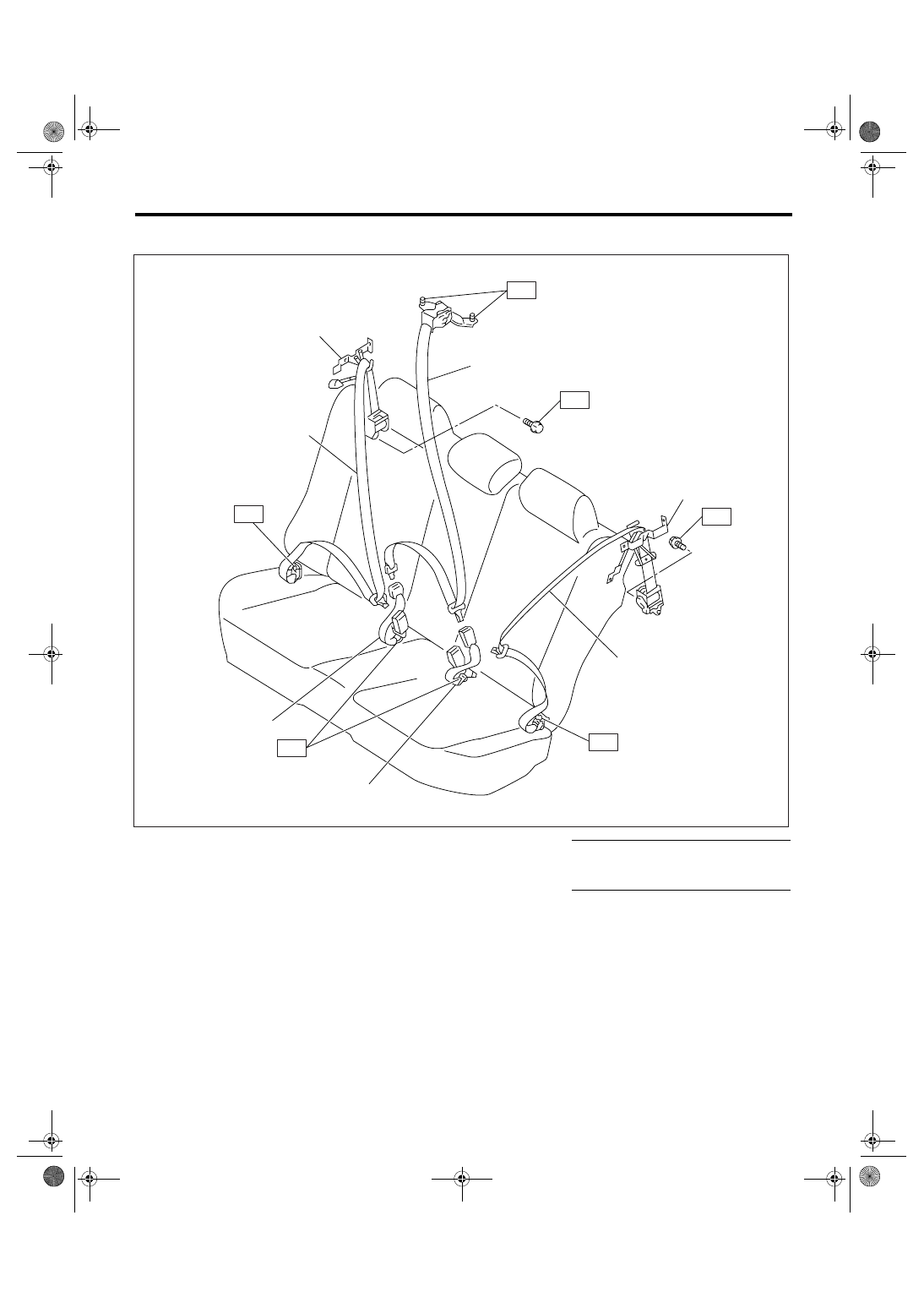

4. REAR SEAT BELT (WAGON MODEL)

(1)

Outer seat belt RH ASSY

(5)

Center seat belt LH ASSY

 Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Shoulder seat belt center ASSY

(6)

Outer belt guide RH

T1: 30 (3.1, 22)

(3)

Outer seat belt LH ASSY

(7)

Outer belt guide LH

T2: 53 (5.4, 39)

(4)

Center seat belt RH ASSY

SB-00148

(2)

(6)

(1)

(4)

(7)

T2

(5)

(3)

T1

T1

T1

T1

T1

SB-6

SEAT BELT SYSTEM

General Description

B: CAUTION

• Before starting service, turn the ignition switch to
OFF, disconnect the battery ground cable and wait
for 20 seconds or more.
• The pretensioner system has a backup power
source. The pretensioner might deploy if you do not
wait for 20 seconds or more before starting work.
• Do not drop or apply any impact to the preten-
sioner.
• If oil, grease or water gets on the pretensioner,
wipe it off immediately with a dry cloth.
• Do not expose the pretensioner to high tempera-
ture or flame.
• Do not allow current to flow through or voltage to
reach the pretensioner. Do not use a circuit tester
to check resistance of the pretensioner.
• Do not disassemble or attempt to repair the pre-
tensioner. If it is dented, cracked or deformed, re-
place it with a new one.
• Do not use the airbag or pretensioner parts from
other vehicles. Always replace the parts with new
ones.
• When handling a seat belt with deployed preten-
sioner, wear gloves and goggles. Wash your hands
afterwards.
• Do not reuse a seat belt with deployed preten-
sioner.
• If the material gets in your eyes or on your skin
during deployment, wash it away with clean water,
and then consult a doctor.

SB-7

SEAT BELT SYSTEM

General Description

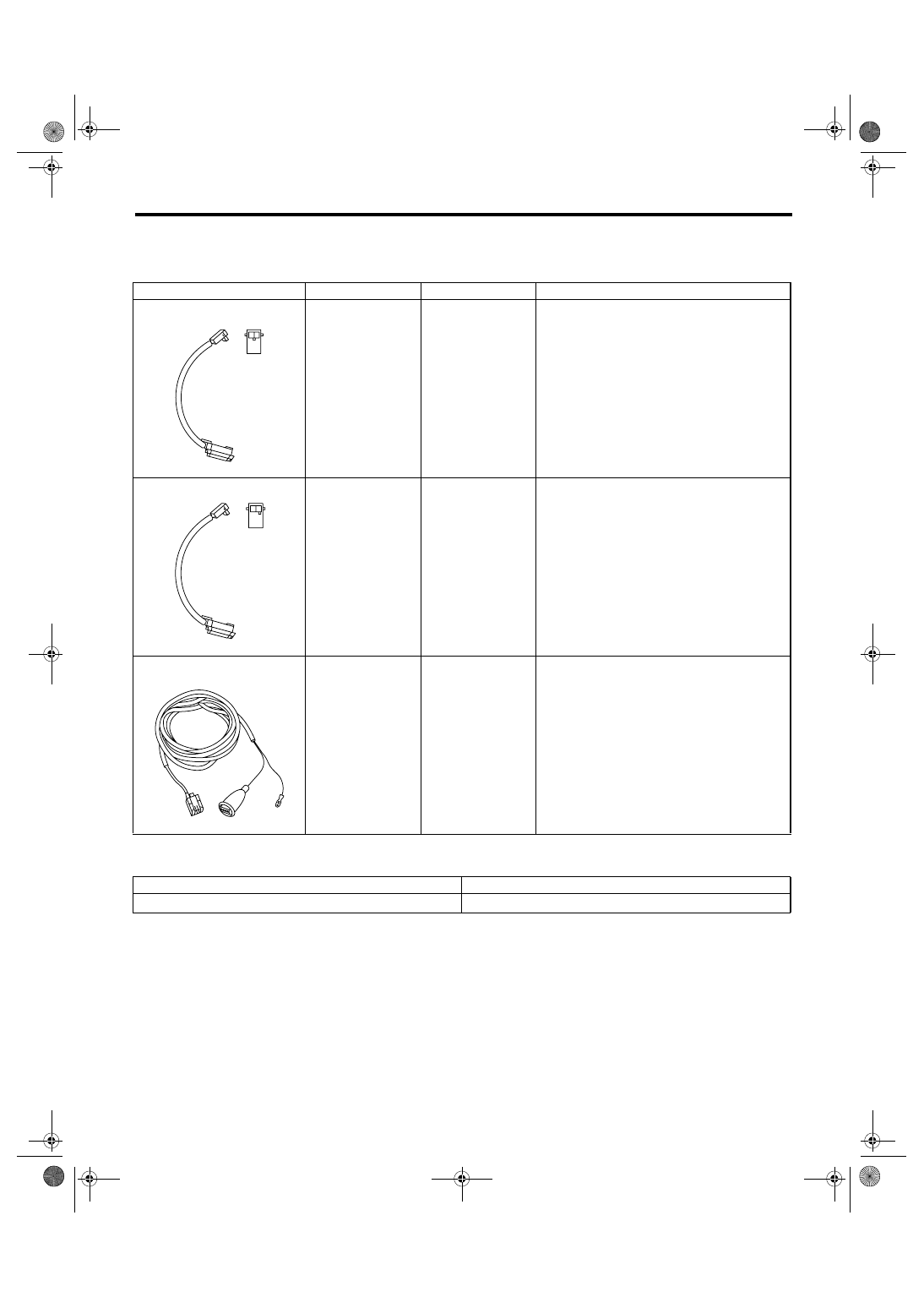

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

98299SA010

DEPLOYMENT
ADAPTER D

• Used for deploying the pretensioner.
• Used with DEPLOYMENT TOOL
(98299PA030).

98299SA050

DEPLOYMENT
ADAPTER F

• Used for deploying the lap seat belt preten-
sioner.
• Used with DEPLOYMENT TOOL
(98299PA030).

98299PA030

DEPLOYMENT
TOOL

• Used for deploying the pretensioner.
• Used with DEPLOYMENT ADAPTER D
(98299SA010) or DEPLOYMENT ADAPTER F
(98299SA050).

TOOL NAME

REMARKS

TORX

®

 T50

Used for removing and installing the inner seat belt assembly.

ST98299SA010

ST98299SA050

ST98299PA030

SB-8

SEAT BELT SYSTEM

Pretensioner Connector

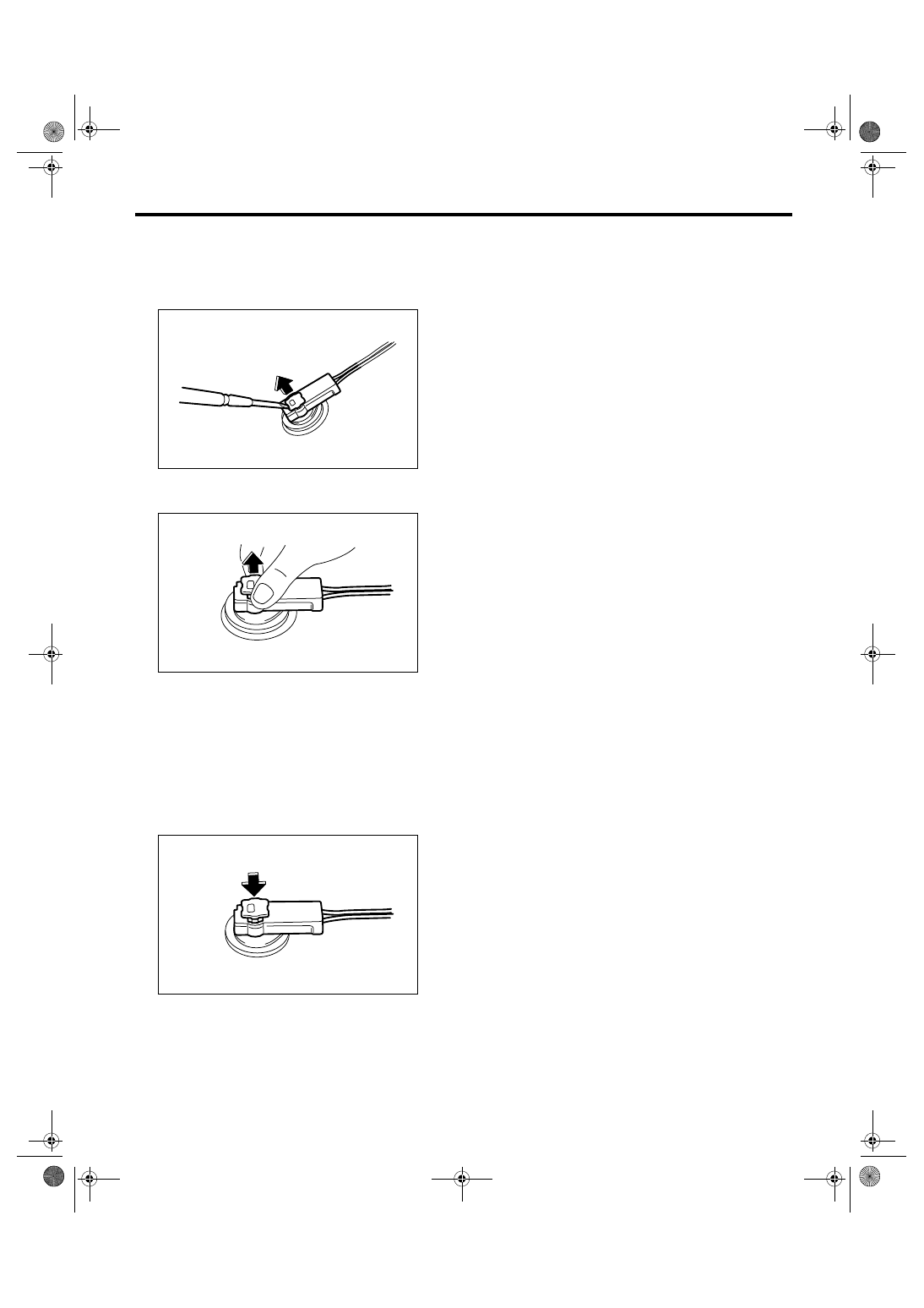

2. Pretensioner Connector

A: REMOVAL

1) Using a flat tip screwdriver, pry the push lock up-
ward to unlock.

2) Pull out the connector to disconnect it from re-
tractor assembly.

B: INSTALLATION

Connect the connector in the reverse order of dis-
connection. At this time, be sure to insert the push
lock until a connecting sound is heard.

CAUTION:
• Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
• Be sure to push the push lock in securely.

AB-00478

AB-00479

AB-00480
