SEAT BELT SYSTEM

SB

Page

1.

General Description ....................................................................................2

2.

Pretensioner Connector ..............................................................................8

3.

Inspection Locations After a Collision .........................................................9

4.

Seat Belt Warning System ........................................................................10

5.

Front Seat Belt ..........................................................................................14

6.

Rear Seat Belt...........................................................................................16

7.

Disposal of Pretensioner ...........................................................................19

SB-2

SEAT BELT SYSTEM

General Description

1. General Description

A: COMPONENT

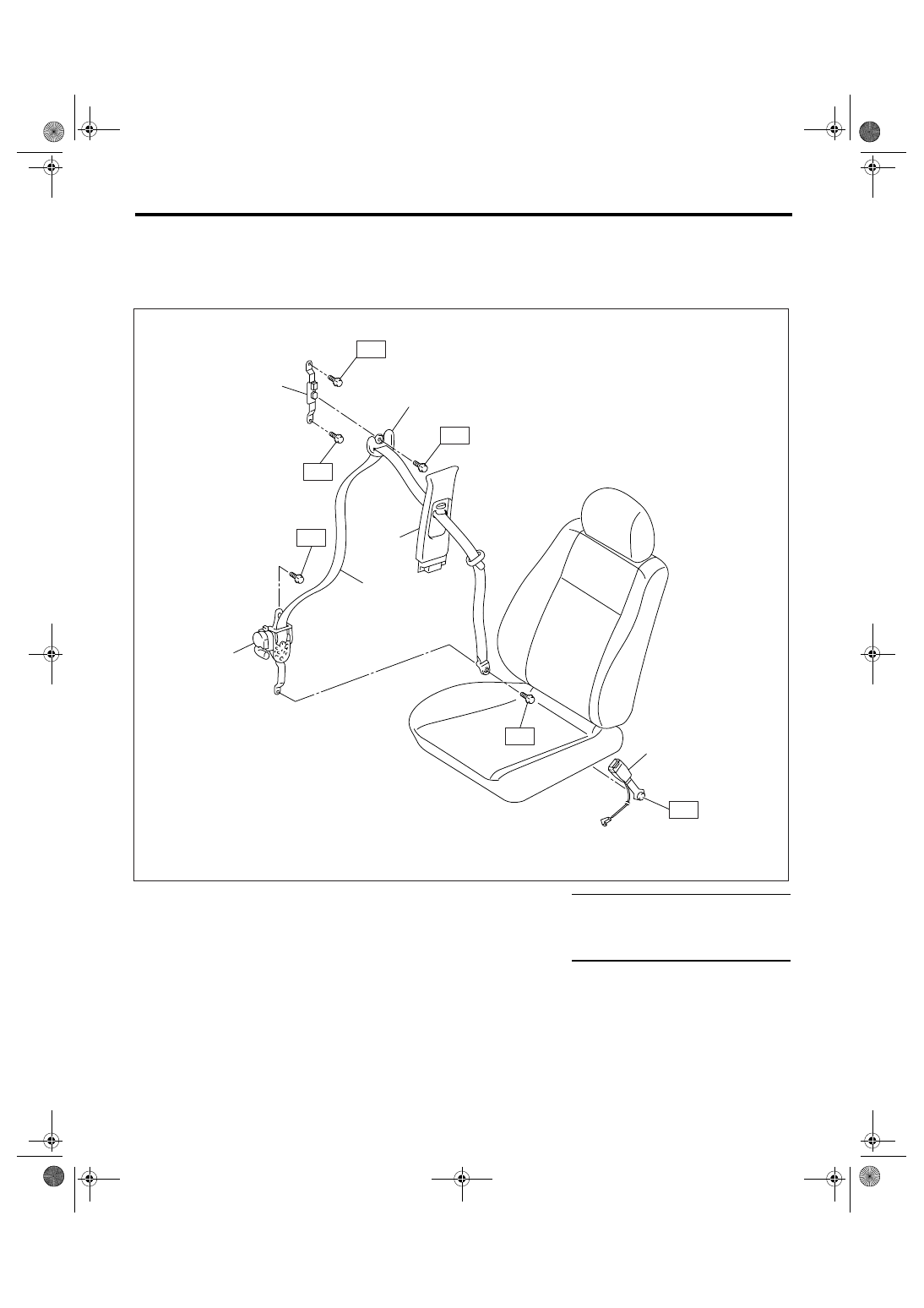

1. FRONT SEAT BELT

(1)

Adjustable anchor ASSY

(4)

Seat belt retractor

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Shoulder anchor

(5)

Center pillar upper trim

T1: 30 (3.1, 22)

(3)

Outer seat belt ASSY

(6)

Inner seat belt ASSY

T2: 38 (3.9, 28)

T3: 53 (5.4, 39)

SB-00297

(6)

T2

T1

T1

T3

(3)

(4)

(5)

(2)

(1)

T1

T3

SB-3

SEAT BELT SYSTEM

General Description

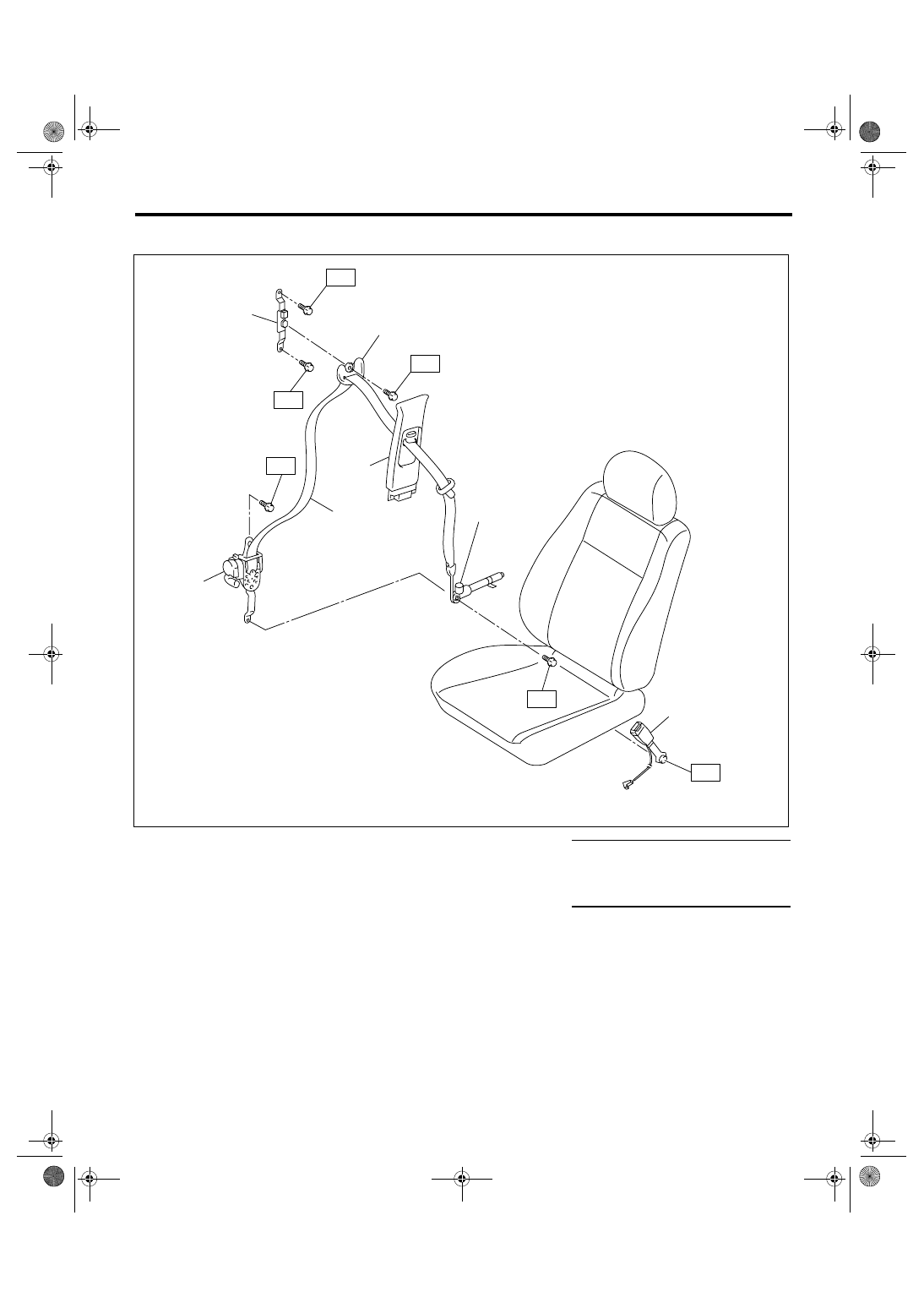

2. FRONT SEAT BELT (WITH LAP SEAT BELT PRETENSIONER)

(1)

Adjustable anchor ASSY

(5)

Center pillar upper trim

 Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Shoulder anchor

(6)

Inner seat belt ASSY

T1: 30 (3.1, 22)

(3)

Outer seat belt ASSY

(7)

Lap seat belt pretensioner

T2: 38 (3.9, 28)

(4)

Seat belt retractor

T3: 53 (5.4, 39)

SB-00276

(6)

(7)

T2

T1

T1

T3

(3)

(4)

(5)

(2)

(1)

T1

T3

SB-4

SEAT BELT SYSTEM

General Description

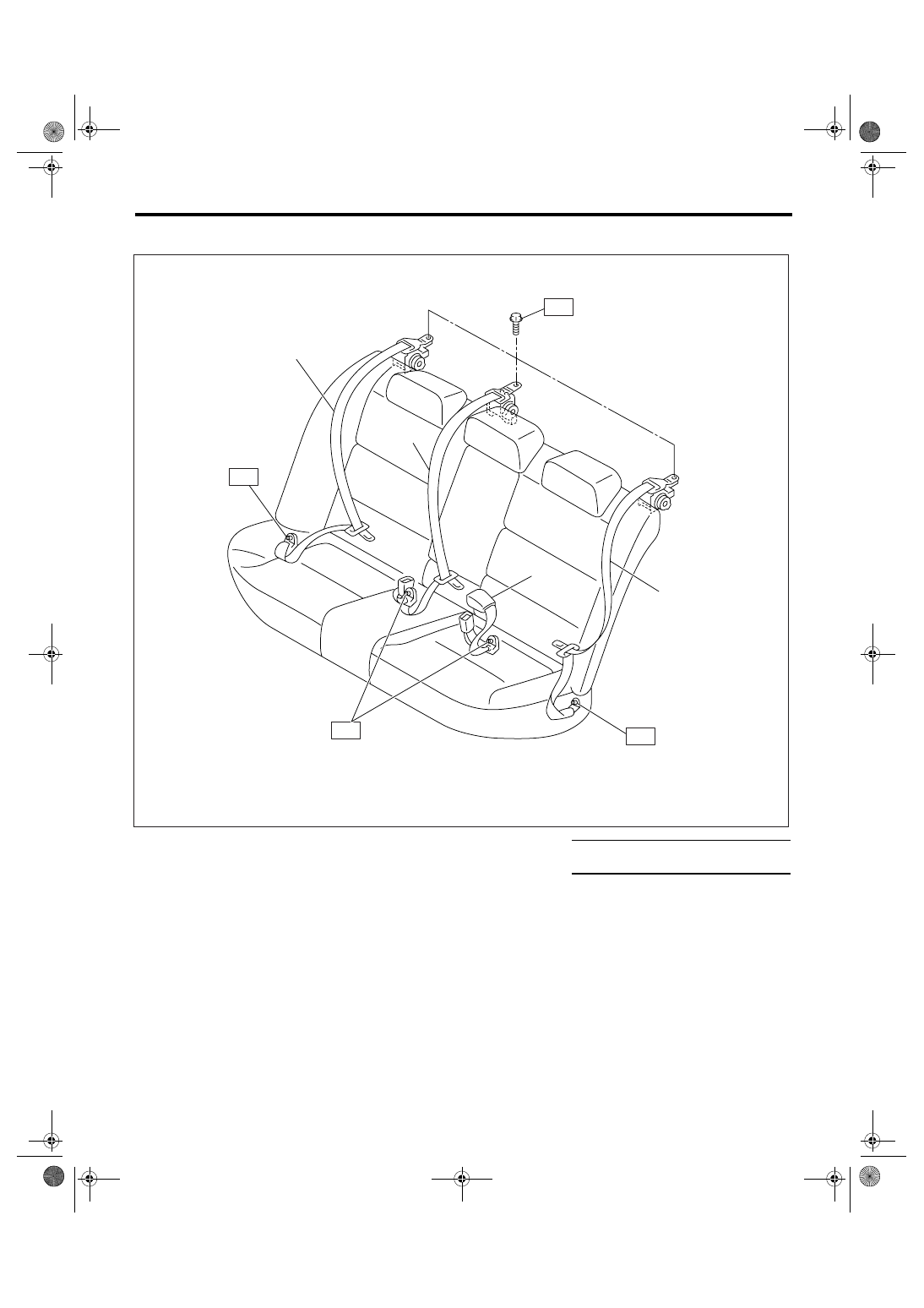

3. REAR SEAT BELT (SEDAN MODEL)

(1)

Outer seat belt RH ASSY

(3)

Outer seat belt LH ASSY

 Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Shoulder seat belt center ASSY

(4)

Center seat belt LH ASSY

T: 30 (3.1, 22)

SB-00147

T

(4)

(2)

(1)

(3)

T

T

T
