Subaru Legacy (2005 year). Manual - part 884





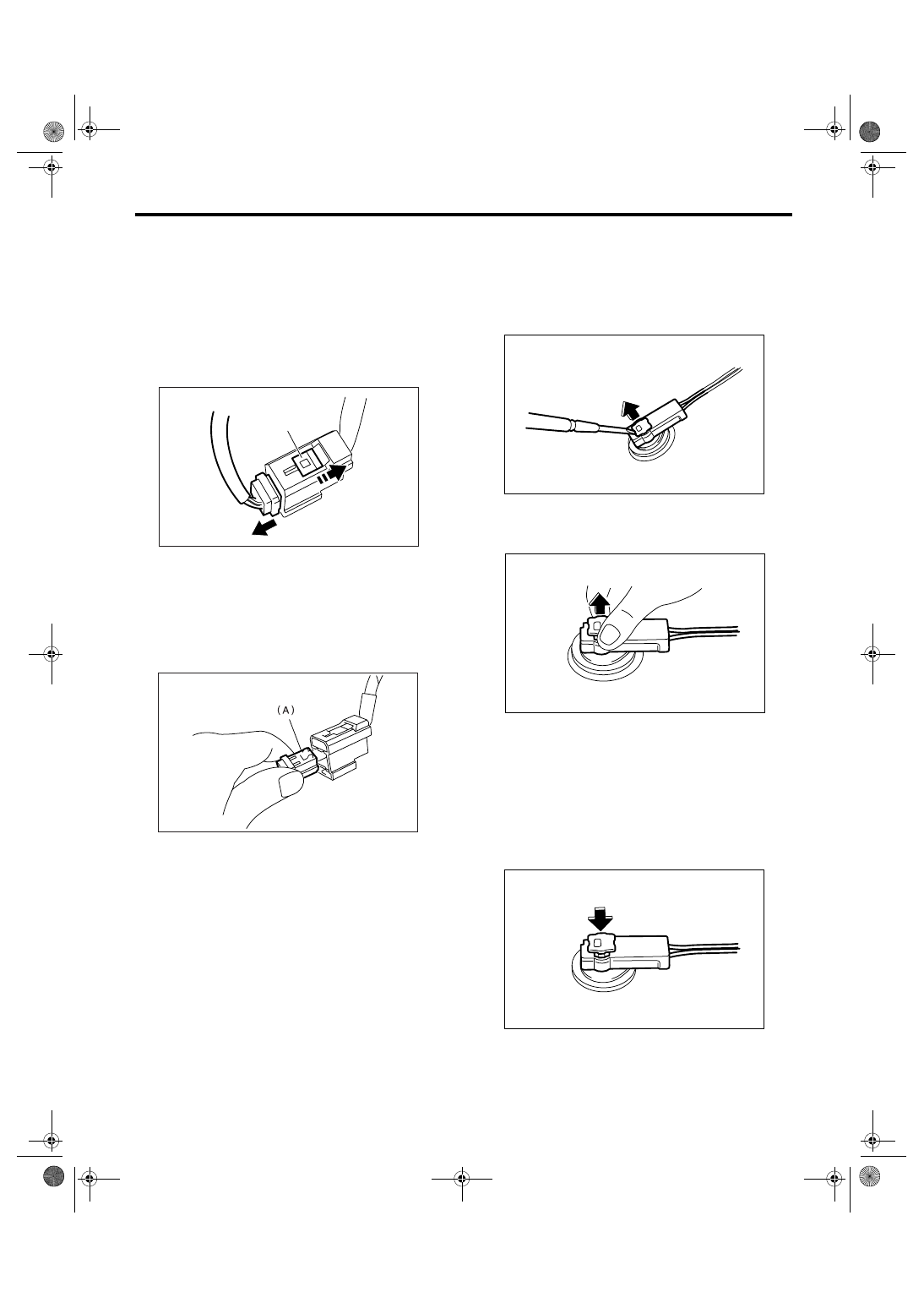

AB-11

AIRBAG SYSTEM

Airbag Connector

2. Airbag Connector

A: PROCEDURE

1. POWER SUPPLY

1) How to disconnect:

(1) Move the slide lock (A) in the direction of ar-
row.
(2) While holding the slide lock (A) in moved po-
sition, separate the connector.

CAUTION:
When pulling the slide lock or disconnecting
the connector, be sure to hold the connector,
not the harness.
2) How to connect:
Holding the connector (A), and push it in securely
until a connecting sound is heard.

CAUTION:
Be sure to insert the connector until it is locked.
Pull it gently to make sure that it is locked se-
curely.

2. DRIVER’S AIRBAG MODULE, PRETEN-
SIONER AND LAP SEAT BELT PRETEN-
SIONER

1) How to disconnect:

(1) Using a flat tip screwdriver, pry the push
lock upward to unlock.

(2) Pull the connector to disconnect from driv-
er’s side airbag module assembly or retractor
assembly.

2) How to connect:
Connect the connector in the reverse order of dis-
connecting. At this time, be sure to insert the push
lock until a connecting sound is heard.

CAUTION:
• Be sure to insert the connector in until it is
locked. Pull it gently to make sure that it is
locked securely.
• Be sure to push the push lock in securely.

NOTE:
The connector can not be connected when the
push lock is in lock position. To connect the con-
nector, set the push lock to unlock position.

AB-00721

(A)

AB-00016

AB-00478

AB-00479

AB-00480

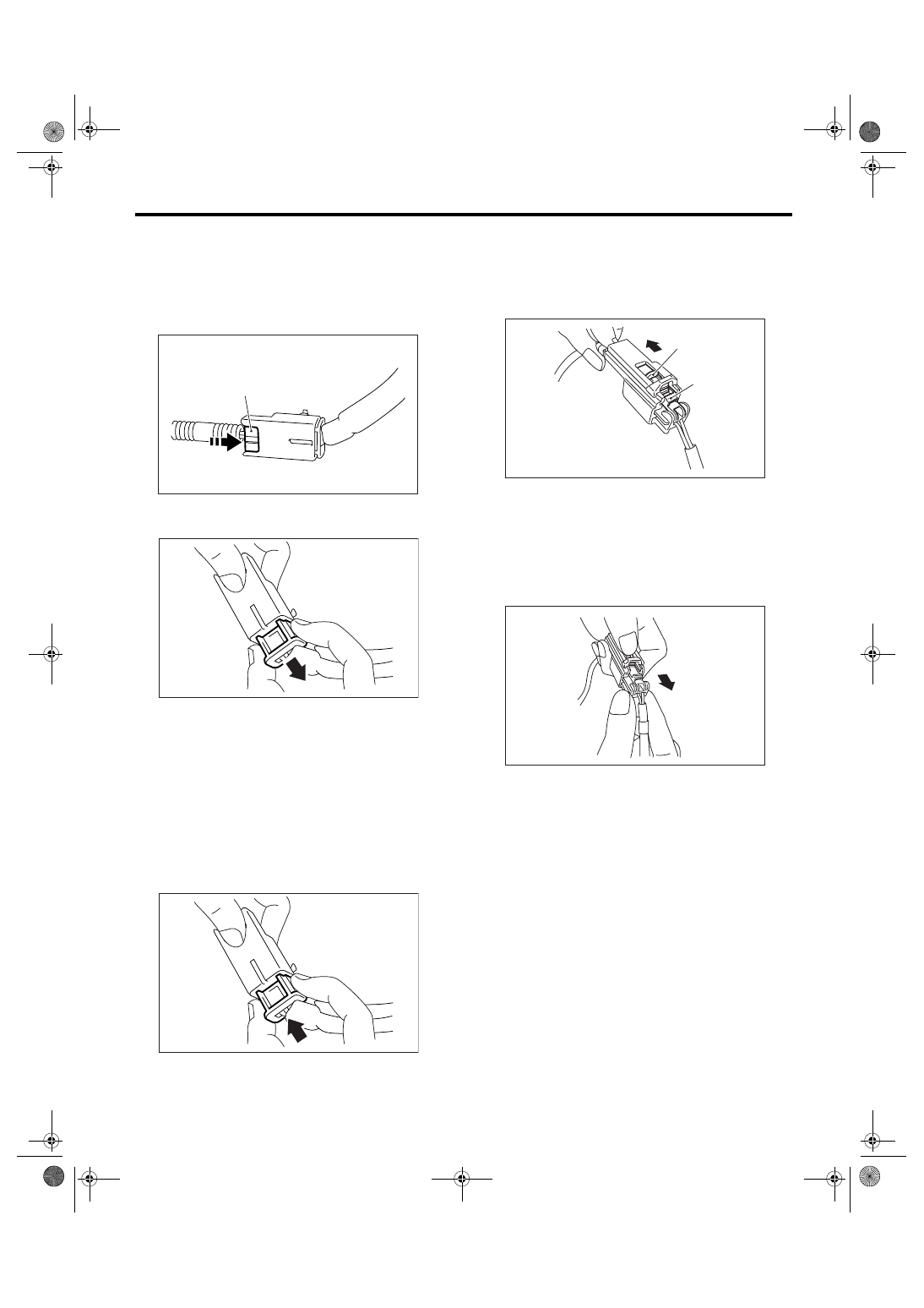

AB-12

AIRBAG SYSTEM

Airbag Connector

3. DRIVER’S AIRBAG (BETWEEN AIRBAG
MAIN HARNESS AND ROLL CONNECTOR)
AND PASSENGER’S AIRBAG

1) How to disconnect:

(1) Push the slide lock (A) into the direction of
arrow.

(2) With the slide lock pushed, disconnect the
connector.

CAUTION:
When pulling the slide lock or disconnecting
the connector, be sure to hold the connector,
not the harness.
2) How to connect:
Holding the connector, push it in securely until a
connecting sound is heard.

CAUTION:
Be sure to insert the connector in until it is
locked. Pull it gently to make sure that it is
locked securely.

4. SIDE AIRBAG AND CURTAIN AIRBAG

1) How to disconnect:

(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of arrow.

(3) With the slide lock moved, release the lock
arm (back to the original position), and discon-
nect the connector.

CAUTION:
When pulling the slide lock or disconnecting
the connector, be sure to hold the connector,
not the harness.

AB-00722

(A)

AB-00022

AB-00023

AB-00017

(A)

(B)

AB-00018

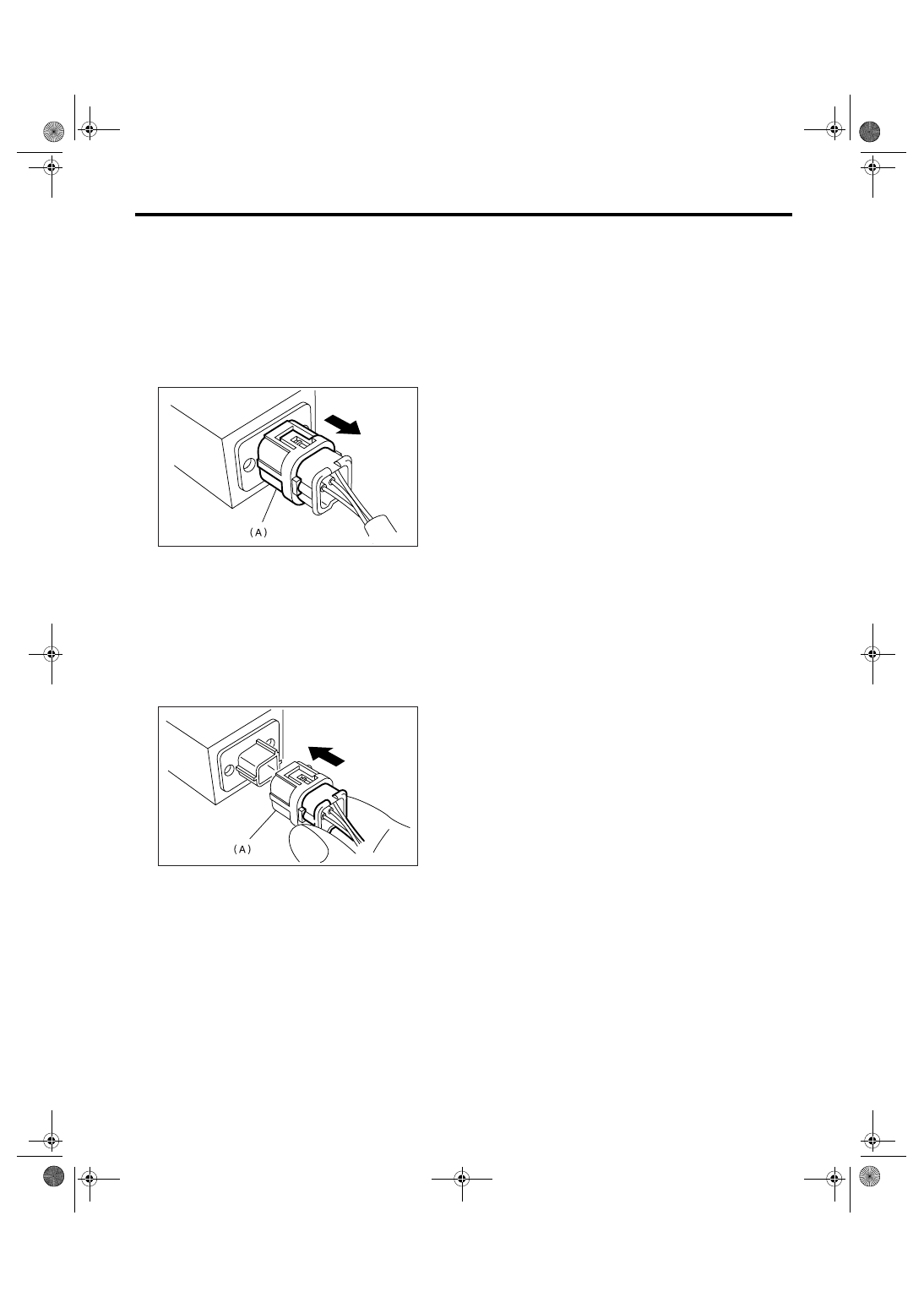

AB-13

AIRBAG SYSTEM

Airbag Connector

5. FRONT SUB-SENSOR, SIDE AIRBAG
SENSOR AND CURTAIN AIRBAG SENSOR

1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.

CAUTION:
When pulling the slide lock or disconnecting
the connector, be sure to hold the connector,
not the harness.

2) How to connect:
Holding the connector, push it in securely until a
connecting sound is heard.

CAUTION:
• Outer side (A) move back, and so do not put
your hand on the outer part.
• Be sure to insert the connector in until it is
locked. Pull it gently to make sure that it is
locked securely.

AB-00024

AB-00025

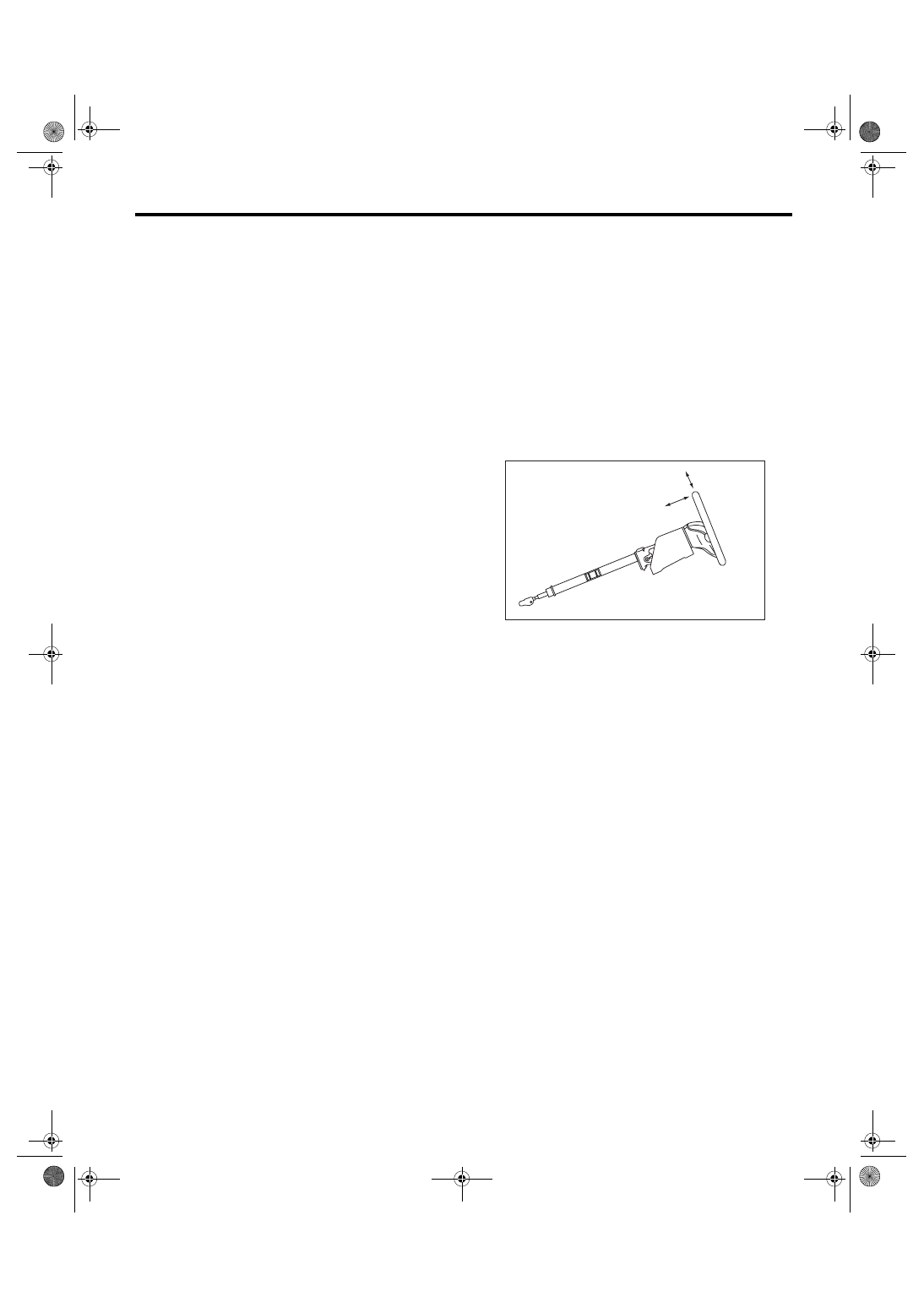

AB-14

AIRBAG SYSTEM

Inspection Locations After a Collision

3. Inspection Locations After a

Collision

A: REPLACEMENT

Replace the following parts when the airbag is de-
ployed.

1. FRONT COLLISION

1) Driver’s airbag module
2) Passenger’s airbag module
3) Driver’s seat belt (Pretensioner)
4) Passenger’s seat belt (Pretensioner)
5) Airbag control module
6) Front sub sensor
7) Roll connector
8) Instrument panel (for integrating with passen-
ger’s airbag module)

2. SIDE COLLISION

1) Airbag control module
2) Side airbag module (operating side seat back-
rest)
3) Side airbag sensor (operating side)
4) Curtain airbag module (operating side)
5) Curtain airbag sensor (operating side)

3. INSPECTION OF OTHER PARTS

Check for the following parts, and replace the dam-
aged parts with new parts.
1) Steering wheel and steering shaft
Check the steering shaft for mounting conditions
and deflection of front, rear, upward and downward
directions, and deflection of front and rear direction
when tilt lever released. (After a collision, absorb-
ing part of steering shaft may have been operated.)
2) Check the direct type connector of driver’s air-
bag module, pretensioner, etc. for damage, and
also check each harness for pinch and connector
damage. Replace the harness as a unit if damage
is found.
3) Check the installing condition and play of the
seat cushion, backrest, seat rail and headrest.

B: INSPECTION

If the vehicle is involved in a collision, even if it is a
slight collision, be sure to check the following sys-
tems.

1. DRIVER’S AIRBAG MODULE

1) Perform the inspection of following items, and
replace the damaged parts with new ones.
• Airbag module is cracked or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• The module surface is fouled with grease, oil,
water or cleaning solvent.

2) When installing a new driver’s airbag module,
check for the following, and replace the damaged
parts with new parts.
• It is difficult to install the airbag module due to the
condition of steering wheel.
• The clearance between the driver’s airbag mod-
ule and steering wheel is not constant.
• When steering wheel deformation in axial, up-
ward and downward directions exceed limits.

Specification:

Height deflection A

Less than 6 mm (0.24 in)

O.D. deflection L

Less than 7 mm (0.28 in)

2. PASSENGER’S AIRBAG MODULE

Perform the inspection of following items, and re-
place the damaged parts with new ones.
• Airbag module and instrument panel are cracked
or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• Mounting bracket is cracked or deformed.

3. SIDE AIRBAG MODULE

Perform the inspection of the following items, and
replace the damaged parts with new ones.
• Front seat, airbag module and mounting bracket
are damaged or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.

4. CURTAIN AIRBAG MODULE

Perform the inspection of the following items, and
replace the damaged parts with new ones.
• Airbag cover is scratched or broken.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• Mounting bracket and securing clip are cracked
or deformed.

AB-00028

L

A
