AB-7

AIRBAG SYSTEM

General Description

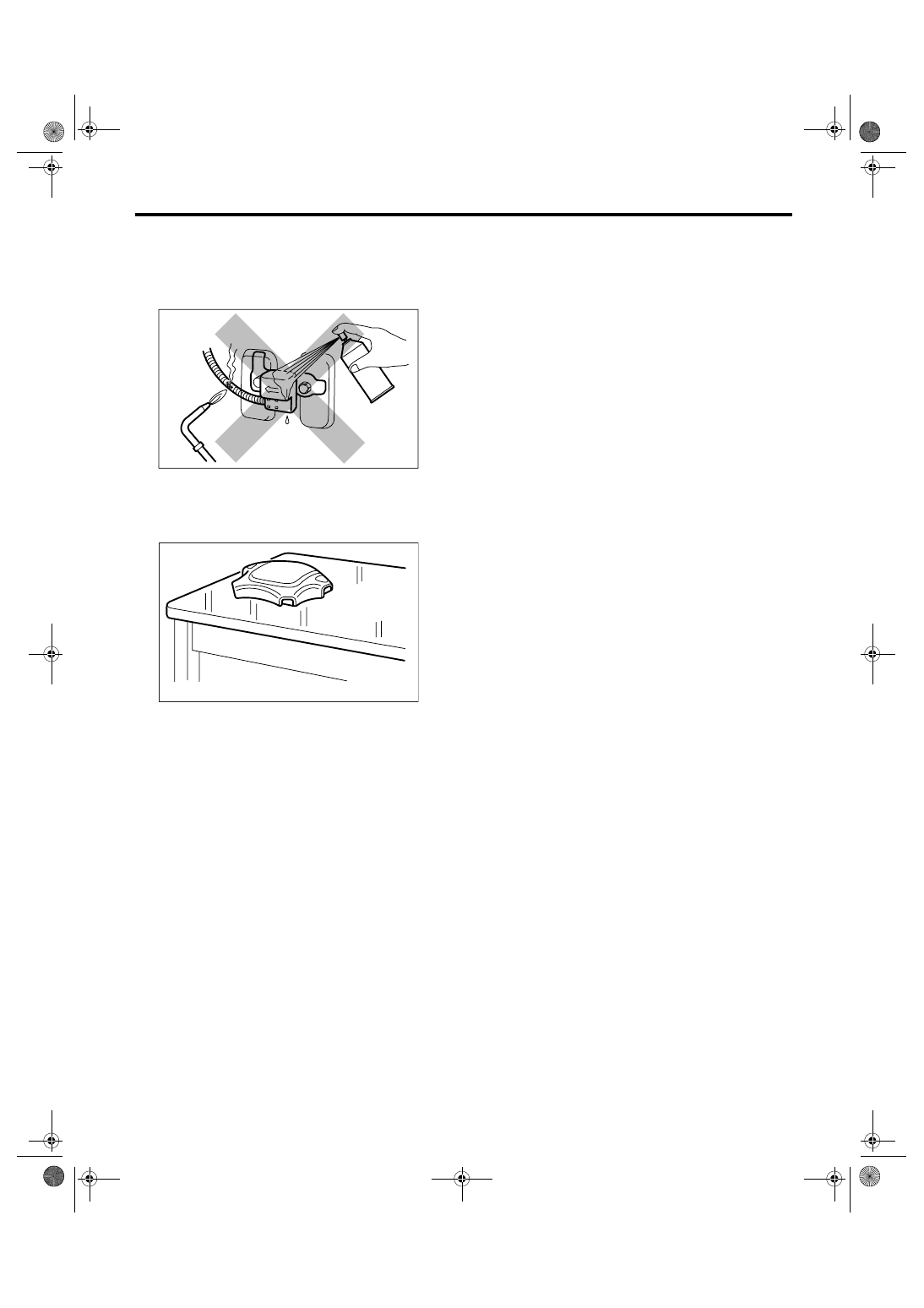

• When painting or performing sheet metal work
on the side of the vehicle, including the side sill,
center pillar and front and rear doors, remove the
side airbag sensors and wire harness of the airbag
system.

• After removal of each parts for airbag system,
keep them with the pad facing upward on a dry,
clean and flat surface without heat, light sources,
moisture and dust.

• When airbag control module, front sub sensor,
side airbag sensor and curtain airbag sensor are
removed, do not reuse the bolts and nuts of them.
Always use new bolts and nuts for them.

AB-00129

AB-00056

AB-8

AIRBAG SYSTEM

General Description

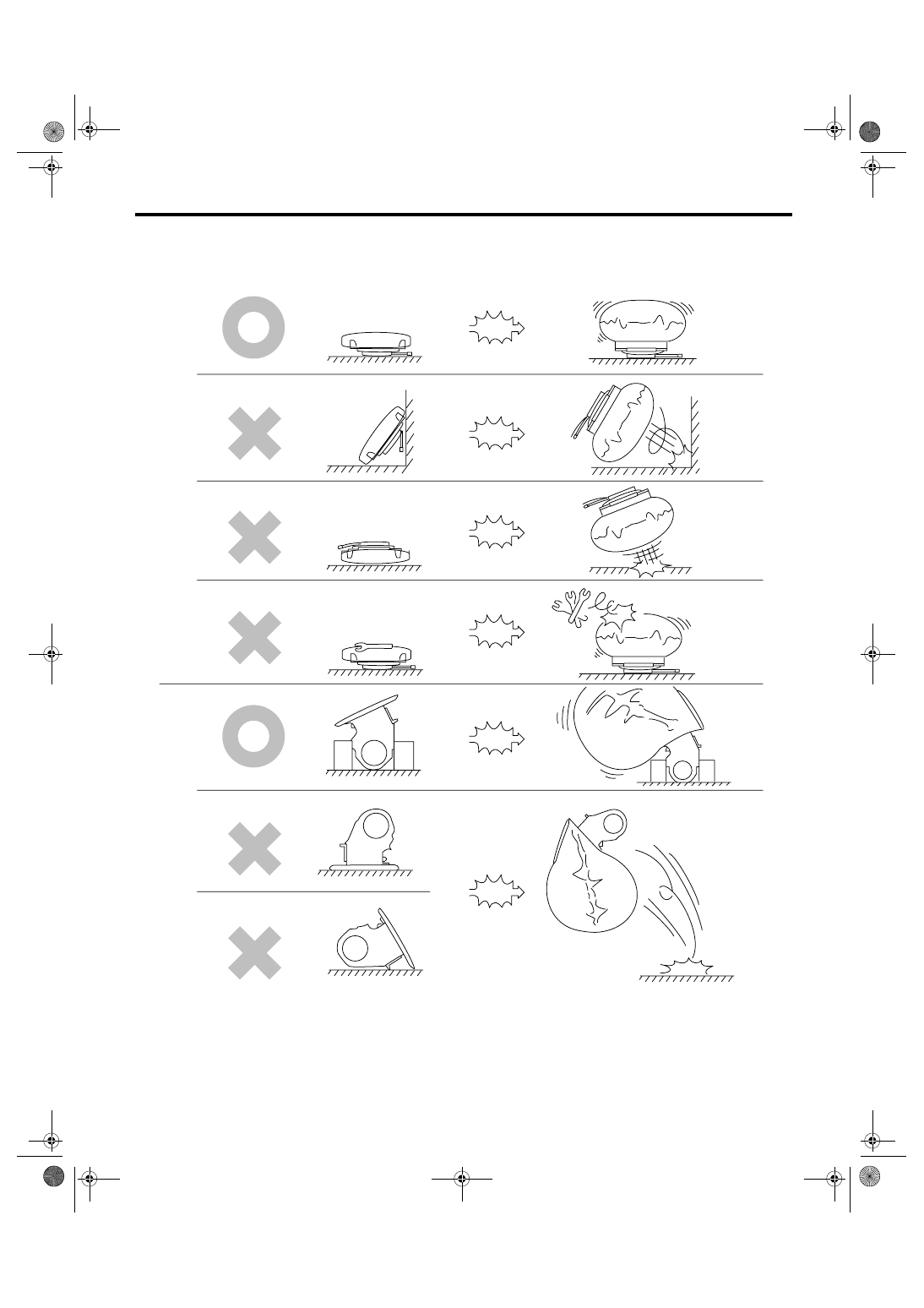

• When storing a removed airbag module, do not place any objects on it or pile them up. If the airbag inflates
for some reason when it is placed with its pad side facing downward or under any object, a serious accident
may result.

(1)

Driver’s airbag module

(2)

Passenger’s airbag module

AB-00130

(2)

(1)

AB-9

AIRBAG SYSTEM

General Description

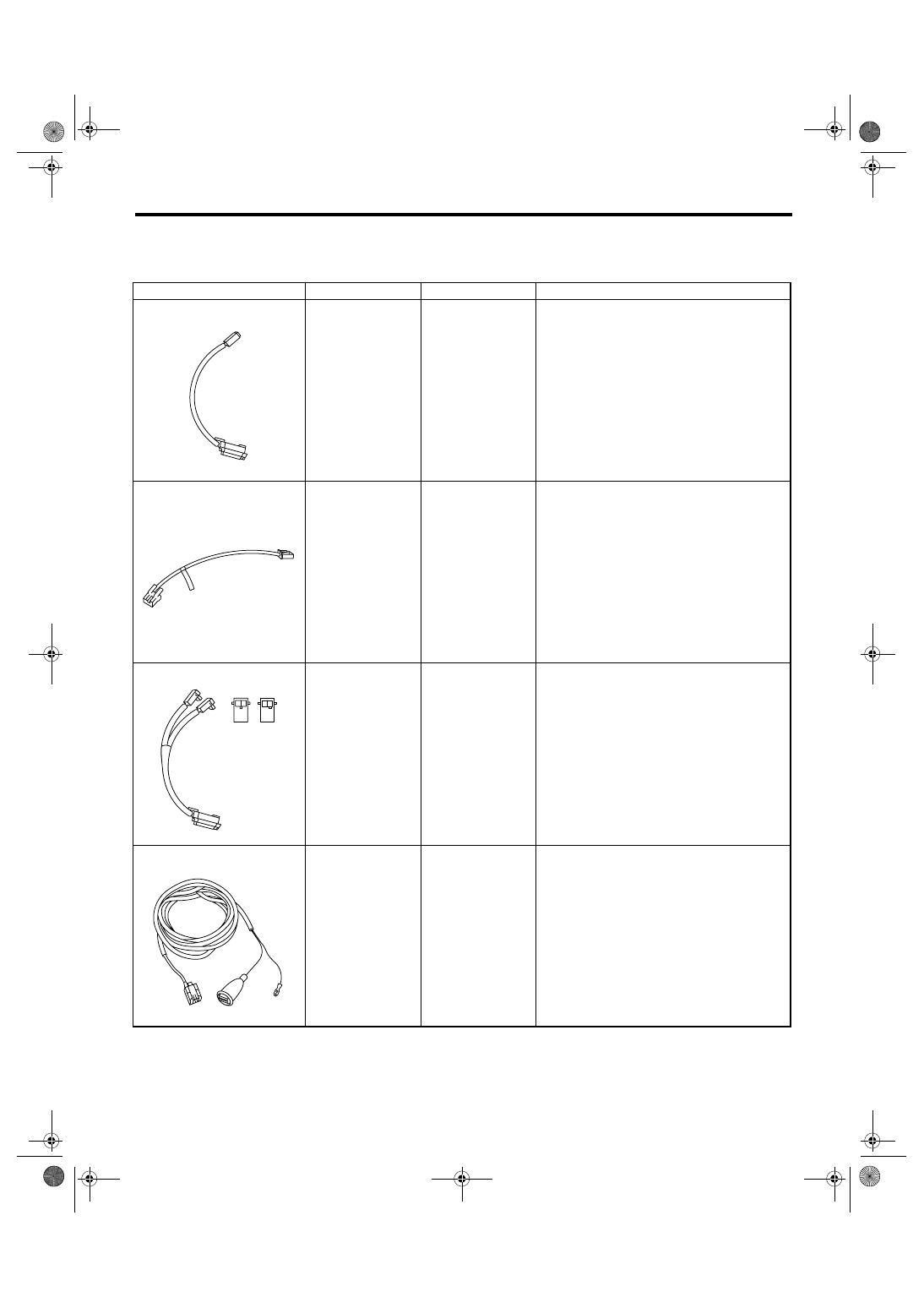

C: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

98299FC030

DEPLOYMENT
ADAPTER A

• Used for deploying side airbag module.
• Used for deploying curtain airbag module.
• Used with DEPLOYMENT TOOL
(98299PA030).

98299SA030

DEPLOYMENT
ADAPTER E

• Used for deploying driver’s airbag module.
• Used for deploying passenger’s airbag mod-
ule.
• Used with DEPLOYMENT TOOL
(98299PA030).

98299AG030

DEPLOYMENT
ADAPTER X

• Used for deploying driver’s airbag module.
• Used with DEPLOYMENT TOOL
(98299PA030).
• Can not reuse.

98299PA030

DEPLOYMENT
TOOL

• Used for deploying airbag module.
• Used with each deployment adapter.

ST98299FC030

ST98299SA030

ST98299AG030

ST98299PA030

S802.fm  9 ページ  ２００７年１２月３日　月曜日　午後１時４６分

AB-10

AIRBAG SYSTEM

General Description

2. GENERAL TOOL

TOOL NAME

REMARKS

TORX

®

 T30

Used for removing and installing driver’s airbag module.
