Subaru Legacy (2005 year). Manual - part 859

AC-5

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

General Description

B: COMPONENT

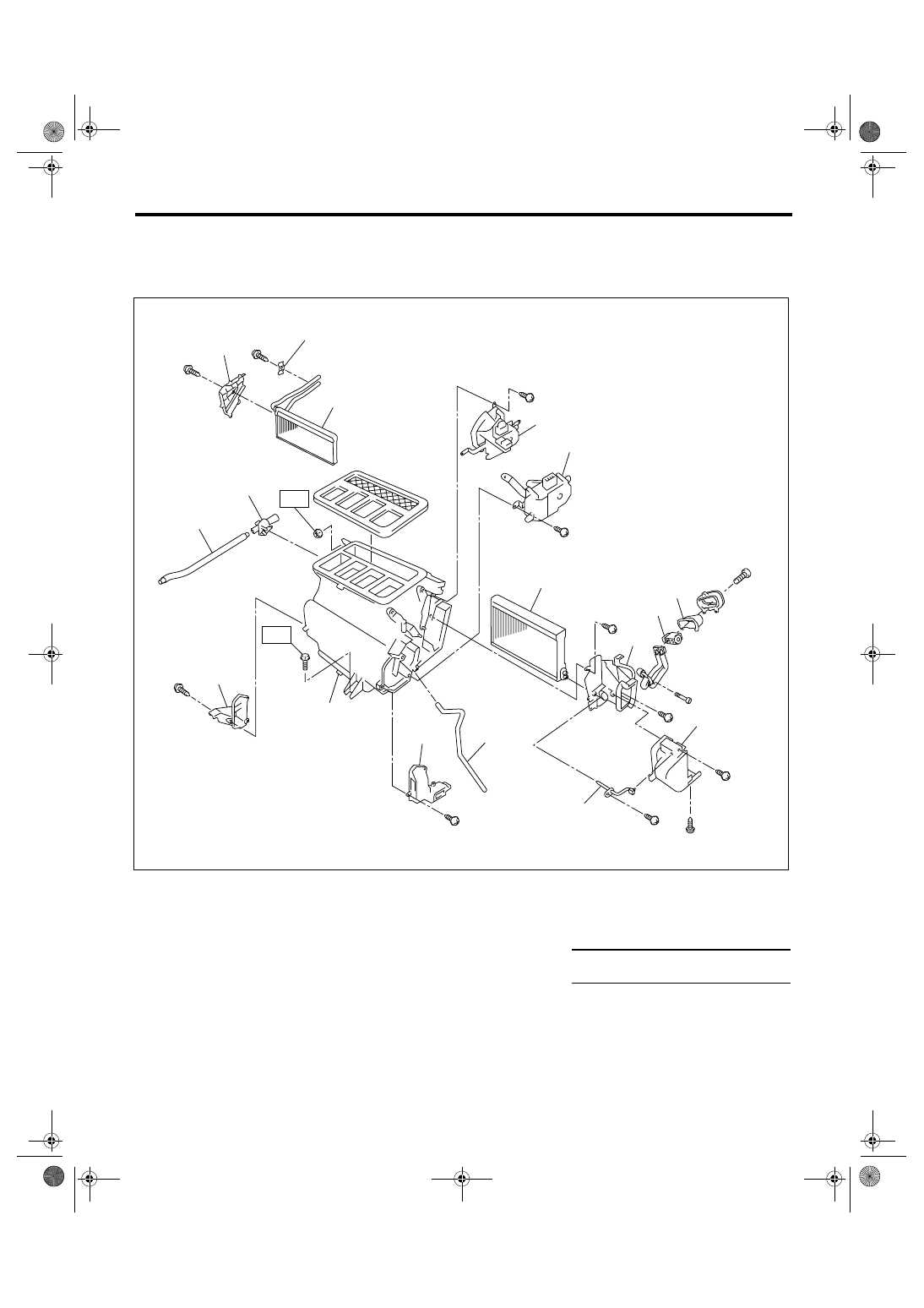

1. HEATER COOLING UNIT

• Auto A/C model

(1)

Foot duct (RH)

(8)

Mix actuator

(15)

Foot duct (LH)

(2)

Evaporator center

(9)

Mode actuator

(16)

Unit ASSY

(3)

Pipe cover

(10)

Heater pipe clamp

(17)

Drain hose

(4)

Evaporator cover

(11)

Heater core

(5)

Expansion valve

(12)

Heater core cover

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Packing

(13)

Aspirator

T: 7.5 (0.76, 5.5)

(7)

Evaporator

(14)

Aspirator hose

AC-00906

T

(16)

(13)

T

(17)

(15)

(10)

(9)

(11)

(12)

(14)

(8)

(7)

(4)

(5)

(3)

(2)

(1)

(6)

AC-6

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

General Description

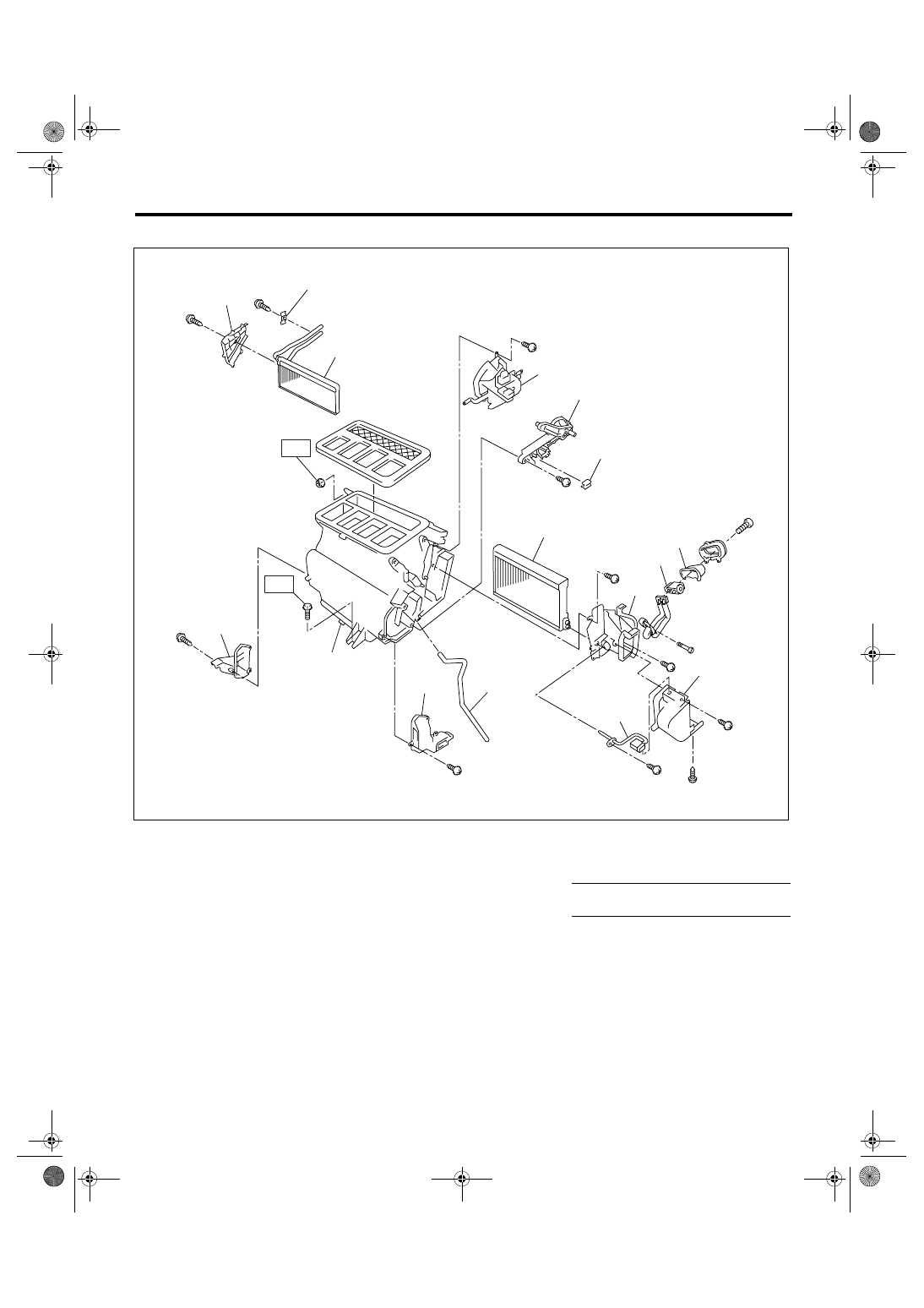

• Manual A/C model

(1)

Foot duct (RH)

(8)

Clip

(15)

Unit ASSY

(2)

Thermo amplifier

(9)

Air mix door linkage

(16)

Drain hose

(3)

Pipe cover

(10)

Mode actuator

(4)

Evaporator cover

(11)

Heater pipe clamp

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(5)

Expansion valve

(12)

Heater core

T: 7.5 (0.76, 5.5)

(6)

Packing

(13)

Heater core cover

(7)

Evaporator

(14)

Foot duct (LH)

AC-00907

(4)

(5)

(6)

(11)

(12)

(13)

T

(16)

T

(15)

(10)

(9)

(14)

(8)

(7)

(3)

(2)

(1)

AC-7

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

General Description

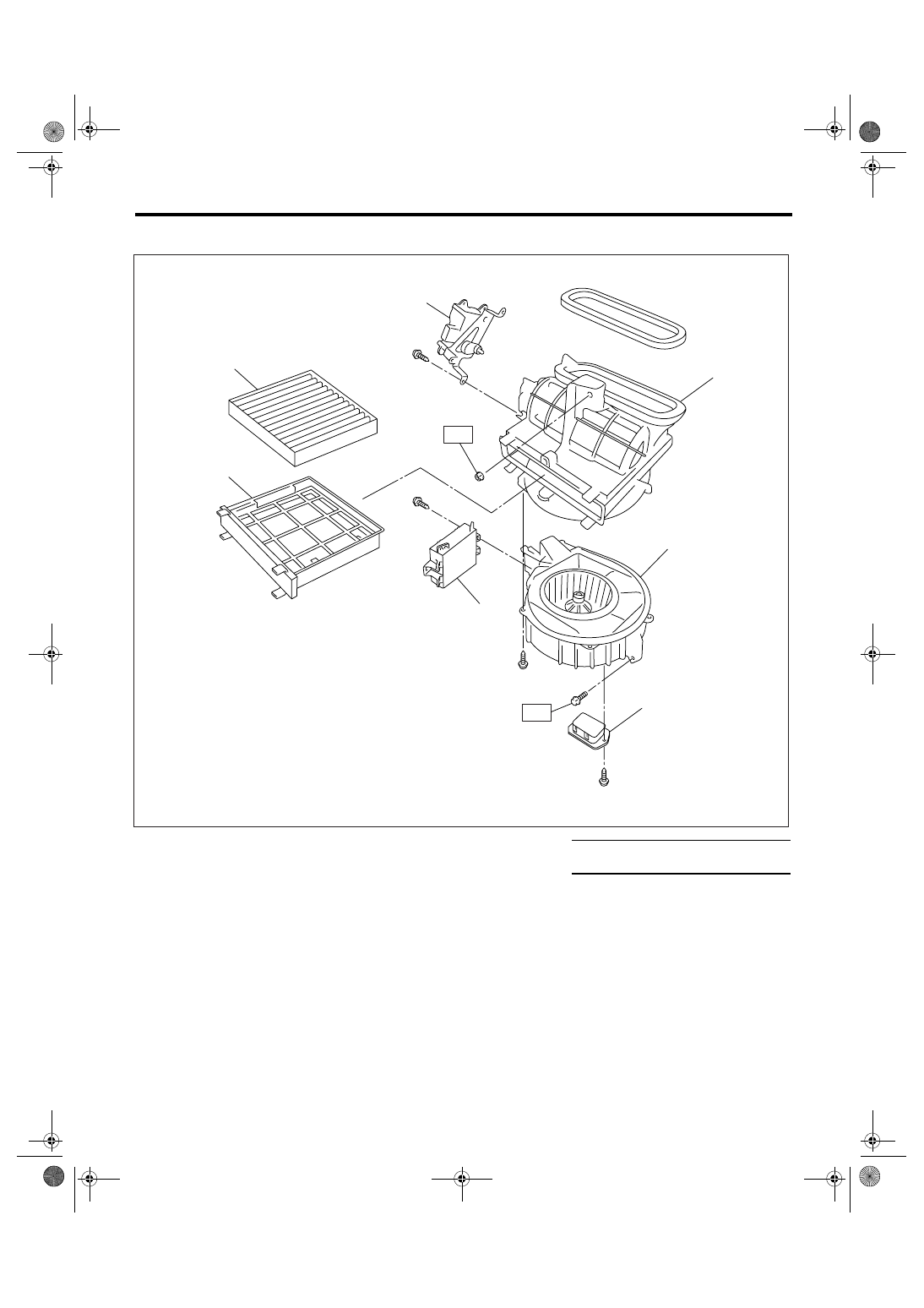

2. BLOWER MOTOR UNIT

(1)

Upper case

(6)

Control unit (Auto A/C model)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Intake door actuator

(7)

Power transistor (Auto A/C model)

T: 7.5 (0.76, 5.5)

(3)

Filter (Auto A/C model)

Blower resistor (Manual A/C
model)

(4)

Filter cover

(5)

Blower motor ASSY

T

T

(1)

(2)

(7)

(5)

(3)

(4)

(6)

AC-00908

AC-8

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

General Description

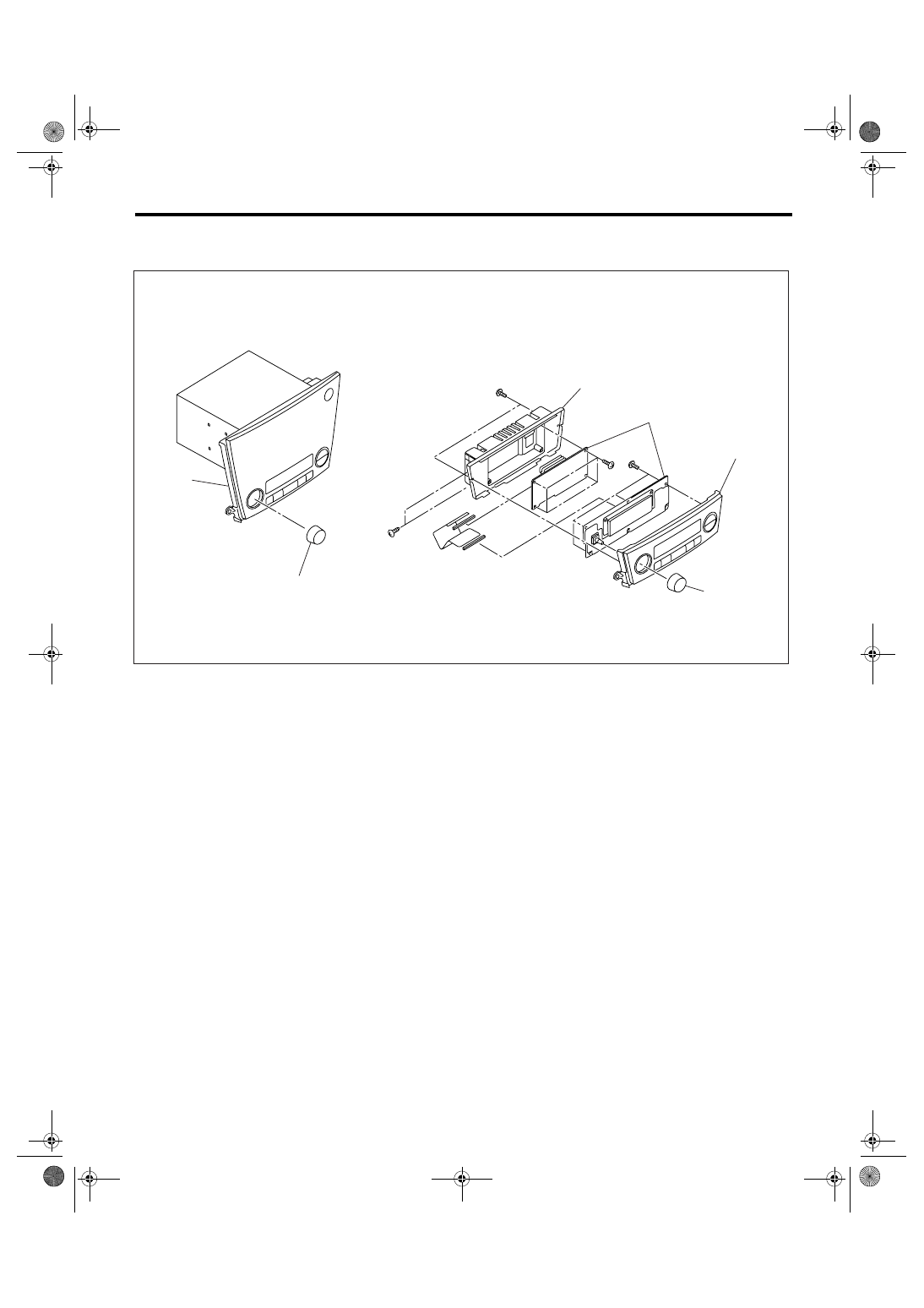

3. CONTROL PANEL

• Auto A/C model

(A)

For integrated audio

(B)

For Mclntosh audio

(1)

Temperature control dial

(3)

Board

(4)

Heater control base

(2)

Control panel assembly

AC-00909

(1)

(2)

(1)

(2)

(3)

(4)

(A)

(B)
