VDC(diag)-93

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK STEERING WHEEL.
1) Drive the vehicle on a flat road.
2) Park the vehicle straight.
3) Check the steering wheel for deviation from
center.

Is the deviation from the center
of steering wheel less than 5

°?

Go to step 2.

Perform the cen-
tering adjustment
of steering wheel.

2

CHECK VDCCM&H/U.
1) Turn the ignition switch to OFF.
2) Connect all the connectors.
3) Perform the clear memory mode.
4) Perform the inspection mode.
5) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Go to step 3.

3

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC. <Ref. to
VDC(diag)-38, List
of Diagnostic Trou-
ble Code (DTC).>

Temporary poor
contact occurs.

VDC(diag)-94

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AT:DTC C0071 EXCESSIVE VARIATION AMOUNT OF STEERING ANGLE SEN-

SOR OUTPUT

DTC DETECTING CONDITION:
Defective steering angle sensor
TROUBLE SYMPTOM:
VDC does not operate.

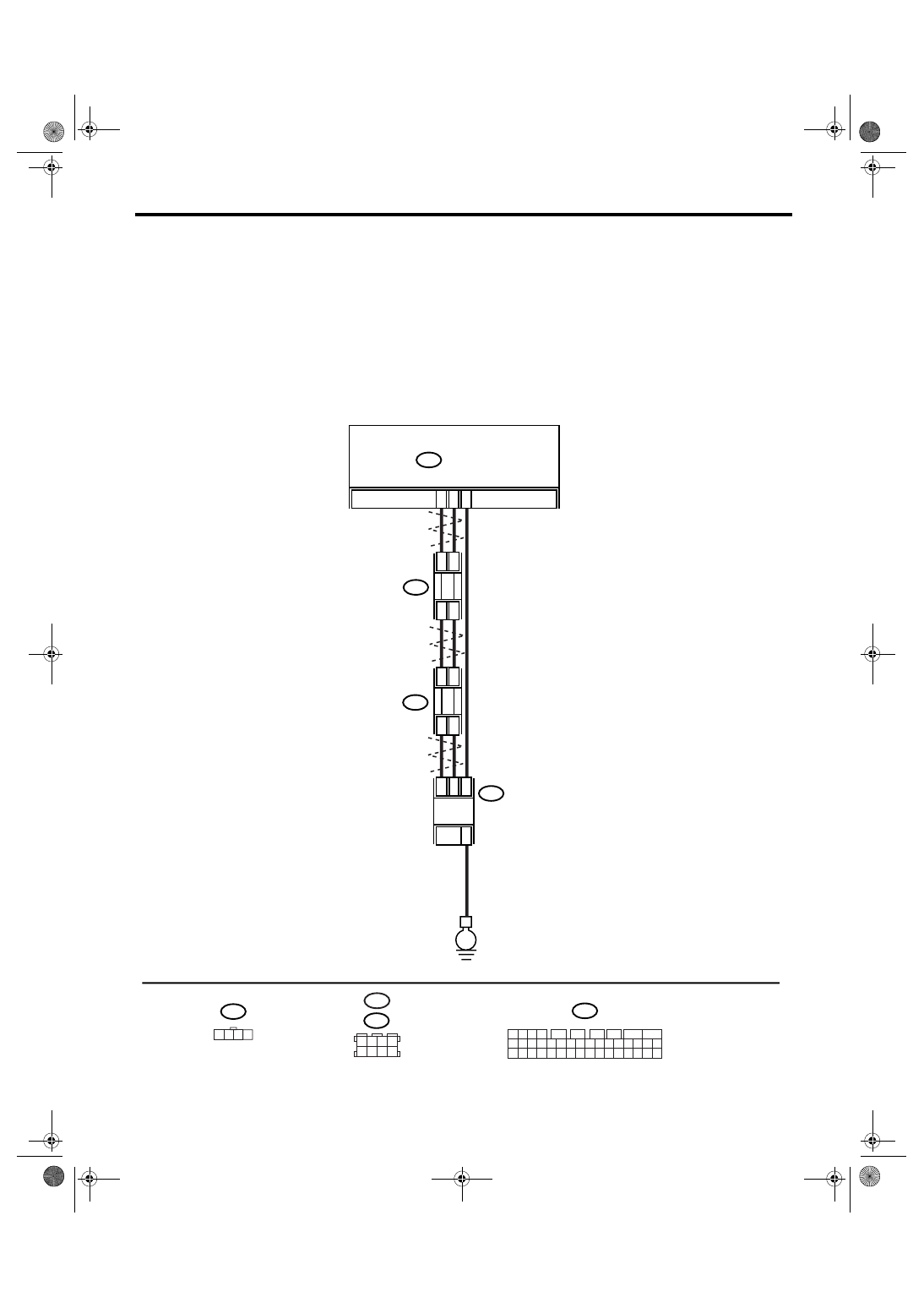

WIRING DIAGRAM:
• LHD model

VDC00327

30

29

13

B231

B234

E

2

4

1

3

3

1

4

2

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR

B234

3 4

5 6

1 2

7 8

B352

3

1

4

2

B352

VDC(diag)-95

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

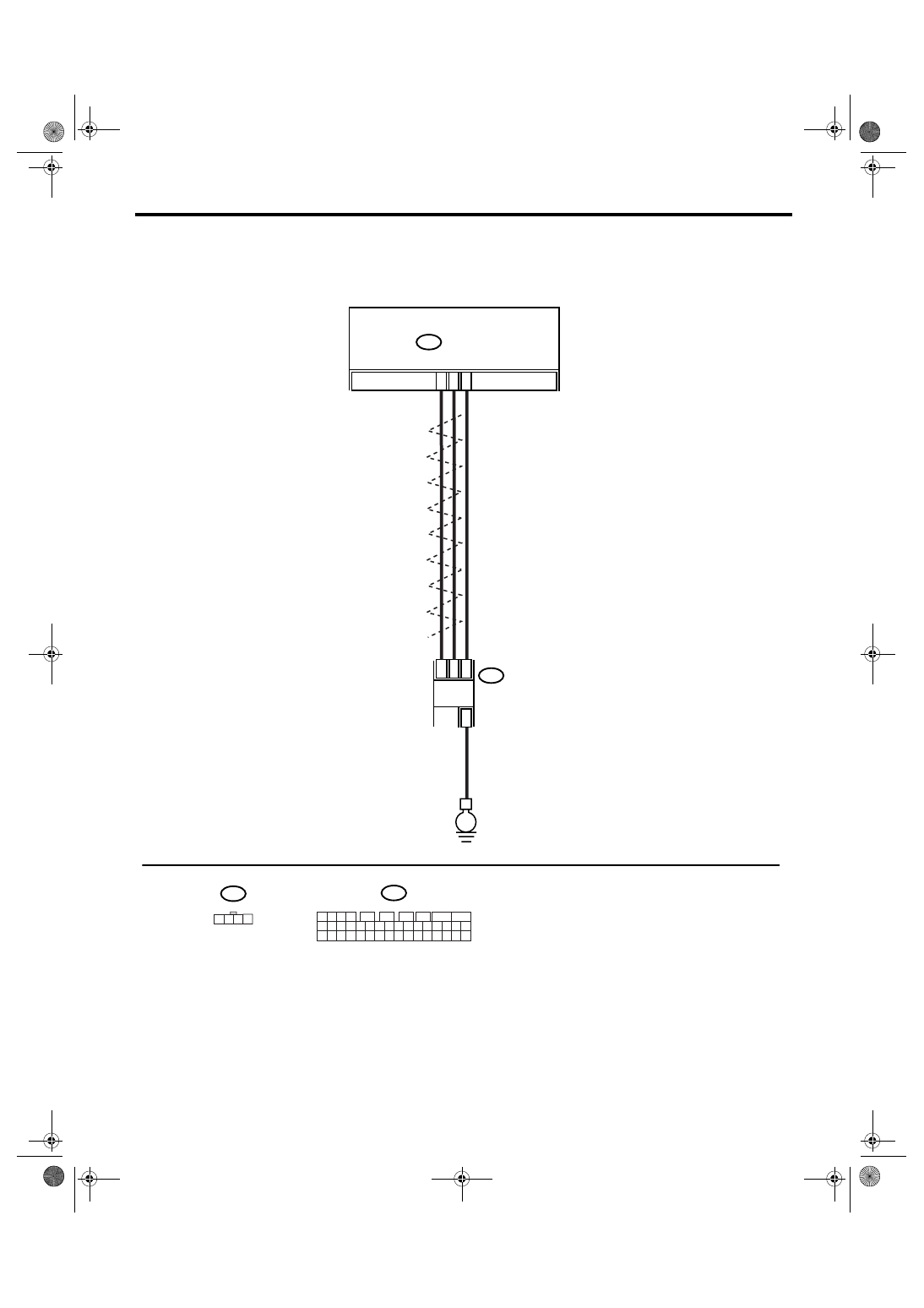

• RHD model

VDC00247

30

29

13

B231

E

2

4

1

3

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR

VDC(diag)-96

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK VDCCM&H/U.
1) Turn the ignition switch to OFF.
2) Connect all the connectors.
3) Perform the clear memory mode.
4) Perform the inspection mode.
5) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Go to step 2.

2

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC. <Ref. to
VDC(diag)-38, List
of Diagnostic Trou-
ble Code (DTC).>

Temporary poor
contact occurs.
