VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK STOP LIGHT SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the stop light switch connector.
3) Measure the resistance of stop light switch
terminals.

Is the resistance more than 1
M

Ω when switch is OFF (when

pedal is not depressed)?

Go to step 2.

Replace the stop
light switch.

2

INTERVIEWING CUSTOMERS.
Make sure that the operation was performed in
which accelerator pedal and brake pedal were
depressed simultaneously (with depressing
brake pedal with left foot).

Were the acceleration pedal
and brake pedal depressed
simultaneously during driving?

System is in good
order. (DTC may
be recorded while
brake is applied
during driving.)

Go to step 3.

3

CHECK VDCCM&H/U.
1) Connect all the connectors.
2) Perform the clear memory mode.
3) Perform the inspection mode.
4) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Go to step 4.

4

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC. <Ref. to
VDC(diag)-38, List
of Diagnostic Trou-
ble Code (DTC).>

Temporary poor
contact occurs.

VDC(diag)-90

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AQ:DTC C0057 ECM COMMUNICATION

DTC DETECTING CONDITION:
No CAN signal from ECM.
TROUBLE SYMPTOM:
• ABS does not operate.
• VDC does not operate.

AR:DTC C0057 ECM CONTROL

DTC DETECTING CONDITION:
Cooperation control prohibition of ECM
TROUBLE SYMPTOM:
• ABS does not operate.
• VDC does not operate.

NOTE:
Warning light goes off if the cooperation control of ECM returns.

Step

Check

Yes

No

1

CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. <Ref. to
LAN(diag)-24, OPERATION, Read Diagnostic
Trouble Code (DTC).>

Is there any fault in LAN sys-
tem?

Perform the diag-
nosis according to
DTC for LAN sys-
tem.

Go to step 2.

2

CHECK POOR CONTACT IN CONNECTORS. Is there poor contact in ECM

connector?

Repair the con-
nector.

Go to step 3.

3

CHECK ECM.

Is ECM normal?

Go to step 4.

Replace the ECM.

4

CHECK VDCCM&H/U.
1) Connect all the connectors.
2) Perform the clear memory mode.
3) Perform the inspection mode.
4) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Go to step 5.

5

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC.

It results from a
temporary noise
interference.

Step

Check

Yes

No

1

CHECK WARNING LIGHT.
Drive the vehicle at speed of 10 km/h or more
for one minute or more, check the VDC warn-
ing light illuminates.

Does the VDC warning light
illuminate?

Go to step 2.

VDC is normal.
Perform the clear
memory mode.

NOTE:
DTC may be re-
corded when
cranking during
driving.

2

CHECK POOR CONTACT IN CONNECTORS. Is there poor contact in ECM

connector?

Repair the con-
nector.

Go to step 3.

3

CHECK ECM.

Is ECM normal?

Go to step 4.

Replace the ECM.

4

CHECK VDCCM&H/U.
1) Connect all the connectors.
2) Perform the clear memory mode.
3) Perform the inspection mode.
4) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Go to step 5.

5

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC.

It results from a
temporary noise
interference.

VDC(diag)-91

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AS:DTC C0071 EXCESSIVE STEERING ANGLE SENSOR OUTPUT OFFSET

DTC DETECTING CONDITION:
Defective steering angle sensor
TROUBLE SYMPTOM:
VDC does not operate.
WIRING DIAGRAM:

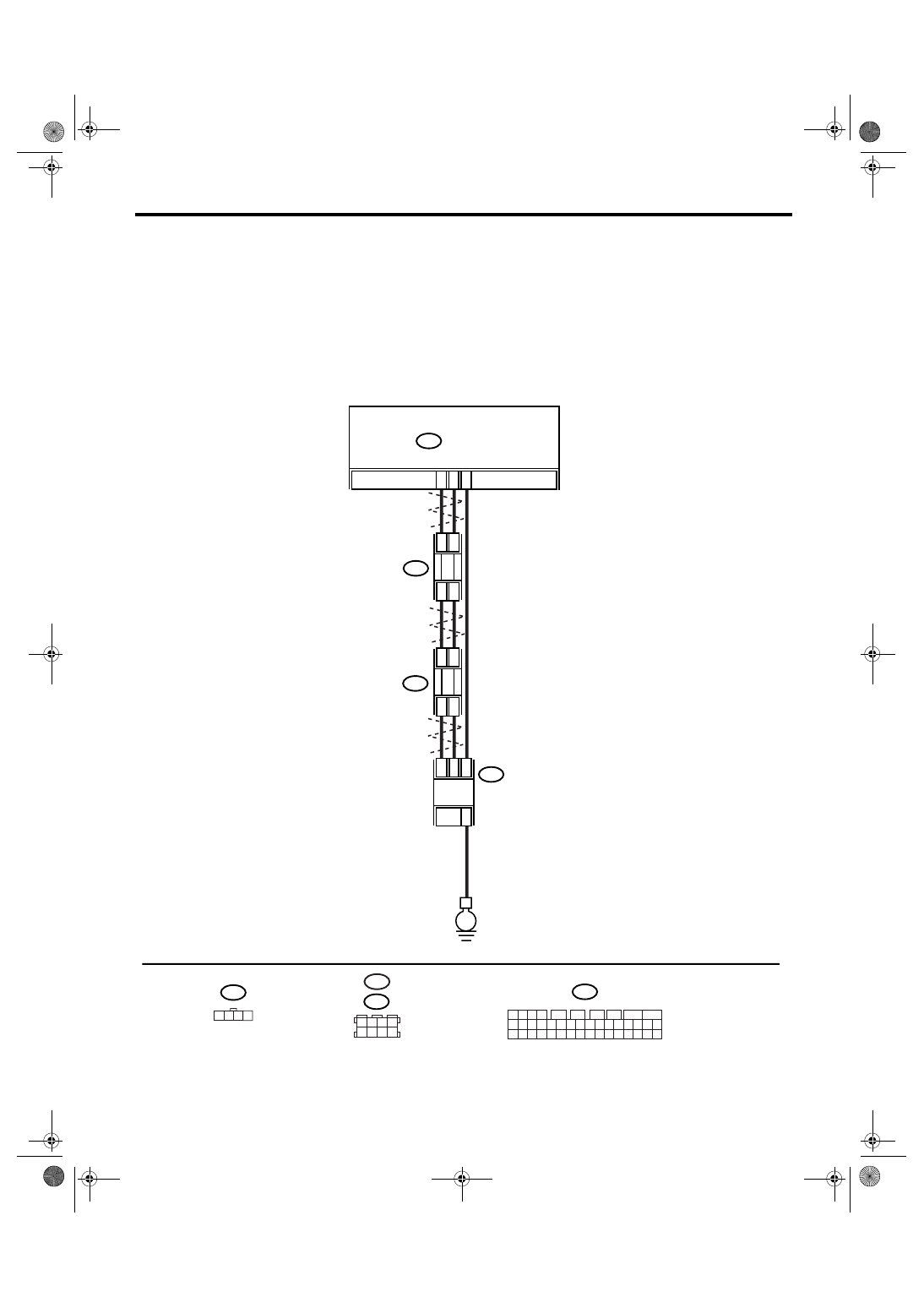

• LHD model

VDC00327

30

29

13

B231

B234

E

2

4

1

3

3

1

4

2

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR

B234

3 4

5 6

1 2

7 8

B352

3

1

4

2

B352

VDC(diag)-92

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

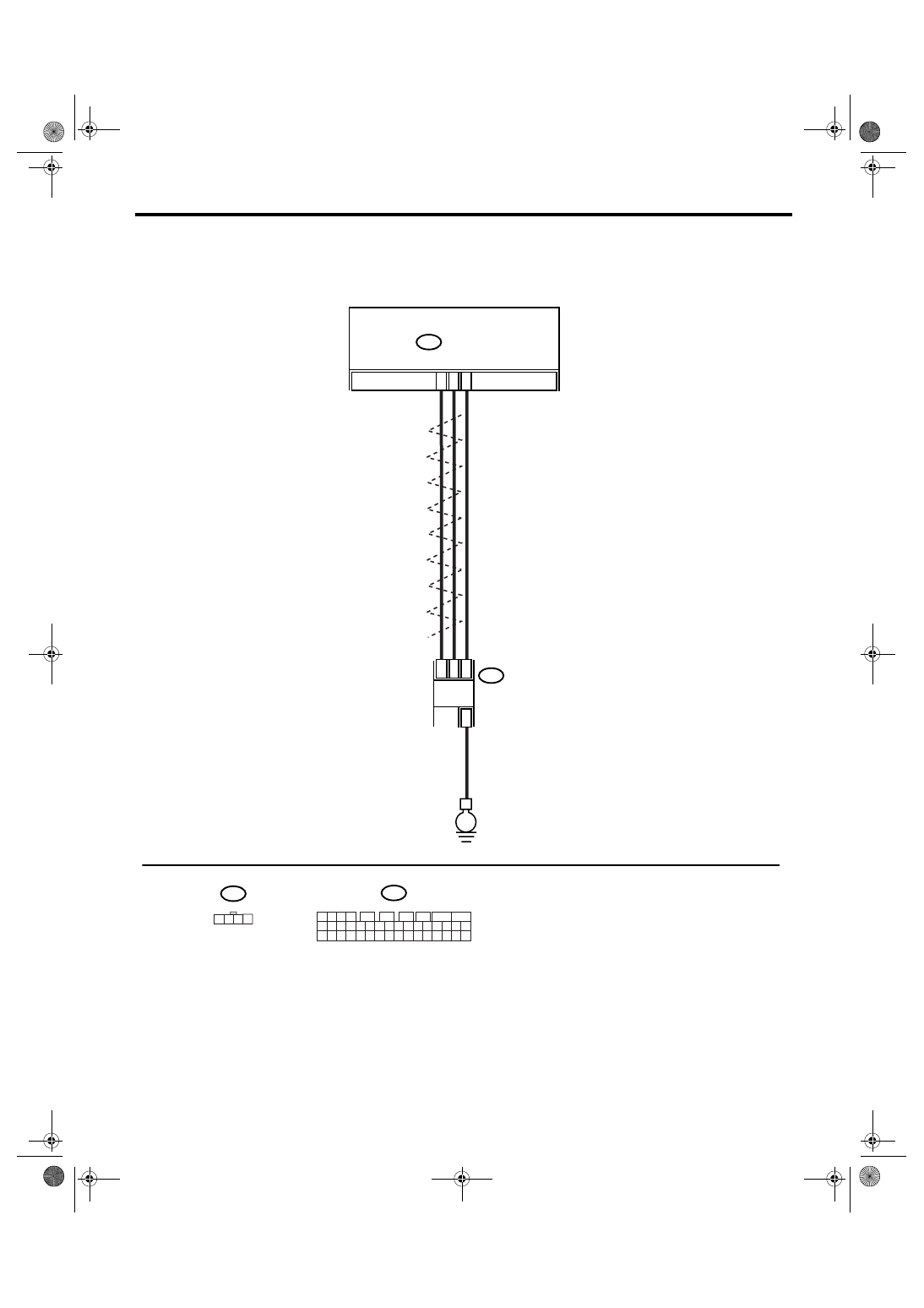

• RHD model

VDC00247

30

29

13

B231

E

2

4

1

3

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR
