VDC(diag)-69

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AE:DTC C0045 AT CONTROL MODULE MALFUNCTION

DTC DETECTING CONDITION:
Defective TCM
TROUBLE SYMPTOM:
• ABS does not operate.
• VDC does not operate.

Step

Check

Yes

No

1

CHECK AT SYSTEM.
1) Start the engine.
2) Check the DTC in AT system.

Is DTC of AT system dis-
played?

Repair the AT sys-
tem.

Go to step 2.

2

CHECK VDCCM&H/U.
1) Connect all the connectors.
2) Perform the clear memory mode.
3) Perform the inspection mode.
4) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.

Go to step 3.

3

CHECK OTHER DTC DETECTION.

Is any other DTC displayed?

Perform the diag-
nosis according to
DTC.

It results from a
temporary noise
interference.

VDC(diag)-70

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AF:DTC C0047 IMPROPER CAN COMMUNICATION

DTC DETECTING CONDITION:
CAN communication line circuit is open or shorted.
TROUBLE SYMPTOM:
• ABS does not operate.
• VDC does not operate.

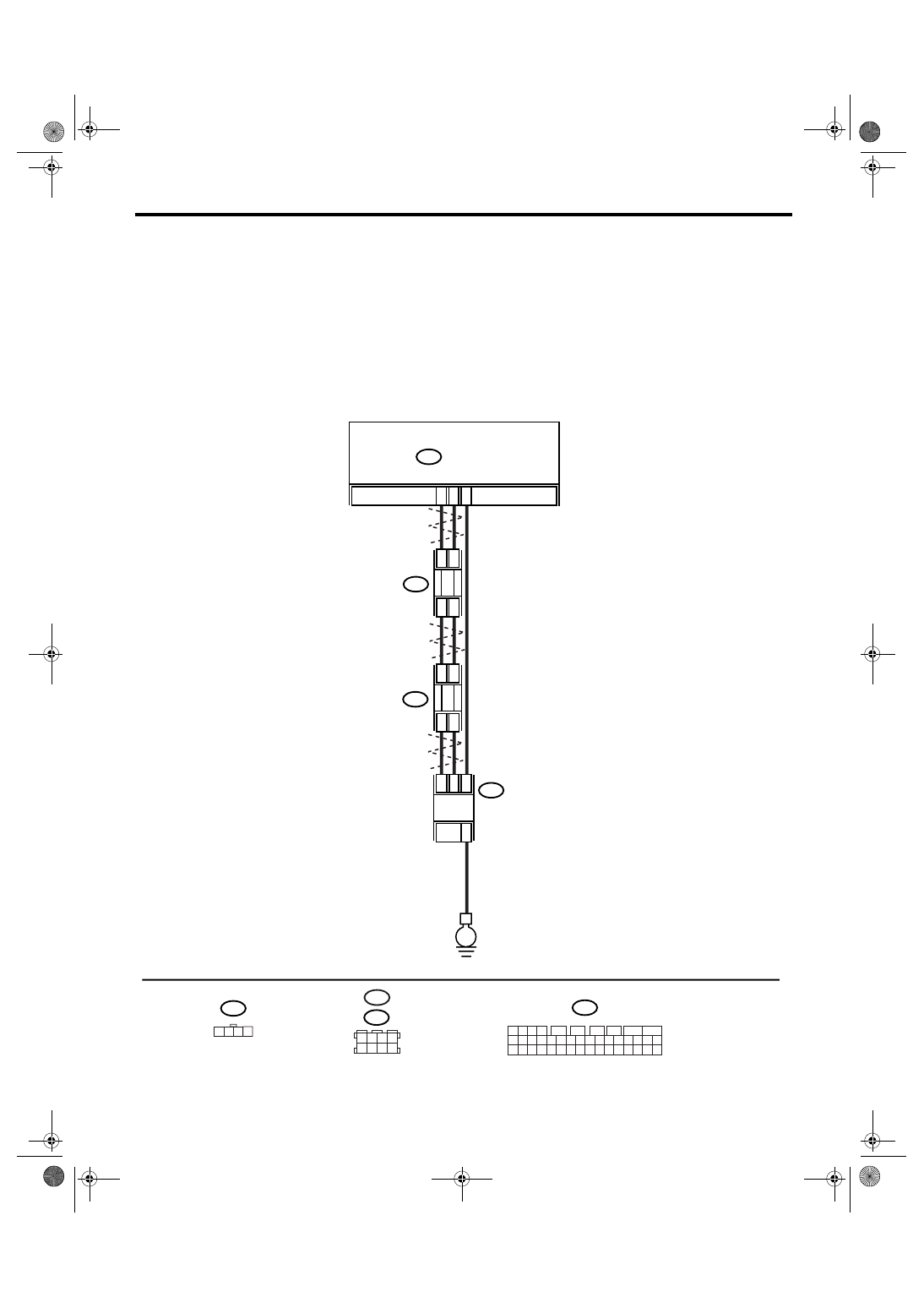

WIRING DIAGRAM:
• LHD model

VDC00327

30

29

13

B231

B234

E

2

4

1

3

3

1

4

2

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR

B234

3 4

5 6

1 2

7 8

B352

3

1

4

2

B352

VDC(diag)-71

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

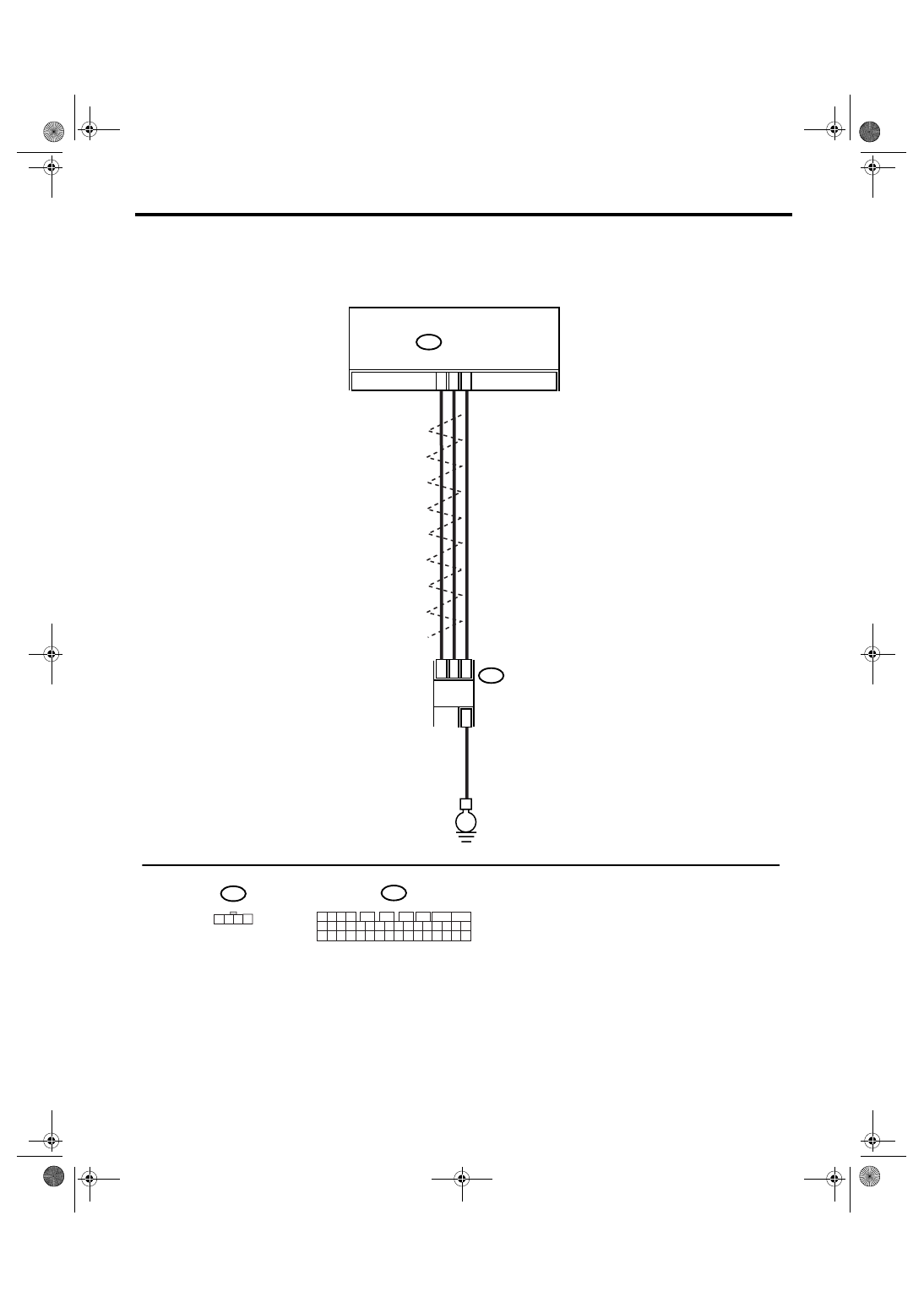

• RHD model

VDC00247

30

29

13

B231

E

2

4

1

3

B310

B310

VDCCM & H/U

1 2 3 4

11 12 13 14
27 28 29 30

15 16 17 18
31 32 33 34

19 20 21 22
35 36 37 38

23 24 25 26
39 40 41 42

5

6

7

8

9

10

1 2 3 4

B231

TWISTED WIRE

STEERING
ANGLE SENSOR

VDC(diag)-72

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. <Ref. to
LAN(diag)-24, OPERATION, Read Diagnostic
Trouble Code (DTC).>

Is there any fault in LAN sys-
tem?

Perform the diag-
nosis according to
DTC for LAN sys-
tem.

Go to step 2.

2

CHECK POOR CONTACT IN CONNECTORS. Is there poor contact in

VDCCM&H/U connector?

Repair the con-
nector.

Go to step 3.

3

CHECK VDCCM&H/U.
1) Connect all the connectors.
2) Perform the clear memory mode.
3) Perform the inspection mode.
4) Read the DTC.

Is the same DTC displayed?

Replace the
VDCCM&H/U.
<Ref. to VDC-7,
VDC Control Mod-
ule and Hydraulic
Control Unit
(VDCCM&H/U).>

Temporary poor
contact occurs.
