DS-7

DRIVE SHAFT SYSTEM

General Description

C: CAUTION

• Wear work clothing, including a cap, protective
goggles, and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.

• Use SUBARU genuine grease etc. or the equiv-
alent. Do not mix grease, etc. with that of another
grade or from other manufacturers.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Apply grease onto sliding or revolution surfaces
before installation.
• Before installing snap rings, apply sufficient
amount of grease to avoid damage and deforma-
tion.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or shop cloth between the part and the vise.

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

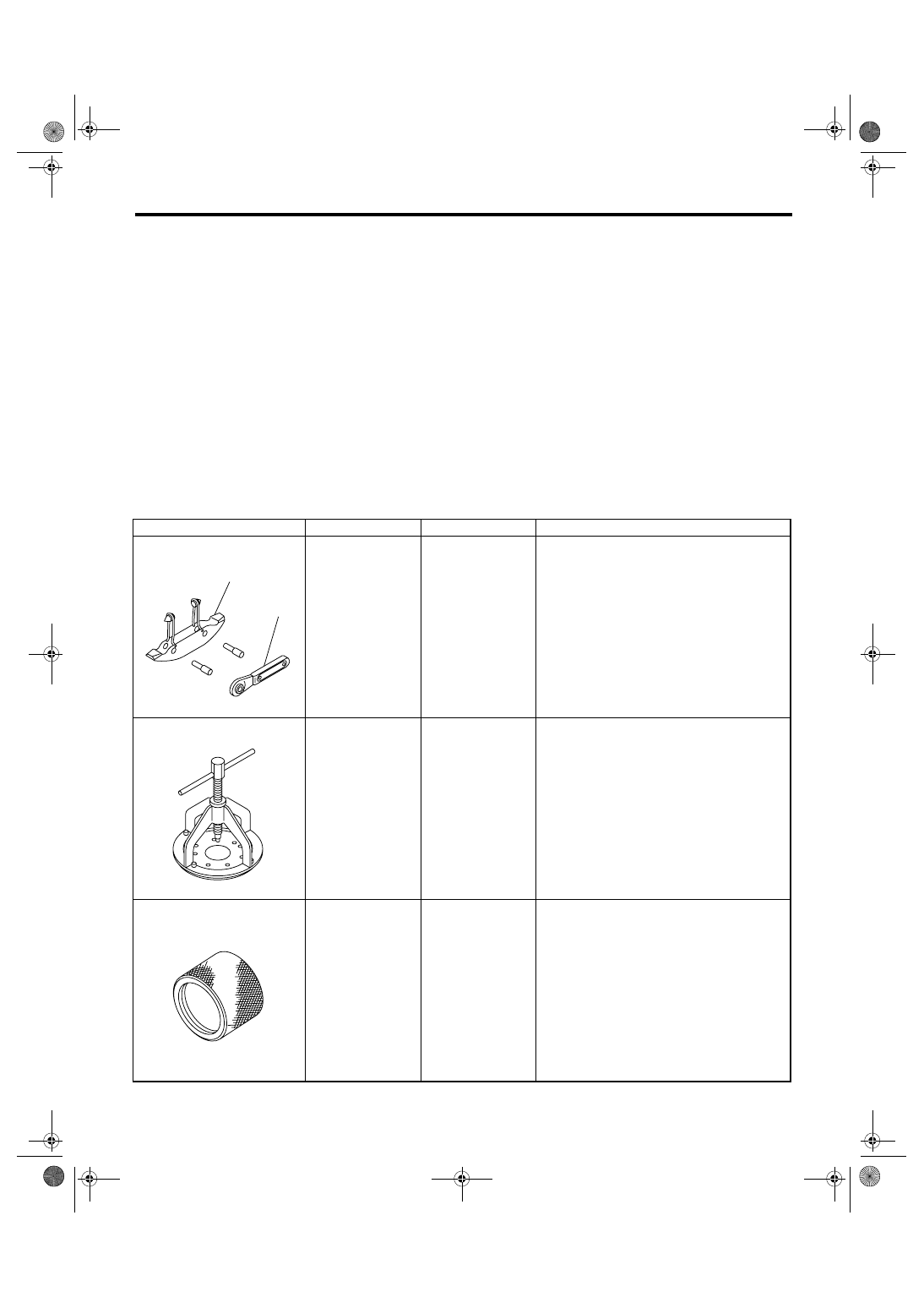

925091000

BAND TIGHTENING
TOOL

Used for tightening boot band.
(A) Jig for band
(B) Ratchet wrench

926470000

AXLE SHAFT
PULLER

Used for removing axle shaft.

18675AA000

DIFFERENTIAL
SIDE OIL SEAL
INSTALLER

Used for installing differential side retainer oil
seal.

ST-925091000

(A)

(B)

ST-926470000

ST18675AA000

DS-8

DRIVE SHAFT SYSTEM

General Description

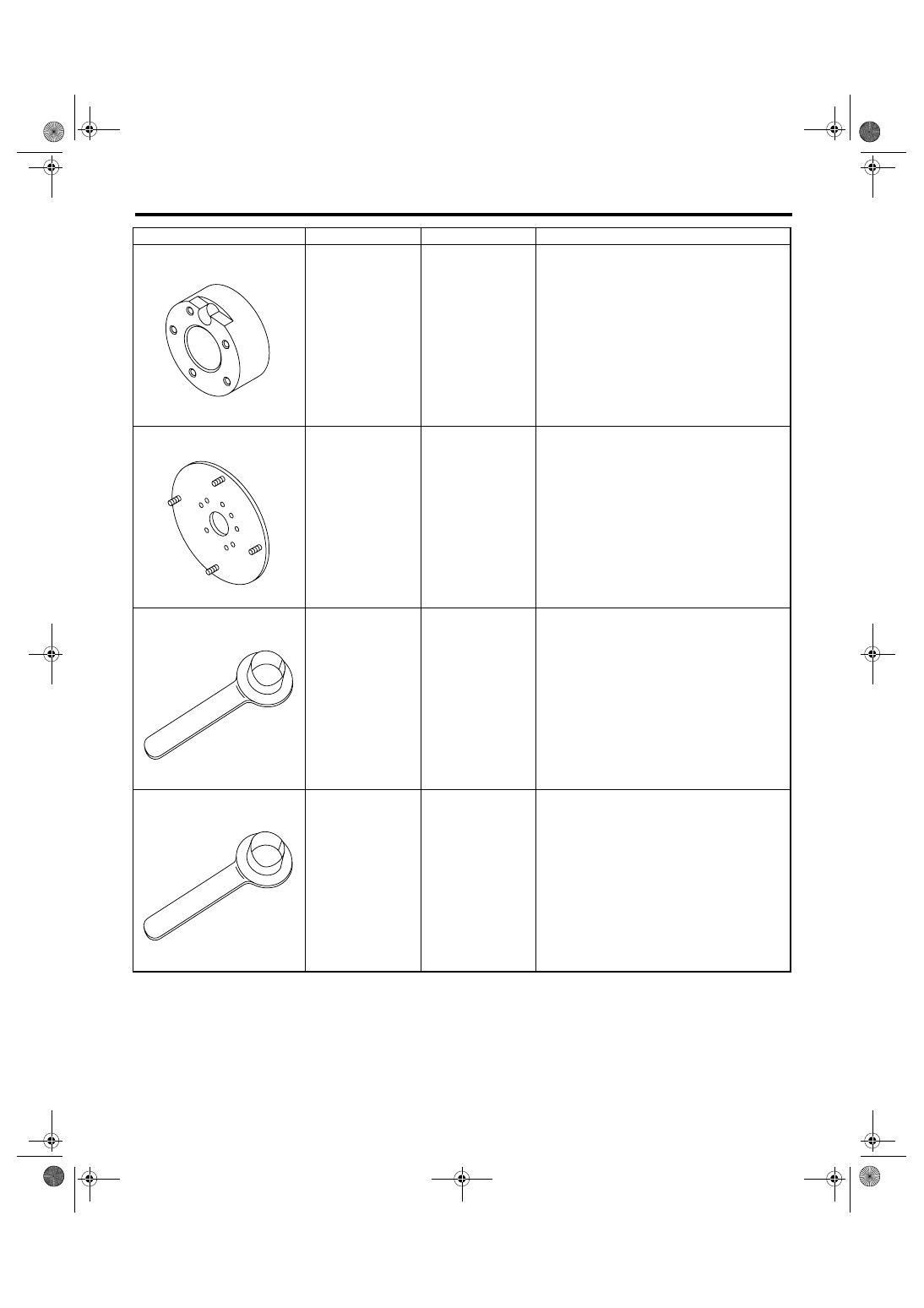

927080000

HUB STAND

Used for assembling hub bolt in hub.

927140000

AXLE SHAFT
PULLER PLATE

Same as plate 2 included in AXLE SHAFT
PULLER (926470000).

28099PA090

OIL SEAL PROTEC-
TOR

• Used for installing rear drive shaft into rear dif-
ferential.
• For protecting oil seal.

28399SA010

OIL SEAL PROTEC-
TOR

• Used for installing front drive shaft into front
differential.
• For protecting oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-927080000

ST-927140000

ST28099PA090

ST28399SA010

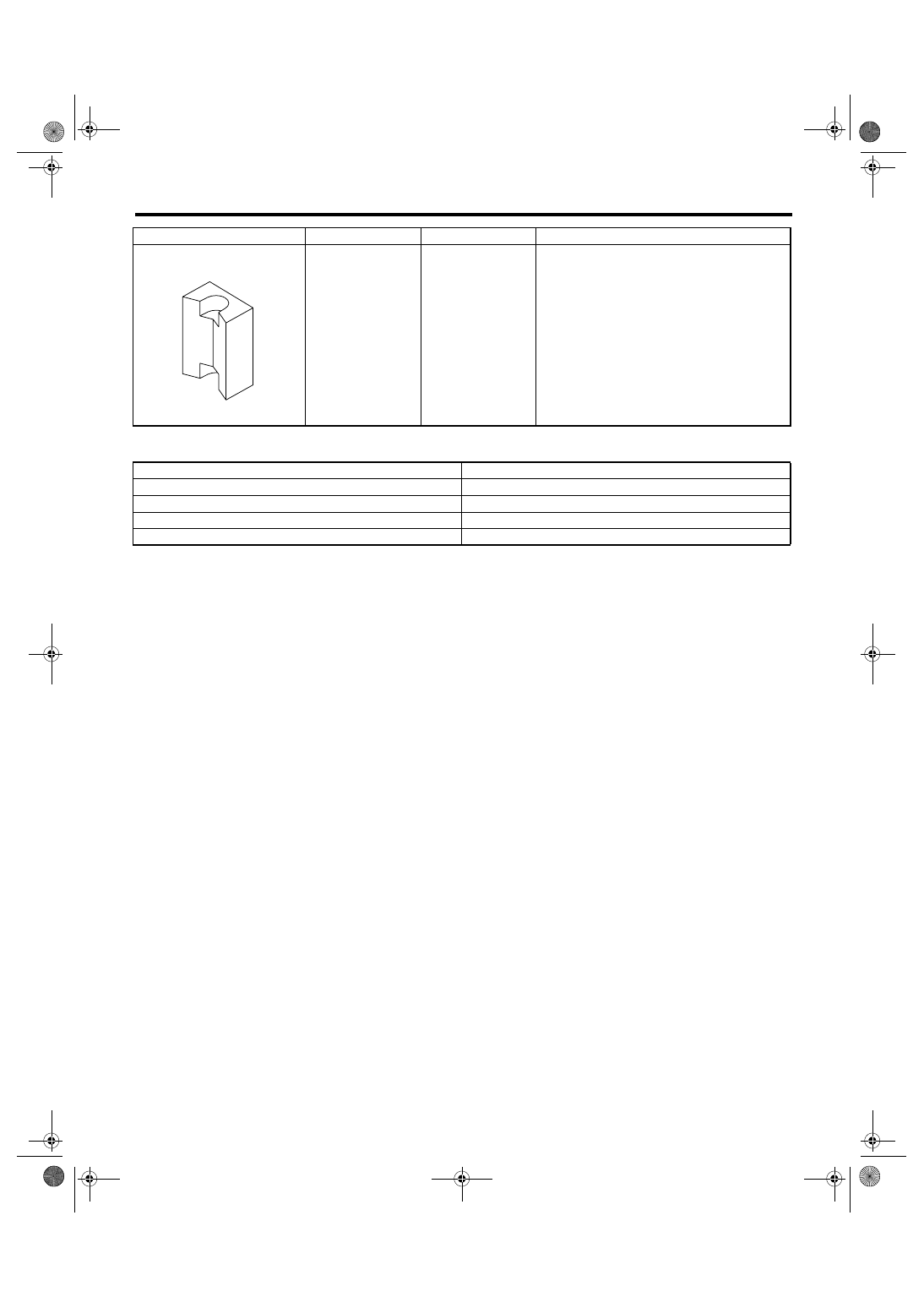

DS-9

DRIVE SHAFT SYSTEM

General Description

2. GENERAL TOOL

28399AG000

(Newly adopted tool)

HUB STAND

Used for extracting hub bolt.

DESCRIPTION

REMARKS

Puller

Used for removing ball joint from knuckle arm.

Dial gauge

Used for inspecting propeller shaft run-out.

Extension cap

Used for preventing leak of gear oil or ATF.

Bar

Used for extracting drive shaft.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST28399AG000

DS-10

DRIVE SHAFT SYSTEM

Propeller Shaft

2. Propeller Shaft

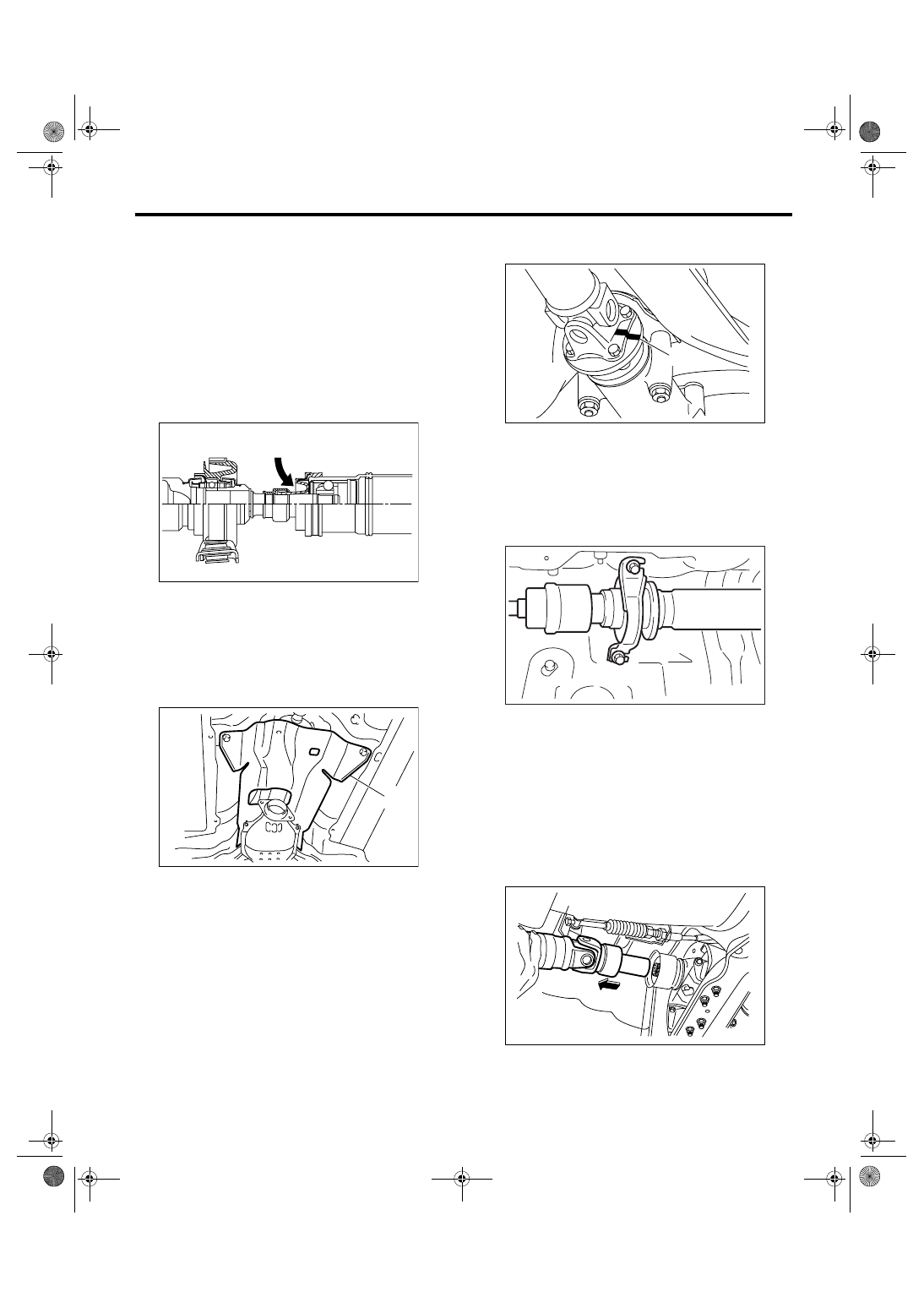

A: REMOVAL

NOTE:
• Before removing propeller shaft, wrap metal
parts with a cloth or rubber material.
• In case of DOJ type, before removing propeller
shaft, wrap metal parts (installed at the rubber boot
of center DOJ) with a cloth or rubber material, as
shown in the figure. Rubber boot may be damaged
due to interference with adjacent metal parts while
bending the DOJ during removal.

1) Disconnect the ground cable from battery.
2) Shift the select lever or gear shift lever to neutral.
3) Release the parking brake.
4) Lift-up the vehicle.
5) Remove the center exhaust pipe.
6) Remove the rear exhaust pipe and muffler.
7) Remove the heat shield cover.

8) Make matching marks on the flange yoke and
rear differential before removal.

9) Remove the three bolts which hold propeller
shaft to rear differential.
10) Remove the remaining bolt.
11) Remove the two bolts which hold center bear-
ing to vehicle body.

12) Remove the propeller shaft from transmission.

CAUTION:
• Be careful not to damage oil seals and fric-
tional surface of sleeve yoke.
• Cover the center exhaust pipe with a cloth to
keep off any ATF or oil spilled from transmis-
sion when removing propeller shaft.

NOTE:
Use a container to catch ATF or oil flowing from
propeller shaft.

(A) Heat shield cover

DS-00239

DS-00230

(A)

(A) Alignment mark

DS-00028

(A)

DS-00141

DS-00030
