Subaru Legacy (2005 year). Manual - part 747

DS-3

DRIVE SHAFT SYSTEM

General Description

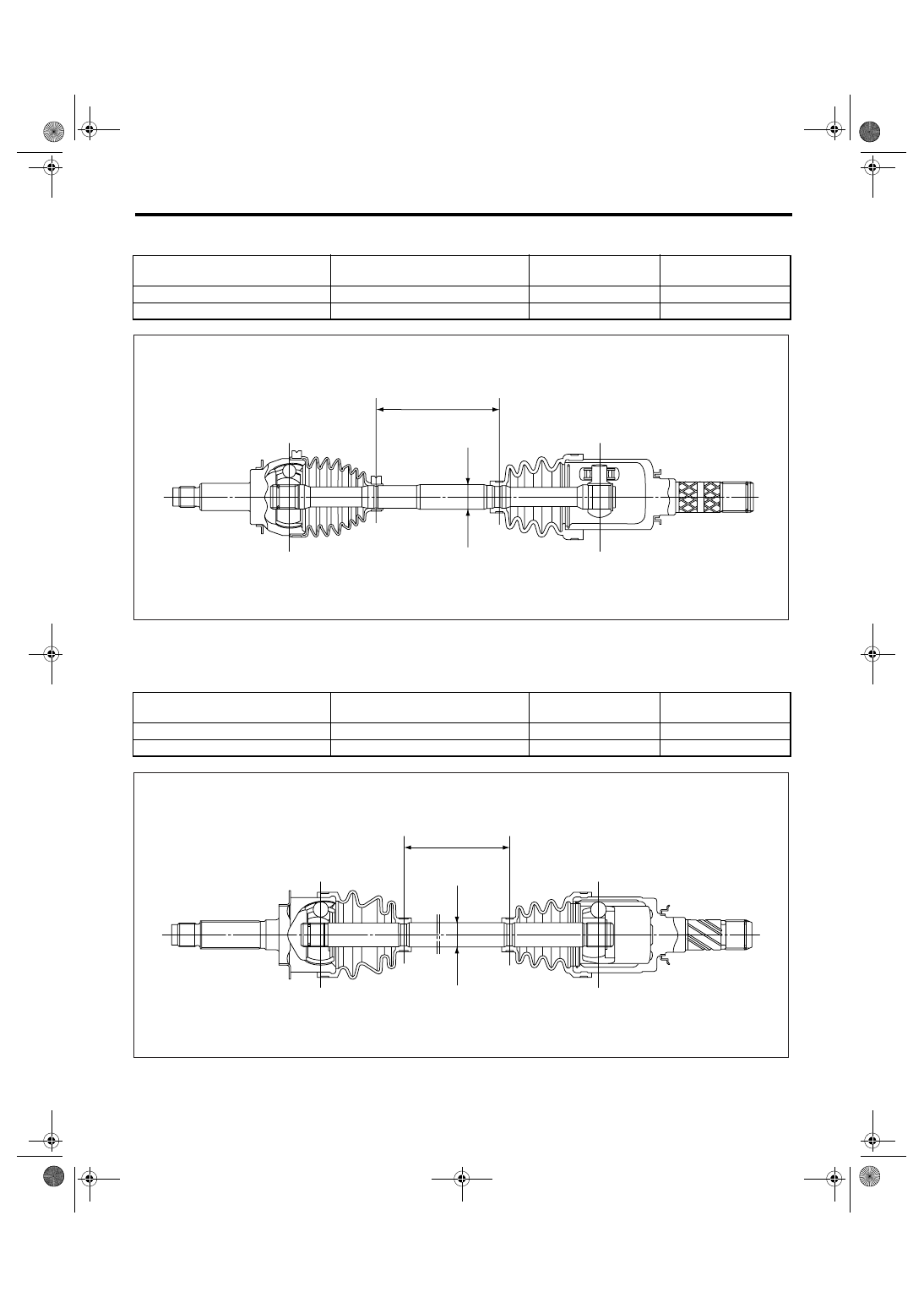

2. FRONT DRIVE SHAFT ASSEMBLY

3. REAR DRIVE SHAFT ASSEMBLY

Model

Type of drive shaft

Axle diameter

φ D

mm (in)

Axle length L

mm (in)

Turbo AT, 3.0 L AT

EBJ+PTJ

32 (1.3)

349.6 (13.76)

Except for turbo AT, 3.0 L AT

EBJ+PTJ

26 (1.0)

349.6 (13.76)

(A)

Axle diameter

(B)

Axle length

Model

Type of drive shaft

Axle diameter

φ D

mm (in)

Axle length L

mm (in)

2.0 L Non-turbo AT

BJ+DOJ

22 (0.87)

382 (15.04)

Except for 2.0 L Non-turbo AT

EBJ+DOJ

22 (0.87)

375.1 (14.77)

(A)

Axle diameter

(B)

Axle length

DS-00227

(B)

(A)

DS-00228

(A)

(B)

DS-4

DRIVE SHAFT SYSTEM

General Description

B: COMPONENT

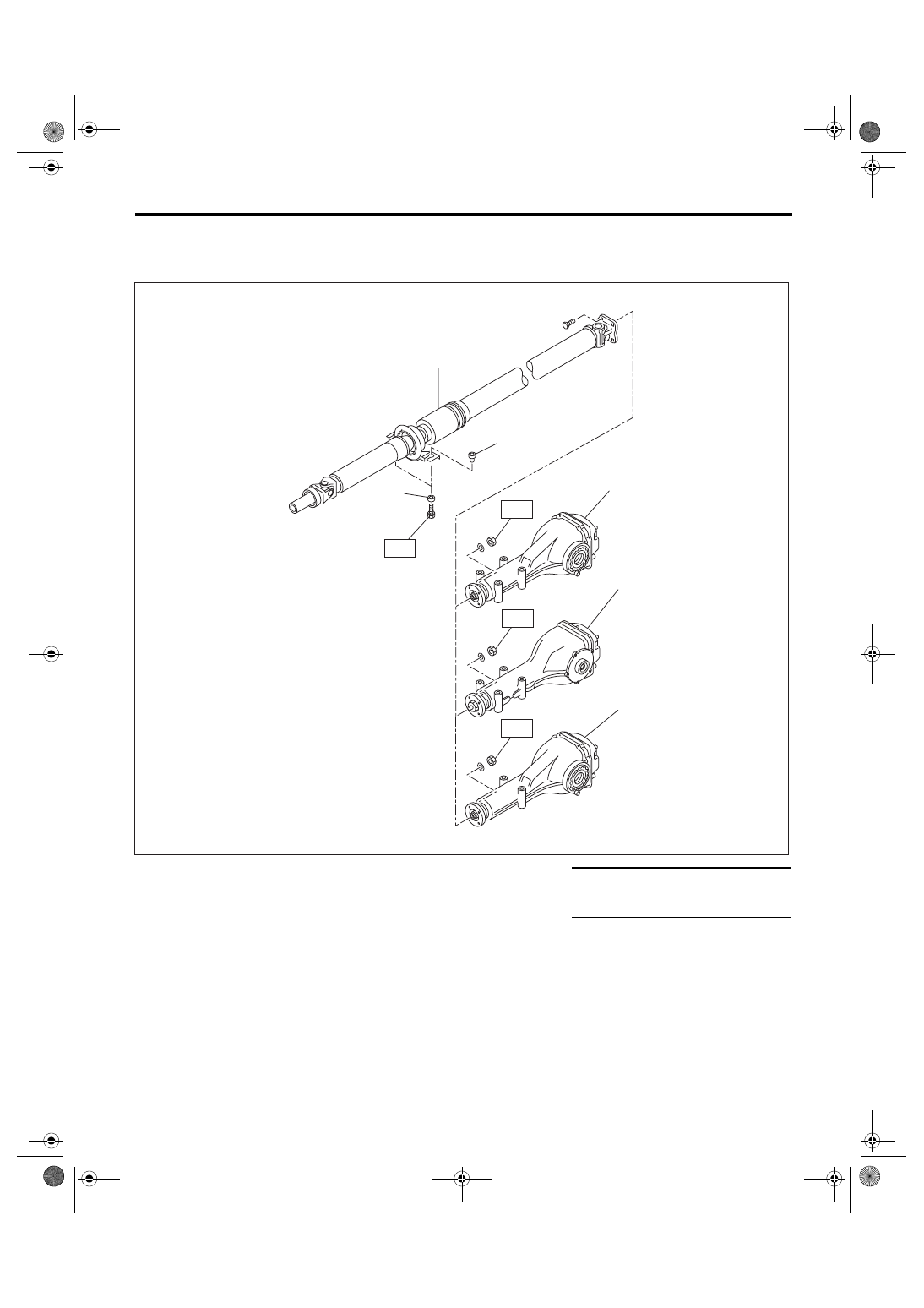

1. PROPELLER SHAFT

(1)

Propeller shaft

(4)

Rear differential (T-type)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Bushing

(5)

Rear differential (VA2-type)

T1: 31 (3.2, 23.1)

(3)

Rear differential (VA1-type)

T2: 52 (5.3, 38.3)

DS-00229

(2)

(2)

T2

(1)

(3)

T1

T1

(4)

(5)

T1

DS-5

DRIVE SHAFT SYSTEM

General Description

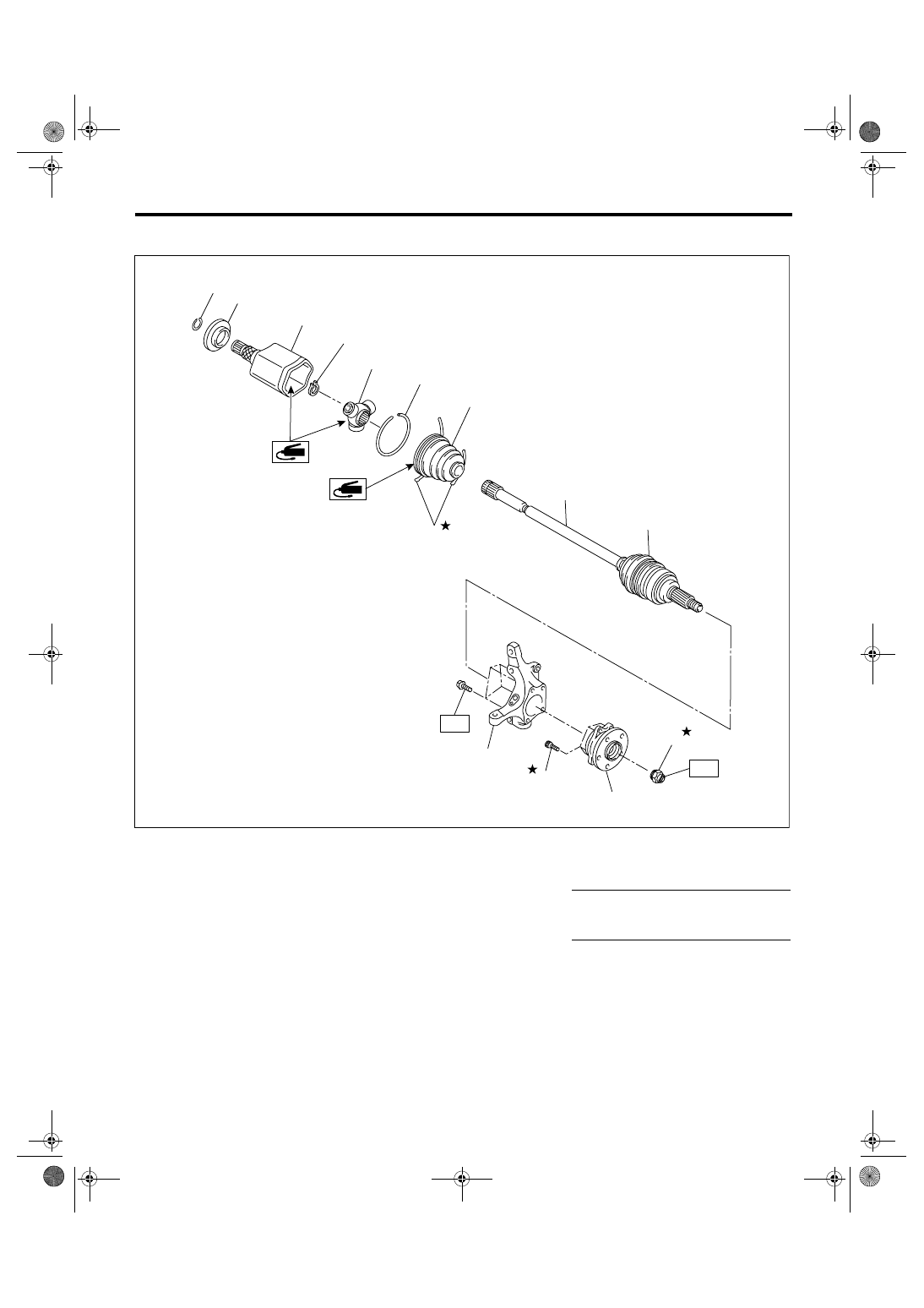

2. FRONT AXLE

(1)

Circlip

(7)

Boot band

(13)

Front hub unit bearing

(2)

Baffle plate

(8)

Boot (PTJ)

(14)

Axle nut

(3)

Outer race (PTJ)

(9)

Boot (EBJ)

(4)

Snap ring

(10)

EBJ shaft ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(5)

Trunnion

(11)

Housing

T1: 220 (22.4, 162)

(6)

Snap ring

(12)

Hub bolt

T2: 65 (6.6, 47.9)

(3)

(2)

(1)

(13)

(4)

(5)

(14)

(9)

(10)

(12)

(7)

(6)

(11)

T2

T1

(8)

DS-00232

DS-6

DRIVE SHAFT SYSTEM

General Description

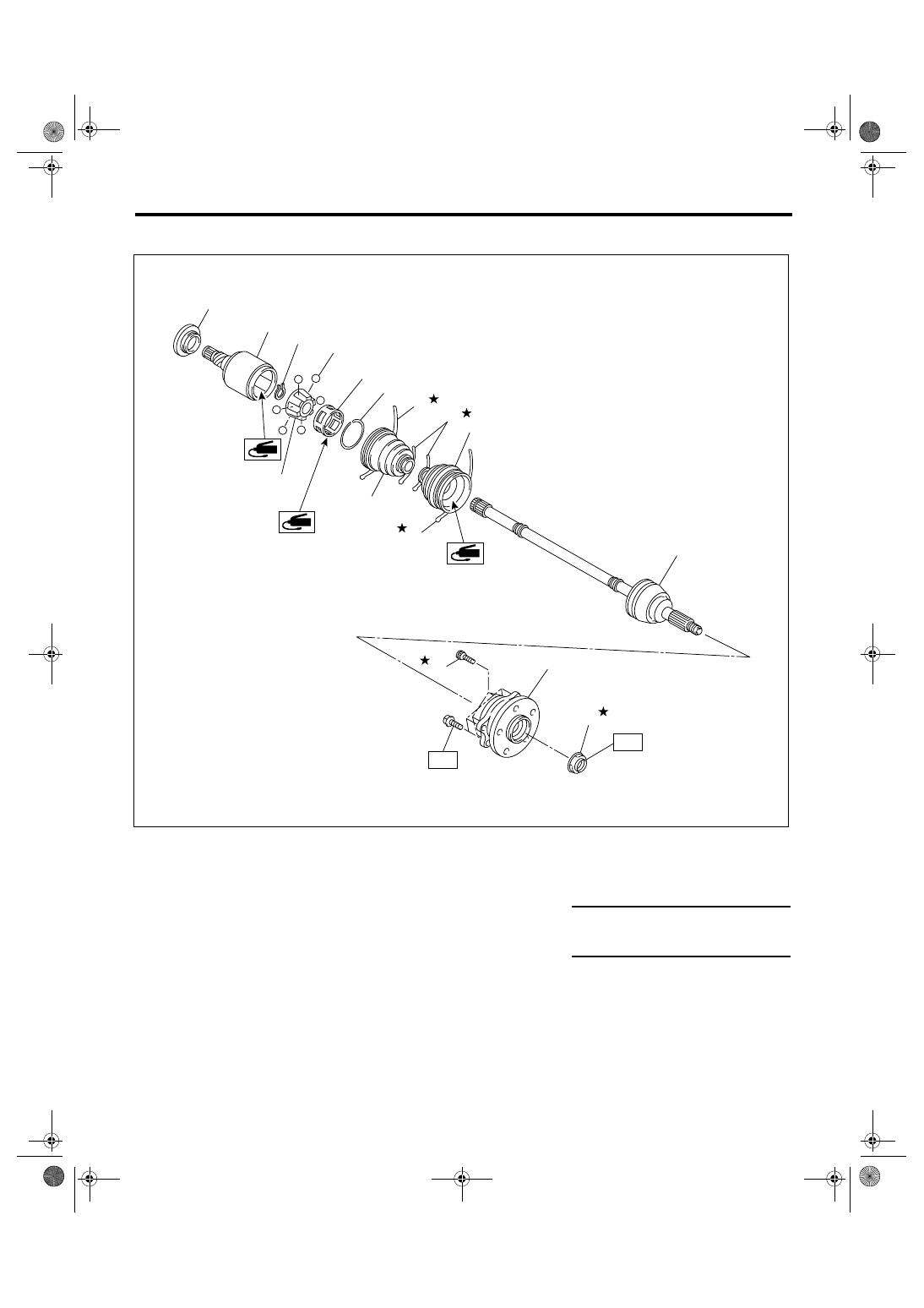

3. REAR AXLE

(1)

Baffle plate (DOJ)

(8)

Boot band

(12)

Rear hub unit bearing

(2)

Outer race (DOJ)

(9)

Boot (DOJ)

(13)

Hub bolt

(3)

Snap ring

(10)

Boot (BJ)

(14)

Axle nut (olive color)

(4)

Inner race

(11)

BJ shaft ASSY (2.0 L Non-turbo
AT model)
EBJ shaft ASSY (Except for 2.0 L
Non-turbo AT model)

(5)

Ball

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Cage

T1: 65 (6.6, 47.9)

(7)

Snap ring

T2: 190 (19.4, 140)

DS-00233

(13)

(12)

T1

(5)

(4)

(6)

(3)

(2)

(1)

(11)

(10)

(9)

(8)

(8)

(8)

(7)

(14)

T2
