DI-19

DIFFERENTIALS

General Description

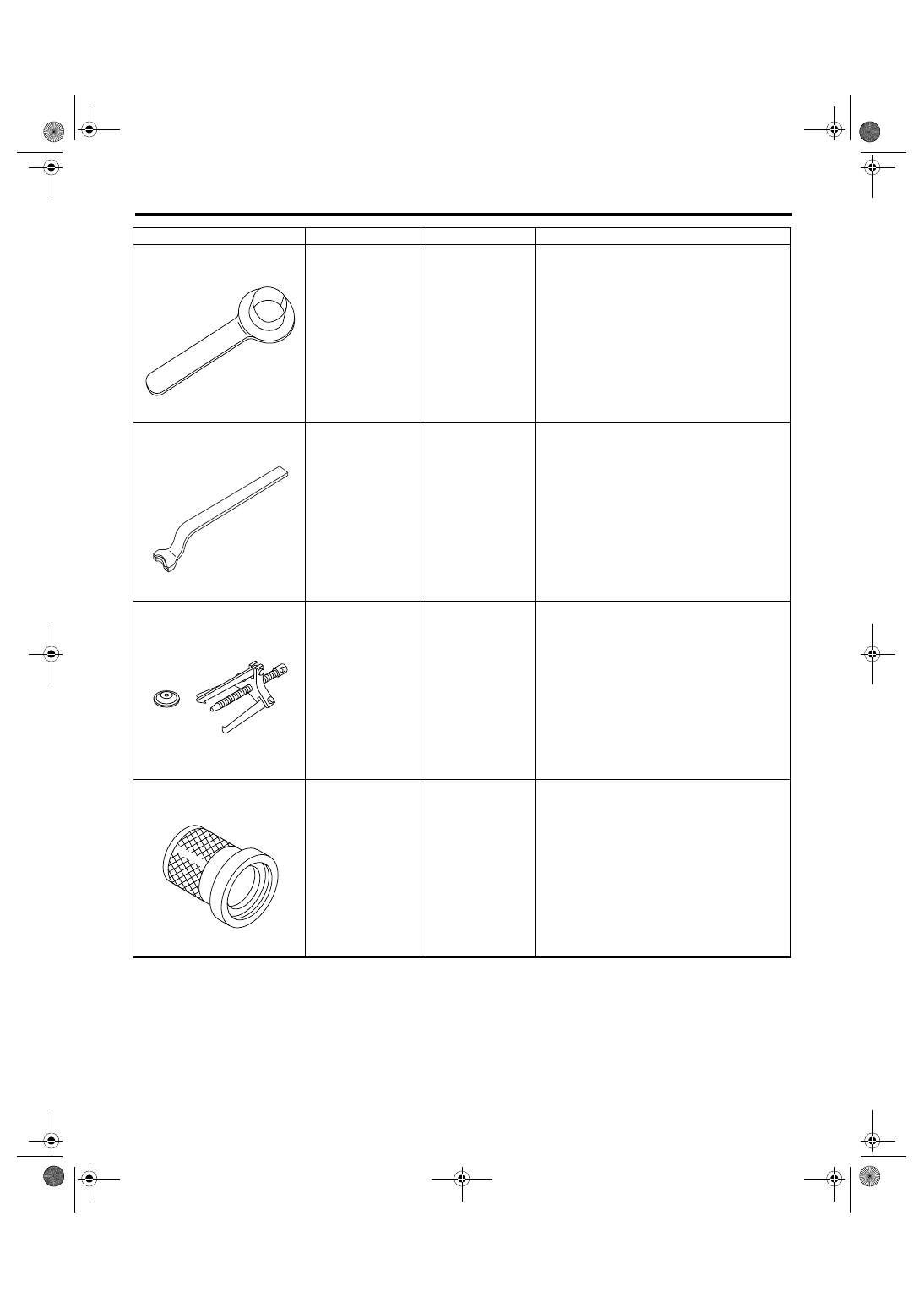

28099PA090

OIL SEAL PROTEC-
TOR

• Used for installing the rear drive shaft to rear
differential.
• For oil seal protection

28099PA100

DRIVE SHAFT
REMOVER

• Used for removing rear drive shaft from rear
differential.
• For T-type

399703600

PULLER ASSY

Used for removing companion flange.

899874100

INSTALLER

Used for installing companion flange.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST28099PA090

ST28099PA100

ST-399703600

ST-899874100

DI-20

DIFFERENTIALS

General Description

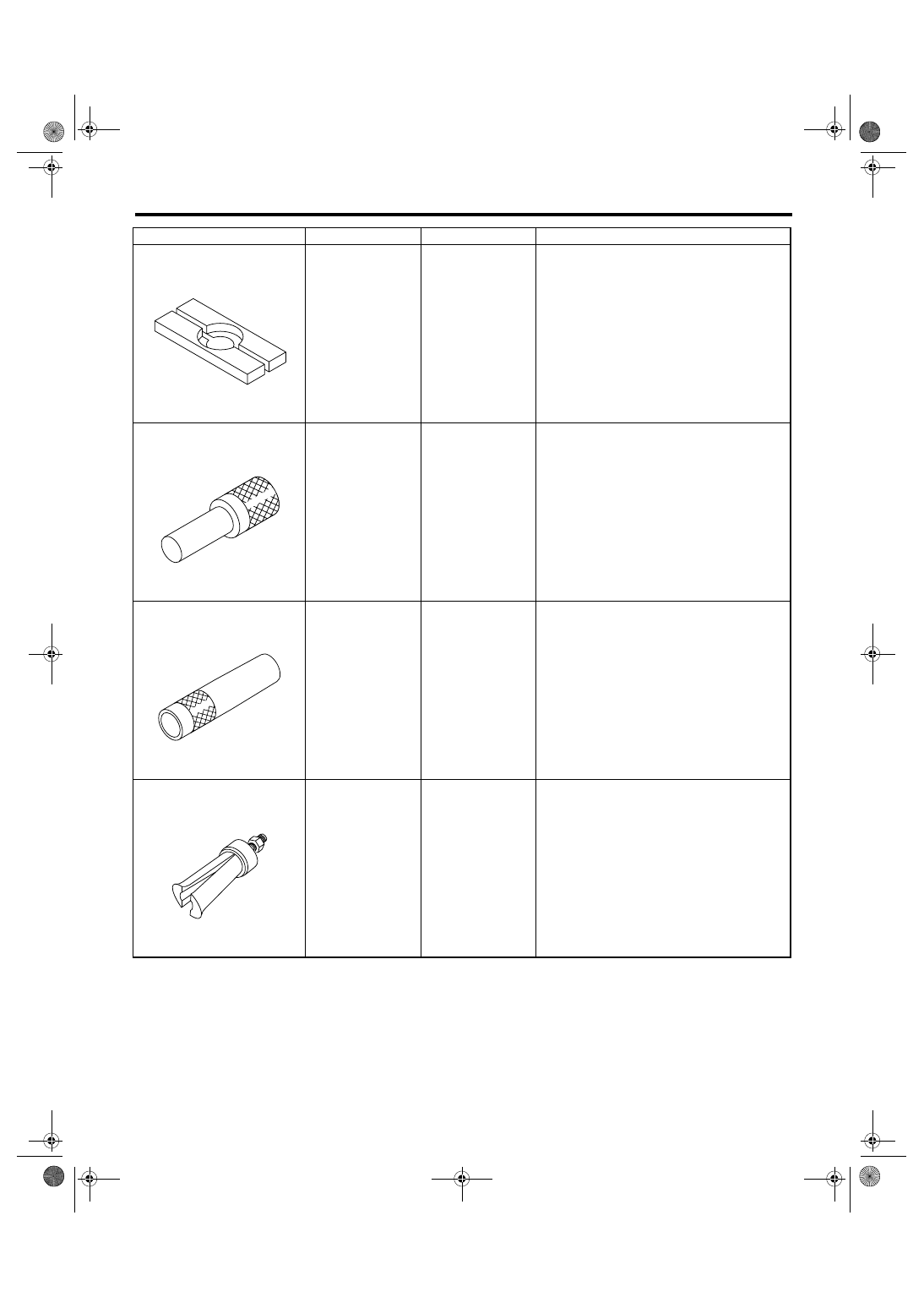

498077000

REMOVER

• Used for removing side bearing cone from dif-
ferential.
• For VA2-type

899864100

REMOVER

Used for removing differential side bearing.

499277200

INSTALLER

• Used for installing front bearing cone.
• For VA2-type

18758AA000

PULLER

• Used for removing side bearing cup.
• For VA2-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498077000

ST-899864100

ST-499277200

ST18758AA000

DI-21

DIFFERENTIALS

General Description

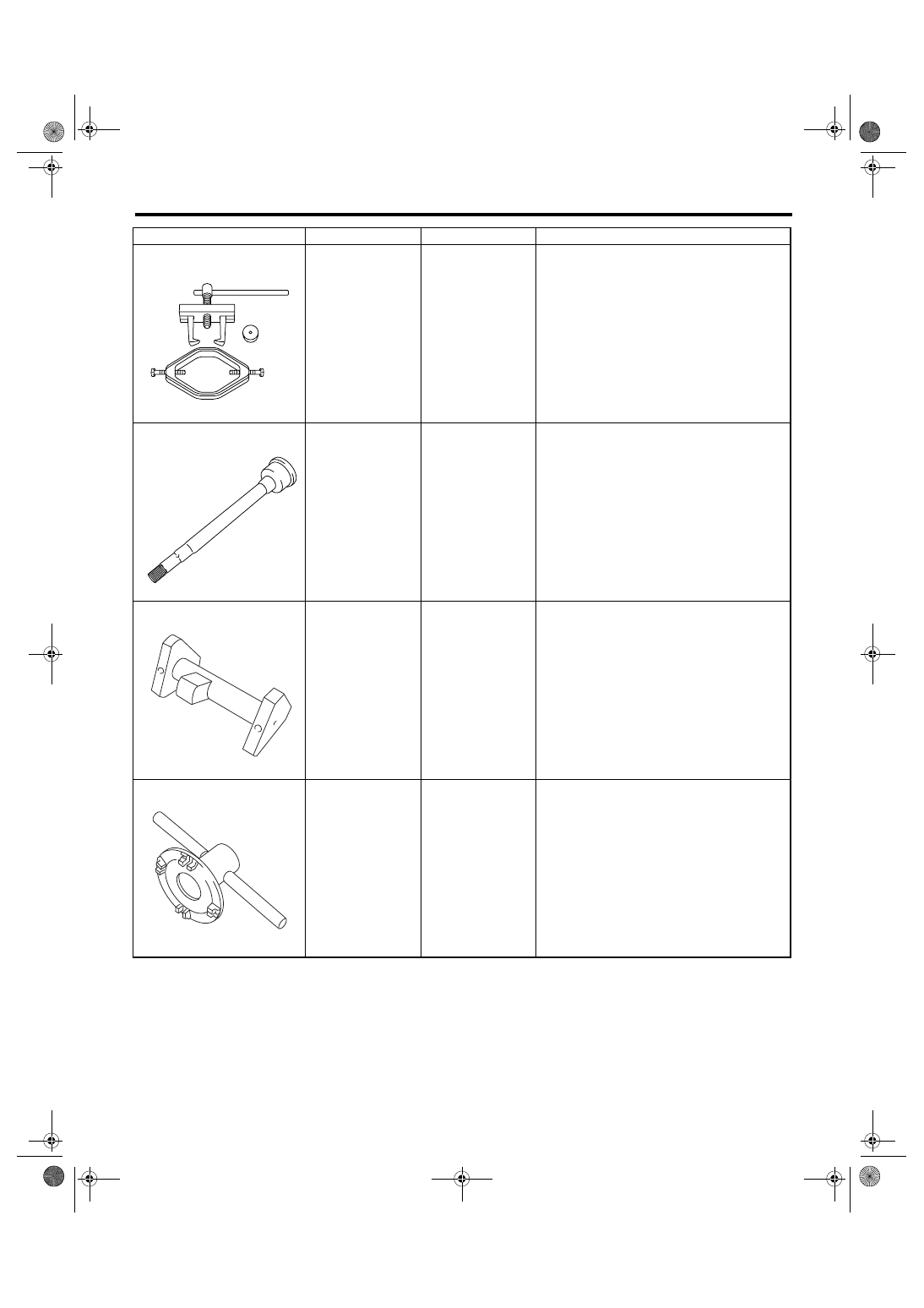

18759AA000

PULLER ASSY

• Used for removing differential from side bear-
ing cone.
• For T-type

18678AA000

DUMMY SHAFT

• Used for adjusting pinion height and preload.
• For VA2-type

18831AA010

DIFFERENTIAL
CARRIER GAUGE

• Used for adjusting pinion height.
• For VA2-type

18630AA010

WRENCH ASSY

• Used for removing and installing side oil seal
holder.
• For VA2-type
NOTE:
Also available for VA1-type.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST18759AA000

ST18678AA000

ST18831AA010

ST18630AA010

DI-22

DIFFERENTIALS

General Description

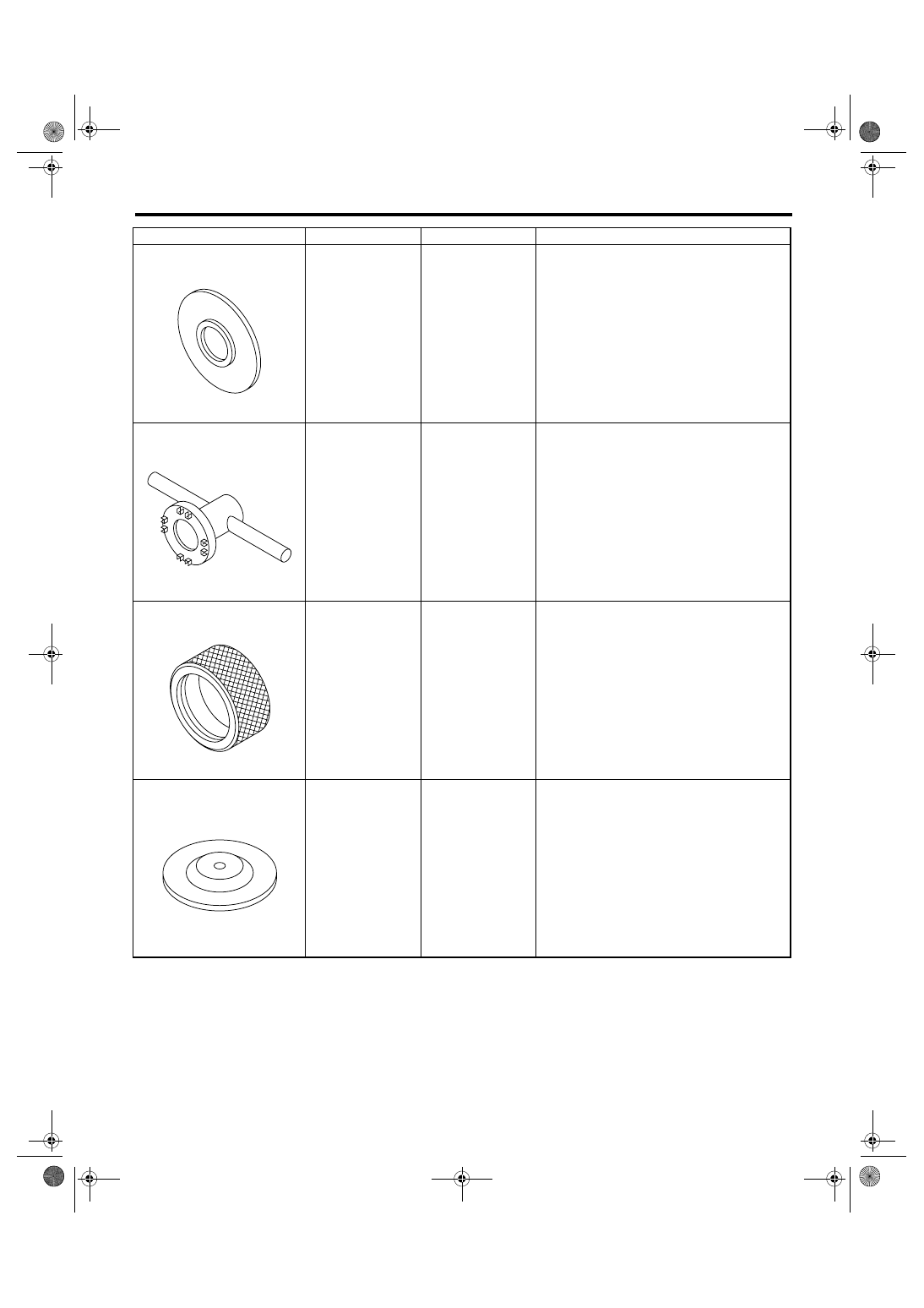

498175500

INSTALLER

• Used for installing rear bearing cone.
• For VA1-type

499785500

WRENCH ASSY

• Used for removing and installing side oil seal
holder.
• For VA1-type

498447100

INSTALLER

• Used for installing oil seal.
• For VA1-type

399520105

SEAT

• Used for removing side bearing cone.
• Used with PULLER SET (899524100).
• For VA-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498175500

ST-499785500

ST-498447100

ST-399520105
