DI-15

DIFFERENTIALS

General Description

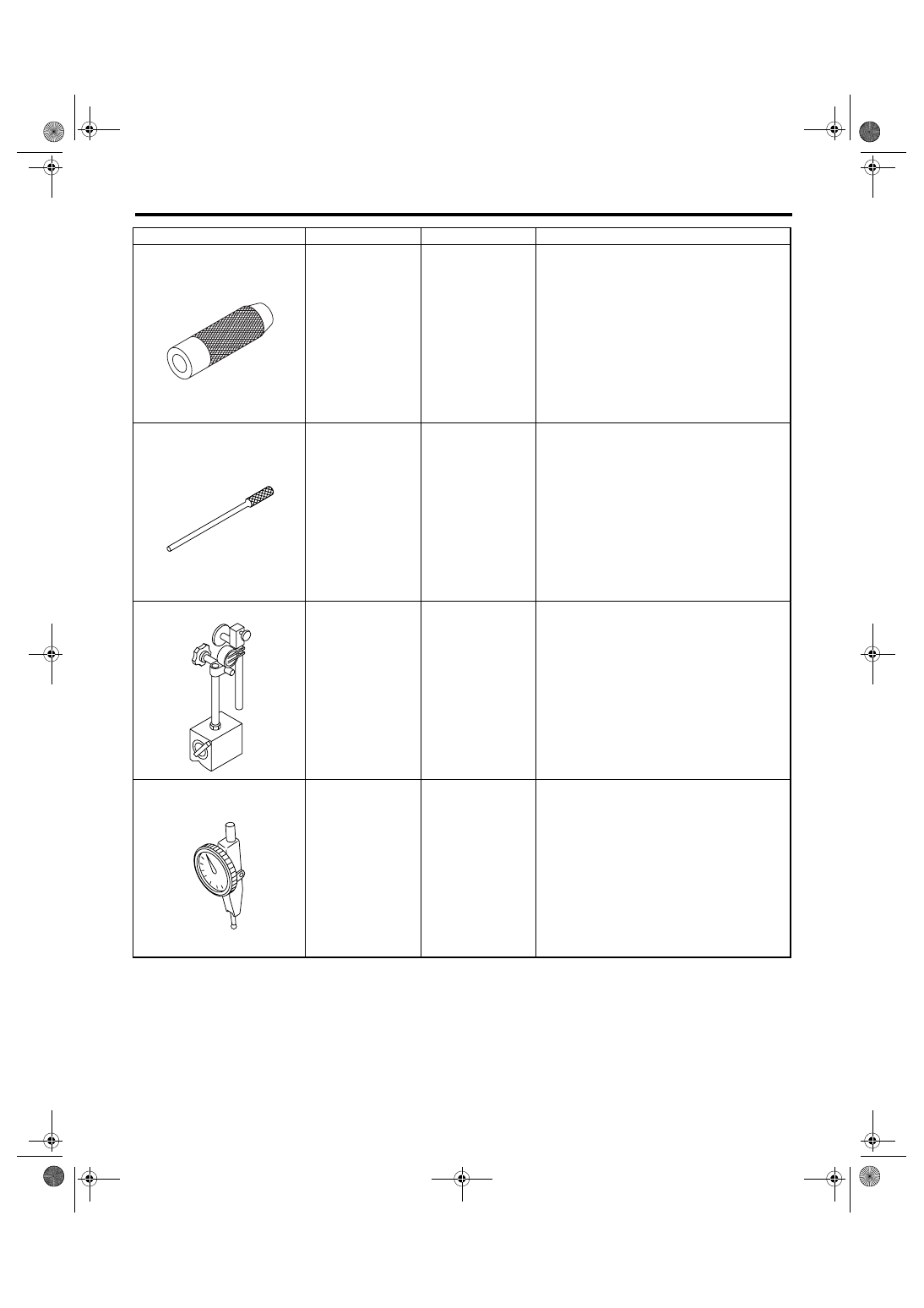

899580100

INSTALLER

Used for press-fitting front bearing cone and pilot
bearing.

899904100

STRAIGHT PIN
REMOVER

Used for driving out differential pinion shaft lock
pin.

498247001

MAGNET BASE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with DIAL GAUGE (498247100).

498247100

DIAL GAUGE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with MAGNET BASE (498247001).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-899580100

ST-899904100

ST-498247001

ST-498247100

DI-16

DIFFERENTIALS

General Description

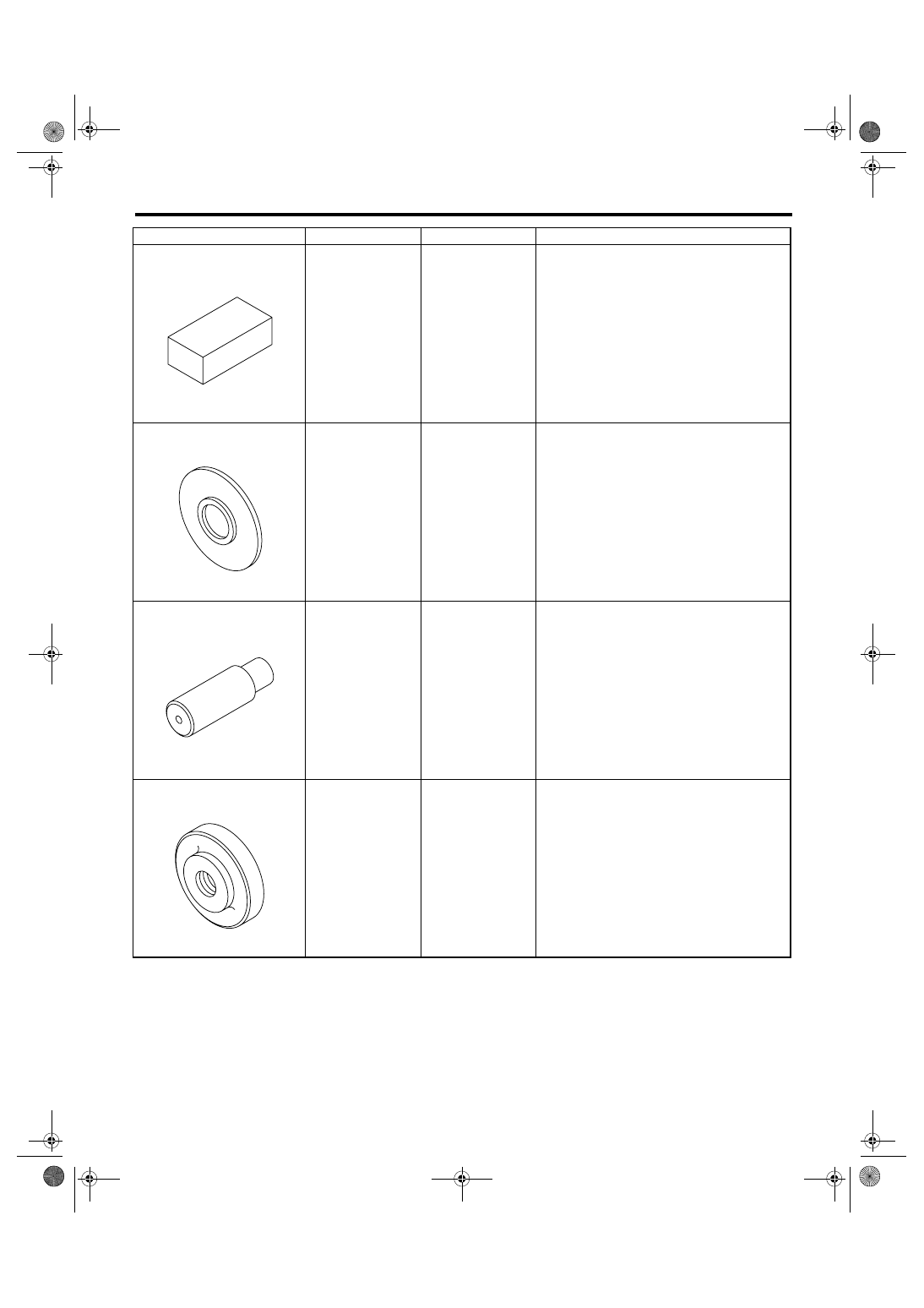

398507704

BLOCK

• Used for adjusting pinion height and preload.
• For T-type and VA1-type

398177700

INSTALLER

• Used for installing rear bearing cone.
• For T-type and VA2-type

398457700

ATTACHMENT

• Used for removal of side bearing retainer.
• For T-type

398477703

DRIFT 2

• Used for press-fitting bearing race (rear) of dif-
ferential carrier.
• For T-type and VA2-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398507704

ST-398177700

ST-398457700

ST-398477703

DI-17

DIFFERENTIALS

General Description

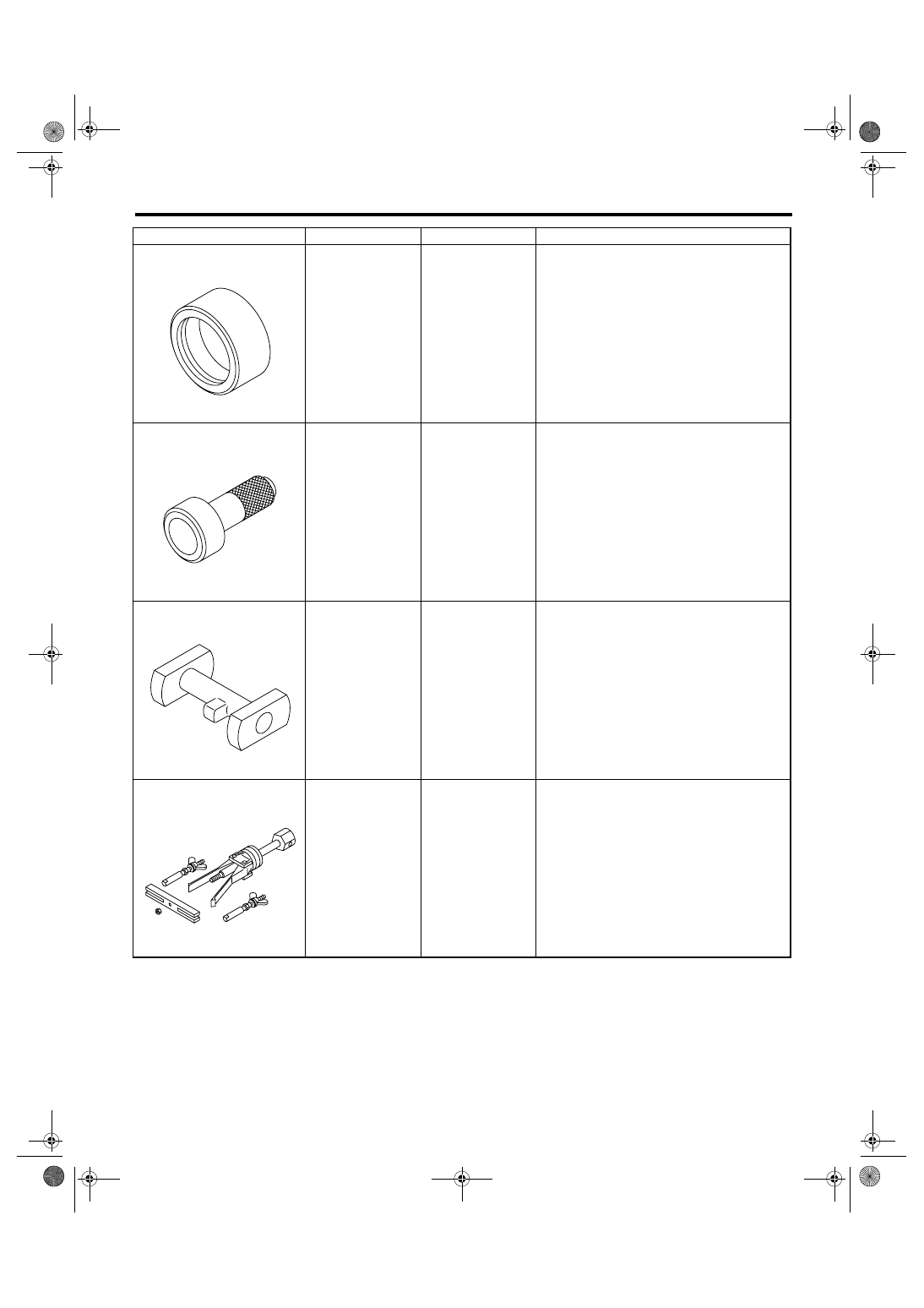

398437700

DRIFT

• Used for installing side oil seal.
• For T-type and VA2-type

398507702

DUMMY SHAFT

• Used for adjusting pinion height and preload.
• For T-type

398507703

DUMMY COLLAR

• Used for adjusting pinion height and preload.
• For T-type

398517700

REPLACER

• Used for removing rear bearing cone.
• For T-type and VA2-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398437700

ST-398507702

ST-398507703

ST-398517700

DI-18

DIFFERENTIALS

General Description

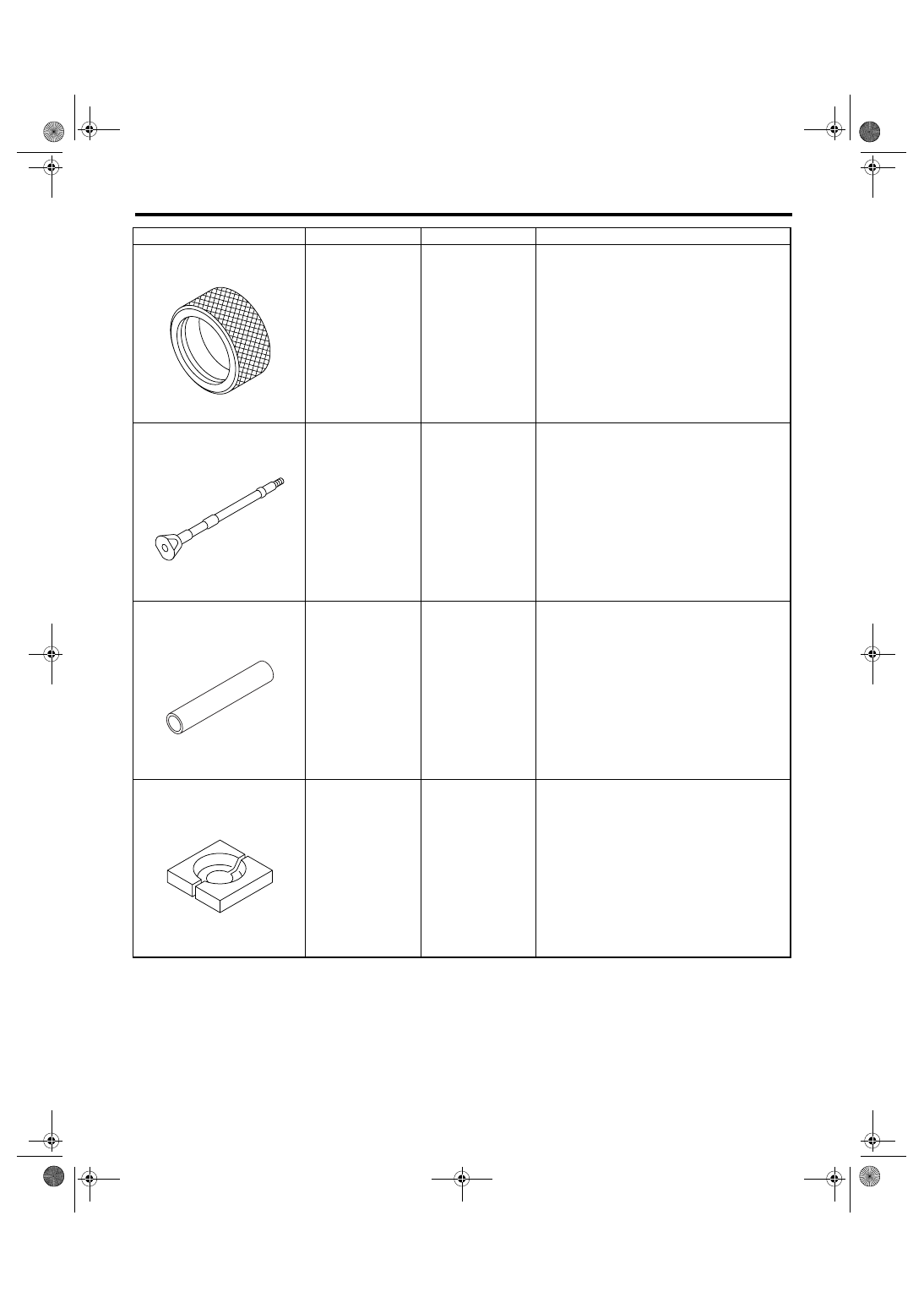

398487700

DRIFT

• Used for press-fitting side bearing cone.
• For T-type and VA2-type

398417700

DRIFT PUNCH

• Used for press-fitting side bearing race.
• For T-type and VA2-type

398507701

DIFFERENTIAL
CARRIER GAUGE

• Used for adjusting pinion height.
• For T-type

398527700

PULLER ASSY

• Used for removing front oil seal.
• Used for removing side bearing cup. (T-type)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398487700

ST-398417700

ST-398507701

ST-398527700
