WT-7

WHEEL AND TIRE SYSTEM

Wheel Balancing

5. Wheel Balancing

A: ADJUSTMENT

NOTE:
Change the setting of wheel balancer to adhesive
type weight as adhesive type weight is adopted for
outside balance weight of 17-inch and 18-inch
wheel.
1) Remove the balance weights.

CAUTION:
• Be careful not to damage the wheel.
• Completely remove the two-sided tape of the
adhesive type weight from the wheel.
2) Using the wheel balancer, measure the wheel
balance.
3) Select a weight close to the value measured by
wheel balancer.

CAUTION:
Use SUBARU genuine balance weight.

4) Install the selected weight to the point designat-
ed by wheel balancer.

CAUTION:
• Remove grease from adhesive type weight
applying surface of wheel.
• Press the adhesive type weight by 25 N (2.5
kgf, 5.6 lbf) or more per 5 g (0.18 oz) for 2 sec-
onds at least to attain close contact.
• Make all amounts of the applied adhesive
type weight to be 100 g (3.53 oz) or less.

Balance weight part number

(Knock-on type weight for steel

wheel)

Weight

28101TC000

5 g (0.18 oz)

28101SA060

10 g (0.35 oz)

28101SA070

15 g (0.53 oz)

28101SA080

20 g (0.71 oz)

28101SA090

25 g (0.88 oz)

723141340

30 g (1.06 oz)

723141350

35 g (1.23 oz)

723141360

40 g (1.41 oz)

723141370

45 g (1.59 oz)

723241380

50 g (1.76 oz)

723241580

55 g (1.94 oz)

723241590

60 g (2.12 oz)

Balance weight part number

(Knock-on type weight for alumi-

num wheel)

Weight

28101SA000

5 g (0.18 oz)

28101SA010

10 g (0.35 oz)

28101SA020

15 g (0.53 oz)

28101SA030

20 g (0.71 oz)

28101SA040

25 g (0.88 oz)

23141GA512

30 g (1.06 oz)

23141GA522

35 g (1.23 oz)

23141GA532

40 g (1.41 oz)

23141GA542

45 g (1.59 oz)

23141GA552

50 g (1.76 oz)

—

55 g (1.94 oz)

23141GA572

60 g (2.12 oz)

Balance weight part number

(Adhesive type weight for alumi-

num wheel)

Weight

28101AG000

5 g (0.18 oz)

28101AG010

7.5 g (0.26 oz)

28101AG020

10 g (0.35 oz)

28101AG030

12.5 g (0.44 oz)

28101AG040

15 g (0.53 oz)

28101AG050

17.5 g (0.62 oz)

28101AG060

20 g (0.71 oz)

28101AG070

22.5 g (0.79 oz)

28101AG080

25 g (0.88 oz)

28101AG090

27.5 g (0.97 oz)

28101AG100

30 g (1.06 oz)

28101AG110

32.5 g (1.15 oz)

28101AG120

35 g (1.23 oz)

28101AG130

37.5 g (1.32 oz)

28101AG140

40 g (1.41 oz)

28101AG150

42.5 g (1.50 oz)

28101AG160

45 g (1.59 oz)

28101AG170

47.5 g (1.68 oz)

28101AG180

50 g (1.76 oz)

28101AG190

52.5 g (1.85 oz)

28101AG200

55 g (1.94 oz)

28101AG210

57.5 g (2.03 oz)

28101AG220

60 g (2.12 oz)

28101AG230

62.5 g (2.20 oz)

28101AG240

65 g (2.29 oz)

28101AG250

67.5 g (2.38 oz)

28101AG260

70 g (2.47 oz)

28101AG270

72.5 g (2.56 oz)

28101AG280

75 g (2.65 oz)

28101AG290

77.5 g (2.73 oz)

28101AG300

80 g (2.82 oz)

28101AG310

82.5 g (2.91 oz)

28101AG320

85 g (3.00 oz)

28101AG330

87.5 g (3.09 oz)

28101AG340

90 g (3.17 oz)

28101AG350

92.5 g (3.26 oz)

28101AG360

95 g (3.35 oz)

28101AG370

97.5 g (3.44 oz)

28101AG380

100 g (3.53 oz)

WT-8

WHEEL AND TIRE SYSTEM

Wheel Balancing

5) Using the wheel balancer, measure the wheel
balance again. Check that wheel balance is cor-
rectly adjusted.

NOTE:
• 55 g (1.94 oz) knock-on type weight used with
aluminum wheel is not available.
• Balance weights of knock-on type weight for alu-
minum wheel are available for use with any of 15-
to 18-inch aluminum wheels.

Service limit: A

Knock-on type weight for steel wheel:

5 — 25 g (0.18 — 0.88 oz) 2.0 mm (0.08 in)
30 g (1.06 oz) or more 1.8 mm (0.07 in)

Knock-on type weight for aluminum wheel:

5 — 25 g (0.18 — 0.88 oz) 5.0 mm (0.20 in)
30 g (1.06 oz) or more 4.5 mm (0.177 in)

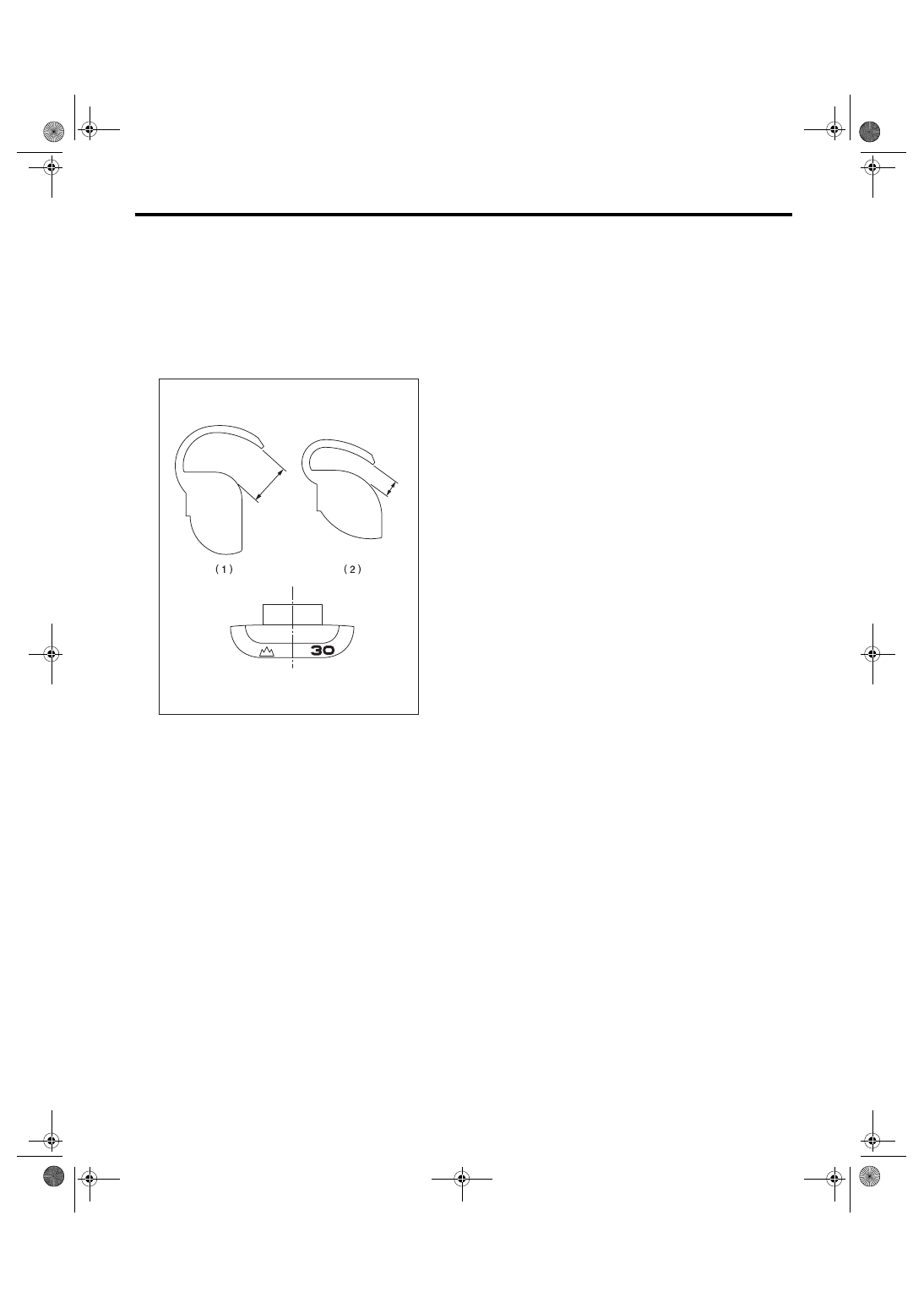

(1) Knock-on type weight for aluminum wheel

(2) Knock-on type weight for steel wheel

WT-00006

WT-9

WHEEL AND TIRE SYSTEM

“T-type” Tire

6. “T-type” Tire

A: NOTE

“T-type” tire for temporary use is prepared as a
spare tire. (Except for KA, KS model)

CAUTION:
• Do not use a tire chain with the “T-type” tire.
Because of the smaller tire size, a tire chain will
not fit properly and will result in damage to the
vehicle and the tire.
• Do not drive at a speed greater than 100 km/h
(62 MPH).
• Drive as slowly as possible and avoid pass-
ing over bumps.

B: REPLACEMENT

Refer to “Steel Wheel” for installation procedure of
“T-type” tire. <Ref. to WT-5, REMOVAL, Steel
Wheel.>

CAUTION:
Replace with a conventional tire as soon as
possible since the “T-type” tire is only for tem-
porary use.

C: INSPECTION

1) Check the tire air pressure.

Specifications:

420 kPa (4.2 kgf/cm

, 60 psi)

2) Take the stones, glass, nails, etc. out of the
tread groove.
3) Check the tires for deformation, cracks, partial
wear or wear.

CAUTION:
Replace the tire with a new one if defective.
