WT-3

WHEEL AND TIRE SYSTEM

General Description

2. SERVICE DATA

3. ADJUSTING PARTS

B: PREPARATION TOOL

1. GENERAL TOOL

Part

Axial runout

Radial runout

Steel wheel

1.5 mm (0.059 in)

Aluminum wheel

1.0 mm (0.039 in)

Wheel balancing

Specification

Service limit

Dynamic unbalance

10 g (0.35 oz) or less

Balance weight part number

(Knock-on type weight for steel

wheel)

Weight

28101TC000

5 g (0.18 oz)

28101SA060

10 g (0.35 oz)

28101SA070

15 g (0.53 oz)

28101SA080

20 g (0.71 oz)

28101SA090

25 g (0.88 oz)

723141340

30 g (1.06 oz)

723141350

35 g (1.23 oz)

723141360

40 g (1.41 oz)

723141370

45 g (1.59 oz)

723241380

50 g (1.76 oz)

723241580

55 g (1.94 oz)

723241590

60 g (2.12 oz)

Balance weight part number

(Knock-on type weight for alumi-

num wheel)

Weight

28101SA000

5 g (0.18 oz)

28101SA010

10 g (0.35 oz)

28101SA020

15 g (0.53 oz)

28101SA030

20 g (0.71 oz)

28101SA040

25 g (0.88 oz)

23141GA512

30 g (1.06 oz)

23141GA522

35 g (1.23 oz)

23141GA532

40 g (1.41 oz)

23141GA542

 45 g (1.59 oz)

23141GA552

50 g (1.76 oz)

—

55 g (1.94 oz)

23141GA572

60 g (2.12 oz)

Balance weight part number

(Adhesive type weight for alumi-

num wheel)

Weight

28101AG000

5 g (0.18 oz)

28101AG010

7.5 g (0.26 oz)

28101AG020

10 g (0.35 oz)

28101AG030

12.5 g (0.44 oz)

28101AG040

15 g (0.53 oz)

28101AG050

17.5 g (0.62 oz)

28101AG060

20 g (0.71 oz)

28101AG070

22.5 g (0.79 oz)

28101AG080

25 g (0.88 oz)

28101AG090

27.5 g (0.97 oz)

28101AG100

30 g (1.06 oz)

28101AG110

32.5 g (1.15 oz)

28101AG120

35 g (1.23 oz)

28101AG130

37.5 g (1.32 oz)

28101AG140

40 g (1.41 oz)

28101AG150

42.5 g (1.50 oz)

28101AG160

45 g (1.59 oz)

28101AG170

47.5 g (1.68 oz)

28101AG180

50 g (1.76 oz)

28101AG190

52.5 g (1.85 oz)

28101AG200

55 g (1.94 oz)

28101AG210

57.5 g (2.03 oz)

28101AG220

60 g (2.12 oz)

28101AG230

62.5 g (2.20 oz)

28101AG240

65 g (2.29 oz)

28101AG250

67.5 g (2.38 oz)

28101AG260

70 g (2.47 oz)

28101AG270

72.5 g (2.56 oz)

28101AG280

75 g (2.65 oz)

28101AG290

77.5 g (2.73 oz)

28101AG300

80 g (2.82 oz)

28101AG310

82.5 g (2.91 oz)

28101AG320

85 g (3.00 oz)

28101AG330

87.5 g (3.09 oz)

28101AG340

90 g (3.17 oz)

28101AG350

92.5 g (3.26 oz)

28101AG360

95 g (3.35 oz)

28101AG370

97.5 g (3.44 oz)

28101AG380

100 g (3.53 oz)

TOOL NAME

REMARKS

Air pressure gauge

Used for measuring tire inflation pres-
sure.

Dial gauge with
magnet stand

Used for measuring wheel runout.

Wheel balancer

Used for adjusting wheel balance.

WT-4

WHEEL AND TIRE SYSTEM

Tire

2. Tire

A: INSPECTION

1) Take stones, glass, nails etc. out of the tread
groove.
2) Replace the tire if as follows.

CAUTION:
When replacing a tire, make sure to use only
the same size, construction and load range as
originally installed.

(1) When large crack on side wall, damage or
crack on tread is found.
(2) When the “tread wear indicator” appears as
a solid band across the tread.

3) When a crack on tire valve is found, replace the
tire valve.

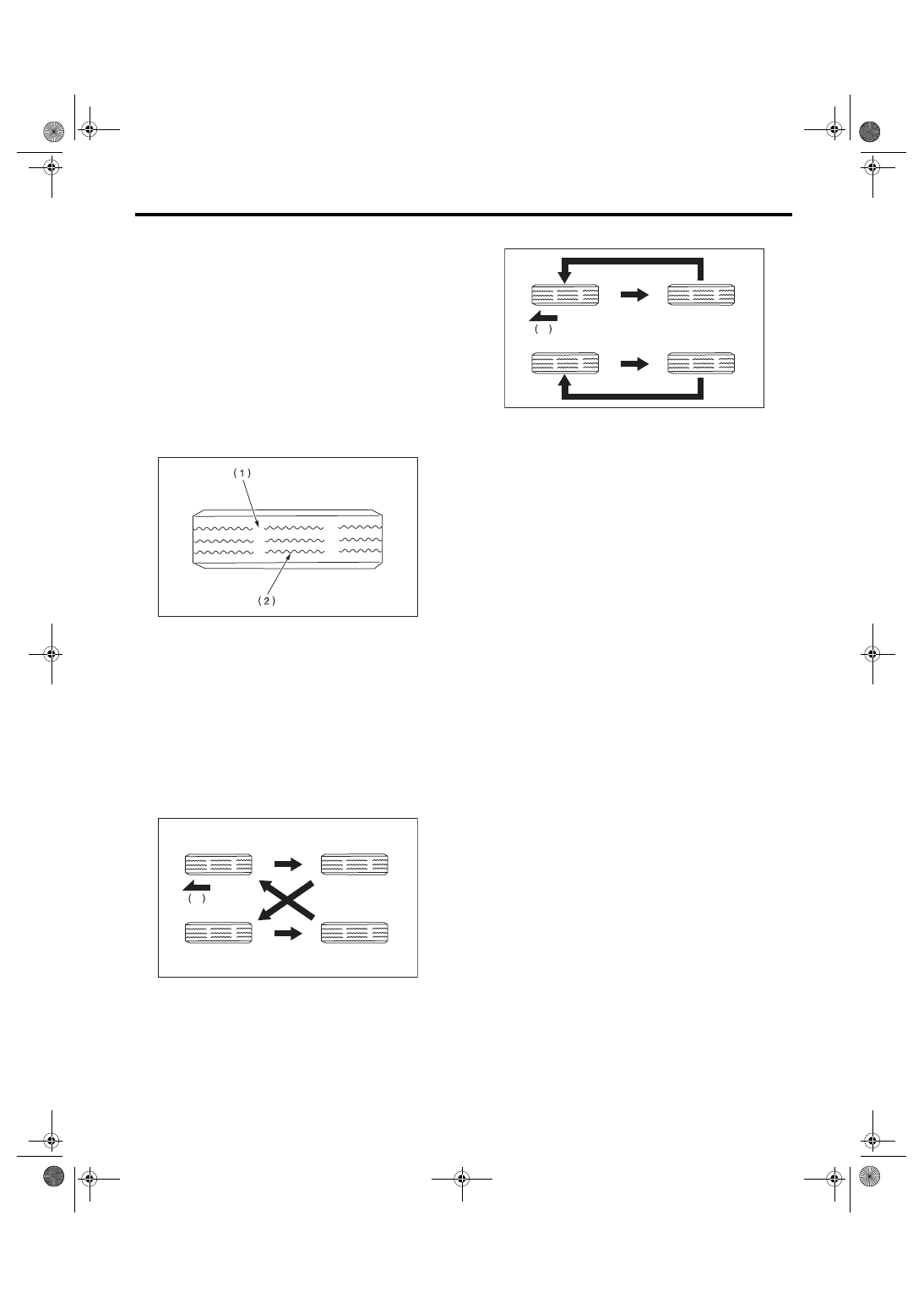

1. TIRE ROTATION

Rotate tires periodically (5,000 km/3,100 miles) as
shown in the figure, in order to prevent them from
uneven wear and to prolong their life.
• Without instruction for the direction of tire rota-
tion.

• With instruction for the direction of tire rotation.

(1) Tread wear indicator

(2) Tire tread

(1) Front

WT-00002

WT-00113

1

(1) Front

WT-00115

1

WT-5

WHEEL AND TIRE SYSTEM

Steel Wheel

3. Steel Wheel

A: REMOVAL

1) Apply the parking brake, and position the select
lever to “P” or “LOW”.
2) Set the shop jacks or a lift to specified point, and
support the vehicle with its wheels slightly contact-
ing the floor.
3) Loosen the wheel nuts.
4) Raise the vehicle until its wheels take off the
ground using a jack or a lift.
5) Remove the wheel nuts and wheels.

NOTE:
• When removing the wheels, prevent hub bolts
from damage.
• Place the wheels with their outer sides facing up-
ward to prevent wheels from damage.

B: INSTALLATION

1) Remove dirt from the mating surface of wheel
and brake rotor.
2) Attach the wheel to the hub by aligning the wheel
bolt hole with the hub bolt.
3) Temporarily attach the wheel nuts to the hub
bolts. (In the case of aluminum wheel, use SUBA-
RU genuine wheel nut for aluminum wheel.)
4) Manually tighten the nuts making sure the wheel
hub hole is aligned correctly to the guide portion of
hub.
5) Tighten the wheel nuts in a diagonal selection to
the specified torque. Use a wheel nut wrench.

Wheel nut tightening torque:

90 N

⋅

m (9.1 kgf-m, 65.7 ft-lb)

CAUTION:
• Tighten the wheel nuts in two or three steps
by gradually increasing the torque and working
diagonally, until they reach the specified
torque.
• Do not depress the wrench with foot. Always
use both hands when tightening.
• Make sure the bolt, nut and the nut seating
surface of the wheel are free from oil.
6) If a wheel is removed for replacement or for re-
pair of a puncture, retighten the wheel nuts to the
specified torque after running 1,000 km (600
miles).

C: INSPECTION

1) Deformation or damage on the rim may cause
air leakage. Check the rim flange for deformation,
crack or damage, and repair or replace as neces-
sary.
2) Jack-up the vehicle until wheels clear the floor.

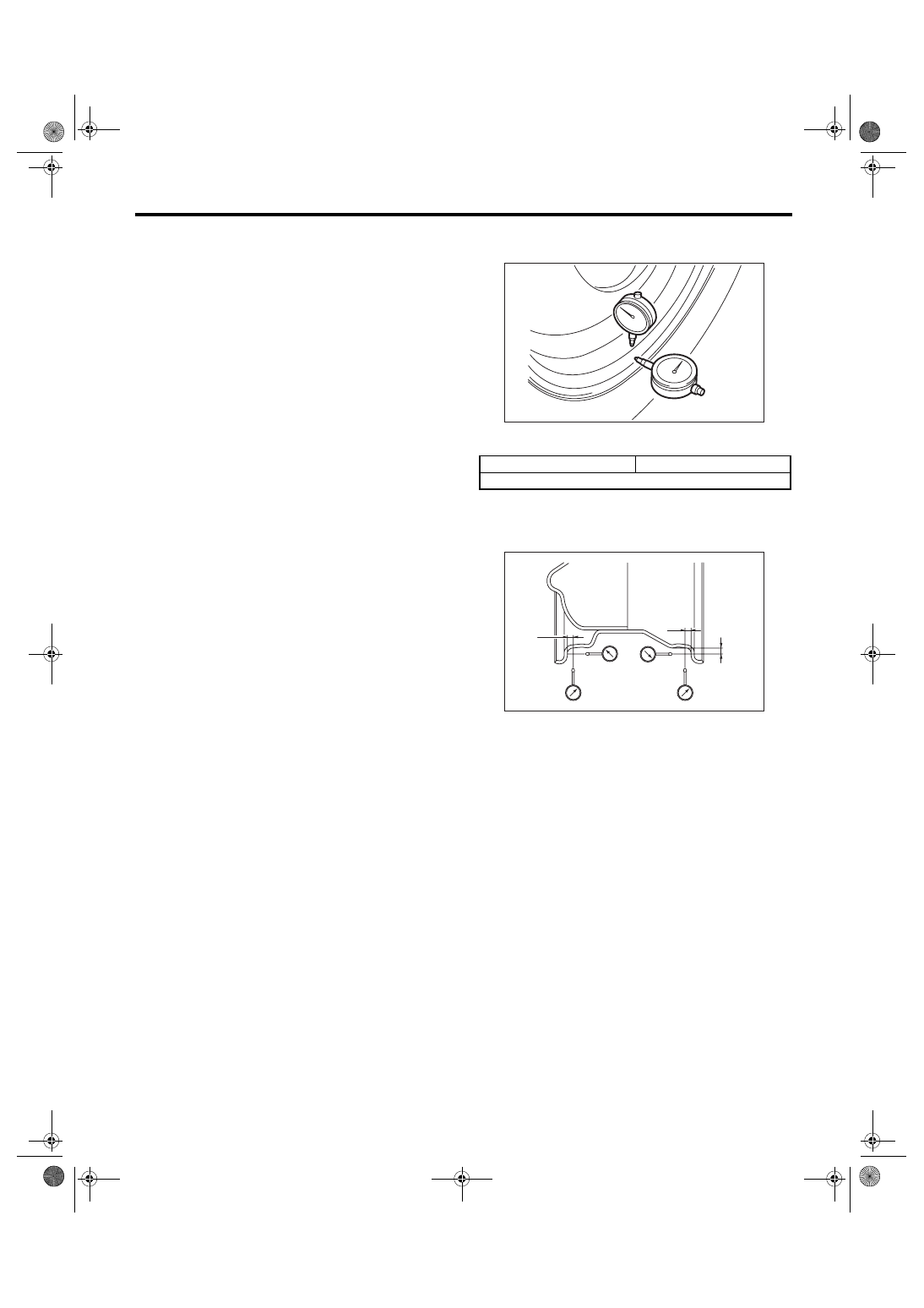

3) Slowly rotate the wheel to check rim “runout” us-
ing a dial gauge.

Rim runout:

4) If the rim runout exceeds specification, remove
the tire from wheel and check runout while attach-
ing the dial gauge to positions shown in the figure.

5) If the measured runout still exceeds specifica-
tion, replace the wheel.

Axial runout specification

Radial runout specification

1.5 mm (0.059 in)

(1) Approx. 7 mm (0.28 in)

WT-00004

WT-00005

(1)

(1)

(1)

WT-6

WHEEL AND TIRE SYSTEM

Aluminum Wheel

4. Aluminum Wheel

A: REMOVAL

Refer to “Steel Wheel” for removal procedure of
aluminum wheels. <Ref. to WT-5, REMOVAL,
Steel Wheel.>

B: INSTALLATION

Refer to “Steel Wheel” for installation procedure of
aluminum wheels. <Ref. to WT-5, INSTALLATION,
Steel Wheel.>

C: INSPECTION

Refer to “Steel Wheel” for inspection procedure of
aluminum wheels. <Ref. to WT-5, INSPECTION,
Steel Wheel.>

Rim runout:

D: CAUTION

Aluminum wheels are easily scratched. To main-
tain their appearance and safety, do the followings:
1) Do not damage the aluminum wheels during re-
moval, installation, wheel balancing, etc. After re-
moving the aluminum wheels, place them on a
rubber mat, etc.
2) When washing the aluminum wheel, use neutral
synthetic detergent and water. Avoid using the
cleanser including abrasive, hard brushes or an au-
tomatic car washer.

Axial runout specification

Radial runout specification

1.0 mm (0.039 in)
