RS-5

REAR SUSPENSION

General Description

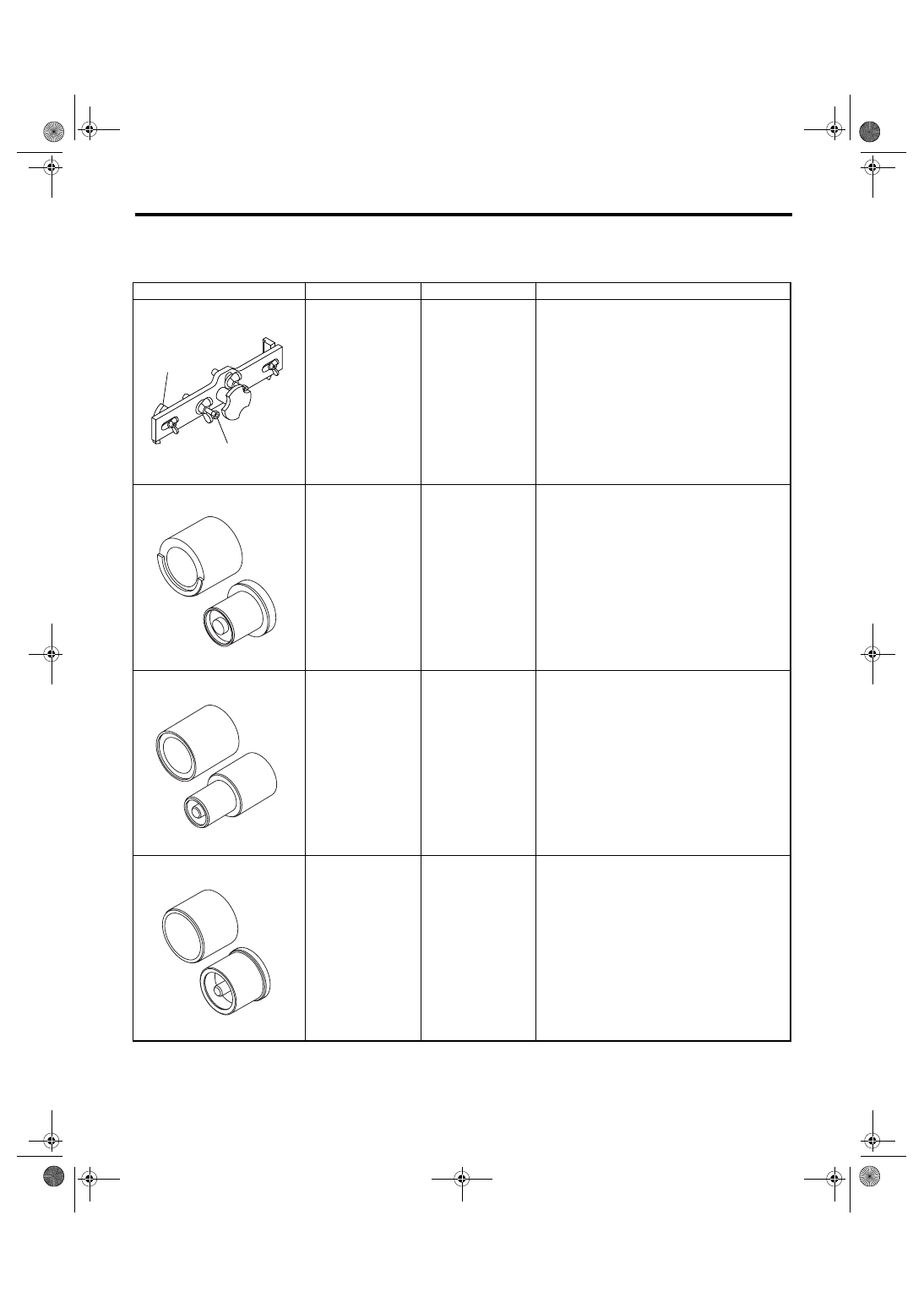

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

927380002

ADAPTER

Used for an adapter of camber & caster gauge
when measuring the camber and caster.
(1) 28199AC000 PLATE
(2) 28199AC010 BOLT

20099AE000

INSTALLER &
REMOVER

Used for replacing the rear link bushing.

20099AE010

INSTALLER &
REMOVER

Used for replacing the upper link bushing.

20099AE020

INSTALLER &
REMOVER SET

Used for replacing the rear arm front bushing.

(1)

(2)

ST-927380002

ST20099AE000

ST20099AE010

ST20099AE020

RS-6

REAR SUSPENSION

General Description

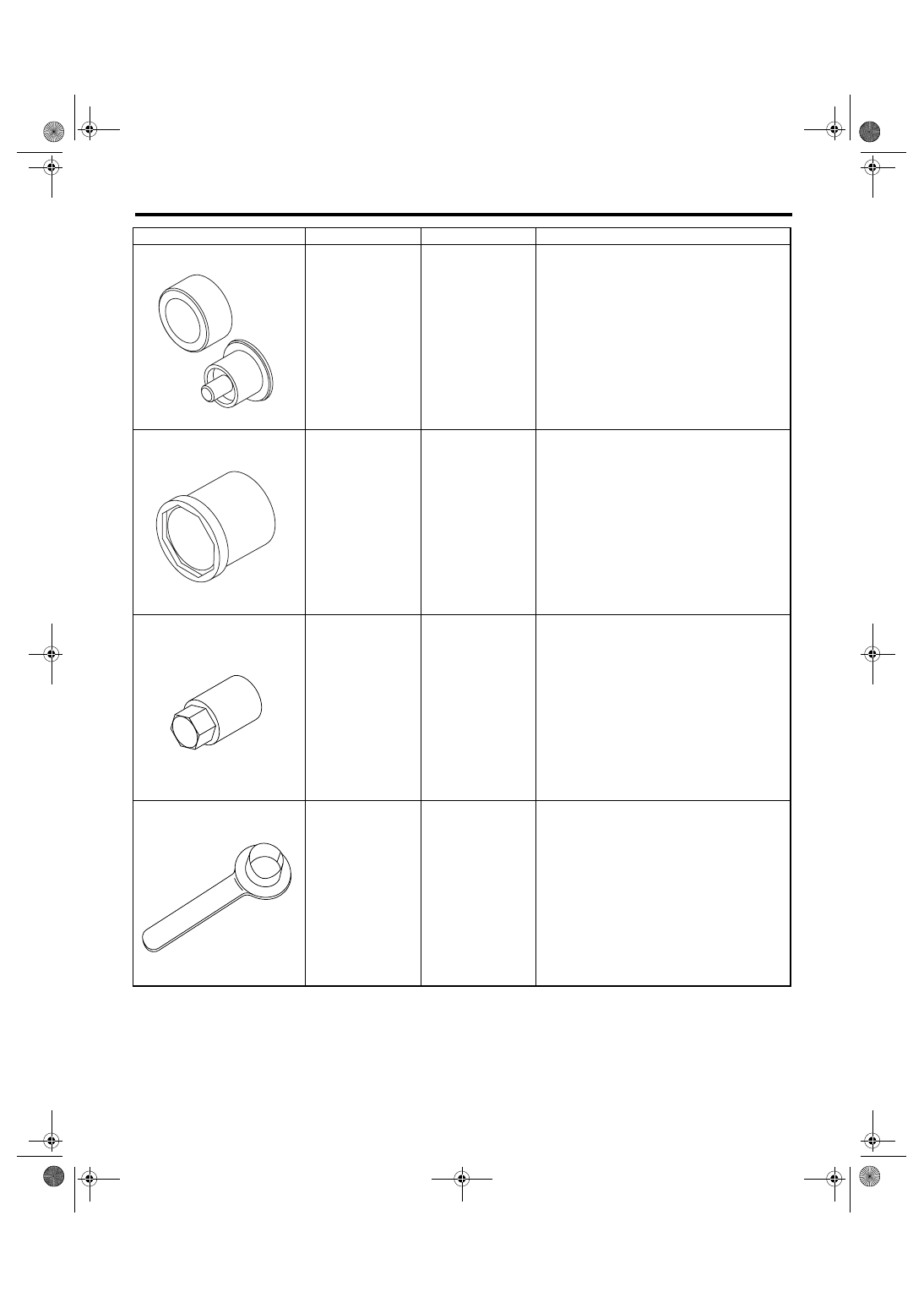

20099AE040

INSTALLER &
REMOVER SET

Used for replacing the rear arm rear bushing.

20099AE030

HELPER SOCKET
WRENCH

Used for replacing the helper.

20399AG000

STRUT MOUNT
SOCKET

Used for removing and installing the shock
mount.

28099PA090

OIL SEAL PROTEC-
TOR

• Used for installing the rear drive shaft to rear
differential.
• For oil seal protection

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST20099AE040

ST20099AE030

ST20399AG000

ST28099PA090

RS-7

REAR SUSPENSION

General Description

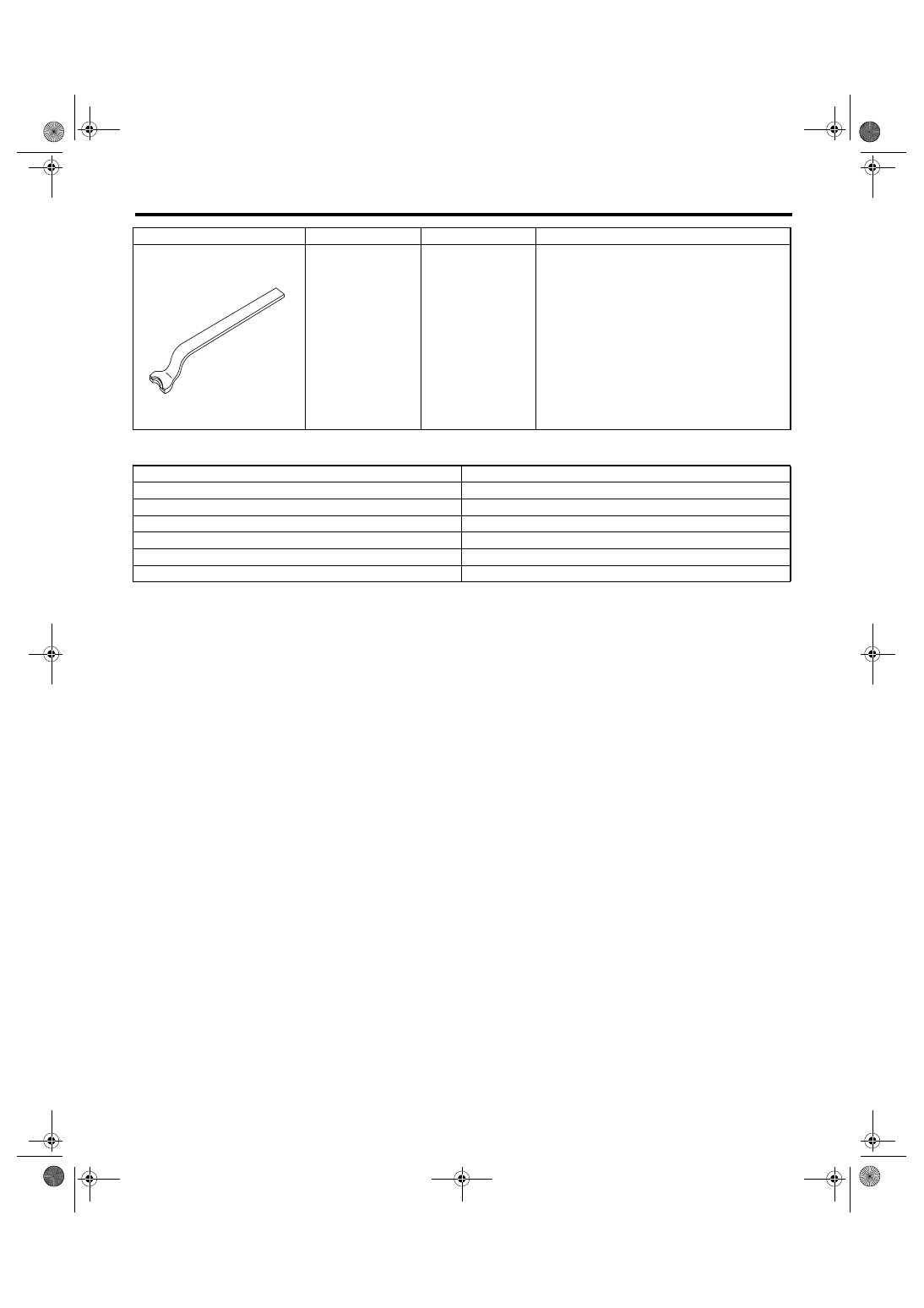

2. GENERAL TOOL

28099PA100

REMOVER

Used for removal of DOJ.

TOOL NAME

REMARKS

Alignment gauge

Used for wheel alignment measurement.

Turning radius gauge

Used for wheel alignment measurement.

Toe-in gauge

Used for toe-in measurement.

Transmission jack

Used for removing and installing suspension.

Bearing puller

Used for removing bushings.

Coil spring compressor

Used for disassembling and assembling shock absorber.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST28099PA100

RS-8

REAR SUSPENSION

Wheel Alignment

2. Wheel Alignment

A: INSPECTION

NOTE:
Measure and adjust the front and rear wheel align-
ment at a time. Refer to “FS” section for measure-
ment and adjustment of wheel alignment. <Ref. to
FS-7, INSPECTION, Wheel Alignment.>
