6MT-15

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

498515700

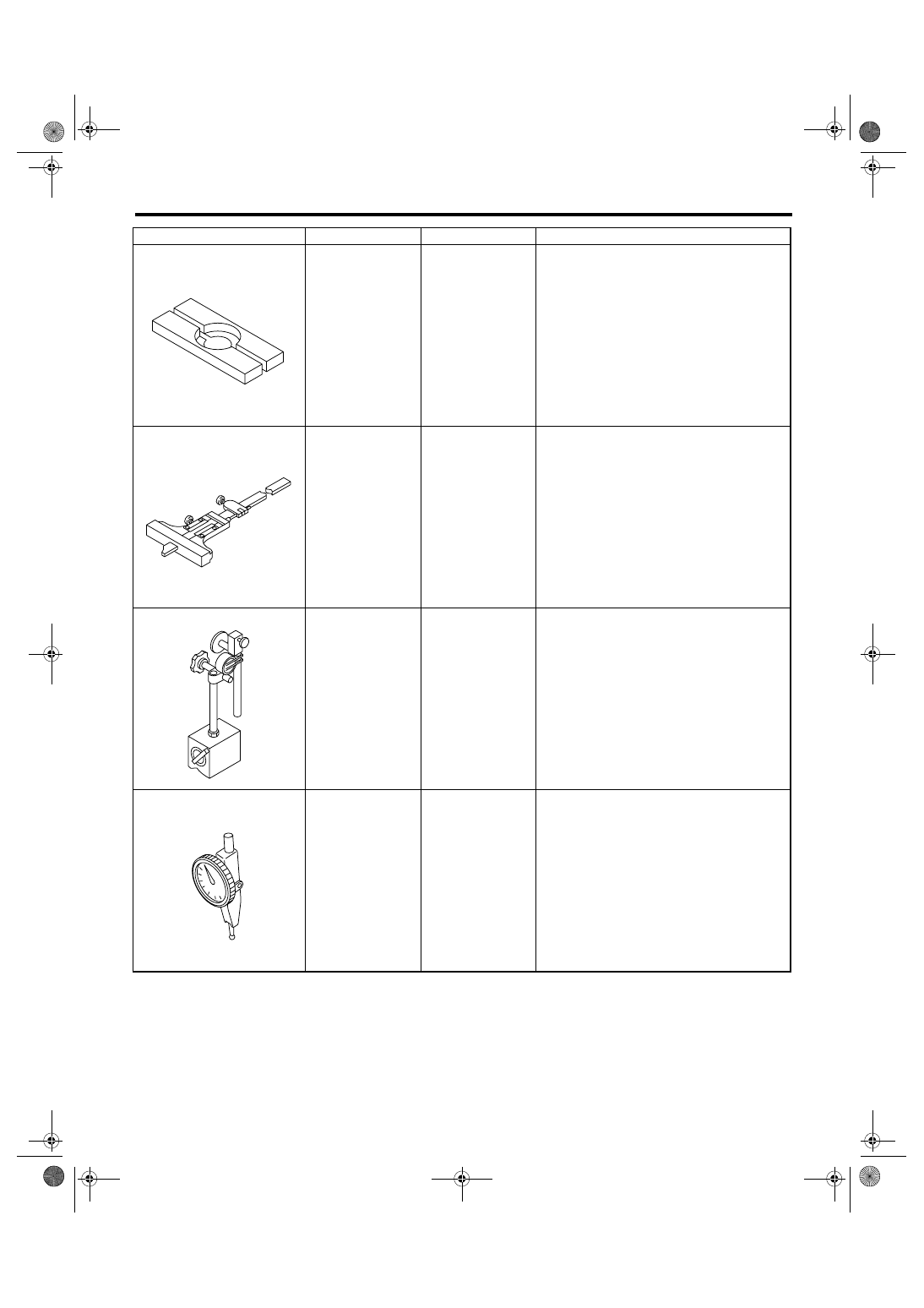

REMOVER

Used for removing roller bearing of drive pinion
shaft.

498147000

DEPTH GAUGE

Used for adjusting main shaft axial end play.

498247001

MAGNET BASE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with DIAL GAUGE (498247100).

498247100

DIAL GAUGE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used with MAGNET BASE (498247001).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498515700

ST-498147000

ST-498247001

ST-498247100

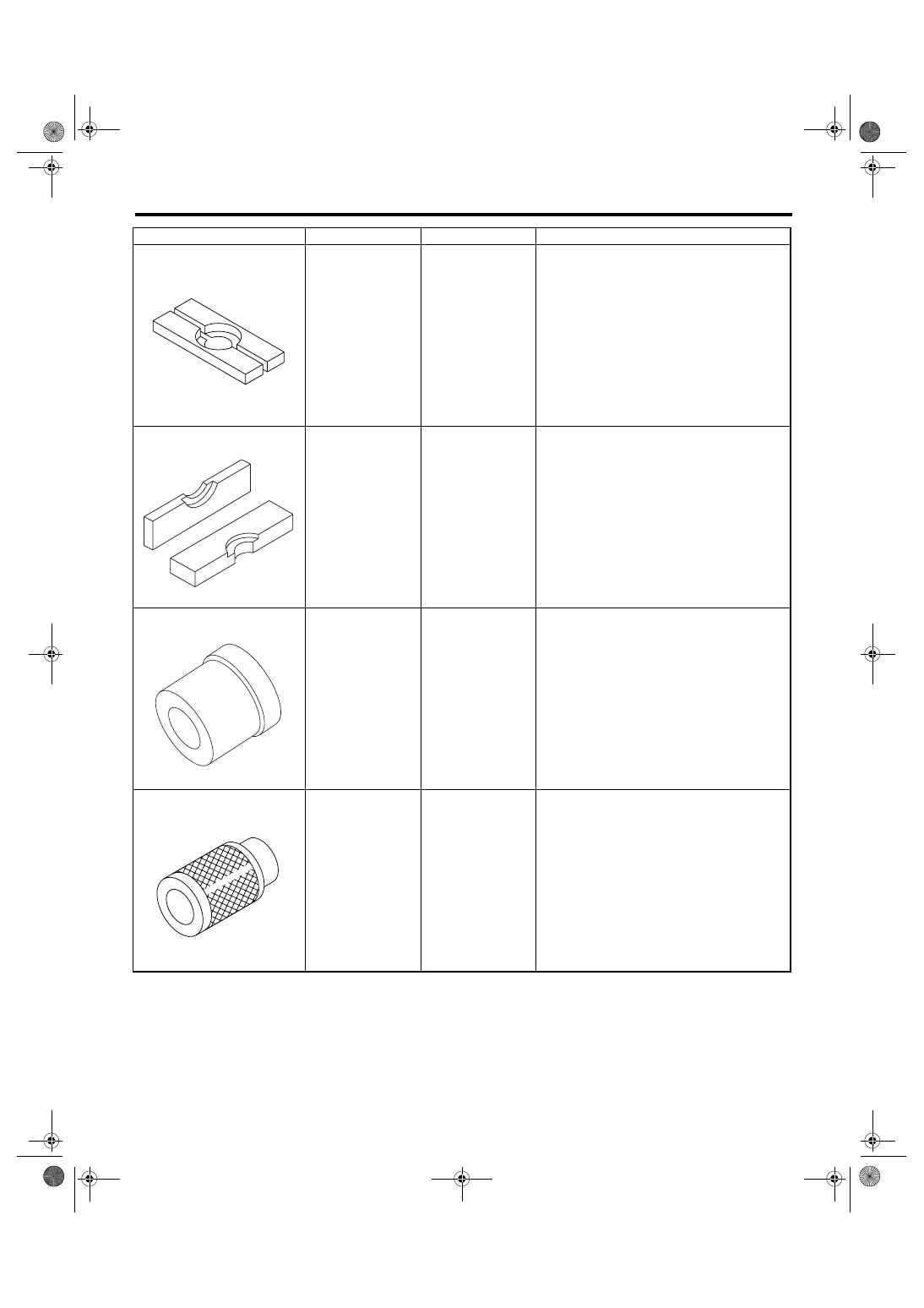

6MT-16

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

498077000

REMOVER

Used for removing differential taper roller bear-
ing.

899858600

REMOVER

Used for removing roller bearing.

399513600

INSTALLER

Used for installing oil seal.

499757002

INSTALLER

Used for installing bearing cone of transfer
driven gear (extension core side).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498077000

ST-899858600

ST-399513600

ST-499757002

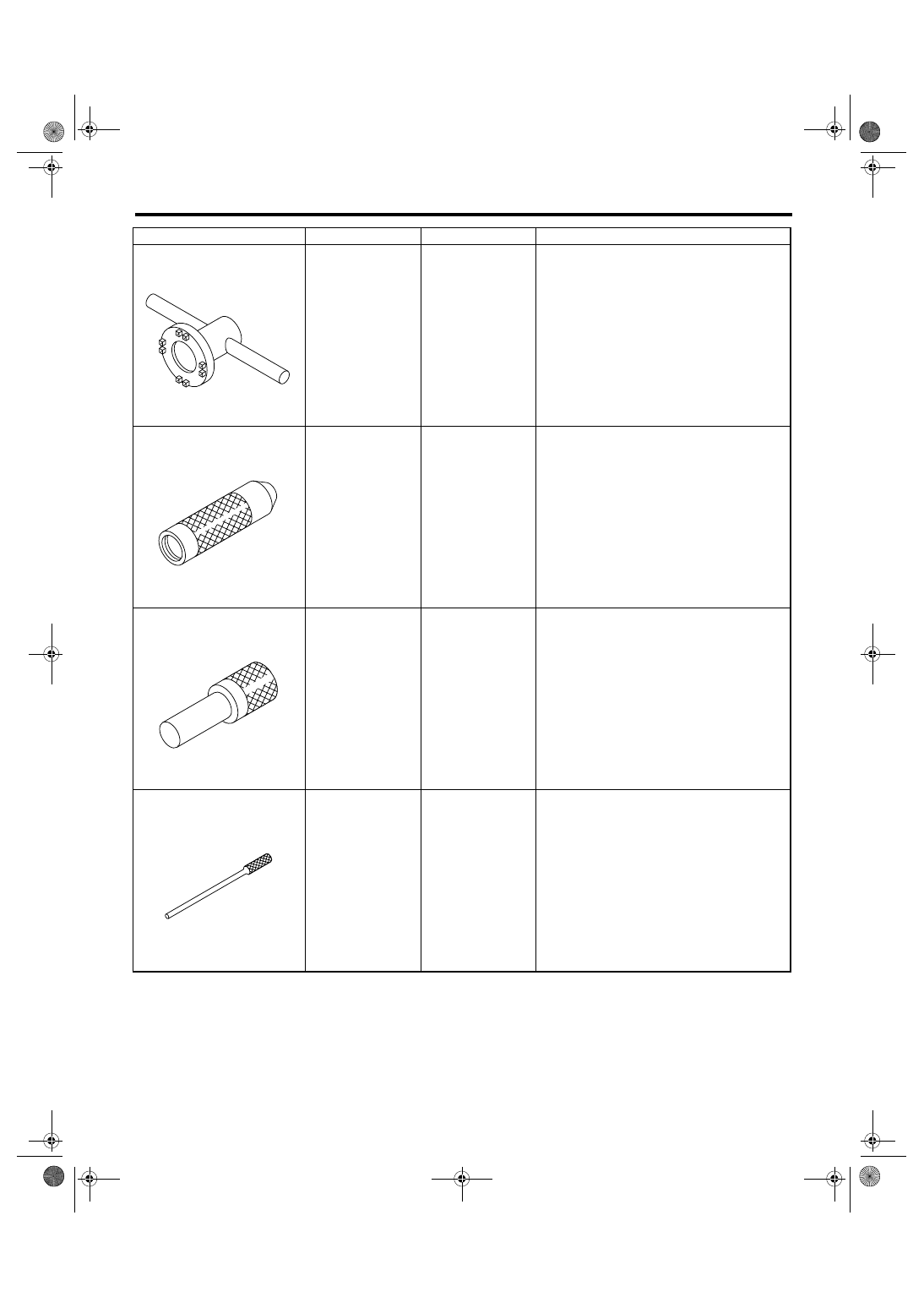

6MT-17

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

499787000

WRENCH ASSY

Used for removing and installing differential side
retainer.

499877000

RACE 4-5
INSTALLER

Used for disassembling driven shaft and transfer
driven gear.

899864100

REMOVER

Used for removing parts on transmission main
shaft and drive pinion.

899904100

REMOVER

Used for removing and installing straight pin.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499787000

ST-499877000

ST-899864100

ST-899904100

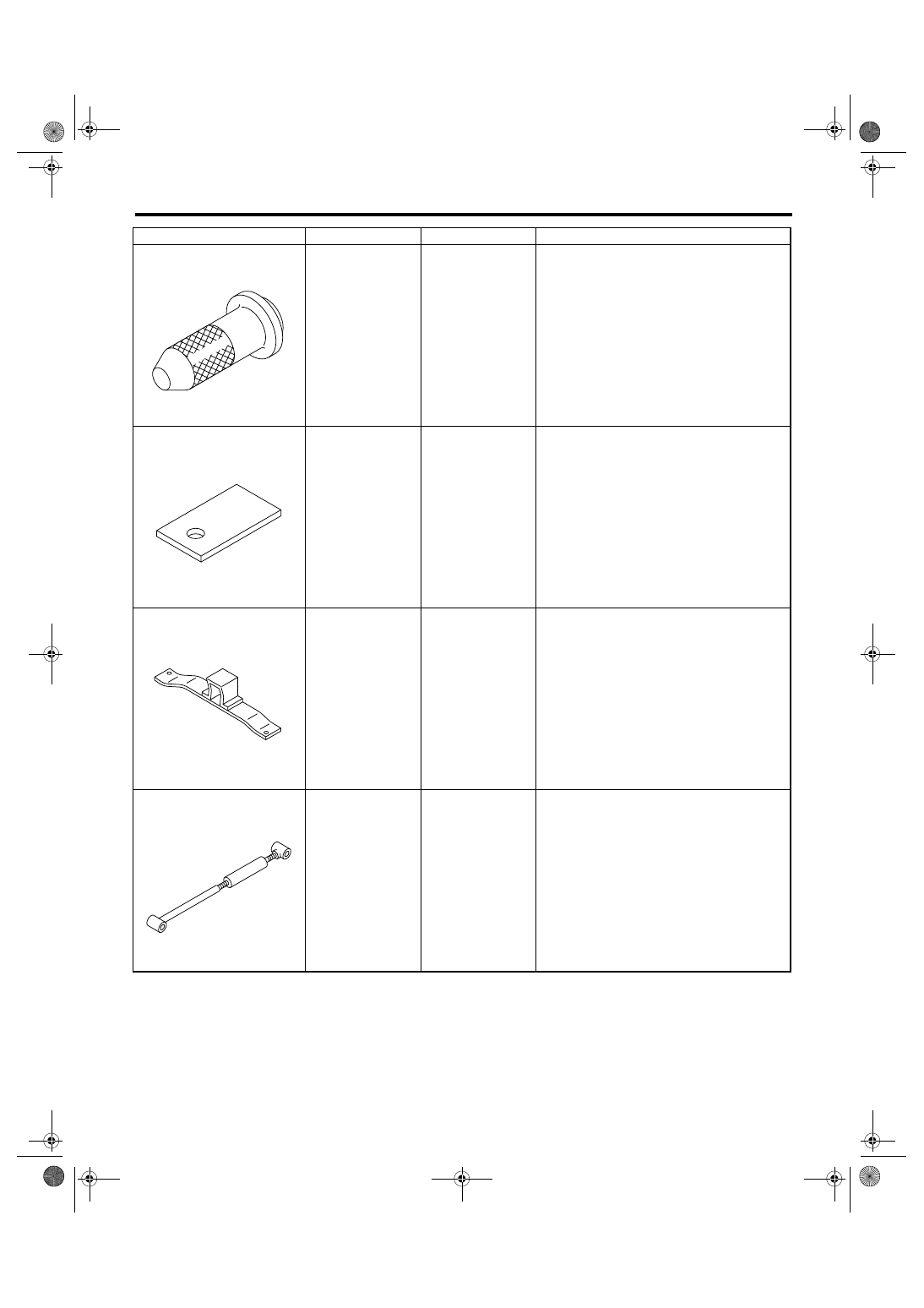

6MT-18

MANUAL TRANSMISSION AND DIFFERENTIAL

General Description

498057300

INSTALLER

Used for installing extension oil seal.

498255400

PLATE

Used for measuring backlash.

41099AA010

ENGINE SUPPORT
BRACKET

Used for supporting engine.

41099AA020

ENGINE SUPPORT

Used for supporting engine.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498057300

ST-498255400

ST41099AA010

ST41099AA020
