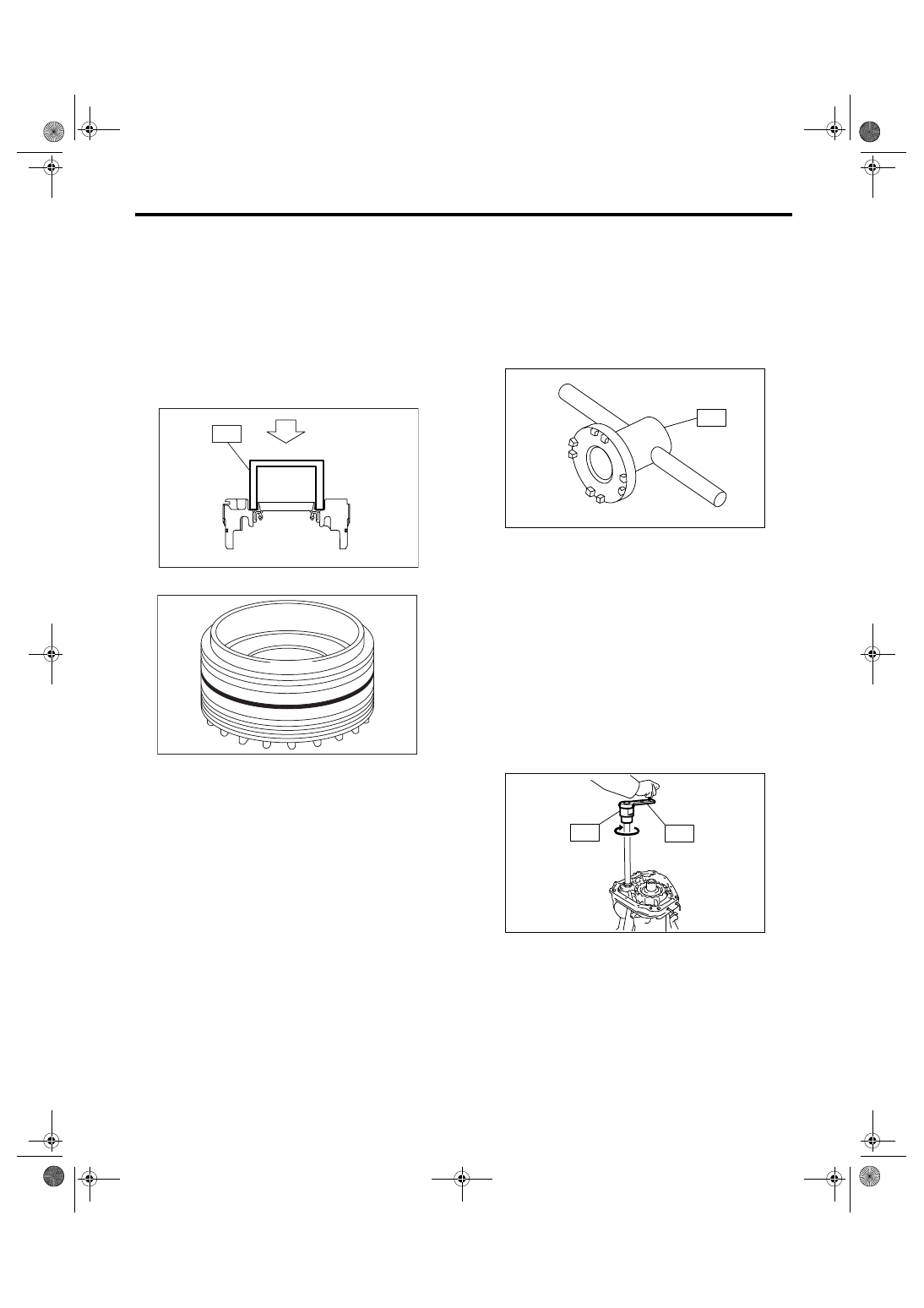

5AT-95

AUTOMATIC TRANSMISSION

Front Differential Assembly

2. SIDE RETAINER

NOTE:
Install the oil seal and O-ring of side retainer after
the adjustment of backlash and tooth contact.
1) Install the bearing outer race to side retainer.
2) Install a new oil seal using ST.
ST

18675AA000

DIFFERENTIAL SIDE OIL
SEAL INSTALLER

NOTE:
Apply oil to the oil seal lips.

3) Install a new O-ring.

E: INSPECTION

• Check each component for scratches, damage
or other faults.
• Measure the backlash, and then adjust it within
specification.
<Ref. to 5AT-95, ADJUSTMENT, Front Differential
Assembly.>

F: ADJUSTMENT

1) Using the ST, screw-in the retainer until resis-
tance is felt.

NOTE:
Screw-in the RH side slightly deeper than the LH
side.
ST

18630AA010

WRENCH COMPL RETAIN-
ER

2) Remove the oil pump cover.
3) Remove the liquid gasket from the mating sur-
face completely.
4) Install the oil pump cover to converter case, and
secure them with tightening four bolts evenly.

NOTE:
Use an old gasket or aluminum washer so as not to
damage the mating surface of housing.

Tightening torque:

41 N

⋅

m (4.2 kgf-m, 30.2 ft-lb)

5) Rotate the drive pinion ten times or more using
ST1 and ST2.
ST1

18667AA010 HOLDER

ST2

499787700

WRENCH

AT-00226

ST

AT-00219

AT-00227

ST

AT-01985

ST2

ST1

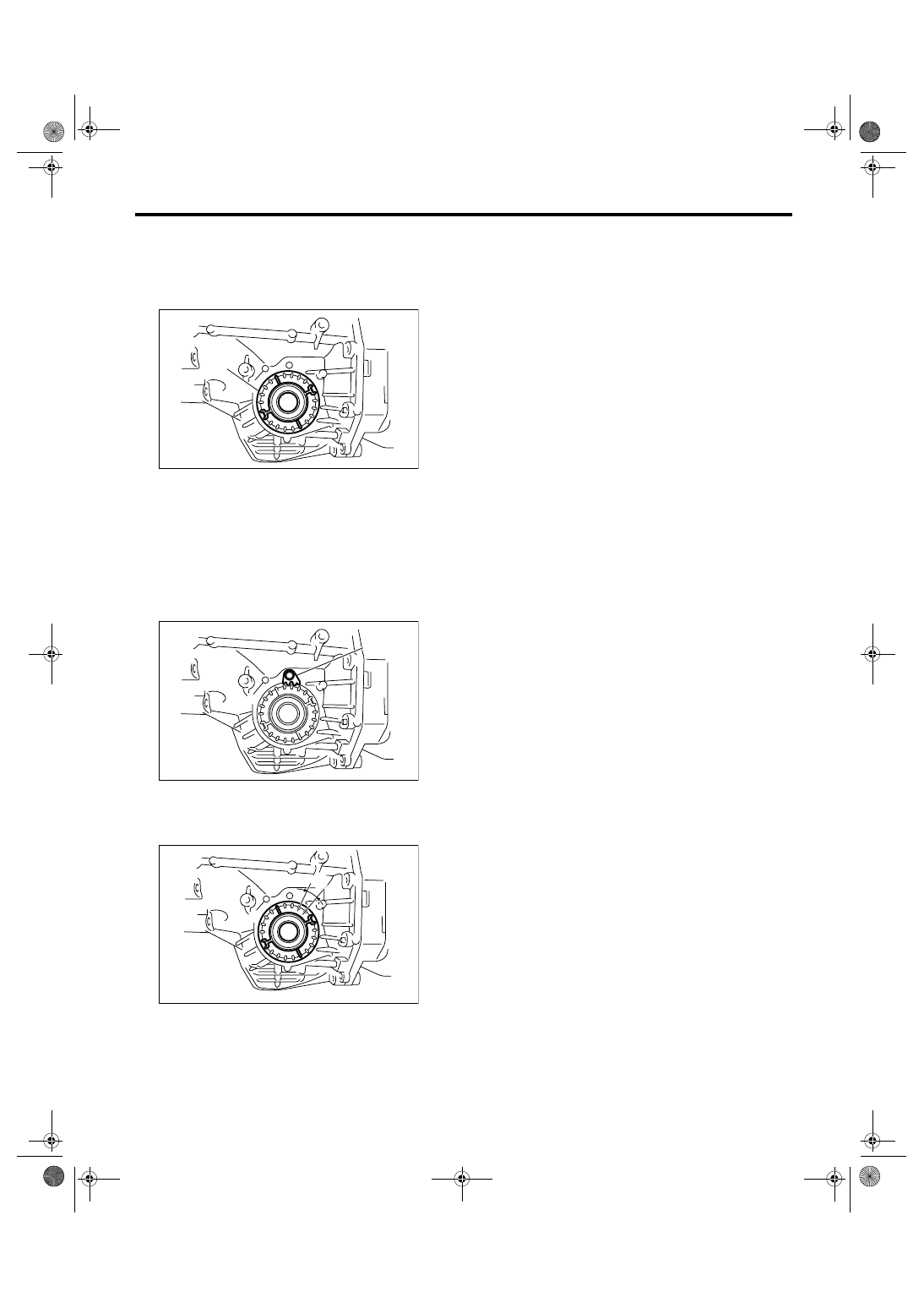

5AT-96

AUTOMATIC TRANSMISSION

Front Differential Assembly

6) Tighten the retainer LH by rotating the shaft until
resistance is felt. Then loosen the retainer RH.
Keep tightening the retainer LH, and loosening the
retainer RH until the pinion shaft no longer be
turned. This is to the “zero” state.

7) After the “zero” state is established, back off the
retainer LH three notches and secure it with the
lock plate (A). Then back off the retainer RH and re-
tighten until it stops. Rotate the drive pinion two to
three times. Tighten the retainer RH further 1-3/4
notches. This sets the preload. Finally, secure the
retainer with its lock plate.

NOTE:
Turning the retainer by one tooth changes the
backlash approx. 0.05 mm (0.0020 in).

8) Turn the drive pinion several times using ST1,
and check to see if the backlash is within the spec-
ification using ST2, ST3, ST4 and ST5.
ST1

499787700

WRENCH

ST2

498247001

MAGNET BASE

ST3

498247100

DIAL GAUGE

ST4

499787500

ADAPTER

ST5

498255400

PLATE

Backlash:

0.13 — 0.18 mm (0.0051 — 0.0071 in)

9) Adjust the tooth contact between front differen-
tial and drive shaft. <Ref. to 5AT-89, ADJUST-
MENT, Drive Pinion Shaft Assembly.>

(A) Retainer

(A) 0.05 mm (0.0020 in)

AT-01986

(A)

AT-01988

(A)

AT-01989

(A)

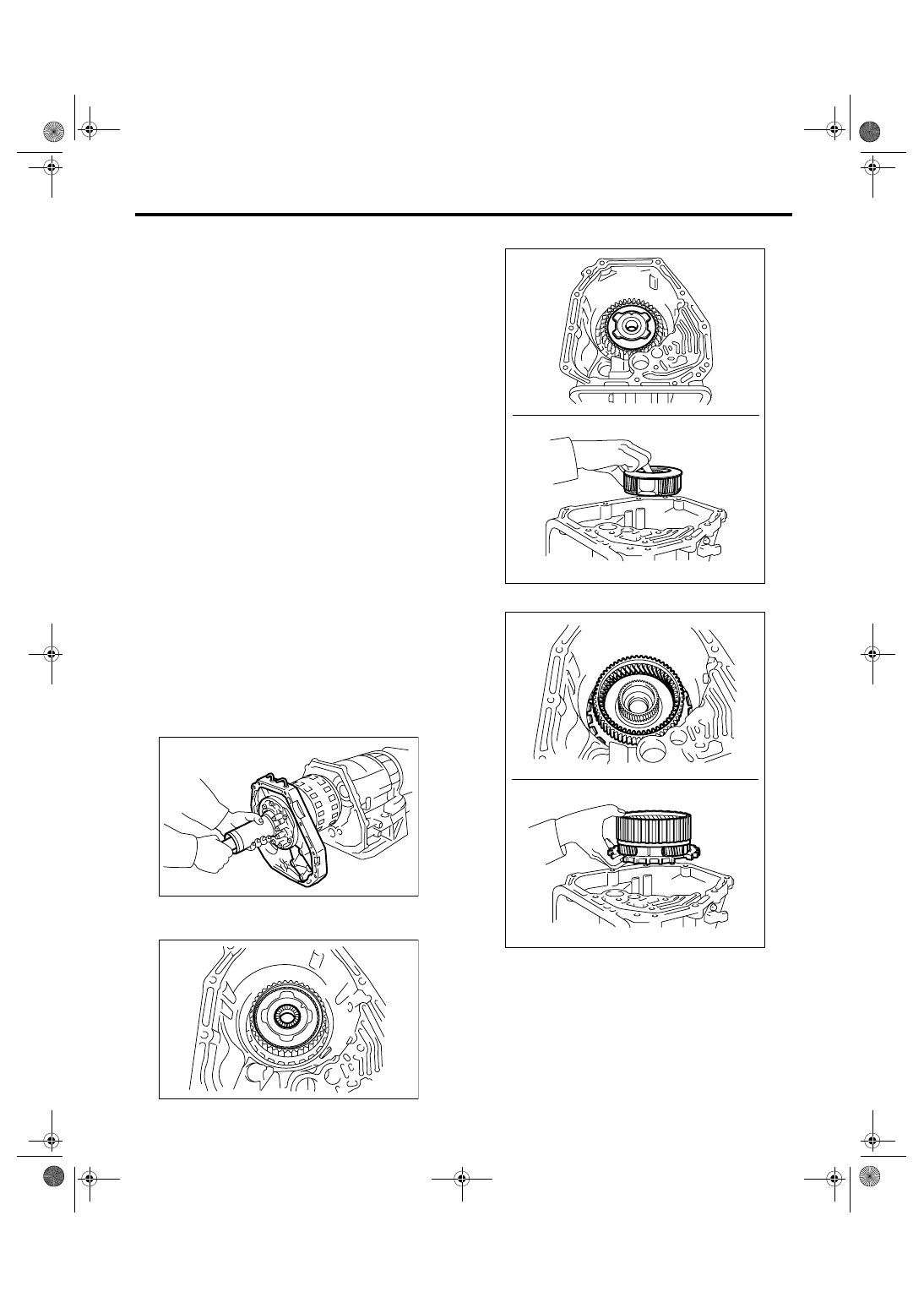

5AT-97

AUTOMATIC TRANSMISSION

AT Main Case

35.AT Main Case

A: REMOVAL

1) Remove the transmission assembly from vehi-
cle. <Ref. to 5AT-38, REMOVAL, Automatic Trans-
mission Assembly.>
2) Pull out the torque converter assembly. <Ref. to
5AT-70, REMOVAL, Torque Converter Assembly.>
3) Remove the transmission harness connector
from stay.
4) Disconnect the air breather hose.
5) Remove the oil charge pipe. <Ref. to 5AT-69,
REMOVAL, Oil Charge Pipe.>
6) Remove the ATF filter inlet and outlet pipes.
<Ref. to 5AT-60, REMOVAL, ATF Filter.>
7) Remove the extension case and intermediate
case. <Ref. to 5AT-71, REMOVAL, Extension
Case and Intermediate Case.>
8) Remove the center differential carrier. <Ref. to
5AT-78, REMOVAL, Center Differential Carrier.>
9) Remove the reduction driven gear. <Ref. to 5AT-
76, REMOVAL, Reduction Driven Gear.>
10) Separate the converter case and transmission
case. <Ref. to 5AT-82, REMOVAL, Converter
Case.>
11) Remove the control valve body. <Ref. to 5AT-
58, REMOVAL, Control Valve Body.>
12) Remove the oil pump cover.
<Ref. to 5AT-84, REMOVAL, Oil Pump Cover.>

NOTE:
The input clutch pack assembly and front sun gear
assembly are also removed together.

13) Remove the needle bearing of middle carrier
assembly.

14) Remove the middle carrier assembly.

15) Remove the rear carrier assembly.

AT-01990

AT-01991

AT-01992

AT-01993

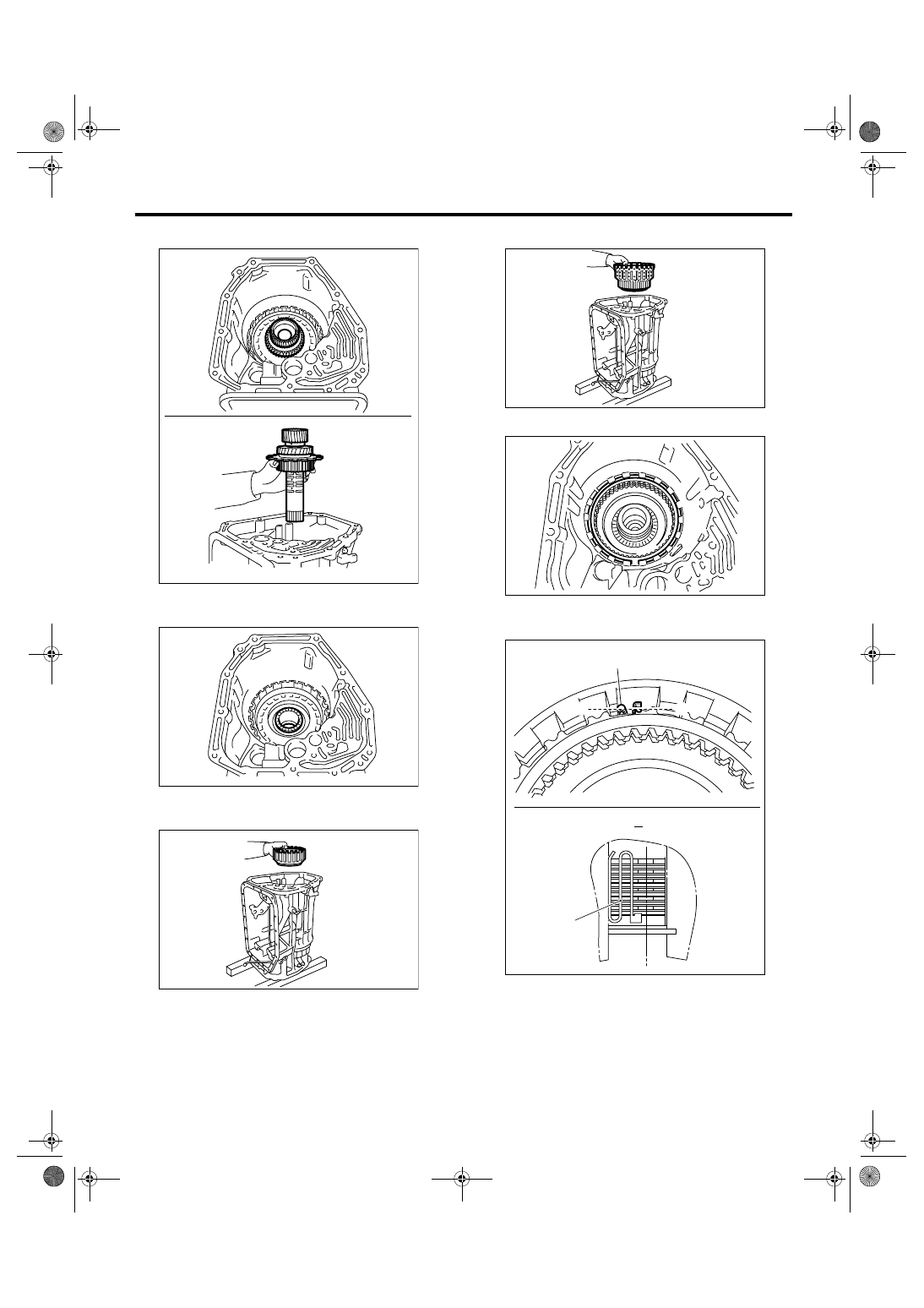

5AT-98

AUTOMATIC TRANSMISSION

AT Main Case

16) Remove the middle & rear sun gear assembly.

17) Remove the thrust needle bearing of high & low
reverse clutch.

18) Remove the high & low reverse clutch assem-
bly.

19) Remove the direct clutch assembly.

20) Remove the snap ring of reverse brake.

21) Remove the retaining plate.
22) Remove the leaf spring.

23) Take out the drive plate, driven plate and dish
plate.

AT-01994

AT-01995

AT-01996

(A) Leaf spring

AT-01997

AT-01998

AT-01999

(A)

B’

B

(A)

B’

B
