4AT(diag)-65

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

2

CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from TCM and
transmission.
3) Measure the resistance of harness
between TCM and transmission connector.

Connector & terminal

(B55) No. 5 — (B11) No. 12:

Is the resistance less than 1
Ω?

Go to step 3.

Repair the open
circuit of harness
between TCM and
transmission con-
nector.

3

CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
Measure the resistance of harness connector
between TCM connector and chassis ground.

Connector & terminal

(B55) No. 5 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 4.

Repair the short
circuit of harness
between TCM and
transmission con-
nector.

4

CHECK LOCK-UP DUTY SOLENOID.
Measure the resistance between transmission
connector receptacle’s terminals.

Connector & terminal

(T4) No. 12 — No. 20:

Is the resistance 2.0 — 6.0

Ω? Go to step 5.

Go to step 8.

5

CHECK OUTPUT SIGNAL EMITTED FROM
TCM USING SUBARU SELECT MONITOR.
1) Connect the connectors to TCM and trans-
mission.
2) Lift-up the vehicle.

NOTE:

Raise all wheels off floor.

3) Connect the Subaru Select Monitor to data
link connector.
4) Start the engine, and turn the Subaru
Select Monitor power switch to ON.
5) Start the engine and warm-up the engine
until the ATF temperature exceeds 80

°C

(176

°F).

NOTE:

If the ambient temperature is below 0

°C (32°F),

drive the vehicle until the ATF reaches its oper-
ating temperature.

6) Read the data of lock-up duty solenoid
using Subaru Select Monitor.
• Lock-up duty solenoid is indicated in “%”.
7) Shift the select lever to “D”, and slowly
increase vehicle speed to 60 km/h (37 MPH).

NOTE:

The speed difference between front and rear
wheels may light the ABS warning light or VDC
warning light, but this indicates no malfunction.
When AT control diagnosis is finished, perform
the ABS memory clearance procedure or VDC
memory clearance procedure of on-board diag-
nostics system. <Ref. to ABS(diag)-26, Clear
Memory Mode.> <Ref. to VDC(diag)-25, Clear
Memory Mode.>

Is the value 95%?

Go to step 6.

Go to step 7.

Step

Check

Yes

No

4AT(diag)-66

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

6

CHECK OUTPUT SIGNAL EMITTED FROM
TCM USING SUBARU SELECT MONITOR.
Return the engine to idling speed, shift the
select lever to “N” range and read the data.

NOTE:

The speed difference between front and rear
wheels may light the ABS warning light or VDC
warning light, but this indicates no malfunction.
When AT control diagnosis is finished, perform
the ABS memory clearance procedure or VDC
memory clearance procedure of on-board diag-
nostics system. <Ref. to ABS(diag)-26, Clear
Memory Mode.> <Ref. to VDC(diag)-25, Clear
Memory Mode.>

Is the value 5%?

Even if the SPORT
indicator light is
blinking, the cir-
cuit has returned
to normal condi-
tion at this time. A
temporary poor
contact of connec-
tor or harness may
be the cause.
Repair the har-
ness or connector
in TCM and trans-
mission.

Go to step 7.

7

CHECK POOR CONTACT.

Is there poor contact in lock-up
duty solenoid circuit?

Repair the poor
contact.

Replace the TCM.
<Ref. to 4AT-66,
Transmission Con-
trol Module
(TCM).>

8

CHECK LOCK-UP DUTY SOLENOID (IN
TRANSMISSION).
1) Disconnect the transmission connector.
2) Drain the ATF.

CAUTION:

Do not drain ATF until it cools down.

3) Remove the oil pan, and disconnect the
connector from control valve body.
4) Measure the resistance between lock-up
duty solenoid and transmission ground.

Connector & terminal

(AT3) No. 4 — Transmission ground:

Is the resistance 2.0 — 6.0

Ω? Go to step 9.

Replace the con-
trol valve body.
<Ref. to 4AT-62,
Control Valve
Body.>

9

CHECK HARNESS CONNECTOR BETWEEN
LOCK-UP DUTY SOLENOID AND TRANS-
MISSION.
Measure the resistance of harness between
lock-up duty solenoid and transmission con-
nector.

Connector & terminal

(T4) No. 12 — (AT3) No. 4:

Is the resistance less than 1
Ω?

Go to step 10.

Repair the open
circuit of harness
between TCM and
transmission con-
nector.

10

CHECK HARNESS CONNECTOR BETWEEN
LOCK-UP DUTY SOLENOID AND TRANS-
MISSION.
Measure the resistance of harness between
transmission connector and transmission
ground.

Connector & terminal

(T4) No. 12 — Transmission ground:

Is the resistance more than 1
M

Ω?

Even if the SPORT
indicator light is
blinking, the cir-
cuit has returned
to normal condi-
tion at this time. A
temporary poor
contact of connec-
tor or harness may
be the cause.
Repair the har-
ness or connector
in lock-up duty
solenoid and
transmission.

Repair the short
circuit of harness
between lock-up
duty solenoid and
transmission con-
nector.

Step

Check

Yes

No

4AT(diag)-67

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

P: DTC P0748 PRESSURE CONTROL SOLENOID “A” ELECTRICAL

DTC DETECTING CONDITION:
Output signal circuit of line pressure linear solenoid is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock

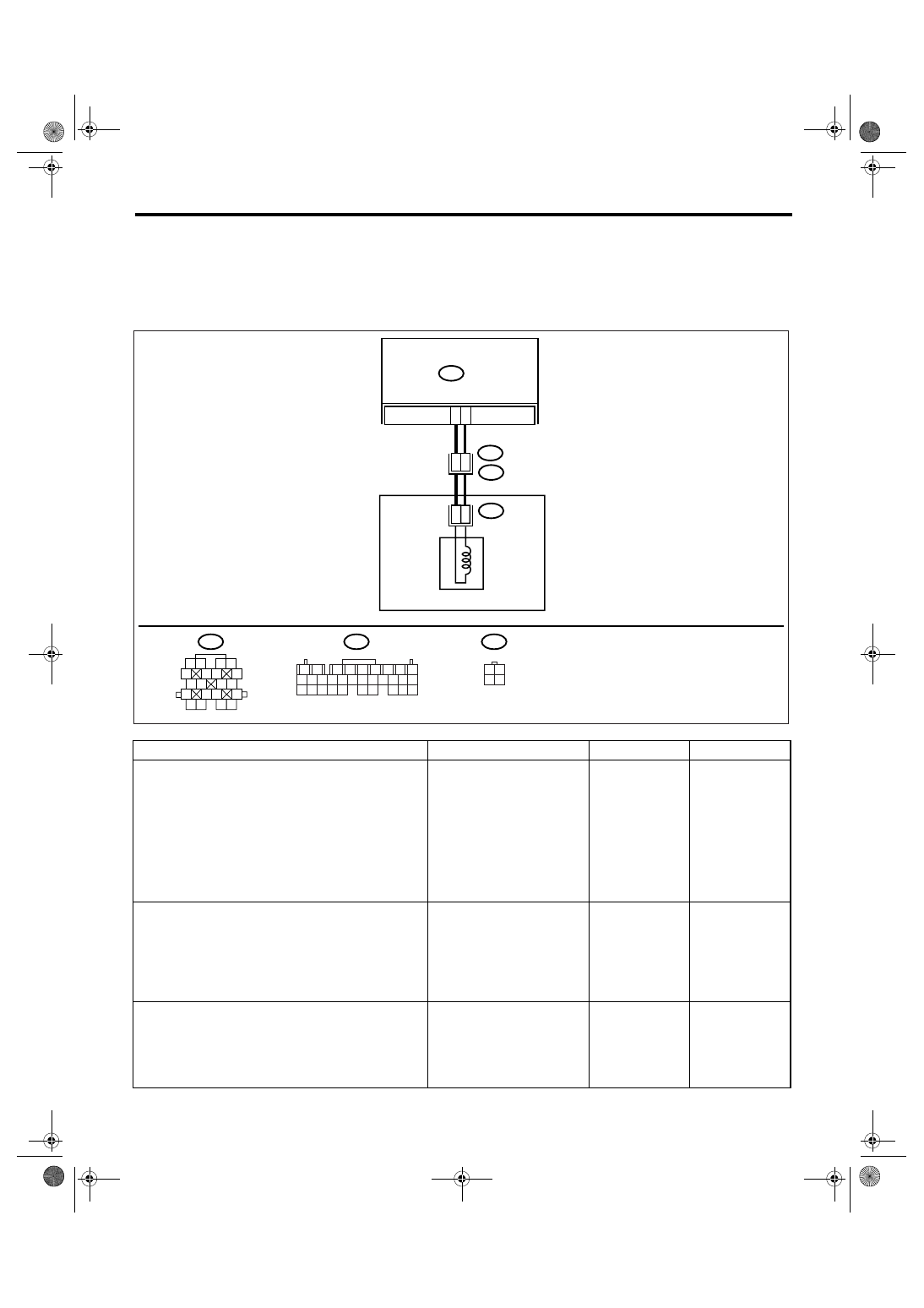

WIRING DIAGRAM:

Step

Check

Yes

No

1

CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from transmis-
sion and TCM.
3) Measure the resistance of harness
between TCM and transmission connector.

Connector & terminal

(B55) No. 19 — (B11) No. 2:
(B55) No. 20 — (B11) No. 1:

Is the resistance less than 1
Ω?

Go to step 2.

Repair the open
circuit of harness
between TCM and
transmission con-
nector.

2

CHECK HARNESS CONNECTOR BETWEEN
TCM AND CHASSIS GROUND.
Measure the resistance of harness between
TCM connector and chassis ground.

Connector & terminal

(B55) No. 19 — Chassis ground:
(B55) No. 20 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 3.

Repair the short
circuit of harness
between TCM and
transmission con-
nector.

3

CHECK LINE PRESSURE LINEAR SOLE-
NOID.
Measure the resistance between transmission
connector receptacle’s terminals.

Connector & terminal

(T4) No. 1 — No. 2:

Is the resistance 4 — 8

Ω?

Repair the TCM.
<Ref. to 4AT-66,
Transmission Con-
trol Module
(TCM).>

Go to step 4.

AT-01486

19

B55

B11

AT2

T4

TCM

B11

1

2

3 4

5

6 7

8

9

13

14 15

20

19

17

16

10

11 12

18

42

20

21

B55

AT2

1

2

7

8

9

5

6

3

4

10 11 12

19 20 21

29 30 31

13 14 15 16 17

27 28

18

22 23 24 25 26

3 4

1 2

TRANSMISSION

LINE
PRESSURE
LINEAR
SOLENOID

4AT(diag)-68

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

4

CHECK LINE PRESSURE LINEAR SOLE-
NOID (IN TRANSMISSION).
1) Remove the transmission connector from
bracket.
2) Drain the ATF.

CAUTION:

Do not drain ATF until it cools down.

3) Remove the oil pan, and disconnect the
connector from control valve body.
4) Measure the resistance between line pres-
sure linear solenoid connector terminals.

Connector & terminal

(AT2) No. 2 — No. 4:

Is the resistance 4 — 8

Ω?

Go to step 5.

Replace the con-
trol valve body.
<Ref. to 4AT-62,
Control Valve
Body.>

5

CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND LINE PRESSURE LIN-
EAR SOLENOID.
Measure the resistance of harness between
line pressure linear solenoid and transmission
connector.

Connector & terminal

(T4) No. 2 — (AT2) No. 4:
(T4) No. 1 — (AT2) No. 2:

Is the resistance less than 1
Ω?

Go to step 6.

Repair the open
circuit of harness
between line pres-
sure linear sole-
noid and
transmission con-
nector.

6

CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND LINE PRESSURE LIN-
EAR SOLENOID.
Measure the resistance of harness between
transmission connector and transmission
ground.

Connector & terminal

(T4) No. 1 — Transmission ground:
(T4) No. 2 — Transmission ground:

Is the resistance more than 1
M

Ω?

Even if the SPORT
indicator light is
blinking, the cir-
cuit has returned
to normal condi-
tion at this time. A
temporary poor
contact of connec-
tor or harness may
be the cause.
Repair the har-
ness or connector
in line pressure lin-
ear solenoid and
transmission.

Repair the short
circuit of harness
between line pres-
sure linear sole-
noid and
transmission con-
nector.

Step

Check

Yes

No
