4AT(diag)-49

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

E: DTC P0719 TORQUE CONVERTER/BRAKE SWITCH “B” CIRCUIT LOW

DTC DETECTING CONDITION:
Brake switch malfunction, open input signal circuit
TROUBLE SYMPTOM:
• Gear is not shifted down when driving a down hill.
• The neutralizing control does not operate.

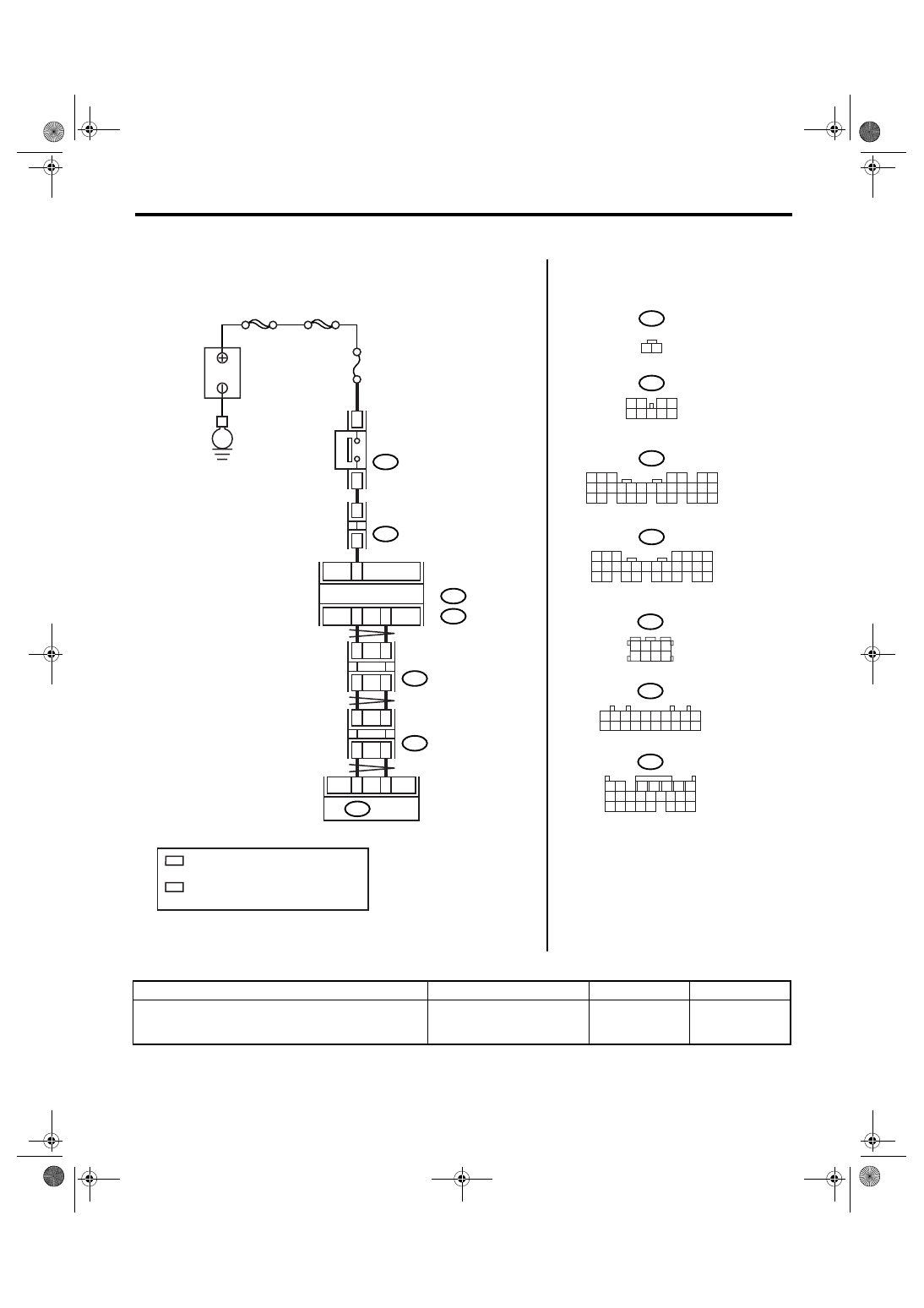

WIRING DIAGRAM:
• LHD model

AT-03158

B159

2

1

3 4
8 9

7

6

5

B280

8

7

6

5

4

3

2

1

22

23

21

20

19

16

15

14

13

12

11

10

9

17

30

18

29

28

27

26

25

24

B281

8

7

6

5

4

3

2

1

21

22

20

19

16

15

14

13

12

11

10

9

17 18

28

27

26

25

24

23

B64

2

1

B54

8

3

4

5

6

7

2

1

18 19 20

17

16

15

14

13

12

11

10

9

24

23

22

21

C:

B:

B159

B280

B:

B281

C:

C23

B20

B30

3

5

9

MAIN SBF

SBF-2

No.8

E

B

A

TTER

Y

STOP LIGHT
SWITCH

JOINT
CONNECTOR

BODY INTEGRATED
MODULE

3

12

TCM

B54

2

4

5

7

B352

JOINT
CONNECTOR

B355

JOINT
CONNECTOR

2

WC

WC

1

OC

2

OC

: WITHOUT CRUISE CONTROL

: WITH CRUISE CONTROL

OC

WC

OC

WC

:

:

B64

B65

1

2

3

4

B65

1 2 3 4
5 6 7 8

B54

B355

B352

OC

WC

:

:

1

*

: TERMINAL No. RANDOM ARRANGEMENT
  AMONG 1,2,5, AND 6

2

*

: TERMINAL No. RANDOM ARRANGEMENT
  AMONG 3,4,7, AND 8

2

*

2

*

1

*

1

*

4AT(diag)-50

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

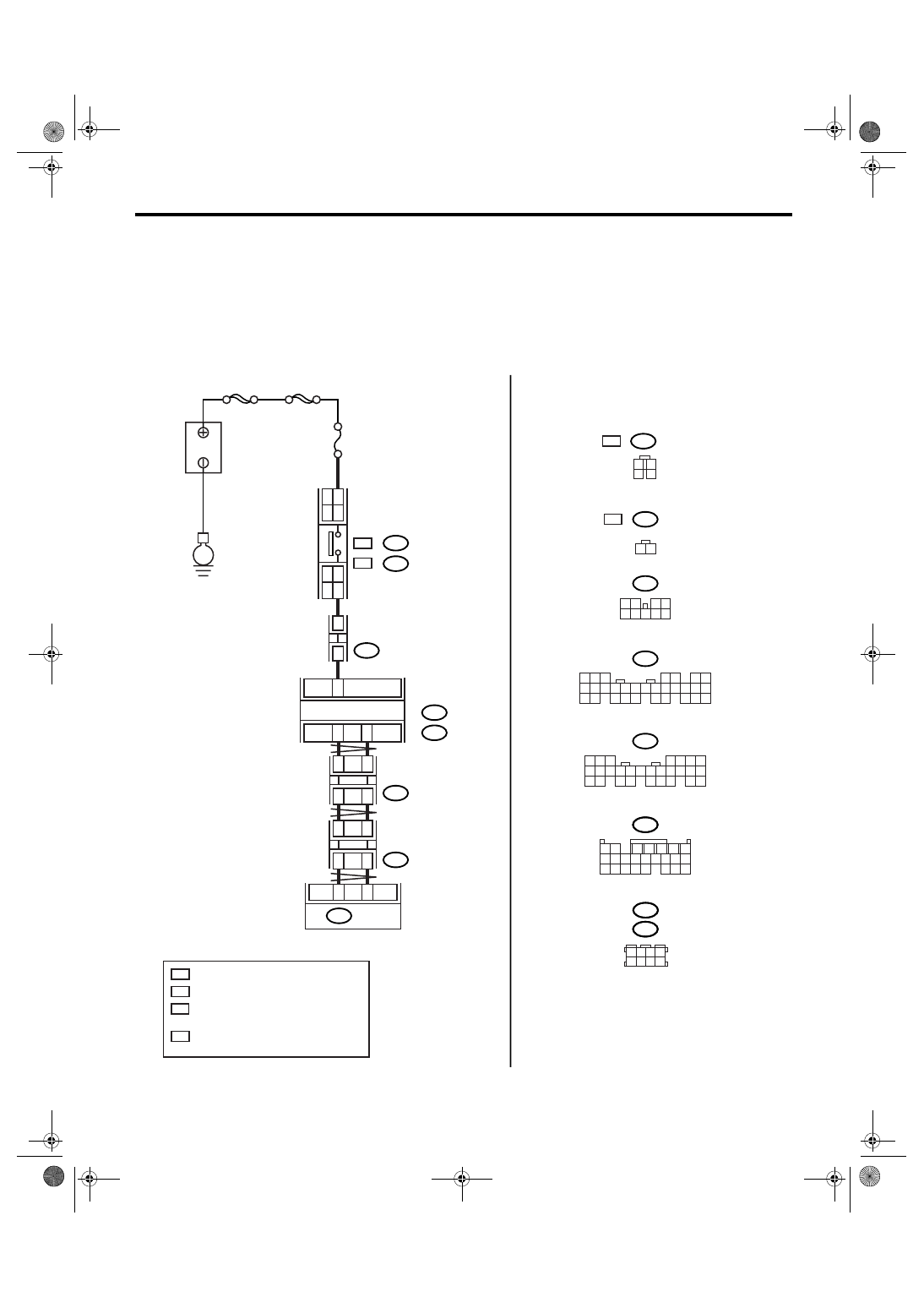

• RHD model

Step

Check

Yes

No

1

CHECK DTC.

Does the DTC of CAN commu-
nication appear in the on-board
diagnostics test mode?

Perform the diag-
nosis according to
DTC.

Go to step 2.

AT-03159

B64

B159

B280

B:

B281

C:

C23

B20

B30

8

B352

2

4

B53

B352

B53

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

B54

8

3

4

5

6

7

2

1

18 19 20

17

16

15

14

13

12

11

10

9

24

23

22

21

2

5

1

9

3

12

TCM

B54

MAIN SBF

SBF-2

No.8

E

B

A

TTER

Y

STOP LIGHT
SWITCH

JOINT
CONNECTOR

JOINT
CONNECTOR

JOINT
CONNECTOR

BODY INTEGRATED
MODULE

2

1

3 4

8

7

6

5

B159

2

1

3 4
8 9

7

6

5

B280

8

7

6

5

4

3

2

1

22

23

21

20

19

16

15

14

13

12

11

10

9

17

30

18

29

28

27

26

25

24

B281

8

7

6

5

4

3

2

1

21

22

20

19

16

15

14

13

12

11

10

9

17 18

28

27

26

25

24

23

B64

2

1

C:

B:

6

2

*

2

*

1

*

1

*

1

*

: TERMINAL No. RANDOM ARRANGEMENT
  AMONG 8,18, AND 19

2

*

 : TERMINAL No. RANDOM ARRANGEMENT
   AMONG 9,10, AND 20

4AT(diag)-51

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

2

CHECK FUSE.
1) Turn the ignition switch to OFF.
2) Remove the fuse (No. 8).

Is the fuse (No. 8) blown out?

Replace the fuse
(No. 8). If the
replaced fuse (No.
8) has blown out
easily, repair the
short circuit of har-
ness between fuse
(No. 8) and stop
light switch.

Go to step 3.

3

CHECK BODY INTEGRATED MODULE.
1) Turn the ignition switch to OFF.
2) Connect the Subaru Select Monitor to data
link connector.
3) Turn the ignition switch to ON. (engine
OFF)
4) Turn the Subaru Select Monitor power
switch to ON.
5) Depress the brake pedal.
6) Read the data of brake pedal switch using
Subaru Select Monitor. <Ref. to LAN(diag)-14,
OPERATION, Subaru Select Monitor.>

Is ON displayed?

Go to step 4.

Go to step 5.

4

CHECK TCM.
Read the data of brake pedal switch using
Subaru Select Monitor. <Ref. to 4AT(diag)-16,
OPERATION, Subaru Select Monitor.>

Is ON displayed?

A temporary poor
contact of connec-
tor or harness may
be the cause.
Check the poor
contact.

Replace the TCM.
<Ref. to 4AT-66,
Transmission Con-
trol Module
(TCM).>

5

CHECK BODY INTEGRATED MODULE IN-
PUT SIGNAL.
1) Depress the brake pedal.
2) Disconnect the connector from body inte-
grated module.
3) Measure the voltage of harness between
body integrated module and stop light switch.

Connector & terminal

LHD model (With cruise control)

(B281) No. 23 (+) — (B65) No. 3 (

−

):

LHD model (Without cruise control)

(B281) No. 23 (+) — (B64) No. 2 (

−

):

RHD model

(B281) No. 23 (+) — (B64) No. 2 (

−

):

Is the voltage more than 10 V? Go to step 8.

Go to step 6.

6

CHECK HARNESS CONNECTOR BETWEEN
BODY INTEGRATED MODULE AND STOP
LIGHT SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from stop light
switch.
3) Measure the resistance of harness
between body integrated module and stop light
switch.

Connector & terminal

LHD model (With cruise control)

(B281) No. 23 — (B65) No. 3:

LHD model (Without cruise control)

(B281) No. 23 — (B64) No. 2:

RHD model

(B281) No. 23 — (B64) No. 2:

Is the resistance less than 1
Ω?

Go to step 7.

Repair the open
circuit of harness
between body inte-
grated module and
stop light switch.

Step

Check

Yes

No

4AT(diag)-52

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

7

CHECK HARNESS CONNECTOR BETWEEN
BODY INTEGRATED MODULE AND STOP
LIGHT SWITCH.
Measure the resistance of harness between
body integrated module and stop light switch.

Connector & terminal

(B281) No. 23 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 8.

Repair the short
circuit of harness
between body inte-
grated module and
stop light switch.

8

CHECK POOR CONTACT.

Is there poor contact in input
signal of brake switch?

Repair the poor
contact.

Check the body
integrated module.

Step

Check

Yes

No
