Subaru Legacy (2005 year). Manual - part 537





4AT-129

AUTOMATIC TRANSMISSION

AT Main Case

38) Install the thrust needle bearing in proper direc-
tion.

39) Install the high clutch assembly.

40) Adjust total end play. <Ref. to 4AT-108, AD-
JUSTMENT, Oil Pump Housing.>
41) Install the thrust needle bearing in proper direc-
tion.

42) Install the oil pump housing assembly with a
new gasket. <Ref. to 4AT-104, Oil Pump Housing.>
43) Install the converter case assembly into trans-
mission case assembly. <Ref. to 4AT-102, IN-
STALLATION, Converter Case.>
44) Insert the inhibitor switch connector and trans-
mission connector to stay.
45) Install the air breather hose. <Ref. to 4AT-79,
INSTALLATION, Air Breather Hose.>

46) Install the oil cooler pipe. <Ref. to 4AT-70, IN-
STALLATION, ATF Cooler Pipe and Hose.>
47) Install the oil charge pipe with a O-ring. <Ref. to
4AT-80, INSTALLATION, Oil Charge Pipe.>
48) Insert the input shaft while rotating it lightly by
hand, and then check the protrusion amount.

Normal protrusion A:

50 — 55 mm (1.97 — 2.17 in)

49) Install the torque converter clutch assembly.
<Ref. to 4AT-81, INSTALLATION, Torque Convert-
er Clutch Assembly.>
50) Install the transmission assembly into vehicle.
<Ref. to 4AT-42, INSTALLATION, Automatic
Transmission Assembly.>

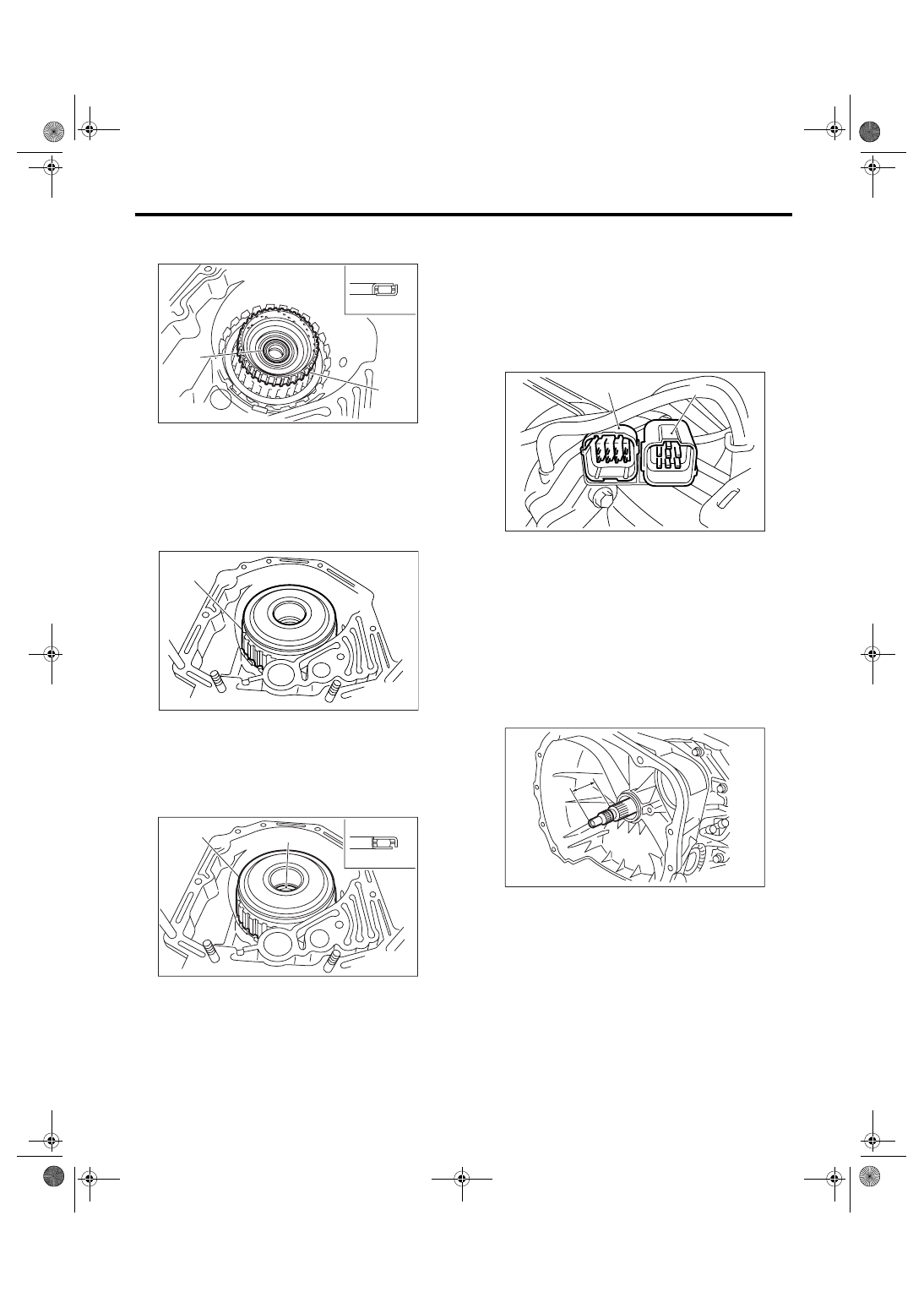

(A) High clutch hub

(B) Thrust needle bearing

(C) Upside

(D) Downside

(E) Outside

(A) High clutch and reverse clutch ASSY

(A) High clutch and reverse clutch ASSY

(B) Thrust needle bearing

(C) Upside

(D) Downside

(E) Outside

AT-02219

(C)

(D)

(E)

(A)

(B)

AT-00235

(A)

AT-02220

(A)

(B)

(C)

(D)

(E)

(A) Transmission connector

(B) Inhibitor switch connector

AT-01351

(B)

(A)

AT-03204

A

4AT-130

AUTOMATIC TRANSMISSION

AT Main Case

C: DISASSEMBLY

1. HIGH CLUTCH AND REVERSE CLUTCH

1) Remove the snap ring, and then take out the re-
taining plate, drive plate and driven plate.

2) Remove the snap ring, and then take out the re-
taining plate, drive plate and driven plate.

3) Using the ST1 and ST2, remove the snap ring.
ST1

398673600

COMPRESSOR

ST2

498627100

SEAT

4) Take out the clutch cover, spring retainer, high
clutch piston and reverse clutch piston.

5) Remove the seal ring and lip seal from high
clutch piston and reverse clutch piston.

2. PLANETARY GEAR AND LOW CLUTCH

1) Remove the snap ring from low clutch drum.

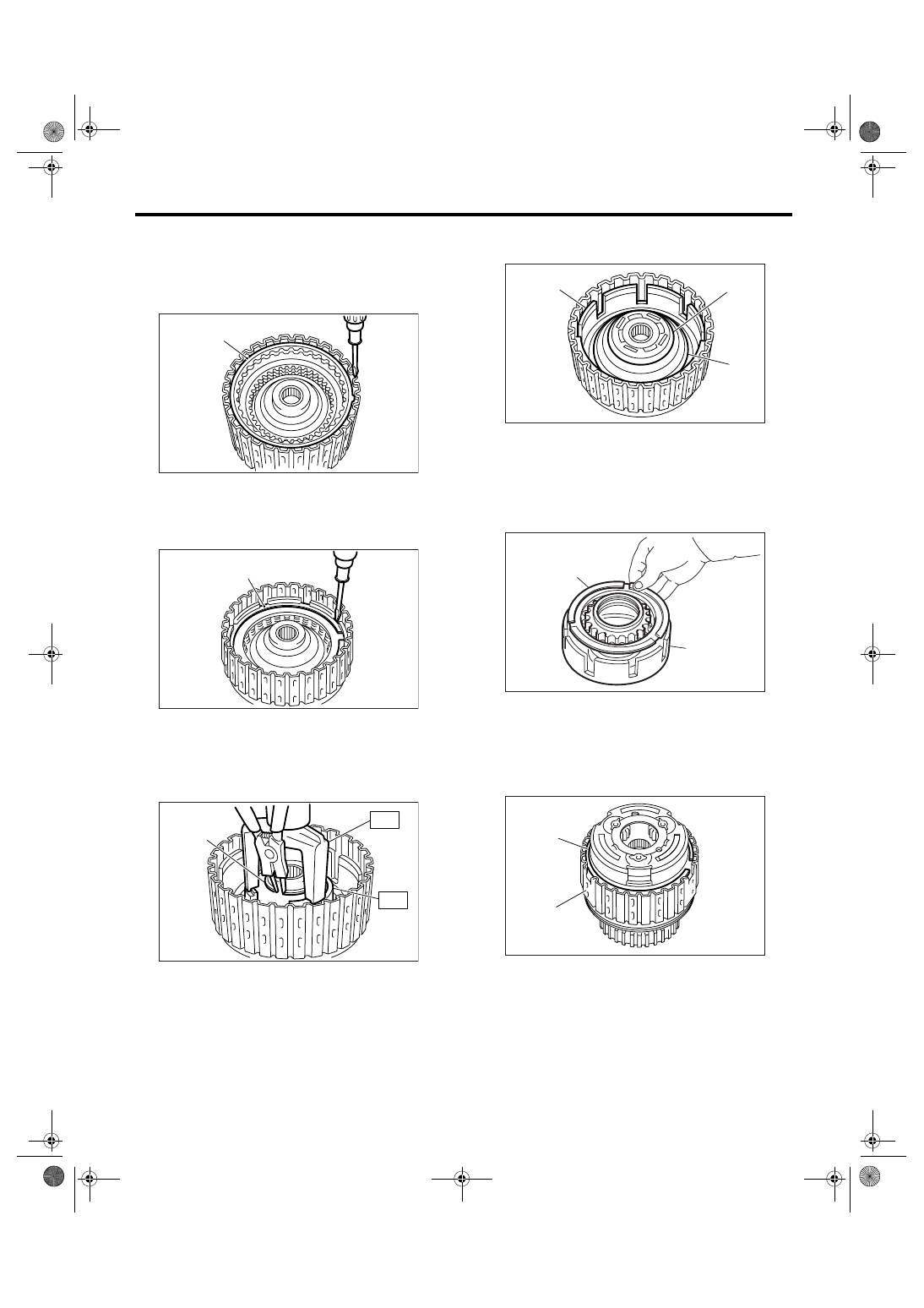

(A) Snap ring

(A) Snap ring

(A) Snap ring

AT-00236

(A)

AT-00237

(A)

AT-00238

(A)

ST1

ST2

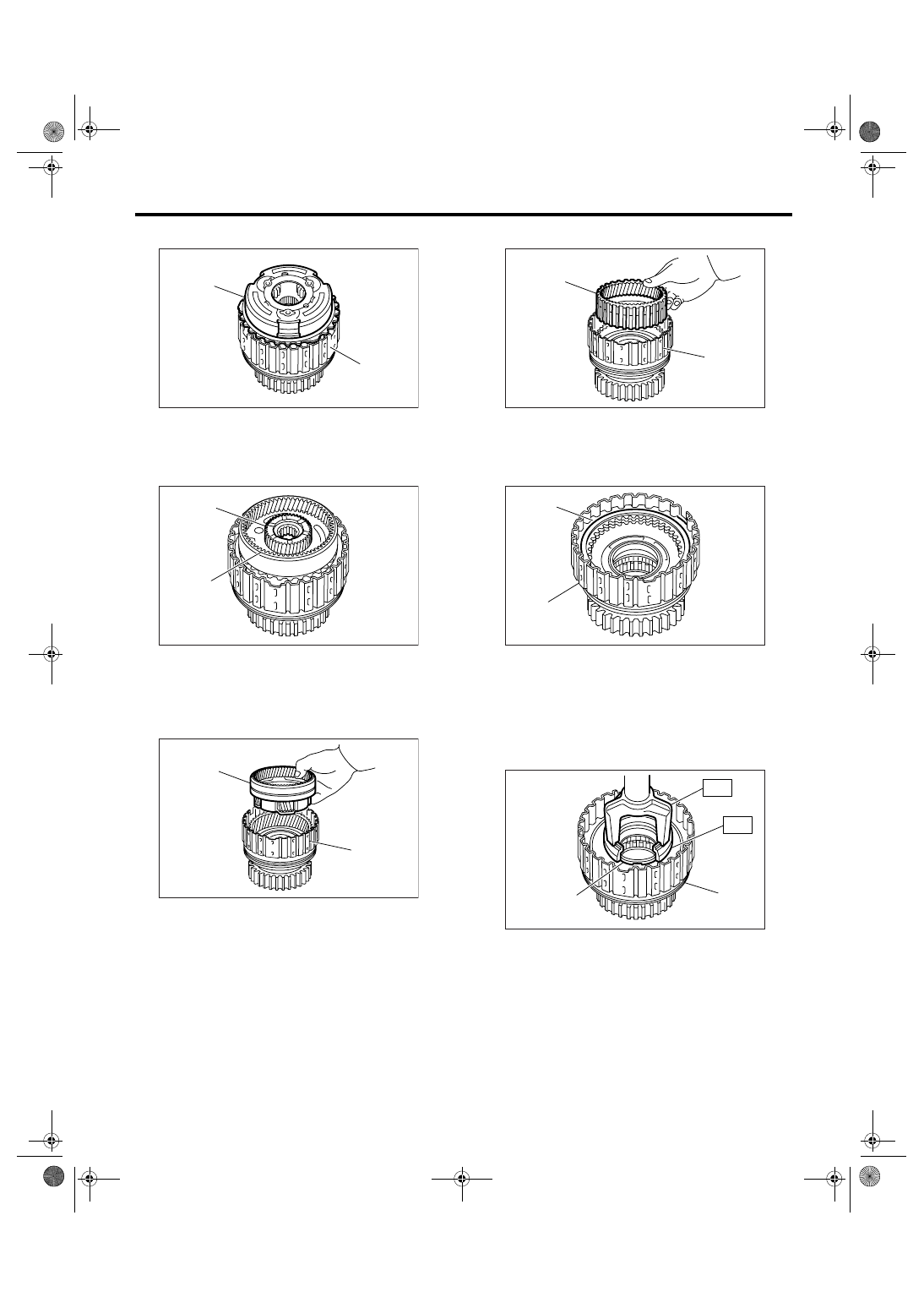

(A) Reverse clutch piston

(B) Cover

(C) Return spring

(A) High clutch piston

(B) Reverse clutch piston

(A) Snap ring

(B) Low clutch dram

AT-00239

(A)

(B)

(C)

AT-00240

(A)

(B)

AT-00259

(A)

(B)

4AT-131

AUTOMATIC TRANSMISSION

AT Main Case

2) Take out the front planetary carrier.

3) Take out the rear sun gear.

4) Take out the rear planetary carrier, washer and
thrust needle bearing.

5) Take out the rear internal gear.

6) Remove the snap ring from low clutch drum.

7) Compress the spring retainer, and remove the
snap ring from low clutch drum using ST1 and ST2.
ST1

498627100

SEAT

ST2

398673600

COMPRESSOR

8) Remove the one-way clutch. <Ref. to 4AT-121,
REMOVAL, AT Main Case.>

(A) Front planetary carrier

(B) Low clutch dram

(A) Rear sun gear

(B) Rear planetary carrier

(A) Rear planetary carrier

(B) Low clutch dram

AT-00260

(B)

(A)

AT-00261

(B)

(A)

AT-00262

(B)

(A)

(A) Rear internal gear

(B) Low clutch dram

(A) Snap ring

(B) Low clutch dram

(A) Snap ring

(B) Low clutch dram

AT-00263

(B)

(A)

AT-00264

(B)

(A)

AT-00265

(B)

(A)

ST1

ST2

4AT-132

AUTOMATIC TRANSMISSION

AT Main Case

9) Install the one-way clutch inner race to low
clutch drum, and then apply compressed air to re-
move the low clutch piston.

10) Remove the one-way clutch inner race.
11) Remove the one-way clutch after taking out the
snap ring.

12) Remove the needle bearing after taking out the
snap ring.

3. 2-4 BRAKE

Separate the 2-4 brake piston and piston retainer.

4. ONE-WAY CLUTCH INNER RACE

1) Remove the seal ring.

2) Remove the needle bearing using ST.
ST

398527700

PULLER ASSY

5. ONE-WAY CLUTCH OUTER RACE

1) Remove the one-way clutch after taking out the
snap ring.

(A) Apply compressed air.

(B) One-way clutch inner race

(A) Snap ring

(B) Plate

(C) One-way clutch

(A) Needle bearing

(B) Snap ring

AT-00266

(B)

(A)

AT-00267

(A)

(C)

(B)

AT-00268

(B)

(A)

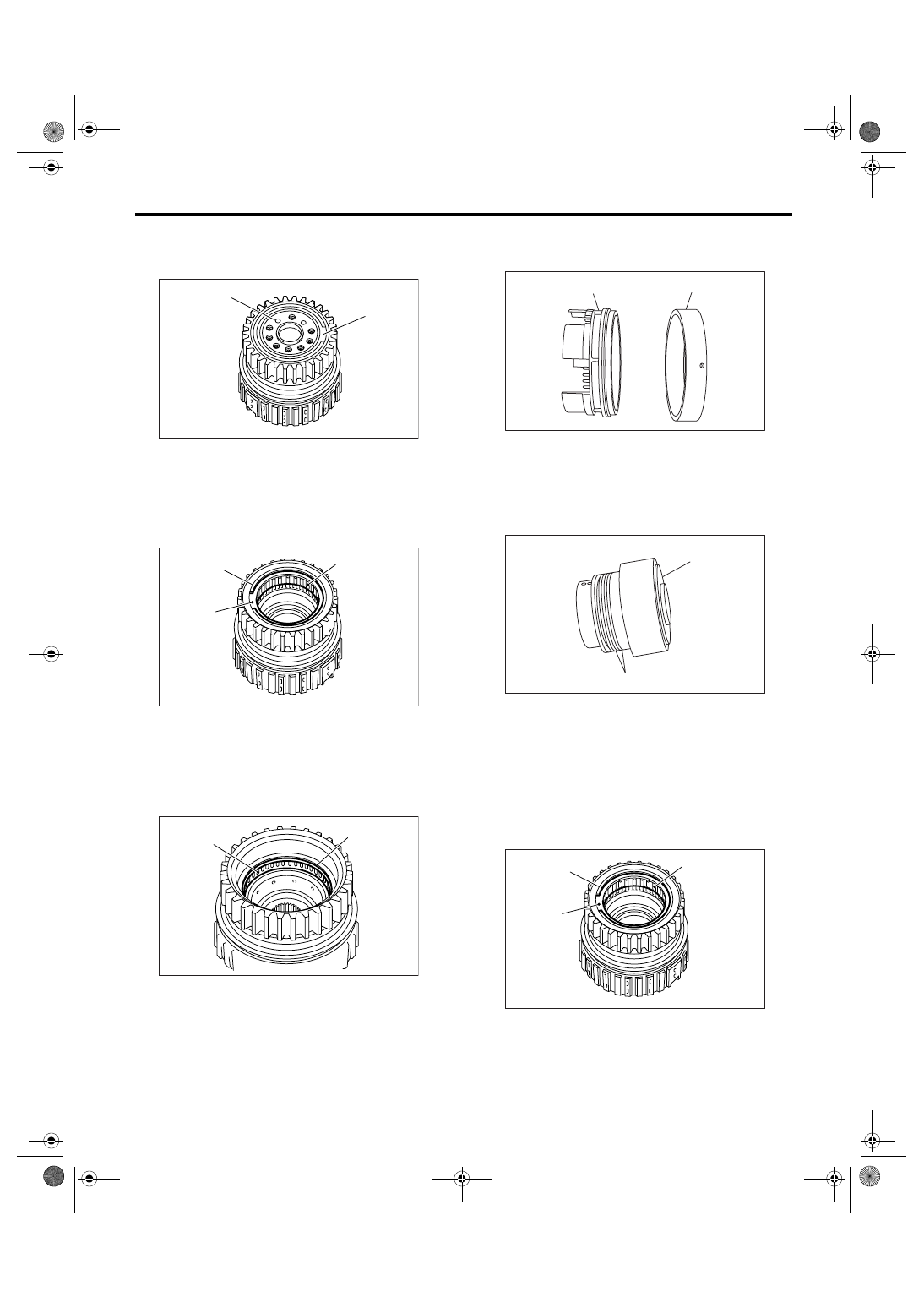

(A) 2-4 brake piston

(B) 2-4 brake piston retainer

(A) One-way clutch inner race

(B) Seal ring

(A) Snap ring

(B) Plate

(C) One-way clutch

AT-00288

( A )

( B )

AT-00298

(B)

(A)

AT-00267

(A)

(C)

(B)
