4AT-17

AUTOMATIC TRANSMISSION

General Description

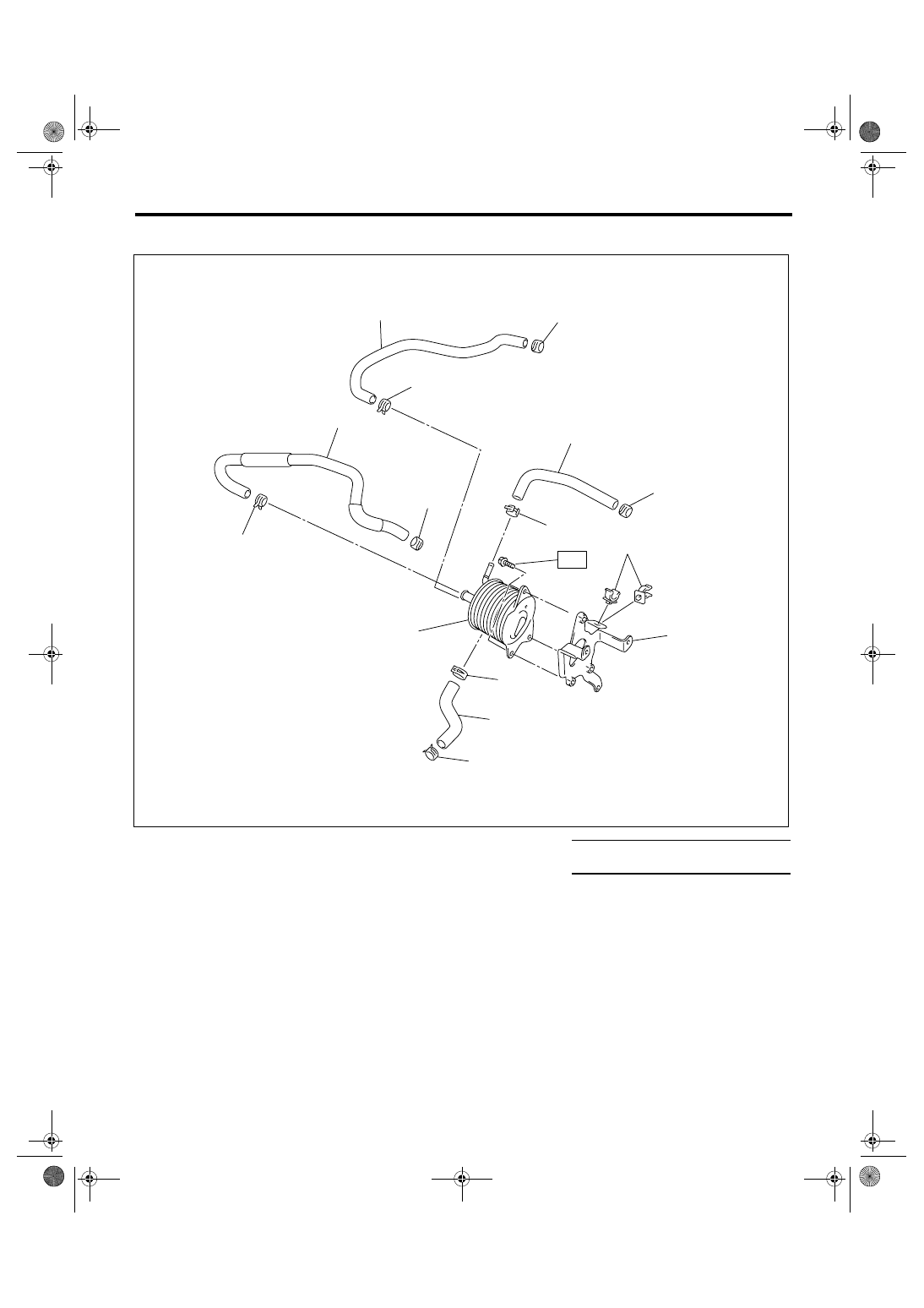

11.ATF COOLER (WITH ATF WARMER FUNCTION)

(1)

ATF cooler outlet hose

(5)

Engine coolant inlet hose

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

ATF cooler inlet hose

(6)

Engine coolant outlet hose

T: 23 (2.3, 17)

(3)

Hose clamp

(7)

ATF cooler bracket

(4)

ATF cooler ASSY

(8)

Clip

AT-03198

(4)

(3)

(3)

(3)

(3)

(3)

(5)

(3)

(8)

(7)

(1)

(6)

T

(3)

(3)

(2)

4AT-18

AUTOMATIC TRANSMISSION

General Description

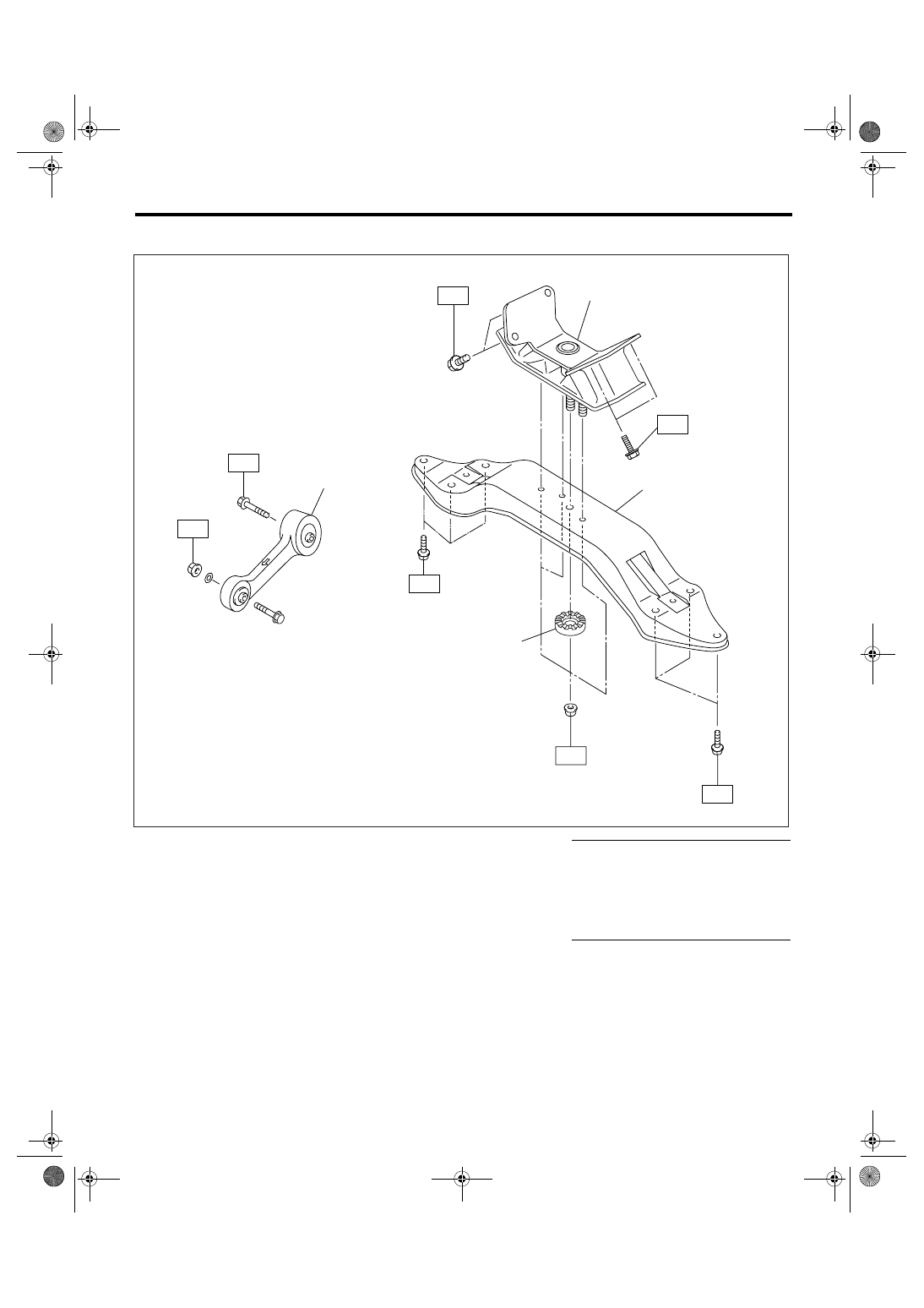

12.TRANSMISSION MOUNTING

(1)

Pitching stopper

(3)

Crossmember

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Rear cushion rubber

(4)

Stopper

T1: 35 (3.6, 26)

T2: 40 (4.1, 29.5)

T3: 50 (5.1, 36.9)

T4: 58 (5.9, 42.8)

T5: 70 (7.1, 51.6)

AT-00014

(2)

(3)

(4)

(1)

T4

T3

T5

T5

T2

T2

T1

4AT-19

AUTOMATIC TRANSMISSION

General Description

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Do not place the oil pan with its inner side facing
upward until it is installed so as to prevent foreign
matter intrusion into valve body.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• When disassembling the case and other light al-
loy parts, use a plastic hammer to open the case.
Do not pry it apart with a screwdriver or other tool.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.
• Use SUBARU genuine gear oil, grease etc. or
the equivalent. Do not mix gear oil, grease etc. with
that of another grade or from other manufacturers.

• Be sure to tighten bolts and nuts to the specified
torque.
• Place a lift, a shop jack or a rigid rack at the spec-
ified position.
• Before installation, apply gear oil or ATF onto
sliding or revolution surface according to purpose
of part.
• Replace deformed or otherwise damaged snap
rings with new ones.
• Before installing O-rings or oil seals, apply suffi-
cient amount of ATF to avoid damage and defor-
mation.
• Be careful not to incorrectly install or fail to install
O-rings, snap rings and other such parts.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or cloth between the part and the vise.
• Avoid damaging the mating surface of the case.
• Before applying liquid gasket, completely re-
move the old seal.

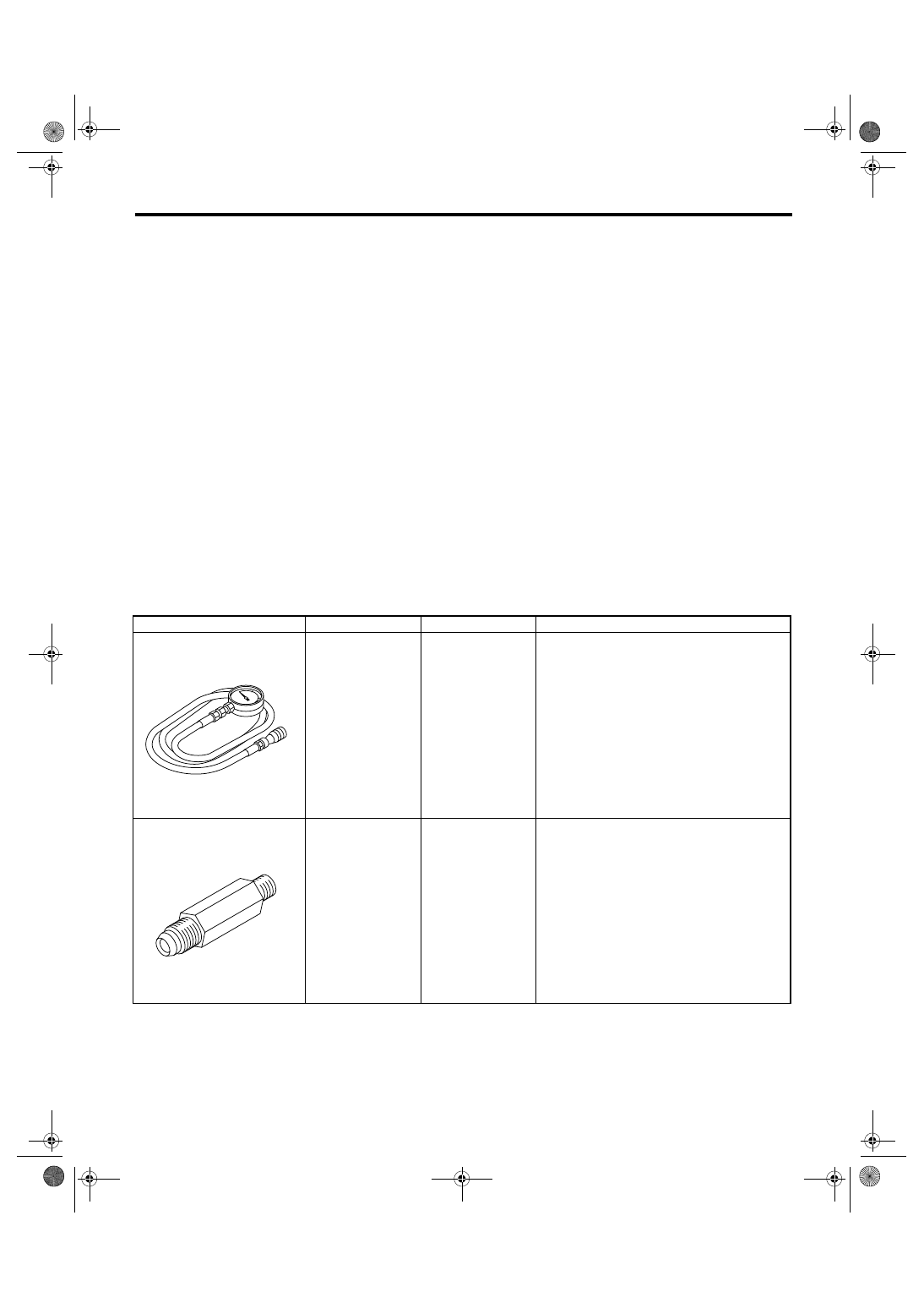

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

498575400

OIL PRESSURE
GAUGE ASSY

Used for measuring oil pressure.

498897200

ADAPTER

Used for oil pump housing when measuring
reverse clutch pressure and line pressure.

ST-498575400

ST-498897200

4AT-20

AUTOMATIC TRANSMISSION

General Description

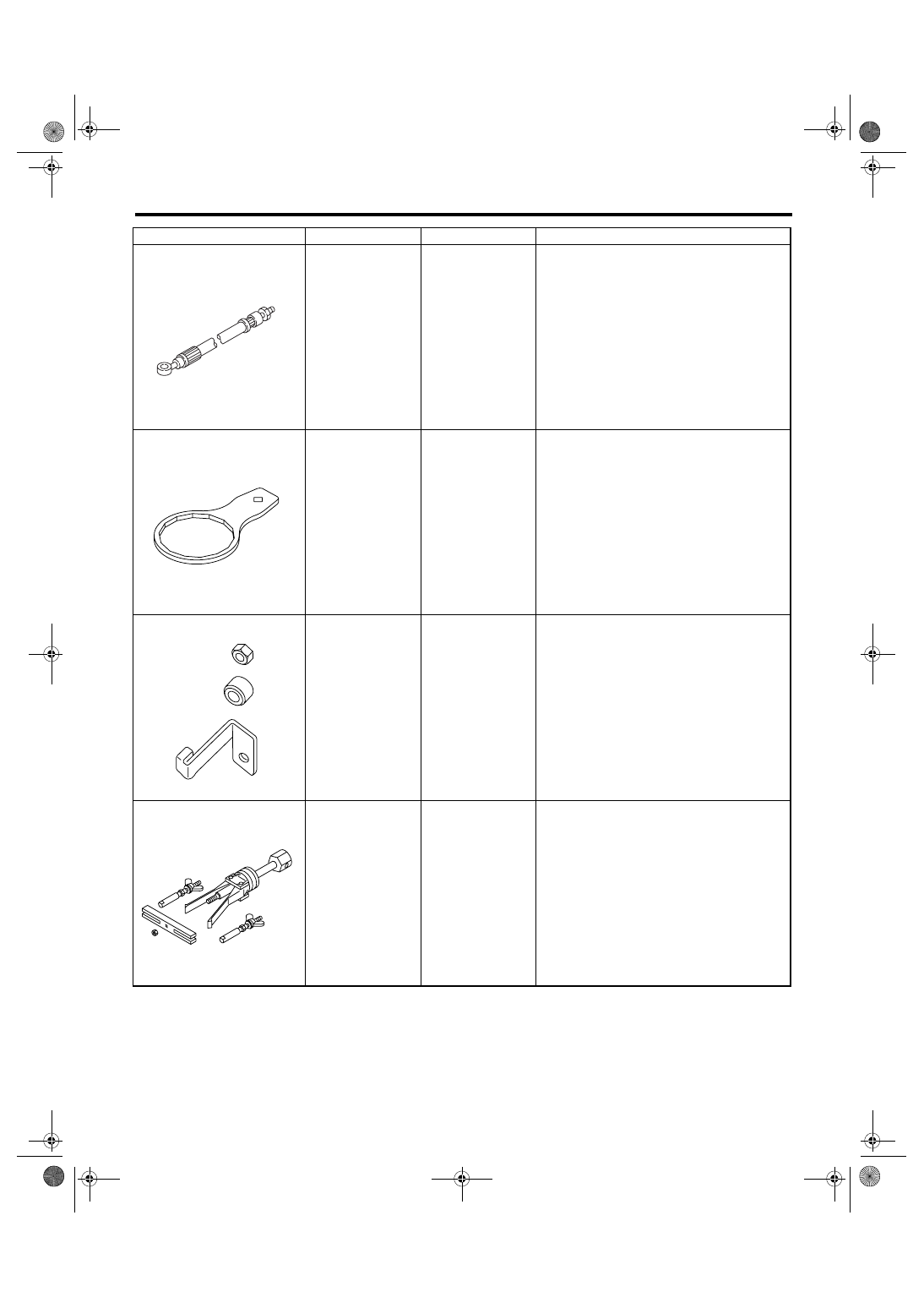

498897700

ADAPTER SET

Used for measuring transfer clutch pressure.

498545400

FILTER WRENCH

Used for removing and installing ATF filter.

498277200

STOPPER SET

Used for removing and installing automatic
transmission assembly to engine.

398527700

PULLER ASSY

• Used for removing extension case roller bear-
ing.
• Used for removing extension oil seal.
• Used for removing front differential side
retainer bearing outer race.
• Used for removing front differential side
retainer oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498897700

ST-498545400

ST-498277200

ST-398527700
