4AT-13

AUTOMATIC TRANSMISSION

General Description

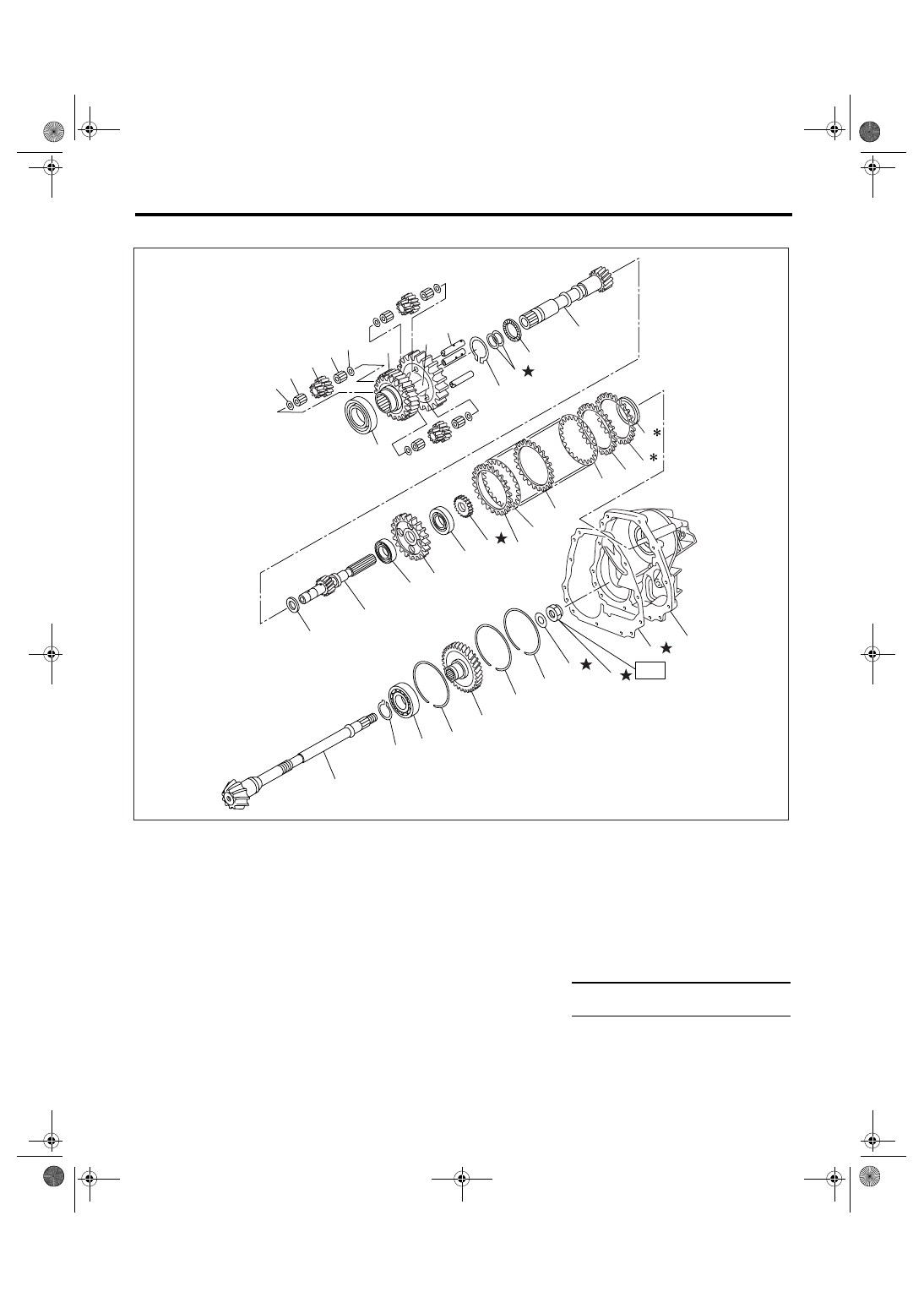

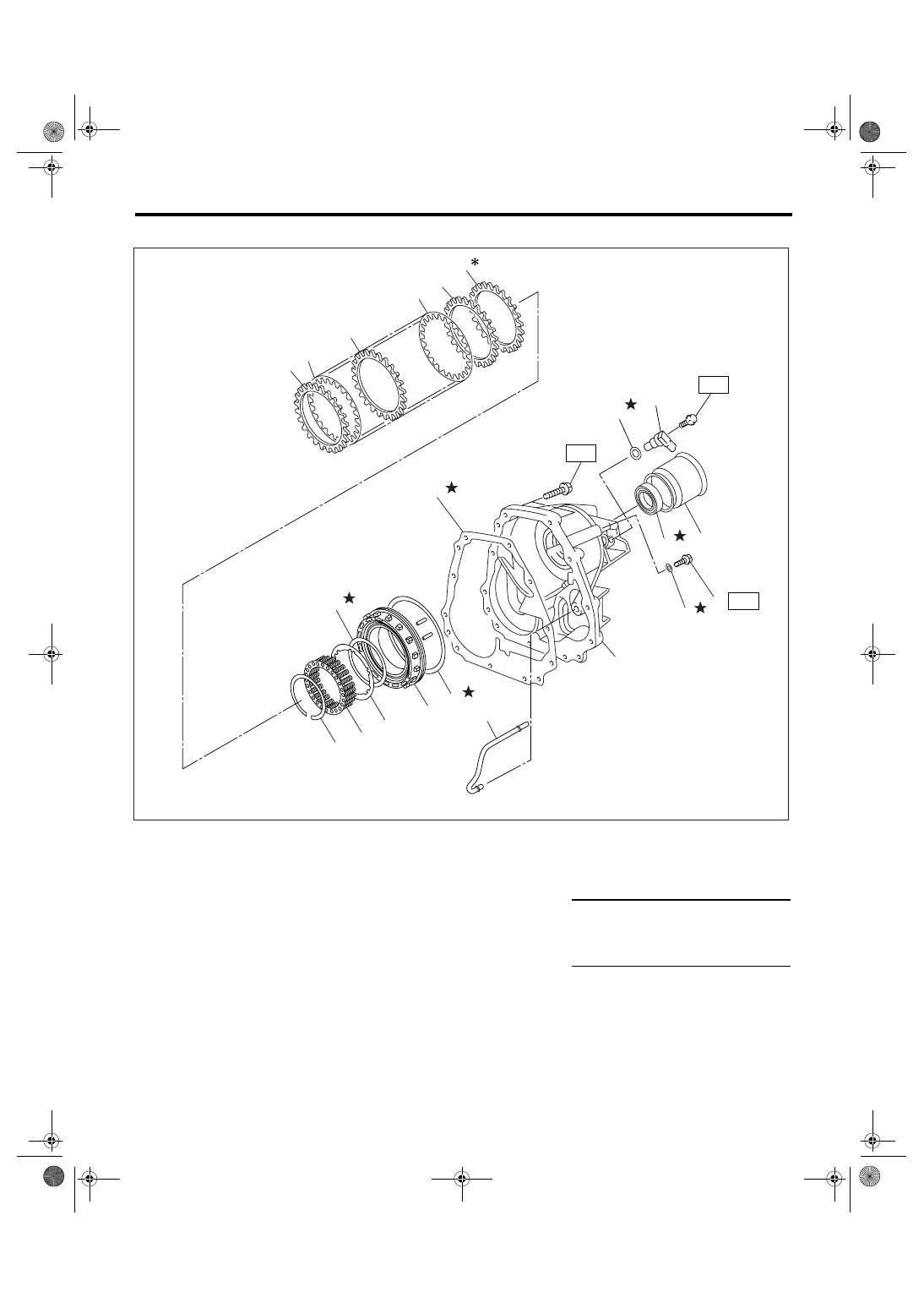

• VTD model

(1)

Ball bearing

(13)

Rear drive shaft

(25)

Snap ring

(2)

Reduction drive gear

(14)

Ball bearing

(26)

Ball bearing

(3)

Washer

(15)

Multi-plate clutch (LSD) hub

(27)

Snap ring

(4)

Needle bearing

(16)

Ball bearing

(28)

Reduction driven gear

(5)

Pinion gear

(17)

Revolution gear

(29)

Lock washer

(6)

Carrier

(18)

Driven plate (Thick)

(30)

Lock nut

(7)

Planetary pinion shaft

(19)

Drive plate

(31)

Gasket

(8)

Snap ring

(20)

Driven plate (Thin)

(32)

Extension case

(9)

Seal ring

(21)

Driven plate (Thick)

(10)

Thrust needle bearing

(22)

Pressure plate

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(11)

Intermediate shaft

(23)

Rear drive shaft shim

T: 100 (10.2, 73.8)

(12)

Thrust washer

(24)

Drive pinion shaft

AT-02203

T

(3)

(4)

(5)

(4)

(3)

(2)

(1)

(6)

(7)

(8)

(9)

(10)

(11)

(17)

(18)

(19)

(20)

(19)

(21)

(22)

(23)

(32)

(31)

(30)

(12)

(13)

(14)

(15)

(16)

(29)

(28)

(26)

(25)

(24)

(27)

(27)

(27)

4AT-14

AUTOMATIC TRANSMISSION

General Description

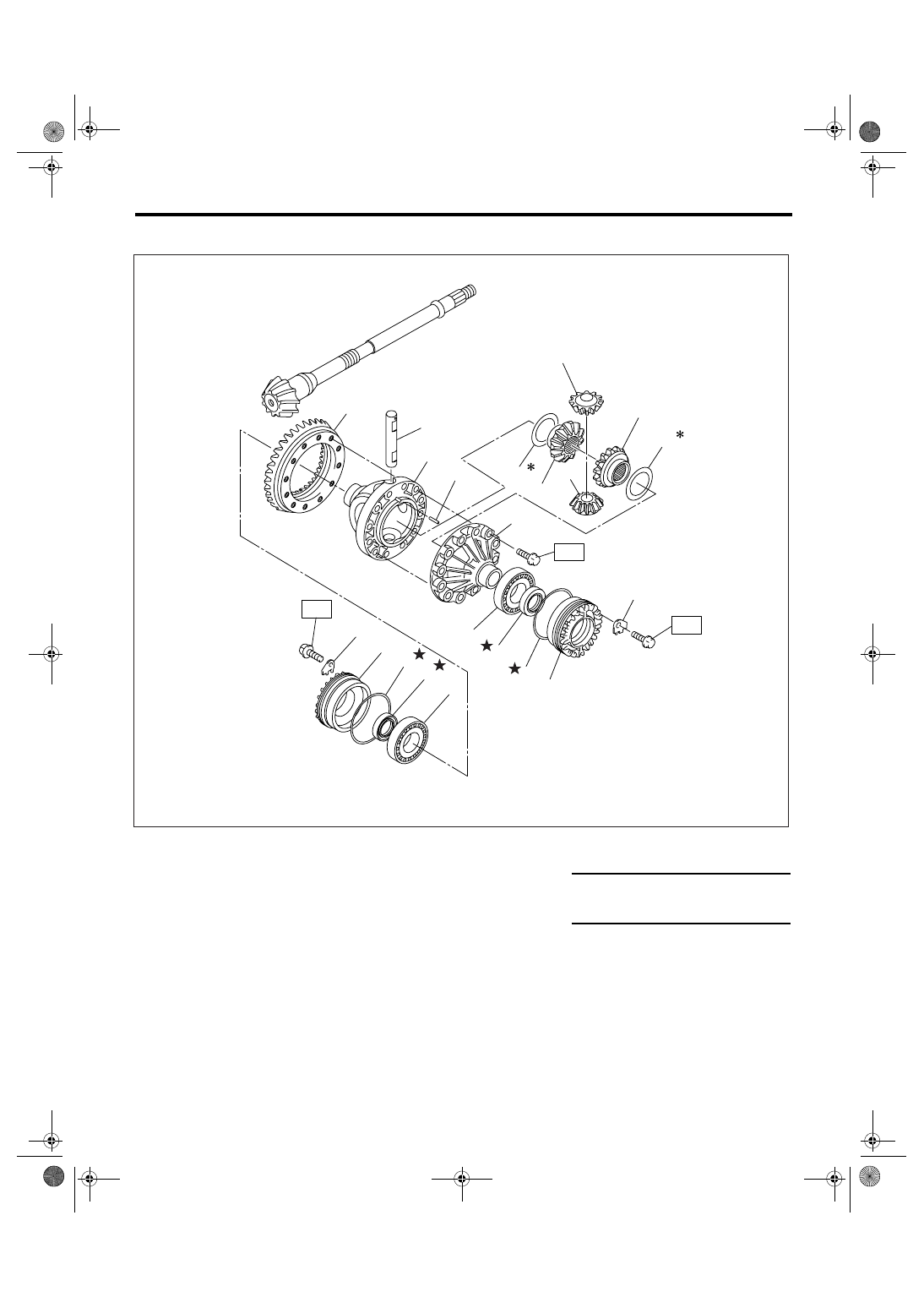

9. DIFFERENTIAL GEAR

(1)

Hypoid driven gear

(7)

Oil seal

(13)

Differential bevel gear

(2)

Pinion shaft

(8)

O-ring

(3)

Differential case (RH)

(9)

Differential side retainer

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Straight pin

(10)

Lock plate

T1: 25 (2.5, 18.4)

(5)

Differential case (LH)

(11)

Washer

T2: 62 (6.3, 45.6)

(6)

Taper roller bearing

(12)

Differential bevel pinion

AT-00011

T2

T1

T1

(8)

(8)

(9)

(9)

(7)

(7)

(6)

(6)

(10)

(13)

(13)

(1)

(2)

(3)

(4)

(5)

(10)

(11)

(11)

(12)

(12)

4AT-15

AUTOMATIC TRANSMISSION

General Description

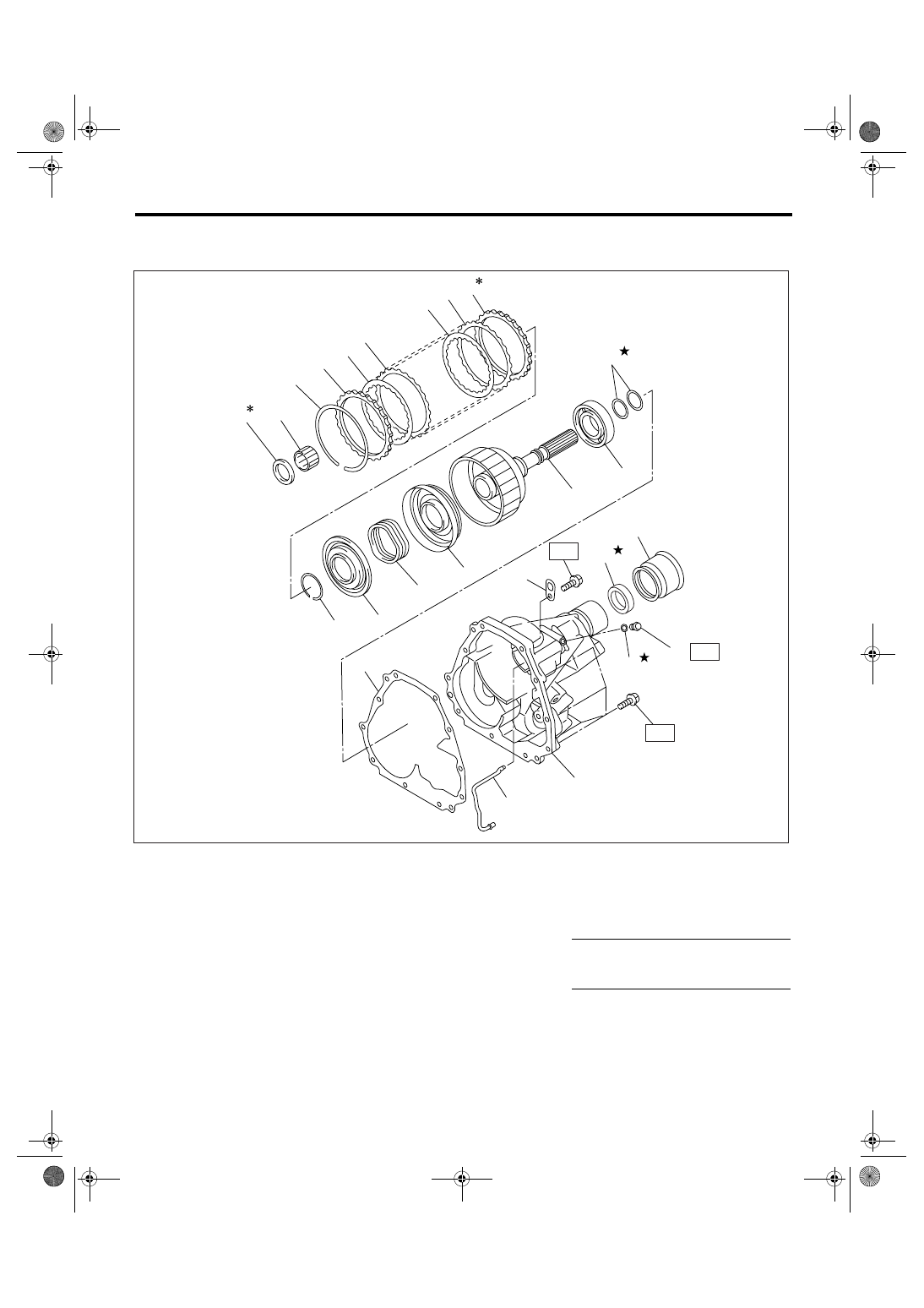

10.TRANSFER AND EXTENSION CASE

• MP-T model

(1)

Thrust needle bearing

(10)

Return spring

(19)

Oil seal

(2)

Needle bearing

(11)

Transfer clutch piston

(20)

Dust cover

(3)

Snap ring

(12)

Rear drive shaft

(21)

Test plug

(4)

Pressure plate

(13)

Ball bearing

(22)

O-ring

(5)

Drive plate

(14)

Seal ring

(6)

Driven plate

(15)

Gasket

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(7)

Retaining plate

(16)

Transfer clutch pipe

T1: 13 (1.3, 9.6)

(8)

Snap ring

(17)

Extension case

T2: 25 (2.5, 18.4)

(9)

Transfer piston seal

(18)

Transmission hanger

AT-01784

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(16)

(18)

(19)

(22)

(21)

(12)

(13)

(14)

(15)

(5)

(17)

(20)

T2

T2

T1

(6)

4AT-16

AUTOMATIC TRANSMISSION

General Description

• VTD model

(1)

Driven plate (Thick)

(10)

Multi-plate clutch (LSD) piston
assembly

(18)

Dust cover

(2)

Drive plate

(19)

O-ring

(3)

Driven plate (Thin)

(11)

D-ring

(20)

Rear vehicle speed sensor

(4)

Driven plate (Thick)

(12)

Gasket

(5)

Retaining plate

(13)

Multi-plate clutch (LSD) pipe

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Snap ring

(14)

Extension case

T1: 7 (0.7, 5.1)

(7)

Spring retainer

(15)

O-ring

T2: 13 (1.3, 9.6)

(8)

Plate

(16)

Test plug

T3: 25 (2.5, 18.4)

(9)

O-ring

(17)

Oil seal

AT-00013

T3

T2

T1

(10)

(11)

(13)

(14)

(19)

(6)

(7)

(8)

(9)

(12)

(20)

(16)

(1)

(2)

(3)

(2)

(4)

(5)

(15)

(17)

(18)
