ME(H6DO)-11

MECHANICAL

General Description

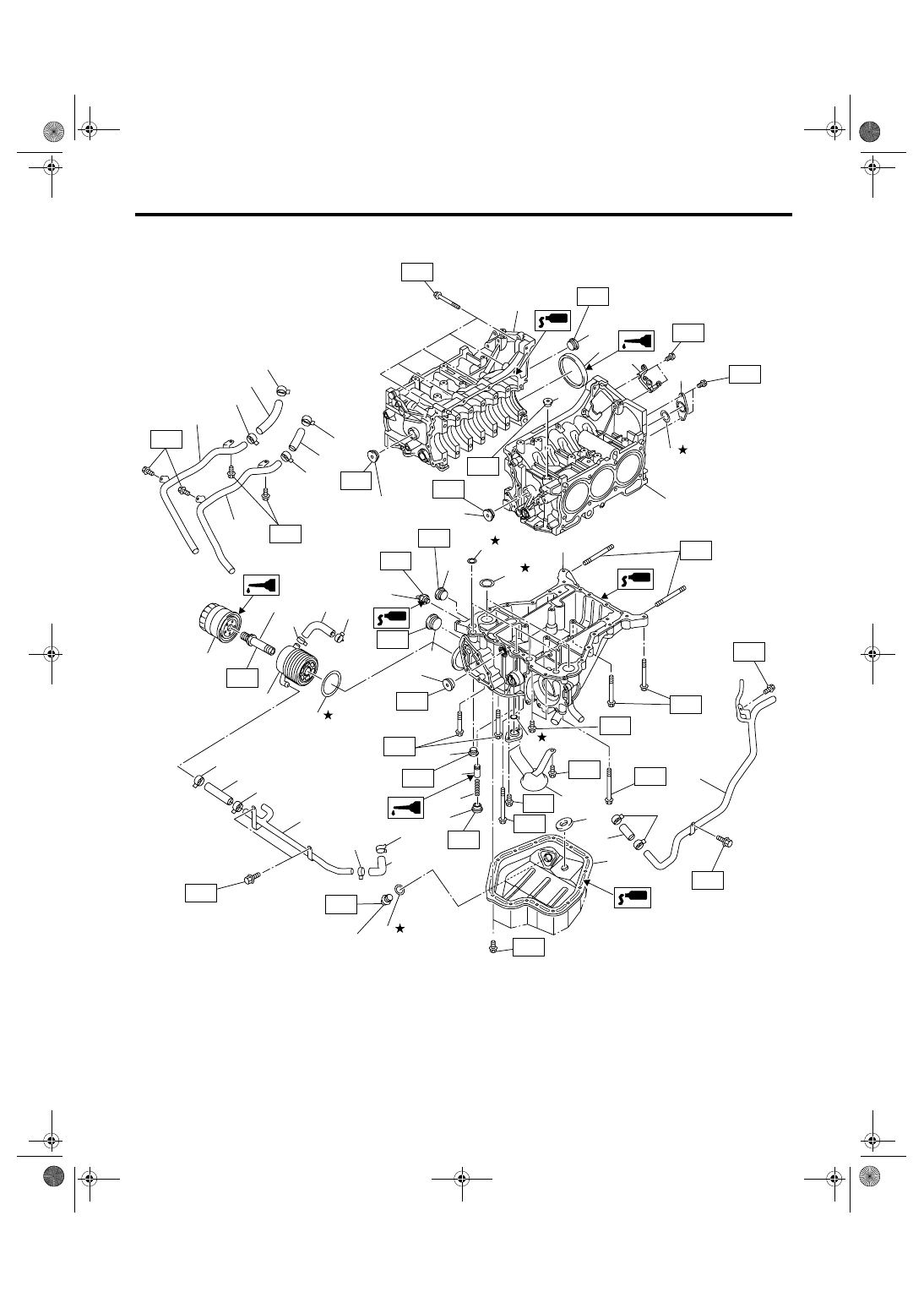

6. CYLINDER BLOCK

(5)

(6)

(7)

(9)

(5)

(8)

(19)

(10)

(14)

(13)

(24)

(19)

(21)

(22)

(23)

ME-02589

T10

(5)

(1)

(3)

(4)

(5)

(2)

(19)

(20)

(19)

(5)

(18)

(17)

(13)

(14)

(13)

(16)

(13)

(14)

(13)

(15)

(13)

(11)

(12)

(14)

(13)

(14)

(13)

(14)

(13)

(26)

(25)

ME(H6DO)-12

MECHANICAL

General Description

(1)

Cylinder block (RH)

(14)

Hose

(26)

Water pipe (MT model)

(2)

Cylinder block (LH)

(15)

Oil cooler pipe

(3)

Rear oil seal

(16)

Oil cooler

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Service hole cover

(17)

Oil cooler connector

T1: 6.4 (0.65, 4.7)

(5)

O-ring

(18)

Oil filter

T2: 18 (1.8, 13.3)

(6)

Oil pan upper

(19)

Plug

T3: 25 (2.5, 18.4)

(7)

Oil pressure switch

(20)

Crankshaft position sensor holder

T4: 16 (1.6, 11.8)

(8)

Oil strainer

(21)

Relief valve

T5: 37 (3.8, 27)

(9)

Magnet

(22)

Relief valve spring

T6: 44 (4.5, 33)

(10)

Oil pan lower

(23)

Plug

T7: 54 (5.5, 40)

(11)

Metal gasket

(24)

Water pipe

T8: 70 (7.1, 52)

(12)

Drain plug

(25)

Water pipe (Model with ATF
warmer)

T9: 23 (2.3, 17)

(13)

Clamp

T10: 90 (9.2, 67)

ME(H6DO)-13

MECHANICAL

General Description

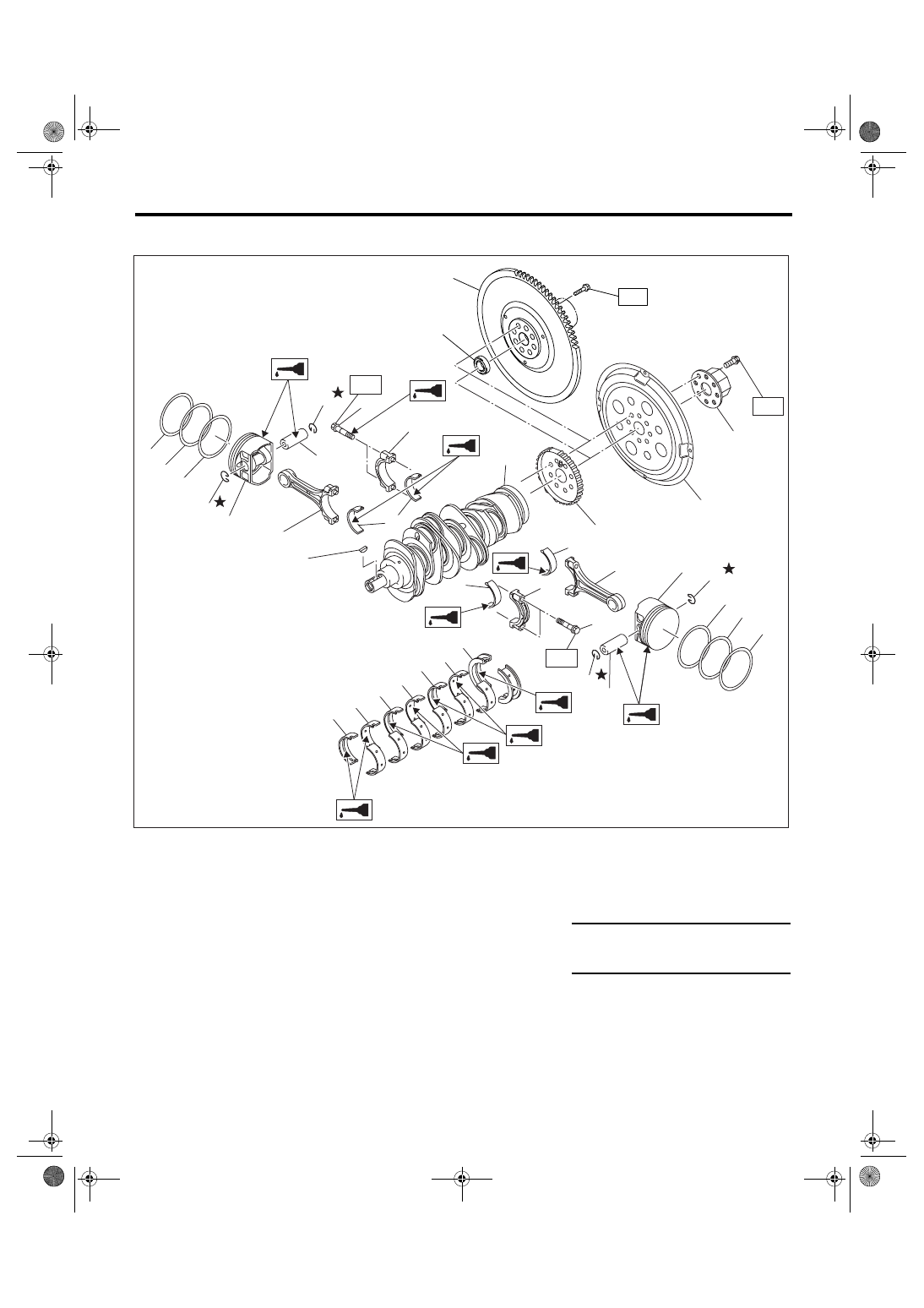

7. CRANKSHAFT AND PISTON

(1)

Reinforcement (AT model)

(9)

Piston pin

(17)

Crankshaft bearing #2, #4, #6

(2)

Drive plate (AT model)

(10)

Connecting rod

(18)

Crankshaft bearing #7

(3)

Crankshaft sensor plate

(11)

Connecting rod bearing

(19)

Flywheel (MT model)

(4)

Top ring

(12)

Connecting rod bolt

(20)

Ball bearing (MT model)

(5)

Second ring

(13)

Connecting rod cap

(6)

Oil ring

(14)

Crankshaft

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(7)

Snap ring

(15)

Woodruff key

T1: 53 (5.4, 39)

(8)

Piston

(16)

Crankshaft bearing #1, #3, #5

T2: 81 (8.3, 60)

(9)

(1)

(3)

(2)

(4)

(5)

(6)

(7)

(8)

(9)

(7)

(8)

(7)

(6)

(5)

(4)

(7)

(15)

(11)

(13)

(12)

(14)

(10)

(11)

(13)

(18)

(16)

(17)

(16)

(17)

(16)

(10)

ME-02590

(19)

(20)

ME(H6DO)-14

MECHANICAL

General Description

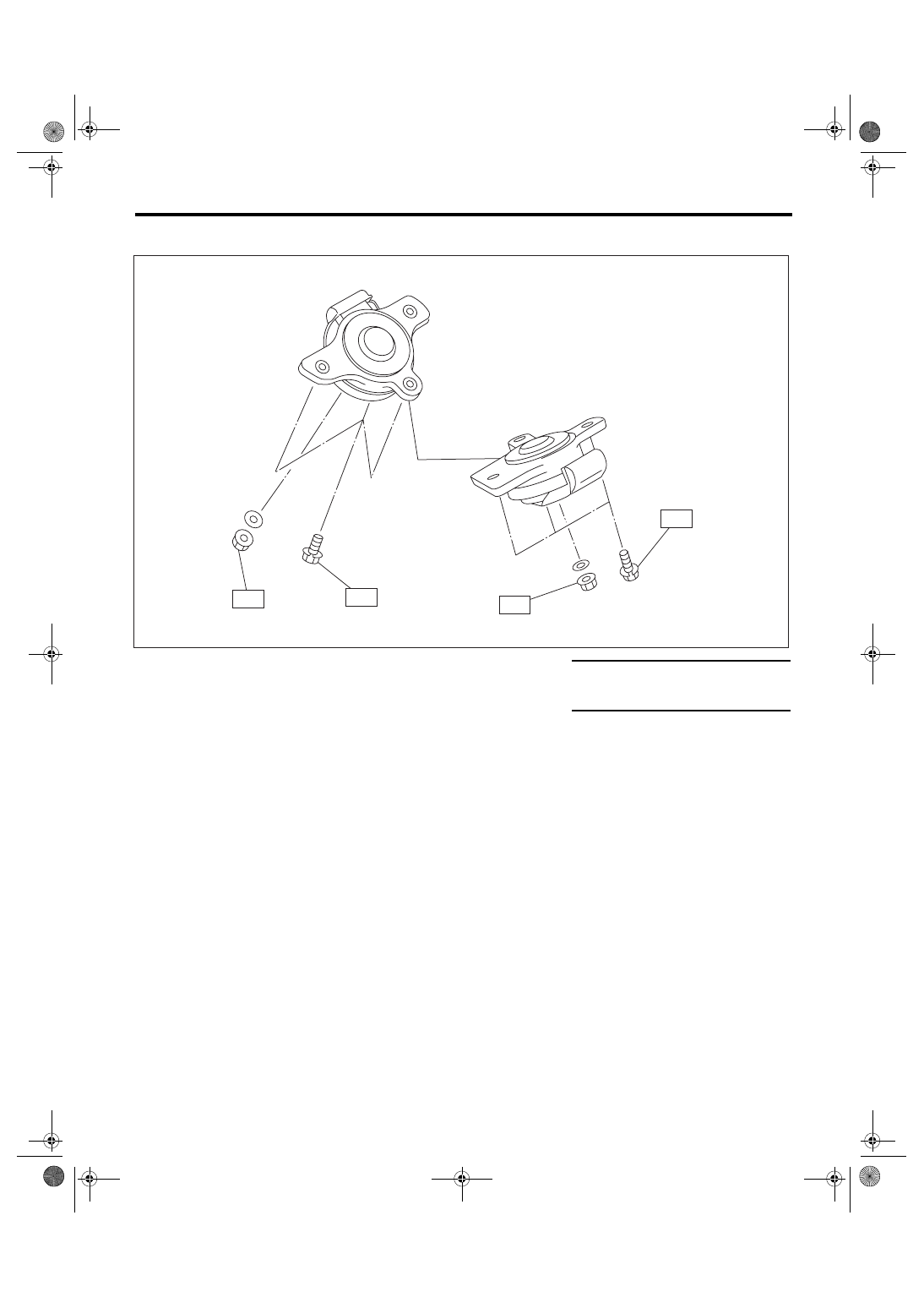

8. ENGINE MOUNTING

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Before disconnecting connectors of sensors or
units, be sure to disconnect the ground cable from
battery.
• All parts should be thoroughly cleaned, paying
special attention to engine oil passages, pistons
and bearings.

• Rotating parts and sliding parts such as piston,
bearing and gear should be coated with oil prior to
assembly.
• Be careful not to let oil, grease or coolant contact
the timing belt, clutch disc and flywheel.
• All removed parts, if to be reused, should be re-
installed in the original positions and directions.
• Bolts, nuts and washers should be replaced with
new ones as required.
• Even if necessary inspections have been made
in advance, proceed with assembly work while
making rechecks.
• Remove or install the engine in an area where
chain hoists, lifting devices, etc. are available for
ready use.
• Be sure not to damage coated surfaces of body
panels with tools, or not to stain seats and windows
with coolant or oil. Place a cover over fender, as re-
quired, for protection.
• Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch cool-
ant and oil, wire ropes, chain hoist, transmission
jacks, etc.
• Lift-up or lower the vehicle when necessary.
Make sure to support the correct positions.

(1)

Front cushion rubber

Tightening torque: N

⋅

m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 85 (8.7, 62.7)

(1)

ME-00445
