EN(H4DOTC)(diag)-117

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK SENSOR OUTPUT.
1) Turn the ignition switch to ON.
2) Read the data of sub throttle sensor signal
using Subaru Select Monitor.

NOTE:

• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4DOTC)(diag)-24, Subaru Select Mon-
itor.>

Is the voltage less than 4.73
V?

Go to step 2.

Go to step 3.

2

CHECK POOR CONTACT.
Check poor contact in connector between
ECM and electronic throttle control.

Is there poor contact in con-
nector between ECM and elec-
tronic throttle control?

Repair the poor
contact.

Temporary poor
contact occurred,
but it is normal at
present.

3

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from electronic
throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.

Connector & terminal

(B136) No. 35 — (E57) No. 3:
(B136) No. 29 — (E57) No. 4:

Is the resistance less than 1
Ω?

Go to step 4.

Repair the open
circuit of harness
connector.

4

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Connect the ECM connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 4 (+) — Engine ground (

−

):

Is the voltage less than 10 V?

Go to step 5.

Repair the battery
short circuit of har-
ness between
ECM connector
and electronic
throttle control
connector.

5

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance between connector
terminals.

Connector & terminal

(B136) No. 29 — (B136) No. 16:

Is the resistance more than 1
M

Ω?

Repair the poor
contact. Replace
the electronic
throttle control.

Sensor power sup-
ply circuit may be
shorted.

EN(H4DOTC)(diag)-118

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

X: DTC P0230 FUEL PUMP PRIMARY CIRCUIT

DTC DETECTING CONDITION:
Immediately at fault recognition

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-
37, OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOTC)(diag)-30, PROCE-
DURE, Inspection Mode.>.

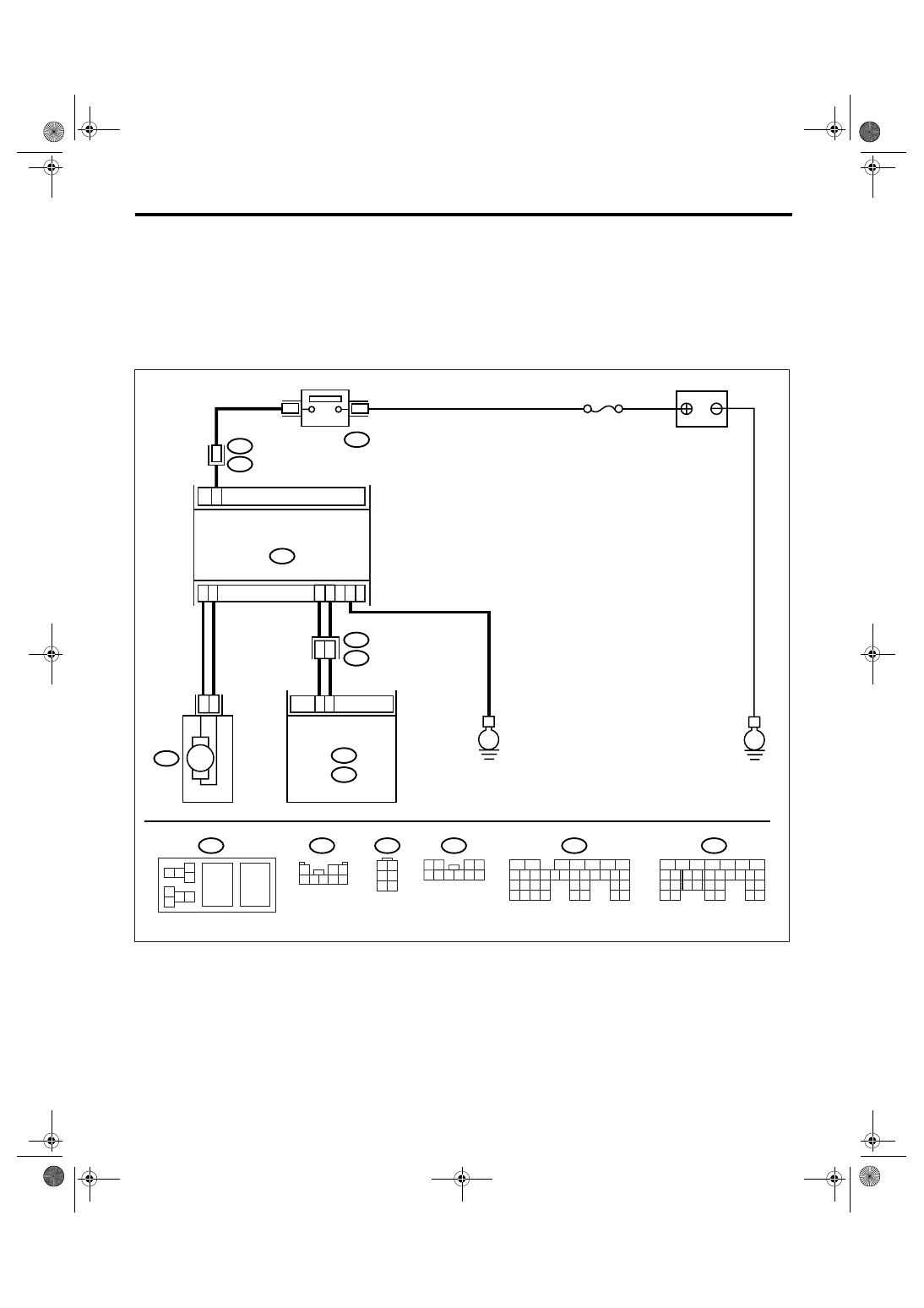

WIRING DIAGRAM:

EN-03582

E

E

M

10

7

6

5

6

No.31

B362

R122

B135

B:

B137

D:

R58

B98

7

D28

B27

1

2

9

8

5

6

5

R2

4

R2

B98

FUEL PUMP
CONTROL UNIT

FUEL
PUMP

ECM

BATTERY

FUEL PUMP
RELAY

B135

B137

B362

B98

R58

2

5

4
6

1
3

B:

D:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

R122

3 4

1 2
5

8 9 10

6 7

1

2 3

4 5 6 7 8

5
6

7 8

3
4

1 2

EN(H4DOTC)(diag)-119

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK POWER SUPPLY CIRCUIT TO FUEL
PUMP CONTROL UNIT.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from fuel pump
control unit.
3) Turn the ignition switch to ON.
4) Measure the voltage between fuel pump
control unit and chassis ground.

Connector & terminal

(R122) No. 10 (+) — Chassis ground (

−

):

Is the voltage more than 10 V? Go to step 2.

Repair the power
supply circuit.

NOTE:
In this case, repair
the following:
• Open or ground
short circuit of har-
ness between fuel
pump relay and
fuel pump control
unit
• Poor contact in
fuel pump control
unit connector
• Poor contact in
fuel pump relay
connector

2

CHECK GROUND CIRCUIT OF FUEL PUMP
CONTROL UNIT.
1) Turn the ignition switch to OFF.
2) Measure the resistance of harness
between fuel pump control unit and chassis
ground.

Connector & terminal

(R122) No. 5 — Chassis ground:

Is the resistance less than 5
Ω?

Go to step 3.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit
between fuel pump
control unit and
chassis ground
• Poor contact in
fuel pump control
unit connector

3

CHECK HARNESS BETWEEN FUEL PUMP
CONTROL UNIT AND FUEL PUMP CONNEC-
TOR.
1) Disconnect the connector from fuel pump.
2) Measure the resistance of harness
between fuel pump control unit and fuel pump
connector.

Connector & terminal

(R122) No. 7 — (R58) No. 5:
(R122) No. 6 — (R58) No. 6:

Is the resistance less than 1
Ω?

Go to step 4.

Repair the open
circuit between
fuel pump control
unit and fuel
pump.

4

CHECK HARNESS BETWEEN FUEL PUMP
CONTROL UNIT AND FUEL PUMP CONNEC-
TOR.
Measure the resistance of harness between
fuel pump control unit and chassis ground.

Connector & terminal

(R122) No. 7 — Chassis ground:
(R122) No. 6 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 5.

Repair the ground
short circuit
between fuel pump
control unit and
fuel pump.

EN(H4DOTC)(diag)-120

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

5

CHECK HARNESS BETWEEN FUEL PUMP
CONTROL UNIT AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance of harness
between fuel pump control unit and ECM con-
nector.

Connector & terminal

(R122) No. 9 — (B137) No. 28:
(R122) No. 8 — (B135) No. 27:

Is the resistance less than 1
Ω?

Go to step 6.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit
between fuel pump
control unit and
ECM
• Poor contact in
fuel pump control
unit and ECM con-
nector

6

CHECK HARNESS BETWEEN FUEL PUMP
CONTROL UNIT AND ECM CONNECTOR.
Measure the resistance of harness between
fuel pump control unit and chassis ground.

Connector & terminal

(R122) No. 9 — Chassis ground:
(R122) No. 8 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 7.

Repair the ground
short circuit
between fuel pump
control unit and
ECM.

7

CHECK POOR CONTACT.
Check poor contact in ECM and fuel pump
control unit connector.

Is there poor contact in ECM
and fuel pump control unit con-
nector?

Repair the poor
contact in ECM
and fuel pump
control unit.

Go to step 8.

8

CHECK EXPERIENCE OF RUNNING OUT OF
FUEL.

Has the vehicle experienced
running out of fuel?

Finish the diagno-
sis.

NOTE:
DTC may be re-
corded as a result
of fuel pump idling
while running out
of fuel.

Replace the fuel
pump control unit.
<Ref. to
FU(H4DOTC)-38,
Fuel Pump Control
Unit.>

Step

Check

Yes

No
