Subaru Legacy (2005 year). Manual - part 317





EN(H4DOTC)(diag)-37

ENGINE (DIAGNOSTICS)

Clear Memory Mode

13.Clear Memory Mode

A: OPERATION

1. SUBARU SELECT MONITOR (NORMAL
MODE)

1) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display
screen, select the {Engine} and press the [YES]
key.
3) Press the [YES] key after the information of en-
gine type has been displayed.
4) On the «Engine Diagnosis» display screen, se-
lect the {Clear Memory} and press the [YES] key.
5) When the “Done” and “Turn Ignition Switch OFF”
are shown on the display screen, turn the ignition
switch to OFF and then Subaru Select Monitor
power switch to OFF.

NOTE:
For detailed operation procedure, refer to the SUB-
ARU SELECT MONITOR OPERATION MANUAL.

2. SUBARU SELECT MONITOR (OBD
MODE)

1) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display
screen, select the {Engine} and press the [YES]
key.
3) Press the [YES] key after the information of en-
gine type has been displayed.
4) On the «Engine Diagnosis» display screen, se-
lect the {OBD System} and press the [YES] key.
5) On the «OBD Menu» display screen, select the
{DTC Clear} and press the [YES] key.
6) When the “Clear Diagnostic Code?” is shown on
the screen, press the [YES] key.
7) Turn the ignition switch to OFF, and the Subaru
Select Monitor power switch to OFF.

NOTE:
For detailed operation procedure, refer to the SUB-
ARU SELECT MONITOR OPERATION MANUAL.

3. GENERAL SCAN TOOL

For clear memory procedures using the general
scan tool, refer to the general scan tool operation
manual.

EN(H4DOTC)(diag)-38

ENGINE (DIAGNOSTICS)

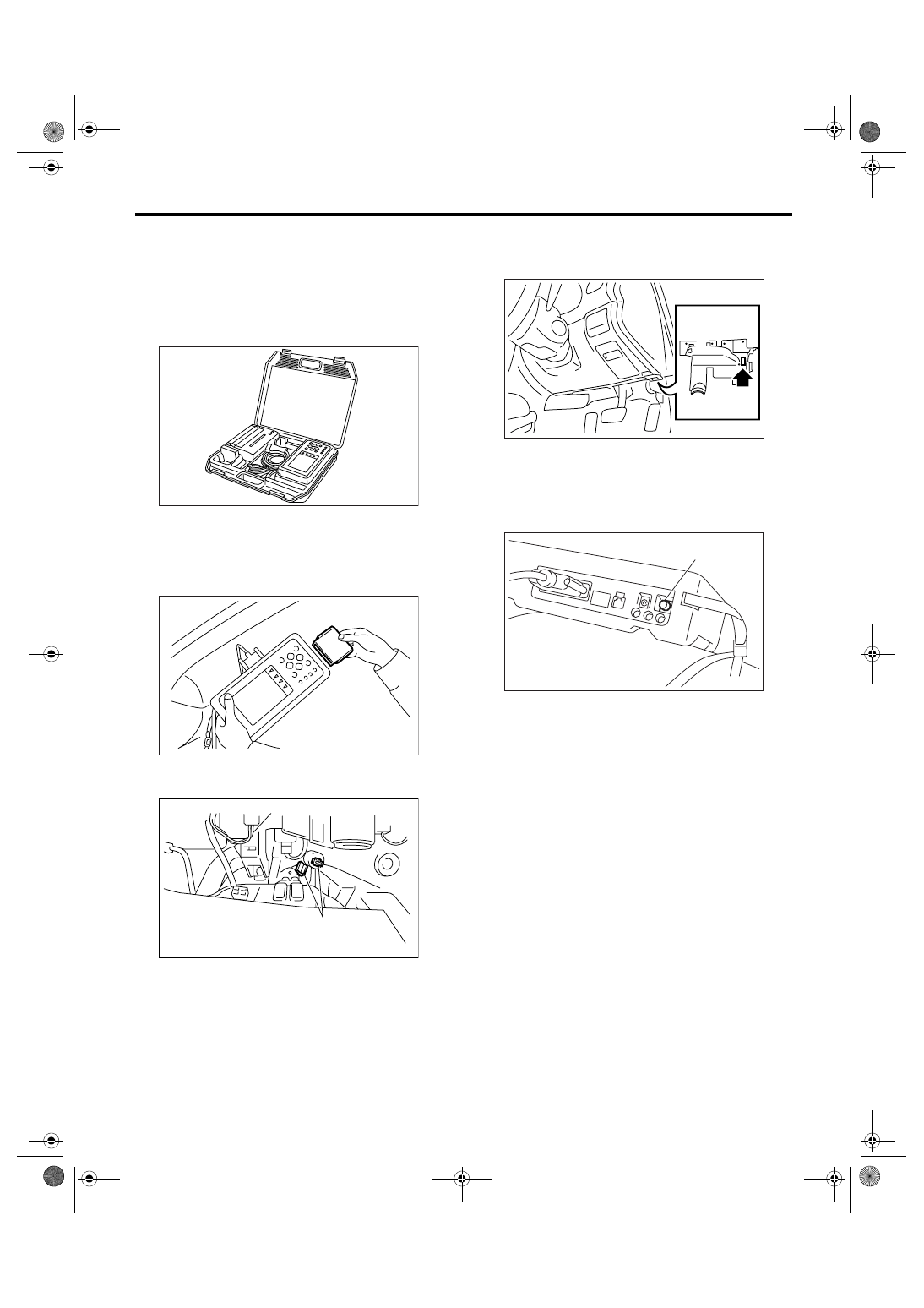

Compulsory Valve Operation Check Mode

14.Compulsory Valve Operation

Check Mode

A: OPERATION

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4DOTC)(diag)-7, PREPARATION TOOL,
General Description.>

2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to Subaru Select Monitor.
<Ref. to EN(H4DOTC)(diag)-7, PREPARATION
TOOL, General Description.>

4) Connect the test mode connector (A) located at
the lower portion of glove box.

5) Connect the Subaru Select Monitor to data link
connector located in the lower portion of the instru-
ment panel (on the driver’s side).

CAUTION:
Do not connect any scan tools except Subaru
Select Monitor or general scan tool.
6) Turn the ignition switch to ON (engine OFF), and
the Subaru Select Monitor power switch to ON.

7) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
8) On the «System Selection Menu» display
screen, select the {Engine} and press the [YES]
key.
9) Press the [YES] key after the information of en-
gine type has been displayed.
10) On the «Engine Diagnosis» display screen, se-
lect the {System Operation Check Mode} and press
the [YES] key.
11) On the «System Operation Check Mode»
screen, select the {Actuator ON/OFF Operation}
and press the [YES] key.
12) On the «Actuator ON/OFF Operation» screen,
select the desired compulsory actuator and press
the [YES] key.
13) Pressing the [NO] key completes the compul-
sory valve operation check mode. The display will
then return to the «Actuator ON/OFF Operation»
screen.

EN-00038

EN-00039

(A)

EN-02424

(A) Power switch

EN-02097

(A)

EN-00040

EN(H4DOTC)(diag)-39

ENGINE (DIAGNOSTICS)

Compulsory Valve Operation Check Mode

• A list of the support data is shown in the following
table.

NOTE:
• The following parts will be displayed but not func-
tional.

• For detailed operation procedure, refer to the
SUBARU SELECT MONITOR OPERATION MAN-
UAL.

Description

Display

Compulsory fuel pump relay operation
check

Fuel Pump

Compulsory radiator fan relay operation
check

Radiator Fan
Relay

Compulsory air conditioning relay oper-
ation check

A/C Compressor
Relay

Compulsory purge control solenoid
valve operation check

CPC Solenoid
Valve

Compulsory wastegate control sole-
noid valve operation check

Turbocharger
Wastegate Sole-
noid

Display

EGR Solenoid Valve

ASV Solenoid Valve

FICD Solenoid

Pressure Exchange Valve

PCV Solenoid Valve

AAI Solenoid Valve

Vcut Solenoid

Tank Sensor Cntl Valve

EN(H4DOTC)(diag)-40

ENGINE (DIAGNOSTICS)

Malfunction Indicator Light

15.Malfunction Indicator Light

A: PROCEDURE

1. Activation of malfunction indicator light. <Ref. to EN(H4DOTC)(diag)-41, ACTIVATION OF MALFUNCTION INDICATOR LIGHT,
Malfunction Indicator Light.>

2. Check that the malfunction indicator light does not come on. <Ref. to EN(H4DOTC)(diag)-42, MALFUNCTION INDICATOR
LIGHT DOES NOT COME ON, Malfunction Indicator Light.>

3. Check that the malfunction indicator light does not go off. <Ref. to EN(H4DOTC)(diag)-44, MALFUNCTION INDICATOR LIGHT
DOES NOT GO OFF., Malfunction Indicator Light.>

4. Check that the malfunction indicator light does not blink. <Ref. to EN(H4DOTC)(diag)-45, MALFUNCTION INDICATOR LIGHT
DOES NOT BLINK., Malfunction Indicator Light.>

5. Check that the malfunction indicator light remains blinking. <Ref. to EN(H4DOTC)(diag)-47, MALFUNCTION INDICATOR
LIGHT REMAINS BLINKING., Malfunction Indicator Light.>
