Subaru Legacy (2005 year). Manual - part 313





EN(H4DOTC)(diag)-21

ENGINE (DIAGNOSTICS)

General Scan Tool

8. General Scan Tool

A: OPERATION

1. HOW TO USE GENERAL SCAN TOOL

1) Prepare a general scan tool (general scan tool)
required by SAE J1978.

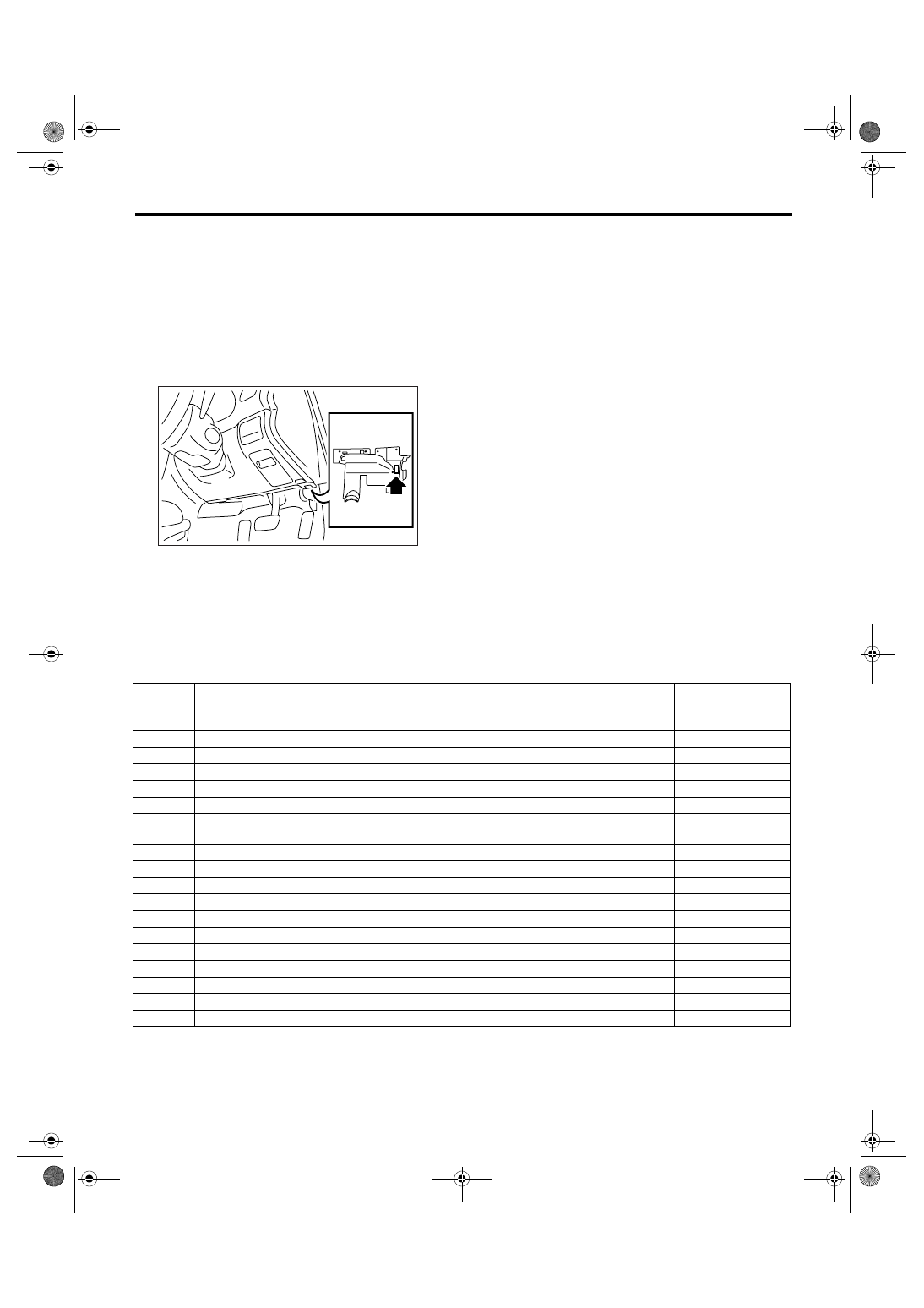

2) Open the cover and connect the general scan
tool to data link connector located in the lower por-
tion of the instrument panel (on the driver’s side).

3) Using the general scan tool, call up DTC and
freeze frame data.
General scan tool functions consist of:

(1) MODE $01: Current powertrain diagnostic
data
(2) MODE $02: Powertrain freeze frame data
(3) MODE $03: Emission-related powertrain
DTC
(4) MODE $04: Clear/Reset emission-related
diagnostic information
(5) MODE $06: Request on-board monitoring
test results for non-continuously monitored sys-
tems
(6) MODE $07: Request on-board monitoring
test results for continuously monitored systems
(7) MODE $09: Request vehicle information

Read out the data according to repair procedures.
(For detailed operation procedure, refer to the gen-
eral scan tool operation manual.)

NOTE:
For details concerning DTCs, refer to the List of Di-
agnostic Trouble Code (DTC). <Ref. to
EN(H4DOTC)(diag)-62, List of Diagnostic Trouble
Code (DTC).>

2. MODE $01 (CURRENT POWERTRAIN DIAGNOSTIC DATA)

Refer to data denoting the current operating condition of analog input/output, digital input/output or the pow-
ertrain system.
A list of the support data and PID (Parameter Identification) codes are shown in the following table.

NOTE:
Refer to general scan tool manufacturer’s operation manual to access current powertrain diagnostic data
(MODE $01).

EN-02097

PID

Data

Unit of measure

01

Number of emission-related powertrain DTC and malfunction indicator light status and diag-
nosis support information

03

Fuel system control status

04

Calculated engine load value

%

05

Engine coolant temperature

°C or °F

06

Short term fuel trim

%

07

Long term fuel trim

%

0B

Intake manifold absolute pressure

mmHg, kPa, inHg or

psig

0C

Engine revolution

rpm

0D

Vehicle speed

km/h or MPH

0E

Ignition timing advance

°

0F

Intake air temperature

°C or °F

10

Air flow rate from mass air flow sensor

gm/s

11

Throttle valve absolute opening angle

%

13

Check whether oxygen sensor is installed

15

Oxygen sensor output voltage and short term fuel trim associated with oxygen sensor

V and %

1C

Supporting OBD system

21

Driving distance after MIL illuminates

km or miles

24

A/F value and A/F sensor output voltage

— and V

EN(H4DOTC)(diag)-22

ENGINE (DIAGNOSTICS)

General Scan Tool

3. MODE $02 (POWERTRAIN FREEZE FRAME DATA)

Refer to data denoting the operating condition when trouble is detected by on-board diagnosis system.
A list of the support data and PID (Parameter Identification) codes are shown in the following table.

NOTE:
Refer to general scan tool manufacturer’s operation manual to access freeze frame data (MODE $02).

4. MODE $03 (EMISSION-RELATED POWERTRAIN DIAGNOSTIC TROUBLE CODE (DTC))

Refer to “List of Diagnostic Trouble Code (DTC)” for information about data denoting emission-related pow-
ertrain DTC. <Ref. to EN(H4DOTC)(diag)-62, List of Diagnostic Trouble Code (DTC).>

5. MODE $04 (CLEAR/RESET EMISSION-RELATED DIAGNOSTIC INFORMATION)

Refer to the mode used to clear or reset emission-related diagnostic information.

NOTE:
Refer to general scan tool manufacturer’s operation manual to clear or reset emission-related diagnostic in-
formation (MODE $04).

6. MODE $06

Refer to the test value of troubleshooting and data of test specification on the support data bit sequence ta-
ble. A list of the support data is shown in the following table.

7. MODE $07

Refer to the data of DTC (pending code) for troubleshooting result about emission in the first time.

PID

Data

Unit of measure

02

DTC that caused CARB required freeze frame data storage

03

Fuel system control status

04

Calculated engine load value

%

05

Engine coolant temperature

°C or °F

06

Short term fuel trim

%

07

Long term fuel trim

%

0B

Intake manifold absolute pressure

mmHg, kPa, inHg or

psig

0C

Engine revolution

rpm

0D

Vehicle speed

km/h or MPH

0E

Ignition timing advance

°

0F

Intake air temperature

°C or °F

10

Air flow rate from mass air flow sensor

gm/s

11

Throttle valve absolute opening angle

%

TID

CID

Test value & Test specification

$81

$01

Catalyst system efficiency

$83

$01

Evaporative emission control system (0.04 inch leak)

$02

Evaporative emission control system (0.04 inch leak)

$03

Evaporative emission control system (0.04 inch leak) (Immediate normality judg-
ment)

$04

Evaporative emission control system (0.04 inch leak)

$05

Evaporative emission control system (0.02 inch leak)

$86

Evaporative emission control system (0.02 inch leak)

$84

$01

A/F sensor circuit slow response (Bank 1 Sensor 1)

$85

$01

O

2

 sensor circuit slow response (Bank 1 Sensor 2) Rich

→ Lean

$02

O

2

 sensor circuit slow response (Bank 1 Sensor 2) Lean

→ Rich

$41

$81

O

2

 sensor circuit (Bank 1 Sensor 2)

$02

EN(H4DOTC)(diag)-23

ENGINE (DIAGNOSTICS)

General Scan Tool

8. MODE $09

Refer to the data of vehicle specification (VIN, calibration ID, etc.).

EN(H4DOTC)(diag)-24

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

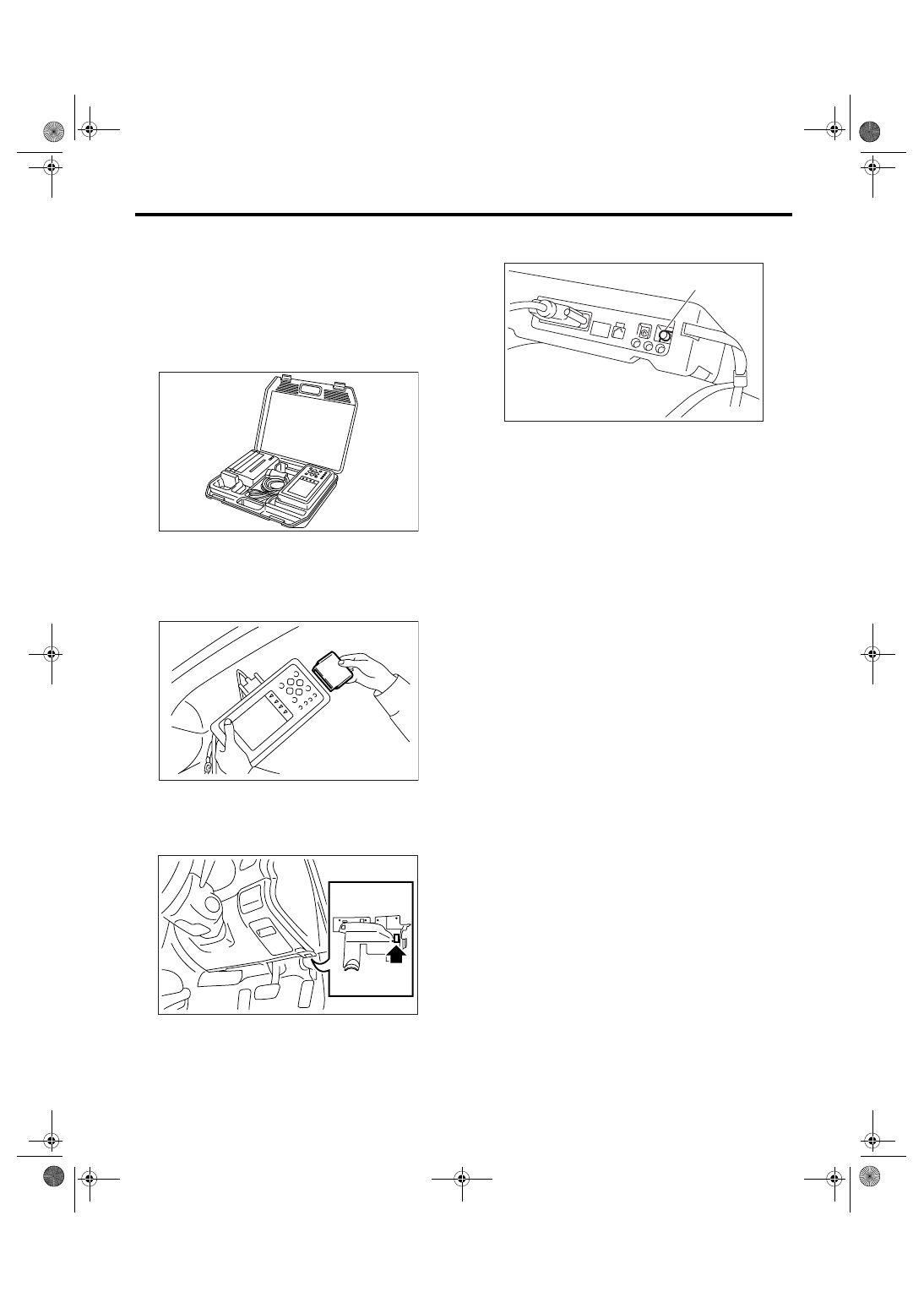

9. Subaru Select Monitor

A: OPERATION

1. HOW TO USE SUBARU SELECT MONI-
TOR

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4DOTC)(diag)-7, PREPARATION TOOL,
General Description.>

2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to Subaru Select Monitor.
<Ref. to EN(H4DOTC)(diag)-7, PREPARATION
TOOL, General Description.>

4) Connect the Subaru Select Monitor to data link
connector.

(1) Data link connector is located in the lower
portion of instrument panel (on the driver’s side).

(2) Connect the diagnosis cable to data link
connector.

CAUTION:
Do not connect any scan tools except Subaru
Select Monitor or general scan tool.

5) Turn the ignition switch to ON (engine OFF), and
the Subaru Select Monitor power switch to ON.

6) Using the Subaru Select Monitor, call up DTC
and data, then record them.

2. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (NORMAL MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTCs. <Ref. to
EN(H4DOTC)(diag)-29, Read Diagnostic Trouble
Code (DTC).>

3. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (OBD MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTCs. <Ref. to
EN(H4DOTC)(diag)-29, Read Diagnostic Trouble
Code (DTC).>

EN-00038

EN-00039

EN-02097

(A) Power switch

(A)

EN-00040
