CO(H4DOTC)-27

COOLING

Radiator Sub Fan and Fan Motor

9. Radiator Sub Fan and Fan

Motor

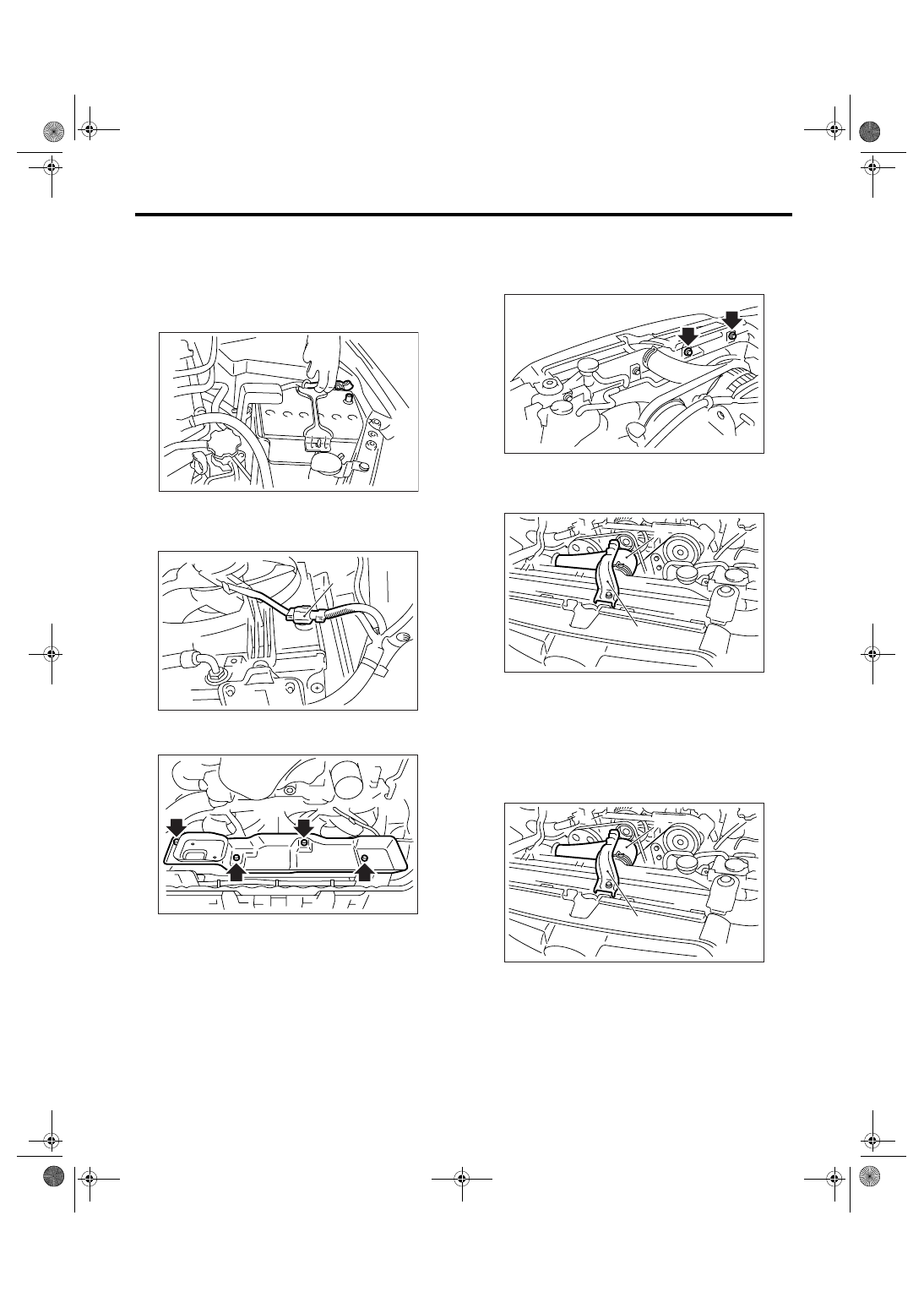

A: REMOVAL

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Lift-up the vehicle.
4) Remove the under cover.
5) Disconnect the sub fan motor connector (B).

6) Remove the heat shield cover from radiator.
(Model without ATF warmer)

7) Drain the coolant about 1

2 (1.06 US qt, 0.88

Imp qt). <Ref. to CO(H4DOTC)-13, DRAINING OF
ENGINE COOLANT, REPLACEMENT, Engine
Coolant.>
8) Disconnect the ATF hose from the clip of radia-
tor sub fan motor assembly.
9) Lower the vehicle.
10) Remove the air intake duct.
11) Disconnect the over flow hose.
12) Remove the over flow pipe.

13) Remove the reservoir tank. <Ref. to
CO(H4DOTC)-30, REMOVAL, Reservoir Tank.>
14) Remove the mounting bolts of radiator sub fan
motor assembly.

15) Disconnect the radiator inlet hose (A) from ra-
diator.
16) Remove the hood stay holder (B).

17) Remove the radiator sub fan motor assembly
from vehicle.

B: INSTALLATION

1) Install the radiator sub fan motor assembly to ve-
hicle.
2) Connect the radiator inlet hose (A) to radiator.
3) Install the hood stay holder (B).

IN-00203

CO-00252

(B)

CO-00250

CO-00292

CO-00255

(A)

(B)

CO-00255

(A)

(B)

CO(H4DOTC)-28

COOLING

Radiator Sub Fan and Fan Motor

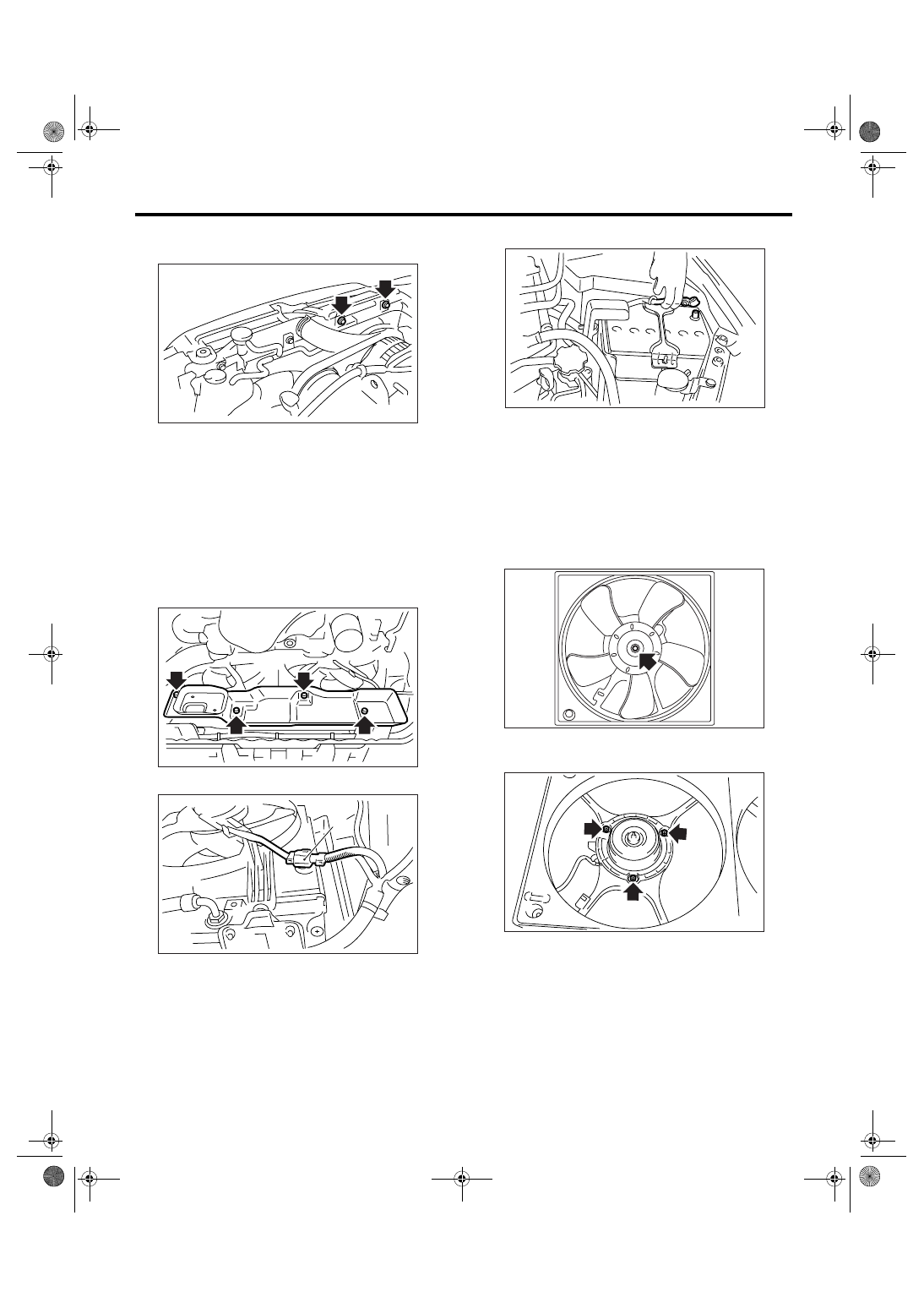

4) Install the mounting bolts of radiator sub fan mo-
tor assembly.

5) Install the reservoir tank. <Ref. to
CO(H4DOTC)-30, INSTALLATION, Reservoir
Tank.>
6) Install the over flow pipe.
7) Connect the over flow hose.
8) Install the air intake duct.
9) Lift-up the vehicle.
10) Connect the ATF hose to the clip of radiator
sub fan motor assembly.
11) Install the heat shield cover to radiator. (Model
without ATF warmer)

12) Connect the sub fan motor connector (B).

13) Install the under cover.
14) Lower the vehicle.

15) Connect the ground cable to battery.

16) Fill engine coolant.
<Ref. to CO(H4DOTC)-13, FILLING OF ENGINE
COOLANT, REPLACEMENT, Engine Coolant.>
17) Install the collector cover.

C: DISASSEMBLY

1) Remove the clip which holds fan motor connec-
tor onto shroud.
2) Remove the nut which holds fan itself onto fan
motor and shroud assembly.

3) Remove the bolts which install fan motor onto
the shroud.

CO-00292

CO-00250

CO-00252

(B)

IN-00203

CO-00097

CO-00050

CO(H4DOTC)-29

COOLING

Radiator Sub Fan and Fan Motor

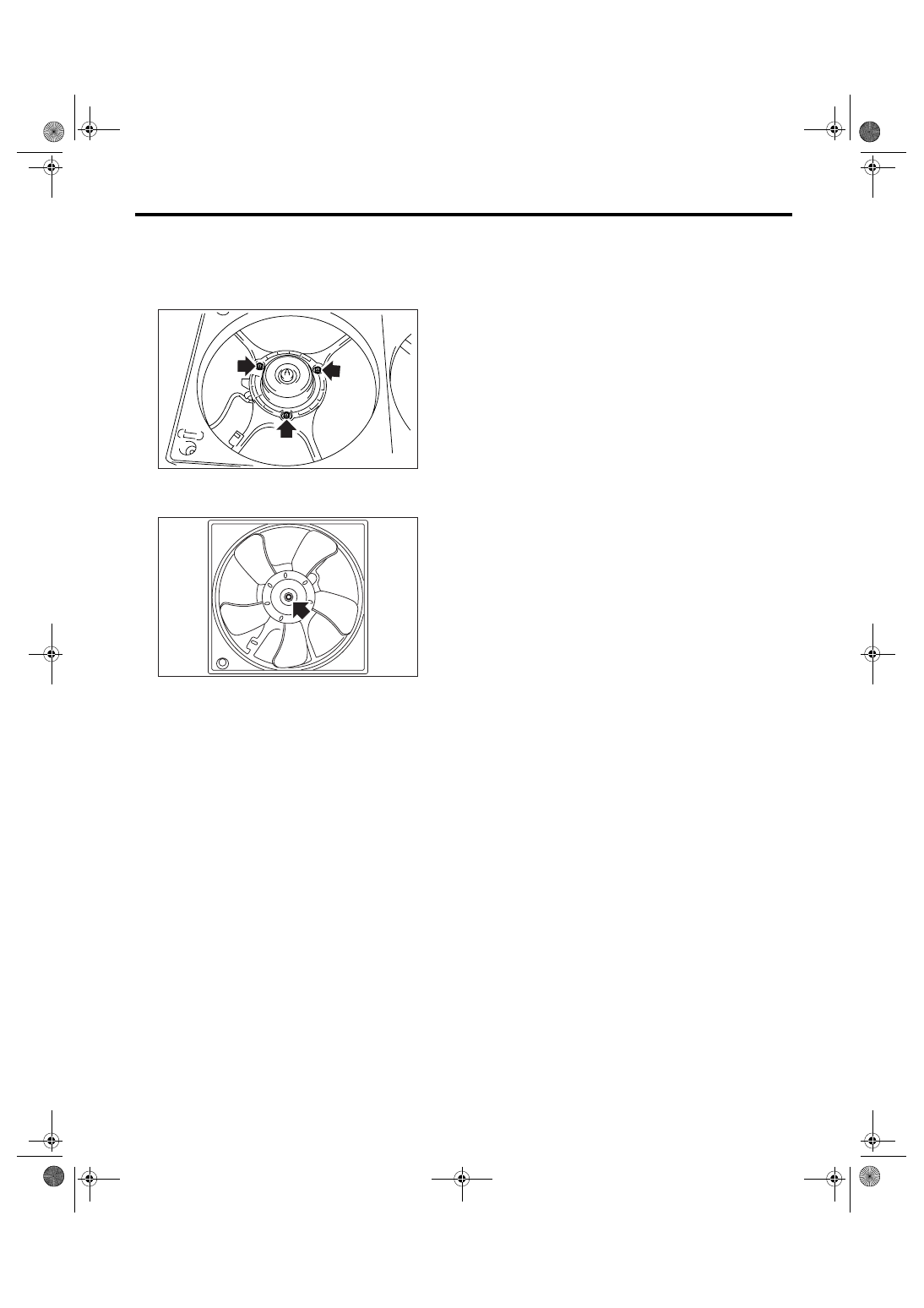

D: ASSEMBLY

Assemble in the reverse order of disassembly.

Tightening torque:

5.0 N

⋅

m (0.5 kgf-m, 3.7 ft-lb)

Tightening torque:

3.4 N

⋅

m (0.35 kgf-m, 2.5 ft-lb)

CO-00050

CO-00097

CO(H4DOTC)-30

COOLING

Reservoir Tank

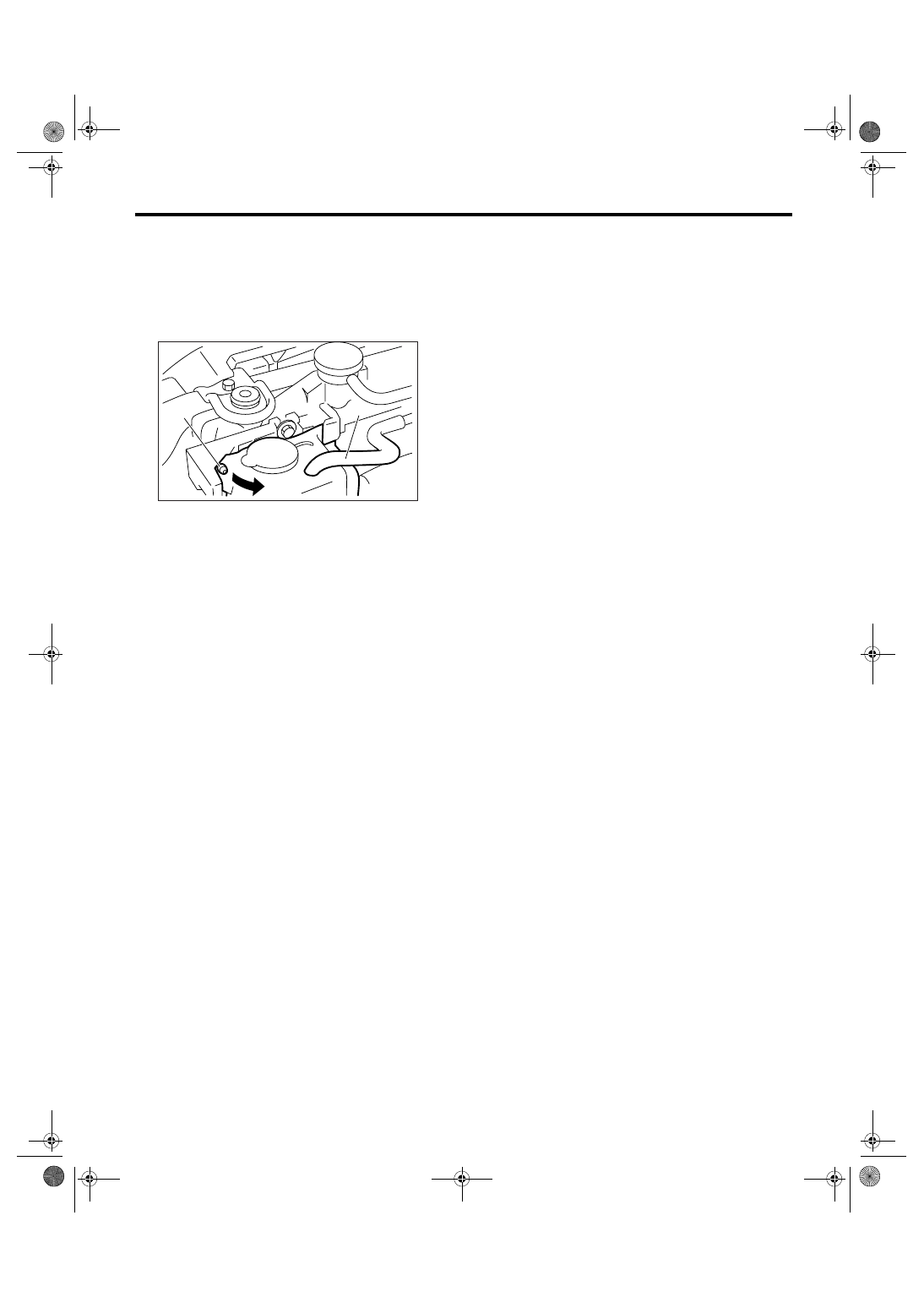

10.Reservoir Tank

A: REMOVAL

1) Remove the collector cover.
2) Disconnect the over flow hose (A).
3) Pull out the reservoir tank to the direction of ar-
row while pushing the pawl (B).

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Make sure the engine coolant level is between
“FULL” and “LOW”.

CO-00263

(B)

(A)
